ZVW55-AHXEB (2015)
Toyota Prius
(1511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89305 - CUSHION SET, ULTRASONIC SENSOR | ||||
| 89305-47010 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 89305-47010 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 89305 - CUSHION SET, ULTRASONIC SENSOR | ||||
| 89305-47010 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 89305-47010 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 89305 - CUSHION SET, ULTRASONIC SENSOR | ||||
| 89305-47010 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 89305-47010 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 89305 - CUSHION SET, ULTRASONIC SENSOR | ||||
| 89305-47010 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 89305-47010 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 89305A - CUSHION SET, ULTRASONIC SENSOR, NO.2 | ||||
| 89305-15010 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 89305-15010 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 89305A - CUSHION SET, ULTRASONIC SENSOR, NO.2 | ||||
| 89305-15010 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 89305-15010 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 89340A - COMPUTER ASSY, CLEARANCE WARNING | ||||
| 89340-47010 |
ZVW51,55..A,PREM |
1 | ||
| 89340-47010 |
ZVW50,55..S ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 89340-47050 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 89340-47050 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 89341K - SENSOR, ULTRASONIC, FRONT CORNER | ||||
| 89341-48040B6 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1F7 |
2 | ||
| 89341-48040A2 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SUPER WHITE 2,040 |
2 | ||
| 89341-48040B7 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GRAY ME.,1G3 |
2 | ||
| 89341-48040A3 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070 ,2QJ |
2 | ||
| 89341-48040D1 |
ZVW51,55..A..CBU EMOTIONAL RED,3T7 |
2 | ||
| 89341-48040A3 |
ZVW51,55..A..CBU WHITE PEARL CS.,070 |
2 | ||
| 89341-48040B6 |
ZVW51,55..(A,PREM)..CBU SILVER ME.,1F7 |
2 | ||
| 89341-48040A2 |
ZVW51,55..(A,PREM)..CBU SUPER WHITE 2,040 |
2 | ||
| 89341-48040E2 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STEEL BLONDE,2RB ,4X1 |
2 | ||
| 89341-48040E2 |
ZVW51,55..(A,PREM)..CBU STEEL BLONDE,4X1 |
2 | ||
| 89341-48040D1 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,EMOTIONAL RED,3T7 |
2 | ||
| 89341-48040B7 |
ZVW51,55..(A,PREM)..CBU GRAY ME.,1G3 |
2 | ||
| 89341-48040J1 |
ZVW51,55..(A,PREM)..CBU DK.BLUE M.M.,8W7 |
2 | ||
| 89341-48040G0 |
ZVW51,55..(A,PREM)..CBU THERMO-TECT LIME GREEN,6W7 |
2 | ||
| 89341-48040C4 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,ATTITUDE BLACK MC.,218 |
2 | ||
| 89341-48040J1 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.BLUE M.M.,2RC ,8W7 |
2 | ||
| 89341-48040G0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,THERMO-TECT LIME GREEN,6W7 |
2 | ||
| 89341-48040C4 |
ZVW51,55..(A,PREM)..CBU ATTITUDE BLACK MC.,218 |
2 | ||
| 89341L - SENSOR, ULTRASONIC, FRONT CENTER | ||||
| 89341-48040C3 |
ZVW51,55..(A,PREM)..CBU DUMMY-MAT BLACK |
2 | ||
| 89341-48040C3 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DUMMY-MAT BLACK |
2 | ||
| 89341M - SENSOR, ULTRASONIC, FRONT SIDE | ||||
| 89341-58070A0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070 ,2QJ |
2 | ||
| 89341-58070B0 |
ZVW51,55..(A,PREM)..CBU SILVER ME.,1F7 |
2 | ||
| 89341-58070A0 |
ZVW51,55..A..CBU WHITE PEARL CS.,070 |
2 | ||
| 89341-58070D0 |
ZVW51,55..A..CBU EMOTIONAL RED,3T7 |
2 | ||
| 89341-58070B1 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GRAY ME.,1G3 |
2 | ||
| 89341-58070E0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STEEL BLONDE,2RB ,4X1 |
2 | ||
| 89341-58070C3 |
ZVW51,55..(A,PREM)..CBU ATTITUDE BLACK MC.,218 |
2 | ||
| 89341-58070B0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1F7 |
2 | ||
| 89341-58070B1 |
ZVW51,55..(A,PREM)..CBU GRAY ME.,1G3 |
2 | ||
| 89341-58070G0 |
ZVW51,55..(A,PREM)..CBU THERMO-TECT LIME GREEN,6W7 |
2 | ||
| 89341-58070D0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,EMOTIONAL RED,3T7 |
2 | ||
| 89341-58070A2 |
ZVW51,55..(A,PREM)..CBU SUPER WHITE 2,040 |
2 | ||
| 89341-58070E0 |
ZVW51,55..(A,PREM)..CBU STEEL BLONDE,4X1 |
2 | ||
| 89341-58070C3 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,ATTITUDE BLACK MC.,218 |
2 | ||
| 89341-58070J1 |
ZVW51,55..(A,PREM)..CBU DK.BLUE M.M.,8W7 |
2 | ||
| 89341-58070A2 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SUPER WHITE 2,040 |
2 | ||
| 89341-58070J1 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.BLUE M.M.,2RC ,8W7 |
2 | ||
| 89341-58070G0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,THERMO-TECT LIME GREEN,6W7 |
2 | ||
| 89342 - SENSOR, ULTRASONIC, REAR CORNER | ||||
| 89341-48040A3 |
ZVW51,55..A..CBU WHITE PEARL CS.,070 |
2 | ||
| 89341-48040A2 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SUPER WHITE 2,040 |
2 | ||
| 89341-48040A2 |
ZVW51,55..(A,PREM)..CBU SUPER WHITE 2,040 |
2 | ||
| 89341-48040B6 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1F7 |
2 | ||
| 89341-48040A3 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070 ,2QJ |
2 | ||
| 89341-48040B7 |
ZVW51,55..(A,PREM)..CBU GRAY ME.,1G3 |
2 | ||
| 89341-48040B6 |
ZVW51,55..(A,PREM)..CBU SILVER ME.,1F7 |
2 | ||
| 89341-48040D1 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,EMOTIONAL RED,3T7 |
2 | ||
| 89341-48040B7 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GRAY ME.,1G3 |
2 | ||
| 89341-48040G0 |
ZVW51,55..(A,PREM)..CBU THERMO-TECT LIME GREEN,6W7 |
2 | ||
| 89341-48040J1 |
ZVW51,55..(A,PREM)..CBU DK.BLUE M.M.,8W7 |
2 | ||
| 89341-48040D1 |
ZVW51,55..A..CBU EMOTIONAL RED,3T7 |
2 | ||
| 89341-48040G0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,THERMO-TECT LIME GREEN,6W7 |
2 | ||
| 89341-48040E2 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STEEL BLONDE,2RB ,4X1 |
2 | ||
| 89341-48040C4 |
ZVW51,55..(A,PREM)..CBU ATTITUDE BLACK MC.,218 |
2 | ||
| 89341-48040C4 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,ATTITUDE BLACK MC.,218 |
2 | ||
| 89341-48040J1 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.BLUE M.M.,2RC ,8W7 |
2 | ||
| 89341-48040E2 |
ZVW51,55..(A,PREM)..CBU STEEL BLONDE,4X1 |
2 | ||
| 89342A - SENSOR, ULTRASONIC, REAR CENTER | ||||
| 89341-48040B7 |
ZVW51,55..(A,PREM)..CBU GRAY ME.,1G3 |
2 | ||
| 89341-48040A3 |
ZVW51,55..A..CBU WHITE PEARL CS.,070 |
2 | ||
| 89341-48040B7 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GRAY ME.,1G3 |
2 | ||
| 89341-48040A2 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SUPER WHITE 2,040 |
2 | ||
| 89341-48040D1 |
ZVW51,55..A..CBU EMOTIONAL RED,3T7 |
2 | ||
| 89341-48040G0 |
ZVW51,55..(A,PREM)..CBU THERMO-TECT LIME GREEN,6W7 |
2 | ||
| 89341-48040E2 |
ZVW51,55..(A,PREM)..CBU STEEL BLONDE,4X1 |
2 | ||
| 89341-48040A2 |
ZVW51,55..(A,PREM)..CBU SUPER WHITE 2,040 |
2 | ||
| 89341-48040B6 |
ZVW51,55..(A,PREM)..CBU SILVER ME.,1F7 |
2 | ||
| 89341-48040C4 |
ZVW51,55..(A,PREM)..CBU ATTITUDE BLACK MC.,218 |
2 | ||
| 89341-48040A3 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070 ,2QJ |
2 | ||
| 89341-48040G0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,THERMO-TECT LIME GREEN,6W7 |
2 | ||
| 89341-48040B6 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1F7 |
2 | ||
| 89341-48040D1 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,EMOTIONAL RED,3T7 |
2 | ||
| 89341-48040J1 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.BLUE M.M.,2RC ,8W7 |
2 | ||
| 89341-48040C4 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,ATTITUDE BLACK MC.,218 |
2 | ||
| 89341-48040E2 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STEEL BLONDE,2RB ,4X1 |
2 | ||
| 89341-48040J1 |
ZVW51,55..(A,PREM)..CBU DK.BLUE M.M.,8W7 |
2 | ||
| 89342B - SENSOR, ULTRASONIC, REAR SIDE | ||||
| 89341-58070A0 |
ZVW51,55..A..CBU WHITE PEARL CS.,070 |
2 | ||
| 89341-58070A0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070 ,2QJ |
2 | ||
| 89341-58070A2 |
ZVW51,55..(A,PREM)..CBU SUPER WHITE 2,040 |
2 | ||
| 89341-58070B0 |
ZVW51,55..(A,PREM)..CBU SILVER ME.,1F7 |
2 | ||
| 89341-58070C3 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,ATTITUDE BLACK MC.,218 |
2 | ||
| 89341-58070A2 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SUPER WHITE 2,040 |
2 | ||
| 89341-58070C3 |
ZVW51,55..(A,PREM)..CBU ATTITUDE BLACK MC.,218 |
2 | ||
| 89341-58070G0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,THERMO-TECT LIME GREEN,6W7 |
2 | ||
| 89341-58070B1 |
ZVW51,55..(A,PREM)..CBU GRAY ME.,1G3 |
2 | ||
| 89341-58070G0 |
ZVW51,55..(A,PREM)..CBU THERMO-TECT LIME GREEN,6W7 |
2 | ||
| 89341-58070D0 |
ZVW51,55..A..CBU EMOTIONAL RED,3T7 |
2 | ||
| 89341-58070B0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1F7 |
2 | ||
| 89341-58070J1 |
ZVW51,55..(A,PREM)..CBU DK.BLUE M.M.,8W7 |
2 | ||
| 89341-58070B1 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GRAY ME.,1G3 |
2 | ||
| 89341-58070E0 |
ZVW51,55..(A,PREM)..CBU STEEL BLONDE,4X1 |
2 | ||
| 89341-58070E0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STEEL BLONDE,2RB ,4X1 |
2 | ||
| 89341-58070D0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,EMOTIONAL RED,3T7 |
2 | ||
| 89341-58070J1 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.BLUE M.M.,2RC ,8W7 |
2 | ||
| 89343C - BUZZER, CLEARANCE WARNING, NO.1 | ||||
| 89343-48010 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 89343-48010 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 89343D - BUZZER, CLEARANCE WARNING, NO.2 | ||||
| 89343-12020 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 89343-12020 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 89348J - CLIP, ULTRASONIC SENSOR | ||||
| 89348-58130 |
ZVW51,55..(A,PREM)..CBU |
2 | ||
| 89348-58130 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
2 | ||
| Common parts | ||||
| 91673-80616 | ||||

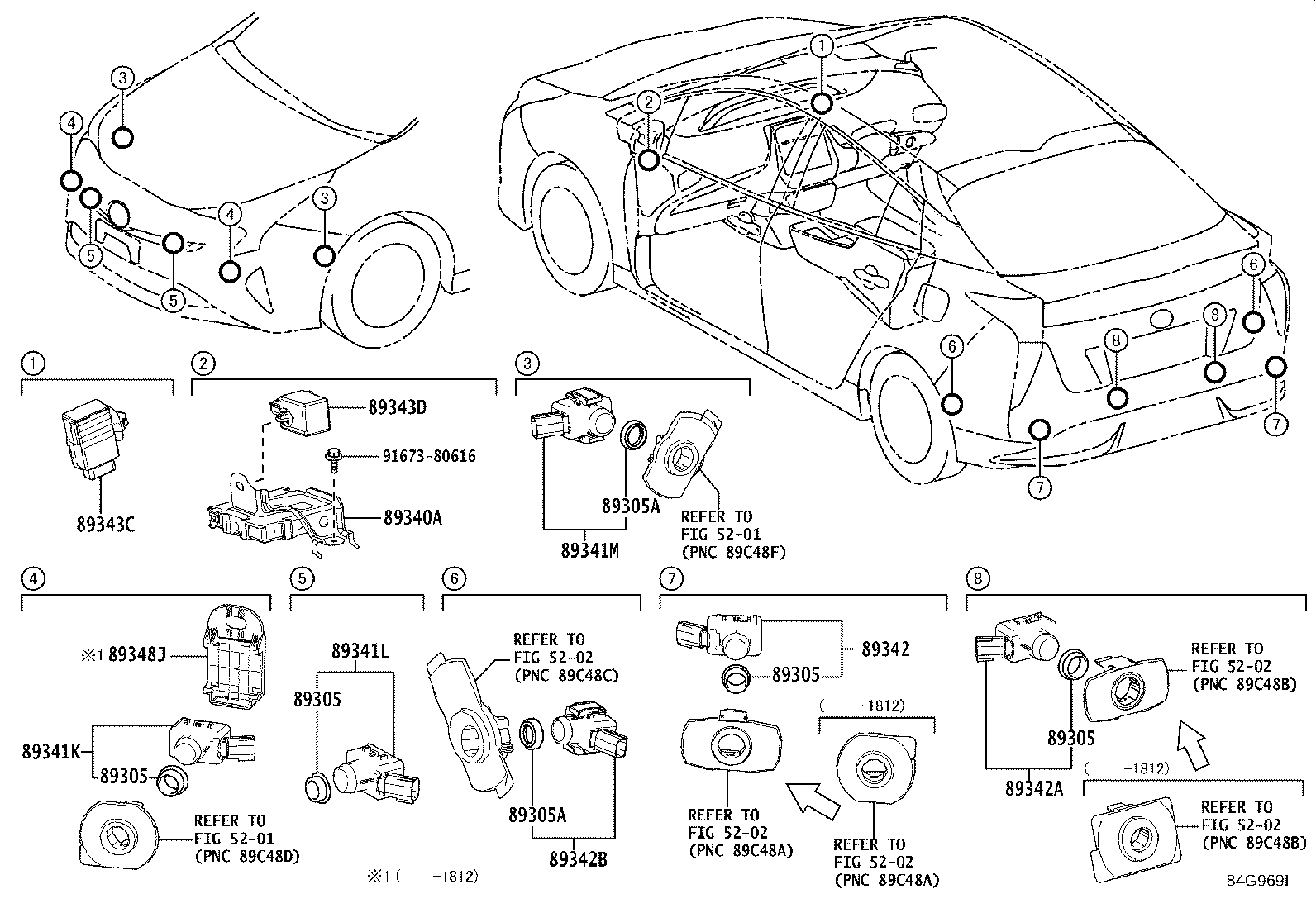

| Linked diagrams | ||||
| 5201 | ||||
| 5202 | ||||
