ZVW55-AHXEB (2015)

Toyota Prius

Production Nov 2015 - Dec 2018
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )

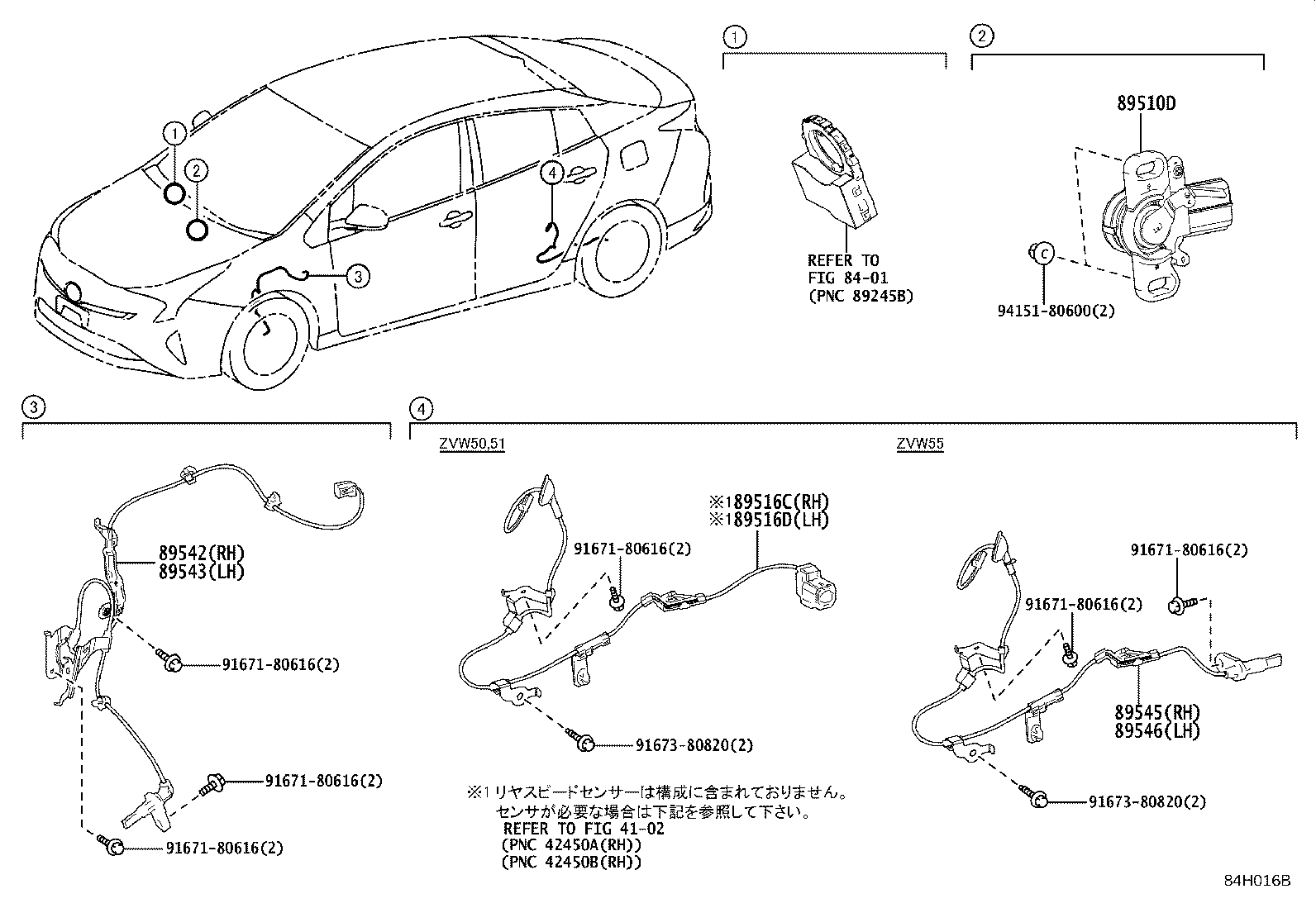

Click highlighted areas on diagram

diagram 4102 8401 89510D 89516C 89516D 89542 89543 89545 89546 9167180616 9167180616 9167180616 9167180616 9167180616 9167180616 9167380820 9167380820 9415180600
Part # Description Qty Price
89510D - SENSOR ASSY, BRAKE PEDAL STROKE
89510-47030

ZVW5#..CBU

 1
89542 - SENSOR, SPEED, FRONT RH
89542-47040

ZVW5#..CBU

 1
89543 - SENSOR, SPEED, FRONT LH
89543-47040

ZVW5#..CBU

 1
89545 - SENSOR, SPEED, REAR RH
89545-47010

ZVW55..CBU

 1
89546 - SENSOR, SPEED, REAR LH
89546-47010

ZVW55..CBU

 1
Common parts
91671-80616
91673-80820
94151-80600
Linked diagrams
4102
8401
