ZVW55-AHXEB (2015)
Toyota Prius

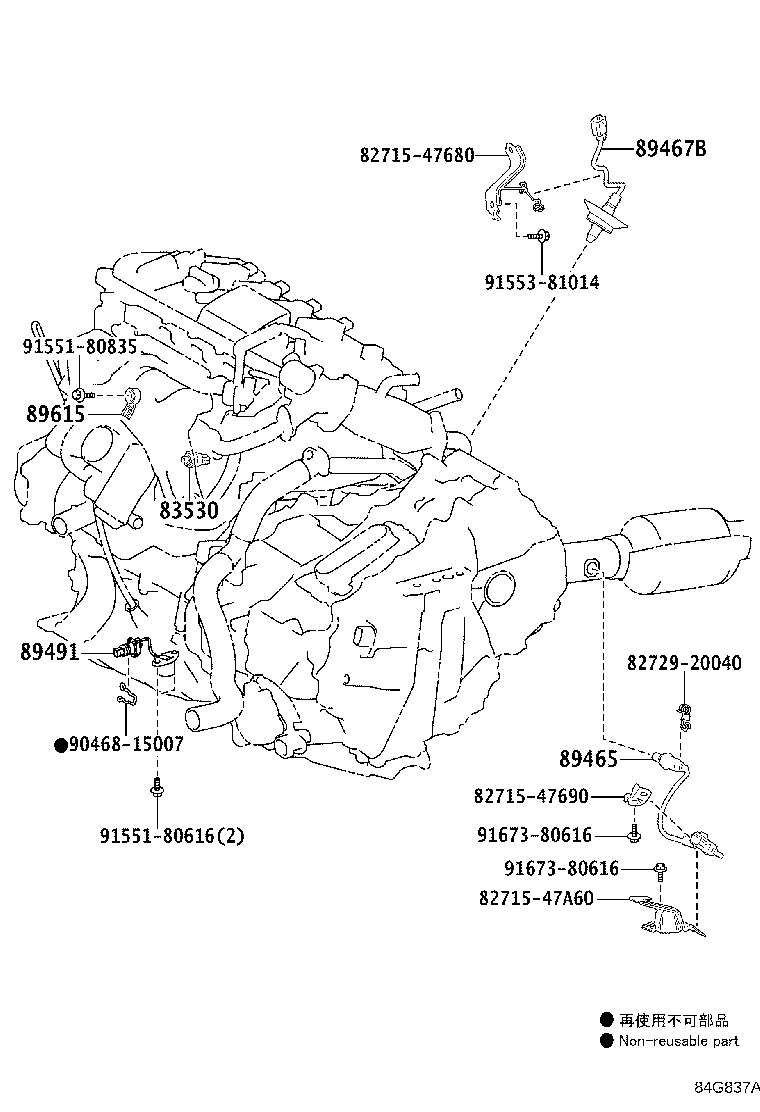

ILLUST NO. 1 OF 9(1511- )
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-12060 |
ZVW5#..CBU |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-47090 |
ZVW5#..CBU |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-47030 |
ZVW5#..CBU |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-47010 |
ZVW5#..CBU |
1 | ||
| 89491-47011 |
ZVW5#..CBU |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ZVW5#..CBU |
1 | ||
| Common parts | ||||
| 82715-47680 | ||||
| 82715-47690 | ||||
| 82715-47A60 | ||||
| 82729-20040 | ||||
| 90468-15007 | ||||
| 91551-80616 | ||||
| 91551-80835 | ||||
| 91553-81014 | ||||
| 91673-80616 | ||||

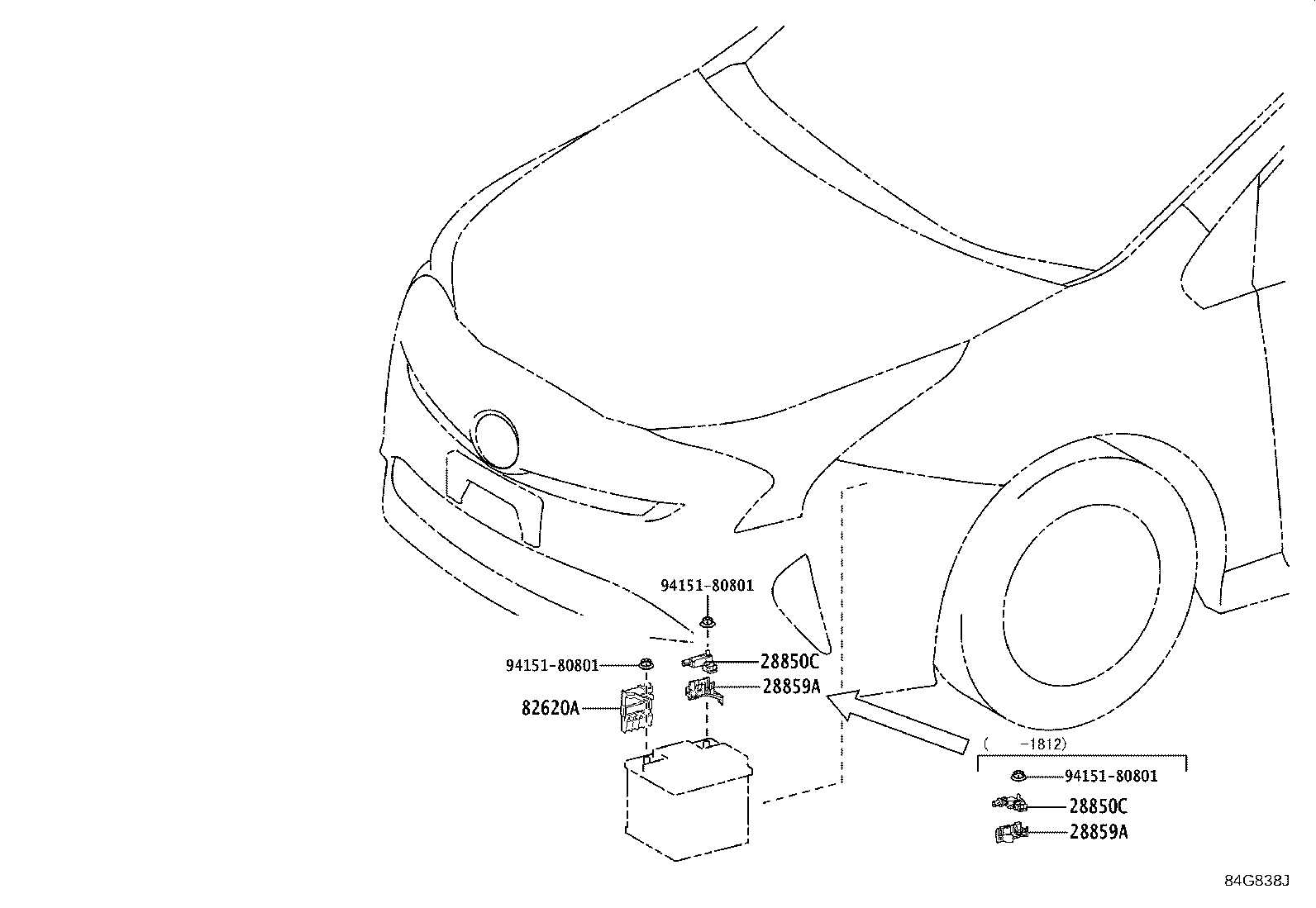

ILLUST NO. 2 OF 9(1511- )
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-37070 |
2ZRFXE..ZVW5#..CBU |
1 | ||
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-37070 |
2ZRFXE..ZVW5#..CBU |
1 | ||
| 28859A - HOLDER, BATTERY CURRENT SENSOR | ||||
| 28859-37030 |
2ZRFXE..ZVW5#..CBU |
1 | ||
| 28859A - HOLDER, BATTERY CURRENT SENSOR | ||||
| 28859-37030 |
2ZRFXE..ZVW5#..CBU |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-47090 |
ZVW5#..CBU |
1 | ||
| Common parts | ||||
| 94151-80801 | ||||

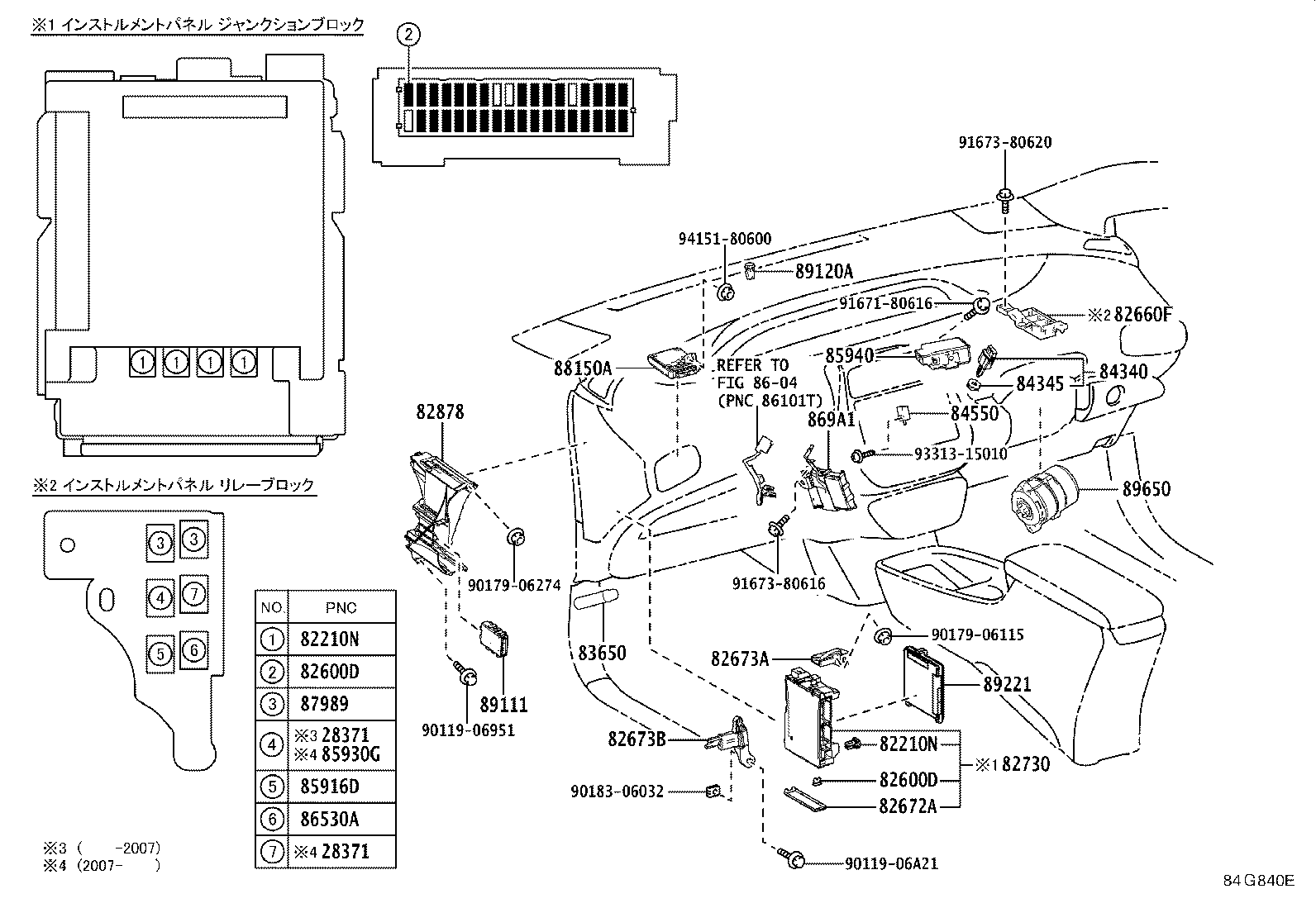

ILLUST NO. 4 OF 9(1511- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02027 |
2ZRFXE..ZVW5#..(A,S)..CBU ”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ” |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02027 |
2ZRFXE..ZVW5#..(A,S)..CBU ”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ” |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZVW5#..CBU 30A,ﾒｽ端子,桃 |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZVW5#..CBU 30A,ﾒｽ端子,桃 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09020 |
ZVW5#..CBU 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
ZVW5#..CBU 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09019 |
ZVW5#..CBU 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09022 |
ZVW5#..CBU 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
ZVW5#..CBU 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09020 |
ZVW5#..CBU 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
ZVW5#..CBU 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09019 |
ZVW5#..CBU 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09022 |
ZVW5#..CBU 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
ZVW5#..CBU 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-47060 |
ZVW5#..CBU |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-47150 |
ZVW5#..CBU |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-47190 |
ZVW5#..CBU |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-47210 |
ZVW5#..CBU |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-47530 |
ZVW5#..CBU |
1 | ||
| 82878 - BOX, COMPUTER INTEGRATION, LH | ||||
| 82878-47020 |
ZVW5#..CBU |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
ZVW5#..CBU |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-49075 |
ZVW5#..CBU |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ZVW5#..CBU |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
ZVW5#..CBU |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 90987-02027 |
ZVW50,55..S..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-47060 |
ZVW50,55..S..CBU S”Safety Plus”*(A)&Toyota Safety Sense−有り |
1 | ||
| 85940-47060 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 86530A - RELAY, HORN | ||||
| 90987-02027 |
ZVW5#..CBU |
1 | ||
| 869A1 - COMPUTER, INTELLIGENT TRANSPORT SYSTEMS COMMUNICATION | ||||
| 869A0-47010 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ITS Connect−有り |
1 | ||
| 869A0-47010 |
ZVW5#..CBU ITS Connect−有り |
1 | ||
| 869A0-47010 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ITS Connect−有り |
1 | ||
| 87989 - RELAY, MIRROR CONTROL | ||||
| 85927-22010 |
ZVW5#..CBU |
2 | ||
| 90987-04004 |
ZVW5#..CBU |
2 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-47160 |
ZVW5#..(E,S)..CBU Toyota Safety Sense−有り |
1 | ||
| 88150-47140 |
ZVW5#..(E,S)..CBU Toyota Safety Sense−有り |
1 | ||
| 88150-47110 |
ZVW5#..(E,S)..CBU Toyota Safety Sense−有り |
1 | ||
| 88150-47140 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 88150-47160 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 88150-47110 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-47062 |
ZVW5#..CBU |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
ZVW5#..CBU |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-4ED30 |
ZVW5#..CBU |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-47570 |
ZVW5#..(A,PREM,S)..CBU ”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ” |
1 | ||
| 89650-47450 |
ZVW5#..(A,PREM,S)..CBU |
1 | ||
| 89650-47590 |
ZVW5#..(A,S)..CBU ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE4) |
1 | ||
| 89650-47570 |
ZVW50,55..S..CBU S”Safety Plus”*(A)&S“Safety Plus･Two Tone”*(B) |
1 | ||
| 89650-47590 |
ZVW5#..(A,S)..CBU ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE1) |
1 | ||
| 89650-47590 |
ZVW5#..(A,S)..CBU ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE2) |
1 | ||
| 89650-47590 |
ZVW5#..(A,S)..CBU ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE3) |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-06A21 | ||||
| 90179-06115 | ||||
| 90179-06274 | ||||
| 90183-06032 | ||||
| 91671-80616 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 93313-15010 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8604 | ||||

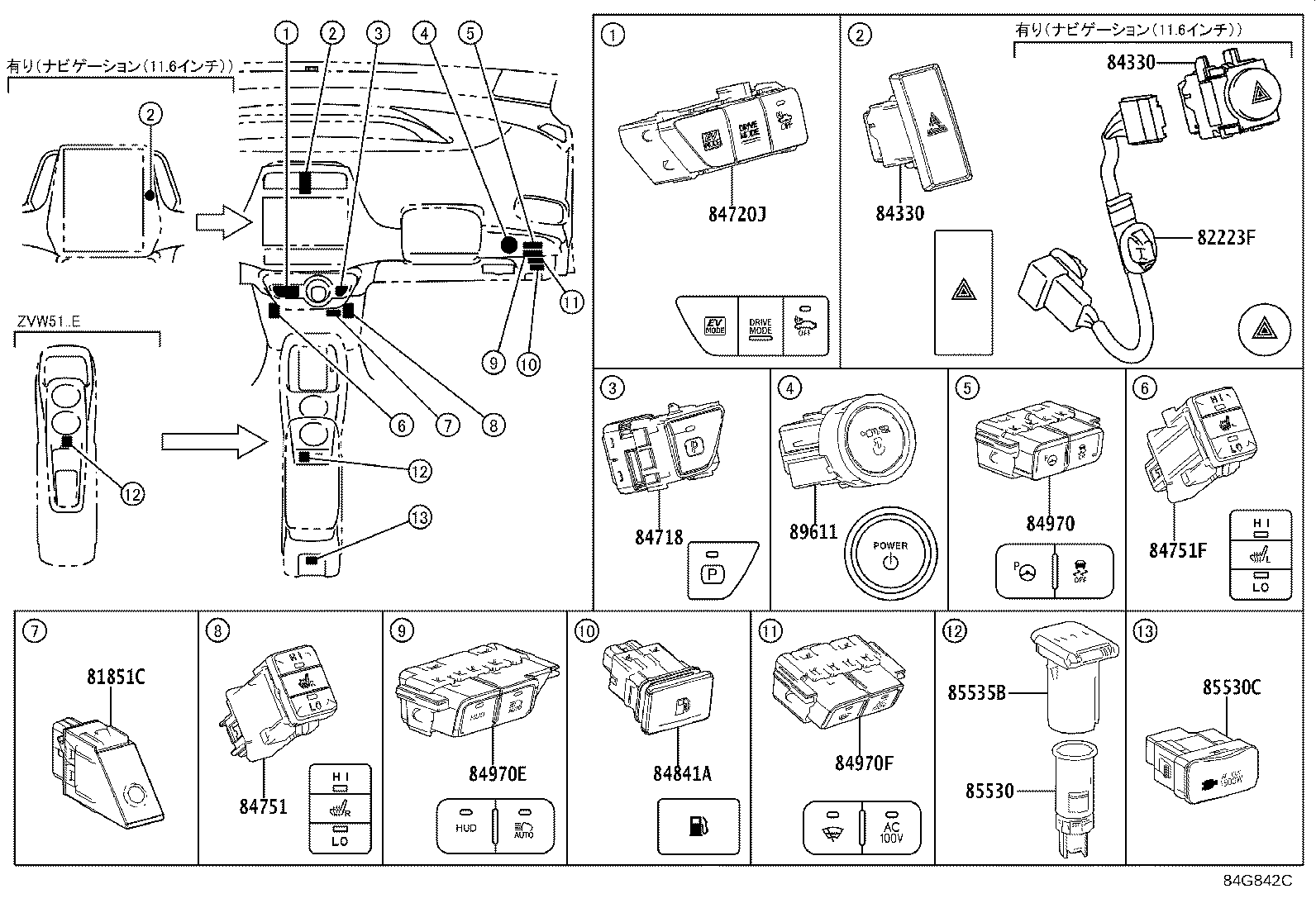

ILLUST NO. 5 OF 9(1511-1812)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81851C - LAMP ASSY, INDICATOR | ||||
| 81850-47030 |
ZVW5#..(A,S)..CBU ”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ” |
1 | ||
| 82223F - WIRE, SWITCH | ||||
| 82223-47030 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ |
1 | ||
| 82223-47030 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-47050 |
ZVW5#..CBU |
1 | ||
| 84332-47060 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ |
1 | ||
| 84332-47060 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-47050 |
ZVW5#..CBU |
1 | ||
| 84332-47060 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ |
1 | ||
| 84332-47060 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL |
1 | ||
| 84718 - SWITCH, TRANSMISSION SHIFT MAIN | ||||
| 84718-47090 |
ZVW5#..CBU |
1 | ||
| 84720J - SWITCH ASSY, PATTERN SELECT | ||||
| 84010-47290 |
ZVW5#..CBU |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-47070 |
ZVW5#..(A,S)..CBU ”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ” |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-47060 |
ZVW5#..(A,S)..CBU ”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ” |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-47020 |
ZVW5#..CBU |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84010-47270 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 84010-47270 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 84010-47280 |
ZVW5#..(E,S)..CBU |
1 | ||
| 84970E - SWITCH ASSY, COMBINATION NO.2 | ||||
| 84010-47210 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 84010-47210 |
ZVW50,55..S..CBU S”Safety Plus”*(A)&Toyota Safety Sense−有り |
1 | ||
| 84010-47250 |
ZVW5#..(E,S)..CBU Toyota Safety Sense−有り |
1 | ||
| 84970F - SWITCH ASSY, COMBINATION, NO.3 | ||||
| 84010-47330 |
ZVW5#..(A,S)..CBU 寒冷地仕様&外部電源−有り(AC100V 1500W:2個) |
1 | ||
| 84010-47340 |
ZVW5#..(A,E,S)..CBU 寒冷地仕様 |
1 | ||
| 84010-47350 |
ZVW5#..(A,S)..CBU 外部電源−有り(AC100V 1500W:2個) |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
ZVW5#..CBU |
1 | ||
| 85530C - SOCKET ASSY, POWER OUTLET, CENTER | ||||
| 85530-75010C0 |
ZVW5#..(A,S)..CBU 外部電源−有り(AC100V 1500W:2個),BLACK |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-47030 |
ZVW5#..CBU |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-30141 |
ZVW5#..CBU |
1 | ||
| 89611-30142 |
ZVW5#..CBU |
1 | ||

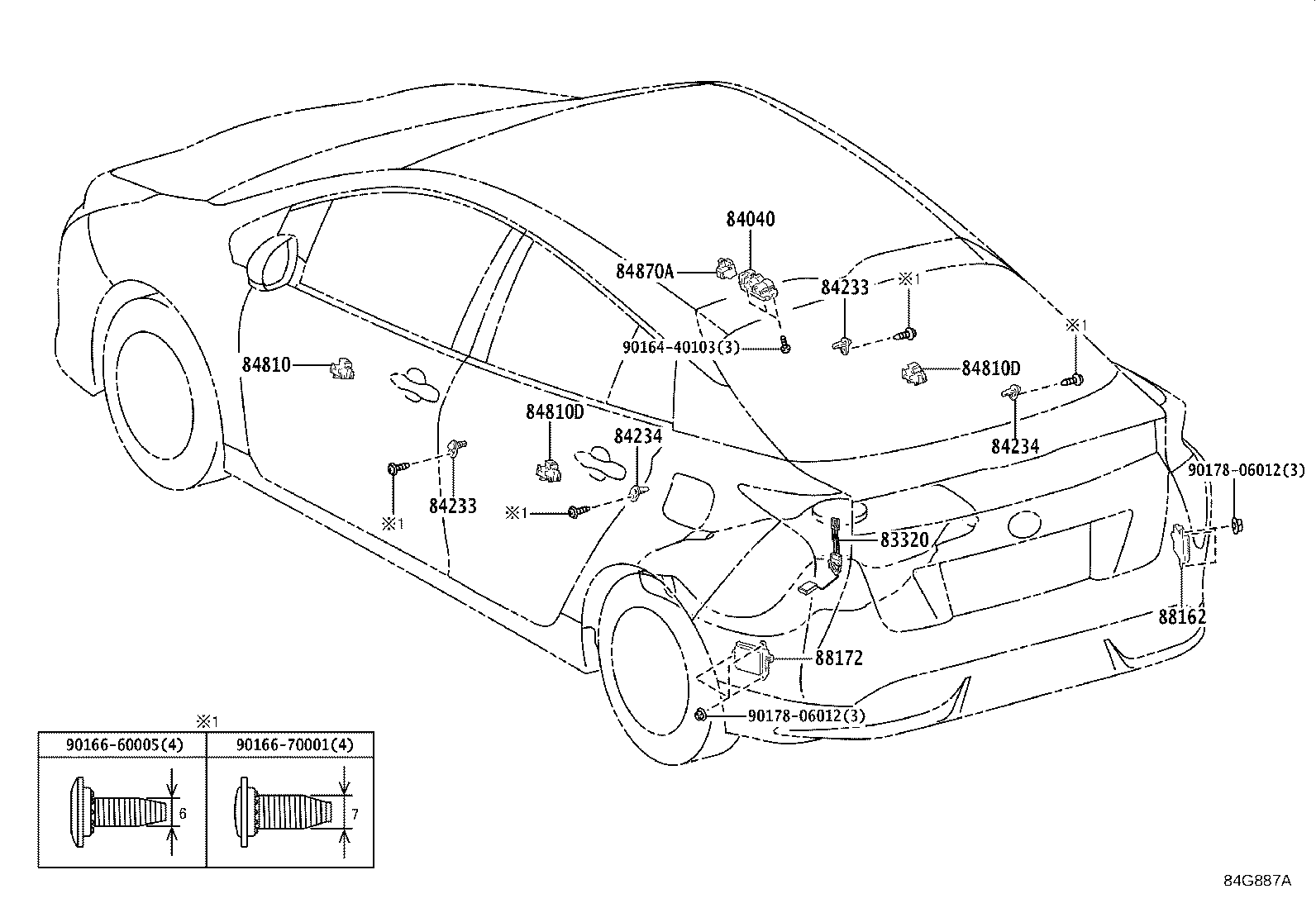

ILLUST NO. 8 OF 9(1511-1812)
ﾄﾞｱ & ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-47120 |
ZVW5#..(A,PREM,S)..CBU |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-47080 |
ZVW5#..CBU |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ZVW5#..CBU |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ZVW5#..CBU |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ZVW5#..CBU |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ZVW5#..CBU |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-47010 |
ZVW5#..CBU |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-47010 |
ZVW5#..CBU |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-47010 |
ZVW5#..CBU |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-47060 |
ZVW5#..CBU |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-0W270 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 88162-0W273 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 88162-0W271 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 88162-0W272 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-0W273 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 88162-0W272 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 88162-0W270 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 88162-0W271 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
| 90178-06012 | ||||

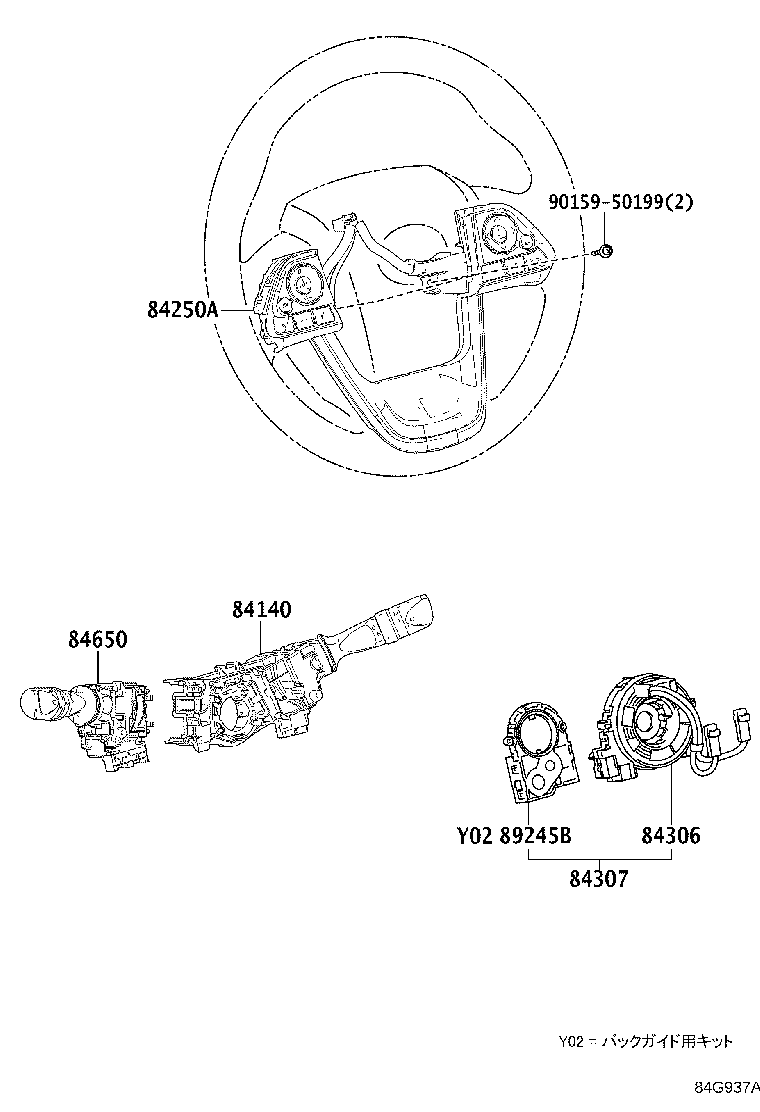

ILLUST NO. 6 OF 9(1511- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12A11 |
ZVW5#..(E,S)..CBU |
1 | ||
| 84140-12A21 |
ZVW5#..(E,S)..CBU 寒冷地仕様 |
1 | ||
| 84140-33231 |
ZVW50,55..S..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-33221 |
ZVW50,55..S..CBU 寒冷地仕様&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-33231 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 84140-33221 |
ZVW51,55..(A,PREM)..CBU 寒冷地仕様 |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-47530C1 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) , ﾅﾋﾞﾚﾃﾞｨｾｯﾄ用,BLACK,TRIM1#,2# |
1 | ||
| 84250-47530C1 |
ZVW51,55..(A,PREM)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) , ﾅﾋﾞﾚﾃﾞｨｾｯﾄ用,BLACK,TRIM1#,2# |
1 | ||
| 84250-47580C1 |
ZVW50,55..S..CBU Toyota Safety Sense−有り,BLACK,TRIM1#,2# |
1 | ||
| 84250-47580C1 |
ZVW51,55..(A,PREM)..CBU BLACK,TRIM1#,2# |
1 | ||
| 84250-47531C4 |
ZVW51,55..(A,PREM)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) , ﾅﾋﾞﾚﾃﾞｨｾｯﾄ用,WHITE & BLACK,TRIM1#,2# |
1 | ||
| 84250-47550C1 |
ZVW50,55..S..CBU BLACK,TRIM1#,2# |
1 | ||
| 84250-47531C3 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) , ﾅﾋﾞﾚﾃﾞｨｾｯﾄ用,BLACK & BLACK METALLC,TRIM22,23 |
1 | ||
| 84250-47541C3 |
ZVW50,55..S..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) , ﾅﾋﾞﾚﾃﾞｨｾｯﾄ用,WHITE & BLACK,TRIM1#,2# |
1 | ||
| 84250-47531C4 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き),WHITE & BLACK,TRIM1#,2# |
1 | ||
| 84250-47551C3 |
ZVW50,55..S..CBU WHITE & BLACK,TRIM1#,2# |
1 | ||
| 84250-47531C4 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) , ﾅﾋﾞﾚﾃﾞｨｾｯﾄ用,WHITE & BLACK,TRIM1#,20,21 |
1 | ||
| 84250-47581C2 |
ZVW51,55..(A,PREM)..CBU WHITE & BLACK,TRIM1#,2# |
1 | ||
| 84250-47531C4 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き),WHITE & BLACK,TRIM1#,2# |
1 | ||
| 84250-47581C2 |
ZVW50,55..S..CBU Toyota Safety Sense−有り,WHITE & BLACK,TRIM1#,2# |
1 | ||
| 84250-47540C1 |
ZVW50,55..S..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) , ﾅﾋﾞﾚﾃﾞｨｾｯﾄ用,BLACK,TRIM1#,2# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-47010 |
ZVW5#..CBU |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-47151 |
ZVW5#..CBU |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-58020 |
ZVW50,55..S..CBU S”Safety Plus”*(A) |
1 | ||
| 84652-47050 |
ZVW50,55..S..CBU |
1 | ||
| 84652-58020 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-47010 |
ZVW5#..CBU |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||

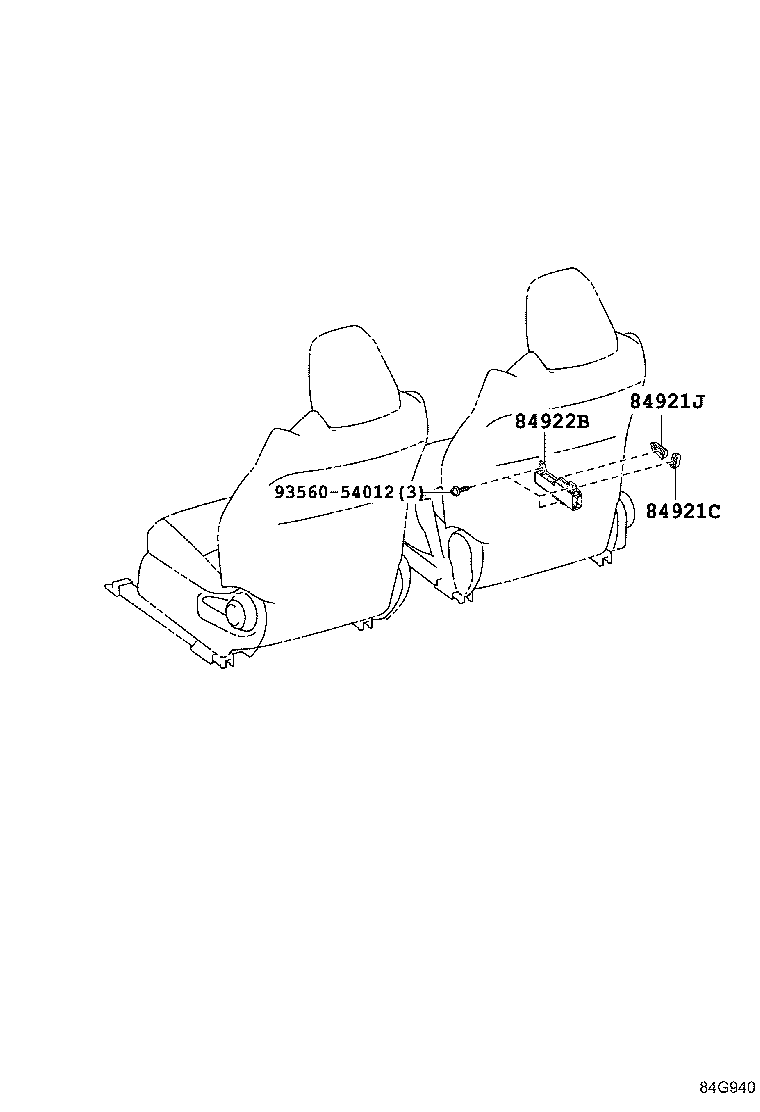

ILLUST NO. 7 OF 9(1511- )
ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 93560-54012 | ||||

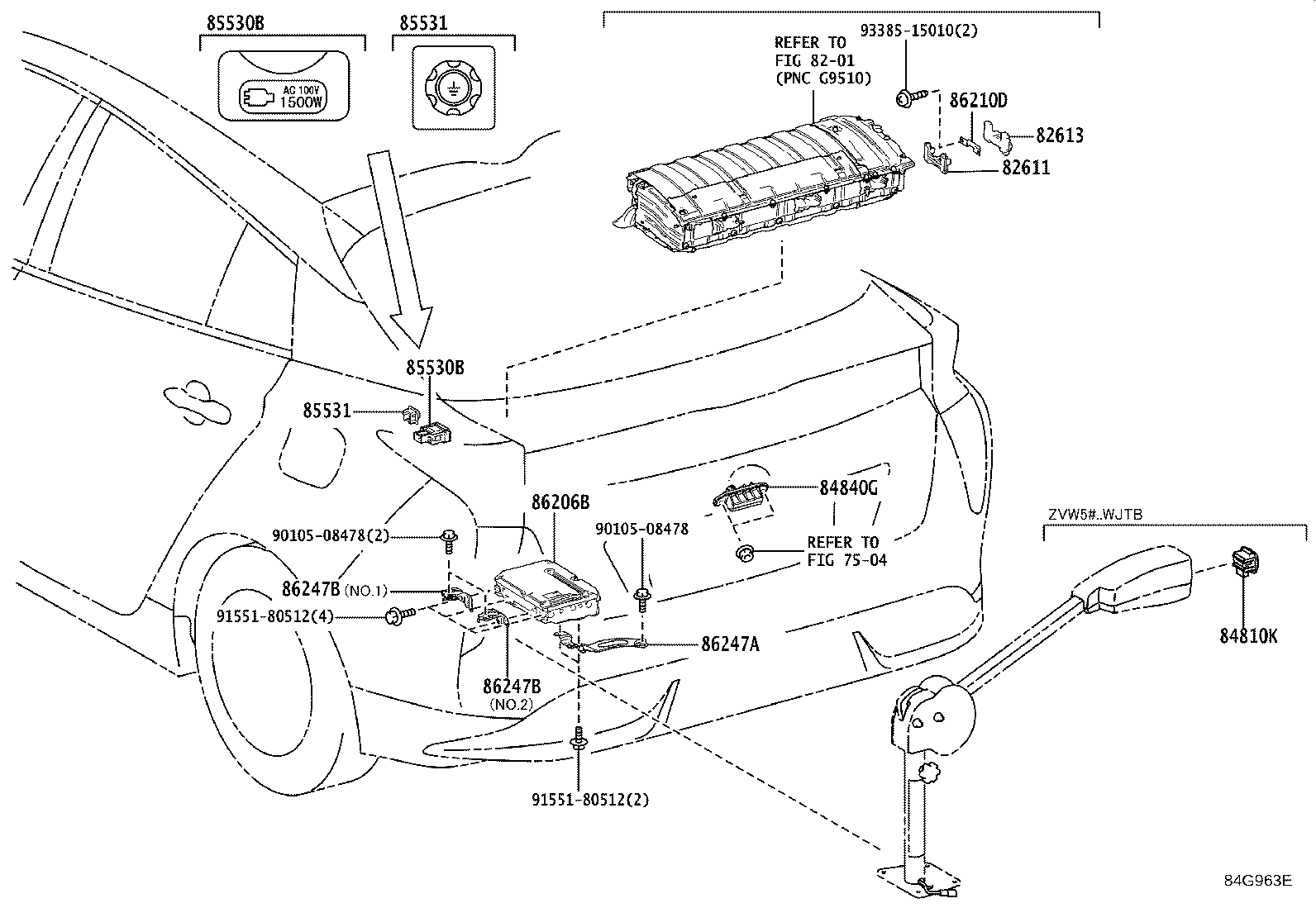

ILLUST NO. 9 OF 9(1511- )
ﾌﾛｱ & ﾊﾞｯｸﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-47060 |
ZVW5#..(A,S)..CBU 外部電源−有り(AC100V 1500W:2個) |
1 | ||
| 82613 - COVER, FUSE BLOCK | ||||
| 82613-47020 |
ZVW5#..(A,S)..CBU 外部電源−有り(AC100V 1500W:2個) |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-47040 |
ZVW5#..CBU |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-75010C0 |
ZVW5#..(A,S)..CBU 外部電源−有り(AC100V 1500W:2個),BLACK |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-75010C0 |
ZVW5#..(A,S)..CBU 外部電源−有り(AC100V 1500W:2個),BLACK |
1 | ||
| 85531 - SOCKET, POWER OUTLET | ||||
| 85530-28050C0 |
ZVW5#..(A,S)..CBU 外部電源−有り(AC100V 1500W:2個),BLACK,TRIM1#,2# |
1 | ||
| 85531 - SOCKET, POWER OUTLET | ||||
| 85530-28050C0 |
ZVW5#..(A,S)..CBU 外部電源−有り(AC100V 1500W:2個),BLACK,TRIM1#,2# |
1 | ||
| 86206B - INVERTER SUB-ASSY, VOLTAGE | ||||
| 8624A-47020 |
ZVW5#..(A,S)..CBU 外部電源−有り(AC100V 1500W:2個) |
1 | ||
| 86210D - FUSE, HIGH VOLTAGE | ||||
| 90982-11053 |
ZVW5#..(A,S)..CBU 外部電源−有り(AC100V 1500W:2個) |
1 | ||
| 86247A - BRACKET, VOLTAGE INVERTER | ||||
| 86247-47170 |
ZVW5#..(A,S)..CBU 外部電源−有り(AC100V 1500W:2個) |
1 | ||
| 86247B - BRACKET, VOLTAGE INVERTER | ||||
| 86247-47180 |
ZVW5#..(A,S)..CBU 外部電源−有り(AC100V 1500W:2個),NO.1 |
1 | ||
| 86247-47190 |
ZVW5#..(A,S)..CBU 外部電源−有り(AC100V 1500W:2個),NO.2 |
1 | ||
| 86247B - BRACKET, VOLTAGE INVERTER | ||||
| 86247-47180 |
ZVW5#..(A,S)..CBU 外部電源−有り(AC100V 1500W:2個),NO.1 |
1 | ||
| 86247-47190 |
ZVW5#..(A,S)..CBU 外部電源−有り(AC100V 1500W:2個),NO.2 |
1 | ||
| Common parts | ||||
| 90105-08478 | ||||
| 91551-80512 | ||||
| 93385-15010 | ||||
| Linked diagrams | ||||
| 7504 | ||||
| 8201 | ||||

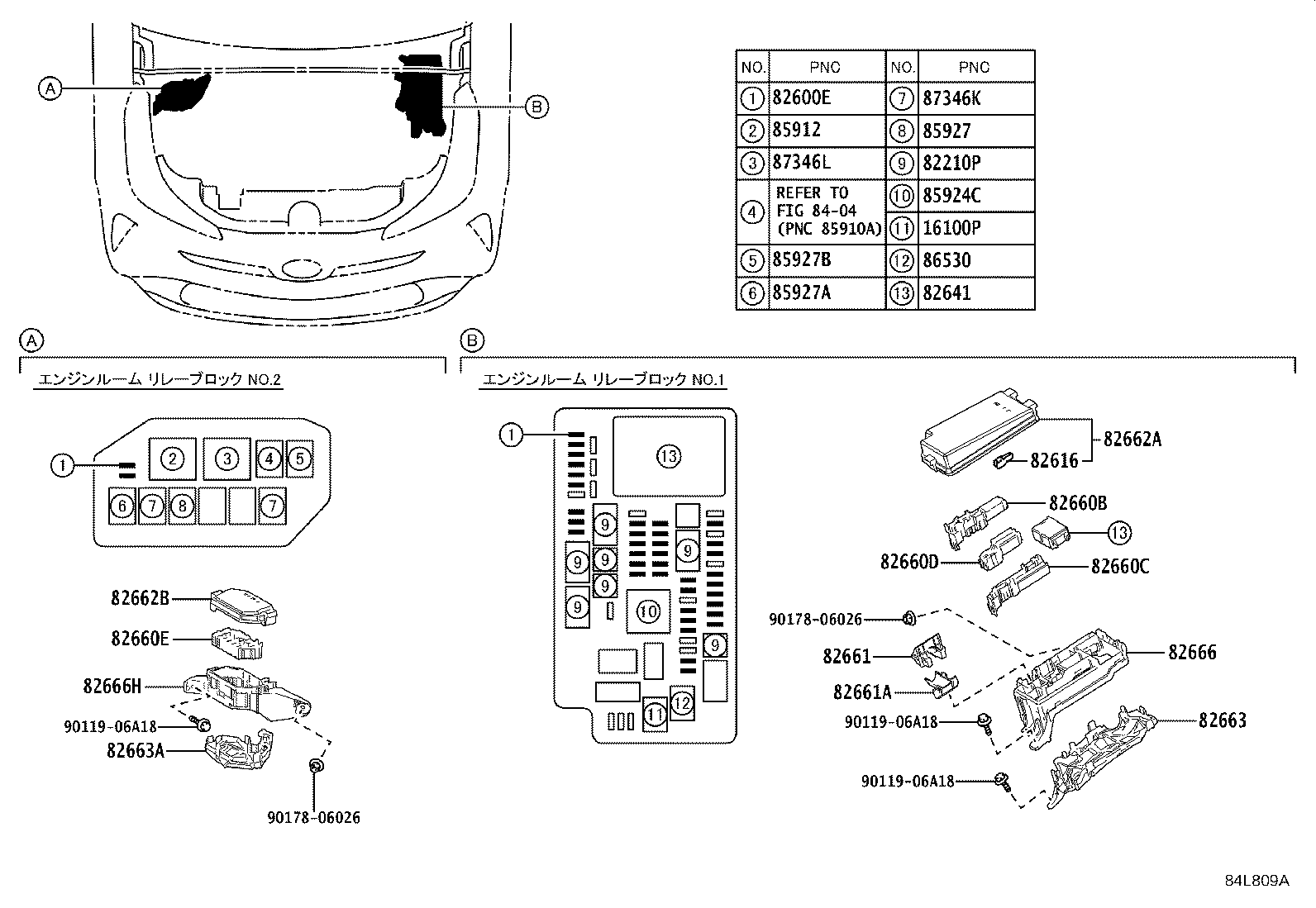

ILLUST NO. 3 OF 9(1511- )
ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100P - RELAY, WATER PUMP | ||||
| 90987-02027 |
2ZRFXE..ZVW5#..CBU |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08302 |
ZVW5#..CBU 50A−30A−50A,ﾒｽ端子,黒 |
1 | ||
| 90982-08300 |
ZVW5#..CBU 50A−30A−30A,ﾒｽ端子,赤 |
1 | ||
| 90982-08295 |
ZVW5#..CBU 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08308 |
ZVW5#..CBU 40A−30A−30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08296 |
ZVW5#..CBU 50A,ﾒｽ端子,赤 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
ZVW5#..CBU 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09025 |
ZVW5#..CBU 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09024 |
ZVW5#..CBU 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09023 |
ZVW5#..CBU 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09022 |
ZVW5#..CBU 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
ZVW5#..CBU 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ZVW5#..CBU |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47050 |
ZVW5#..CBU |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-47070 |
ZVW5#..CBU |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-47080 |
ZVW5#..CBU |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-47090 |
ZVW5#..CBU |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-47100 |
ZVW5#..CBU |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-47020 |
ZVW5#..CBU |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-47030 |
ZVW5#..CBU |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-47200 |
ZVW5#..CBU |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-47190 |
ZVW5#..CBU |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-47070 |
ZVW5#..CBU |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-47090 |
ZVW5#..CBU |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-47610 |
ZVW5#..CBU |
1 | ||
| 82666H - HOLDER, CONNECTOR, NO.2 | ||||
| 82666-47620 |
ZVW5#..CBU |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
ZVW5#..CBU |
1 | ||
| 85924C - RELAY, IGCT | ||||
| 90987-02025 |
ZVW5#..CBU |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ZVW5#..CBU |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ZVW5#..CBU |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02027 |
ZVW5#..CBU |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
ZVW5#..CBU |
1 | ||
| Common parts | ||||
| 90119-06A18 | ||||
| 90178-06026 | ||||
| Linked diagrams | ||||
| 8404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
