ZVW55-AHXEB (2015)
Toyota Prius
ILLUST NO. 1 OF11(1511- )
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-47K10 |
ZVW55..S..CBU 寒冷地仕様 |
1 | ||
| 82111-47K20 |
ZVW55..(A,PREM)..CBU |
1 | ||
| 82111-47K20 |
ZVW55..S..CBU Toyota Safety Sense−有り |
1 | ||
| 82111-47K00 |
ZVW55..S..CBU |
1 | ||
| 82111-47K30 |
ZVW55..S..CBU 寒冷地仕様&Toyota Safety Sense−有り |
1 | ||
| 82111-47K30 |
ZVW55..(A,PREM)..CBU 寒冷地仕様 |
1 | ||
| 82111-47K21 |
ZVW55..S..CBU Toyota Safety Sense−有り |
1 | ||
| 82111-47K21 |
ZVW55..(A,PREM)..CBU |
1 | ||
| 82111-47K01 |
ZVW55..S..CBU |
1 | ||
| 82111-47K11 |
ZVW55..S..CBU 寒冷地仕様 |
1 | ||
| 82111-47K31 |
ZVW55..S..CBU 寒冷地仕様&Toyota Safety Sense−有り |
1 | ||
| 82111-47K31 |
ZVW55..(A,PREM)..CBU 寒冷地仕様 |
1 | ||
| 82111-47X90 |
ZVW55..S..CBU |
1 | ||
| 82111-47Y20 |
ZVW55..(A,PREM)..CBU |
1 | ||
| 82111-47Y00 |
ZVW55..S..CBU 寒冷地仕様 |
1 | ||
| 82111-47Y20 |
ZVW55..S..CBU Toyota Safety Sense−有り |
1 | ||
| 82111-47Y30 |
ZVW55..S..CBU 寒冷地仕様&Toyota Safety Sense−有り |
1 | ||
| 82111-47Y30 |
ZVW55..(A,PREM)..CBU 寒冷地仕様 |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-47390 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 82113-47390 |
ZVW50,55..S..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82113-47310 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-47010 |
ZVW5#..CBU |
1 | ||
| 82311A - WIRE, AIR CONDITIONER | ||||
| 821H2-47010 |
ZVW5#..CBU |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-47880 |
ZVW5#..CBU |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-47C20 |
ZVW5#..CBU |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-47C90 |
ZVW5#..CBU |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-47D00 |
ZVW5#..CBU |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-47D30 |
ZVW5#..CBU |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-47D40 |
ZVW5#..CBU |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-47N30 |
ZVW5#..CBU |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-47N40 |
ZVW5#..CBU |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-47N60 |
ZVW5#..CBU |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-47N70 |
ZVW5#..CBU |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-47P00 |
ZVW5#..CBU |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-47P10 |
ZVW5#..CBU |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-30650 |
ZVW51,55..CBU |
2 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-30650 |
ZVW51,55..CBU |
2 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-30650 |
ZVW51,55..CBU |
2 | ||
| Common parts | ||||
| 90119-06995 | ||||
| 90119-06A06 | ||||
| 90119-06A18 | ||||
| 90119-06A24 | ||||
| 90119-08D22 | ||||
| 90178-06026 | ||||
| 91671-80820 | ||||
| 91673-80620 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8417 | ||||
ILLUST NO. 2 OF11(1511- )
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-47230 |
ZVW55 |
1 | ||
| 82121-47233 |
ZVW55..CBU |
1 | ||
| 82121-47231 |
ZVW55..CBU |
1 | ||
| 82121-47232 |
ZVW55..CBU |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-47060 |
ZVW5#..CBU |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-12160 |
ZVW5#..CBU |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-47D80 |
ZVW5#..CBU |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-47D90 |
ZVW5#..CBU |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-47E00 |
ZVW5#..CBU |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-47E10 |
ZVW5#..CBU |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-47E20 |
ZVW5#..CBU |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-47E30 |
ZVW5#..CBU |
1 | ||
| 82815S - COVER, WIRING HARNESS PROTECTOR, NO.15 | ||||
| 82815-47E40 |
ZVW5#..CBU |
1 | ||
| 82815T - COVER, WIRING HARNESS PROTECTOR, NO.16 | ||||
| 82815-47F30 |
ZVW5#..CBU |
1 | ||
| 82815U - COVER, WIRING HARNESS PROTECTOR, NO.17 | ||||
| 82815-47E50 |
ZVW5#..CBU |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-47P50 |
ZVW5#..CBU |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-47P60 |
ZVW5#..CBU |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-47P70 |
ZVW5#..CBU |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-47P80 |
ZVW5# |
1 | ||
| 82817-47L20 |
ZVW5#..CBU |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-47P90 |
ZVW5#..CBU |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-47Q00 |
ZVW5#..CBU |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-47Q10 |
ZVW5#..CBU |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-47R30 |
ZVW5#..CBU |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-47S30 |
ZVW5#..CBU |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-47S40 |
ZVW5#..CBU |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-47Q20 |
ZVW5#..CBU |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-47S50 |
ZVW5#..CBU |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-47330 |
ZVW5#..CBU |
1 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-47420 |
ZVW5#..CBU |
1 | ||
| 82821N - COVER, CONNECTOR | ||||
| 82821-47430 |
ZVW5#..CBU |
1 | ||
| 82821U - COVER, CONNECTOR | ||||
| 82821-50500 |
ZVW5#..CBU |
1 | ||
| 82821V - COVER, CONNECTOR | ||||
| 82821-60100 |
ZVW5#..CBU |
1 | ||
| 82821W - COVER, CONNECTOR | ||||
| 82821-47480 |
ZVW5#..CBU |
1 | ||
| 82821X - COVER, CONNECTOR | ||||
| 82821-47490 |
ZVW5#..CBU |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-47050 |
ZVW5#..CBU |
1 | ||
| G921D - PROTECTOR, INVERTER CONNECTOR COVER | ||||
| G921D-47020 |
ZVW5#..CBU |
1 | ||
| G921D-47010 |
ZVW5# |
1 | ||
| Common parts | ||||
| 90119-06995 | ||||
| 91671-80612 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF11(1511- )
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-47580 |
ZVW5#..E,S |
1 | ||
| 82151-47600 |
ZVW51,55..A,PREM |
1 | ||
| 82151-47590 |
ZVW5#..E,S 寒冷地仕様 |
1 | ||
| 82151-47591 |
ZVW5#..(E,S)..CBU 寒冷地仕様 |
1 | ||
| 82151-47601 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 82151-47581 |
ZVW5#..(E,S)..CBU |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-47531 |
ZVW5#..(E,S)..CBU |
1 | ||
| 82152-47561 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 82152-47560 |
ZVW51,55..A,PREM |
1 | ||
| 82152-47550 |
ZVW5#..E,S 寒冷地仕様 |
1 | ||
| 82152-47551 |
ZVW5#..(E,S)..CBU 寒冷地仕様 |
1 | ||
| 82152-47530 |
ZVW5#..E,S |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-47250 |
ZVW5#..(A,PREM,S)..CBU |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-47250 |
ZVW5#..(A,PREM,S)..CBU |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-47480 |
ZVW5#..(A,PREM,S)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) , ﾅﾋﾞﾚﾃﾞｨｾｯﾄ用 |
1 | ||
| 82184-47480 |
ZVW51,55..(A,PREM)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) |
1 | ||
| 82184-47500 |
ZVW5#..(A,PREM,S)..CBU |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-47160 |
ZVW51,55..(A,PREM)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) |
1 | ||
| 82185-47160 |
ZVW5#..(A,PREM,S)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) , ﾅﾋﾞﾚﾃﾞｨｾｯﾄ用 |
1 | ||
| 82185-47170 |
ZVW5#..(A,PREM,S)..CBU |
1 | ||
| 82818C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-47L50 |
ZVW5#..CBU |
2 | ||
| 82818C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-47L50 |
ZVW5#..CBU |
2 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-47T70 |
ZVW5#..CBU |
1 | ||
| 82818E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-47T80 |
ZVW5#..CBU |
1 | ||
| Common parts | ||||
| 91673-80616 | ||||
ILLUST NO. 3 OF11(1511- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82146-47G80 |
ZVW50,55..S..CBU ”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”&ｼｰﾄ表皮−合成皮革 |
1 | ||
| 82146-47G80 |
ZVW50,55..S..CBU ”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”&Toyota Safety Sense−有り&ｼｰﾄ表皮−合成皮革 |
1 | ||
| 82146-47G80 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82146-47G90 |
ZVW50,55..S..CBU Toyota Safety Sense−有り |
1 | ||
| 82146-47J40 |
ZVW51,55..A..CBU ”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”&ｼｰﾄ表皮−合成皮革 |
1 | ||
| 82146-47J10 |
ZVW50,55..S..CBU |
1 | ||
| 82146-47J60 |
ZVW51,55..A..CBU |
1 | ||
| 82146-47G80 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82146-47G81 |
ZVW50,55..S..CBU ”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”&ｼｰﾄ表皮−合成皮革&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82146-47G80 |
ZVW50,55..S..CBU ”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”&ｼｰﾄ表皮−合成皮革&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82146-47G81 |
ZVW50,55..S..CBU ”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”&Toyota Safety Sense−有り&ｼｰﾄ表皮−合成皮革 |
1 | ||
| 82146-47G81 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82146-47G81 |
ZVW50,55..S..CBU ”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”&Toyota Safety Sense−有り&ｼｰﾄ表皮−合成皮革&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82146-47G81 |
ZVW50,55..S..CBU ”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”&ｼｰﾄ表皮−合成皮革 |
1 | ||
| 82146-47J41 |
ZVW51,55..A..CBU ”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”&ｼｰﾄ表皮−合成皮革 |
1 | ||
| 82146-47G80 |
ZVW50,55..S..CBU ”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”&Toyota Safety Sense−有り&ｼｰﾄ表皮−合成皮革&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82146-47J50 |
ZVW51,55..A..CBU ITS Connect−有り |
1 | ||
| 82146-47J51 |
ZVW51,55..A..CBU ITS Connect−有り |
1 | ||
| 82141-4E860 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ |
1 | ||
| 82146-47G91 |
ZVW50,55..S..CBU Toyota Safety Sense−有り |
1 | ||
| 82146-47J11 |
ZVW50,55..S..CBU |
1 | ||
| 82141-4E860 |
ZVW51,55..A..CBU ”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”&ｼｰﾄ表皮−合成皮革&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ITS Connect−有り |
1 | ||
| 82146-47J61 |
ZVW51,55..A..CBU |
1 | ||
| 82146-47J40 |
ZVW51,55..A..CBU ”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”&ｼｰﾄ表皮−合成皮革&ITS Connect−有り |
1 | ||
| 82141-4E860 |
ZVW51,55..A..CBU ”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”&ｼｰﾄ表皮−合成皮革&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ |
1 | ||
| 82146-47G81 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82141-4E870 |
ZVW51,55..A..CBU ”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”&ｼｰﾄ表皮−合成皮革&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ITS Connect−有り |
1 | ||
| 82141-4EB70 |
ZVW50,55..S..CBU ”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”&Toyota Safety Sense−有り&ｼｰﾄ表皮−合成皮革 |
1 | ||
| 82141-4E870 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL |
1 | ||
| 82146-47J61 |
ZVW50,55..S..CBU S”Safety Plus”*(A)&Toyota Safety Sense−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82146-47J51 |
ZVW50,55..S..CBU S”Safety Plus”*(A)&Toyota Safety Sense−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ITS Connect−有り |
1 | ||
| 82141-4E870 |
ZVW51,55..A..CBU ”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”&ｼｰﾄ表皮−合成皮革&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL |
1 | ||
| 82141-4E870 |
ZVW51,55..A..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL&ITS Connect−有り |
1 | ||
| 82146-47J41 |
ZVW51,55..A..CBU ”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”&ｼｰﾄ表皮−合成皮革&ITS Connect−有り |
1 | ||
| 82141-4E860 |
ZVW51,55..A..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ&ITS Connect−有り |
1 | ||
| 82141-4EB80 |
ZVW50,55..S..CBU Toyota Safety Sense−有り |
1 | ||
| 82141-4EB70 |
ZVW50,55..S..CBU ”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”&ｼｰﾄ表皮−合成皮革&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82141-4EC10 |
ZVW51,55..A..CBU ITS Connect−有り |
1 | ||
| 82141-4EB70 |
ZVW50,55..S..CBU ”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”&ｼｰﾄ表皮−合成皮革 |
1 | ||
| 82141-4EB70 |
ZVW50,55..S..CBU ”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”&Toyota Safety Sense−有り&ｼｰﾄ表皮−合成皮革&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82141-4EC00 |
ZVW51,55..A..CBU ”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”&ｼｰﾄ表皮−合成皮革&ITS Connect−有り |
1 | ||
| 82141-4EB70 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82141-4EC20 |
ZVW51,55..A..CBU |
1 | ||
| 82141-4EC20 |
ZVW50,55..S..CBU S”Safety Plus”*(A)&Toyota Safety Sense−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82141-4EB70 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82141-4EC10 |
ZVW50,55..S..CBU S”Safety Plus”*(A)&Toyota Safety Sense−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り&ITS Connect−有り |
1 | ||
| 82141-4EB90 |
ZVW50,55..S..CBU |
1 | ||
| 82141-4EC00 |
ZVW51,55..A..CBU ”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”&ｼｰﾄ表皮−合成皮革 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-47390 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 82142-47510 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 82142-47370 |
ZVW5#..(E,S)..CBU |
1 | ||
| 82142-47520 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL |
1 | ||
| 82142-47390 |
ZVW50,55..S..CBU S”Safety Plus”*(A) |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-33090 |
ZVW5#..CBU |
1 | ||
| 82140-33092 |
ZVW5#..CBU |
1 | ||
| 82140-47041 |
ZVW5#..CBU |
1 | ||
| 82140-33091 |
ZVW5#..CBU |
1 | ||
| 82144 - WIRE, INSTRUMENT PANEL, NO.4 | ||||
| 82144-47080 |
ZVW5#..(A,S)..CBU 除菌ｲｵﾝ&ﾏｲﾅｽｲｵﾝ発生装置−有り |
1 | ||
| 82144-47080 |
ZVW51,55..A..CBU 除菌ｲｵﾝ&ﾏｲﾅｽｲｵﾝ発生装置−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL |
1 | ||
| 82144-47080 |
ZVW51,55..A..CBU 除菌ｲｵﾝ&ﾏｲﾅｽｲｵﾝ発生装置−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-47010 |
ZVW5#..CBU |
1 | ||
| Common parts | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF11(1511- )

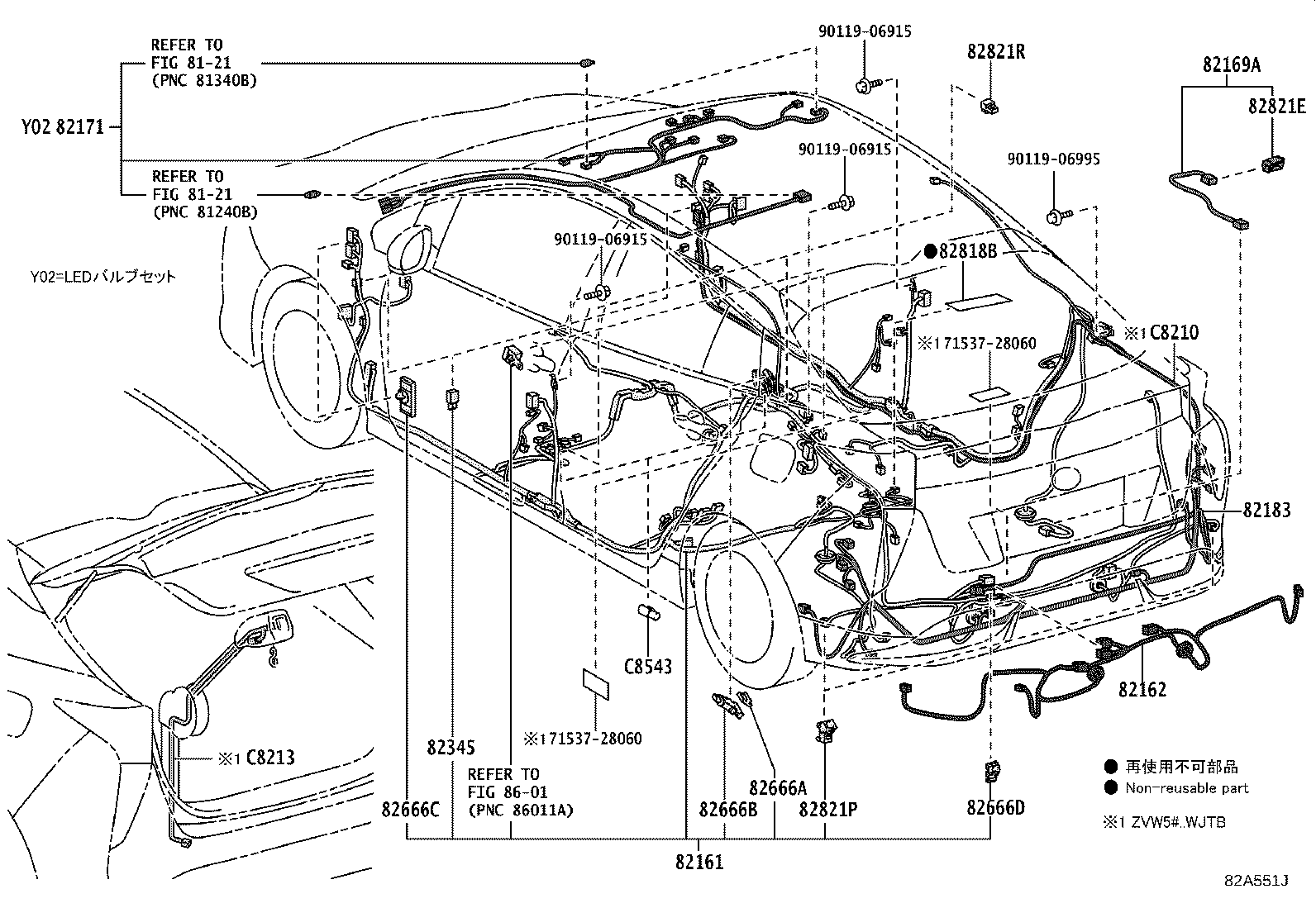

ﾌﾛｱ & ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-47P70 |
ZVW55..A..CBU |
1 | ||
| 82161-47P80 |
ZVW55..S..CBU 外部電源−有り(AC100V 1500W:2個) |
1 | ||
| 82161-47P90 |
ZVW55..A..CBU 外部電源−有り(AC100V 1500W:2個) |
1 | ||
| 82161-47P60 |
ZVW55..S..CBU |
1 | ||
| 82169A - WIRE, FLOOR, NO.6 | ||||
| 82169-47020 |
ZVW55..CBU |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-47850 |
ZVW5#..(E,S)..CBU |
1 | ||
| 82171-47861 |
ZVW5#..(E,S)..CBU Toyota Safety Sense−有り |
1 | ||
| 82171-47A90 |
ZVW51,55..(A,PREM)..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82171-47881 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 82171-47880 |
ZVW50,55..S..CBU S”Safety Plus”*(A)&Toyota Safety Sense−有り |
1 | ||
| 82171-47A91 |
ZVW51,55..(A,PREM)..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82171-47A91 |
ZVW50,55..S..CBU S”Safety Plus”*(A)&Toyota Safety Sense−有り&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82171-47880 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 82171-47A71 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82171-47A70 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82171-47881 |
ZVW50,55..S..CBU S”Safety Plus”*(A)&Toyota Safety Sense−有り |
1 | ||
| 82171-47M10 |
ZVW51,55..(A,PREM)..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ |
1 | ||
| 82171-47A90 |
ZVW50,55..S..CBU S”Safety Plus”*(A)&Toyota Safety Sense−有り&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82171-47860 |
ZVW5#..(E,S)..CBU Toyota Safety Sense−有り |
1 | ||
| 82171-47L90 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ |
1 | ||
| 82171-47M10 |
ZVW50,55..S..CBU S”Safety Plus”*(A)&Toyota Safety Sense−有り&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82171-47M10 |
ZVW51,55..(A,PREM)..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82171-47M10 |
ZVW51,55..(A,PREM)..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL |
1 | ||
| 82171-47A60 |
ZVW50,55..S..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82171-47L90 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-47010 |
ZVW5#..(E,S)..CBU |
1 | ||
| 82183-47030 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 82183-47020 |
ZVW5#..(E,S)..CBU 寒冷地仕様 |
1 | ||
| 82183-47040 |
ZVW50,55..S..CBU 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82183-47030 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82183-47040 |
ZVW51,55..(A,PREM)..CBU 寒冷地仕様 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
ZVW5#..CBU |
2 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-21040 |
ZVW5#..CBU |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-26180 |
ZVW5#..CBU |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-60220 |
ZVW5#..CBU |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-52A60 |
ZVW5#..CBU |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-47320 |
ZVW55..CBU |
1 | ||
| 82821P - COVER, CONNECTOR | ||||
| 82821-50510 |
ZVW5#..CBU |
2 | ||
| 82821R - COVER, CONNECTOR | ||||
| 90980-12373 |
ZVW5#..(A,S)..CBU ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE4)&SRSｻｲﾄﾞｴｱﾊﾞｯｸﾞ−有り(助手席側のみ) |
1 | ||
| 90980-12373 |
ZVW5#..(A,S)..CBU |
2 | ||
| 90980-12373 |
ZVW5#..(A,S)..CBU 有り(助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ) |
1 | ||
| 90980-12373 |
ZVW5#..(A,S)..CBU 有り(助手席回転ﾁﾙﾄｼｰﾄ) |
1 | ||
| 90980-12373 |
ZVW5#..(A,S)..CBU ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE1) |
1 | ||
| C8543 - RESISTOR, EMERGENCY | ||||
| C8543-D1040 |
ZVW5#..(A,S)..CBU 有り(助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ) |
1 | ||
| C8543-D1040 |
ZVW5#..(A,S)..CBU ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE1) |
1 | ||
| C8543-D1040 |
ZVW5#..(A,S)..CBU ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE4)&SRSｻｲﾄﾞｴｱﾊﾞｯｸﾞ−有り(助手席側のみ) |
1 | ||
| C8543-D1040 |
ZVW5#..(A,S)..CBU ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE2)&SRSｻｲﾄﾞｴｱﾊﾞｯｸﾞ−有り(助手席側のみ) |
2 | ||
| C8543-D1040 |
ZVW5#..(A,S)..CBU 有り(助手席回転ﾁﾙﾄｼｰﾄ) |
1 | ||
| Common parts | ||||
| 71537-28060 | ||||
| 90119-06915 | ||||
| 90119-06995 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8601 | ||||

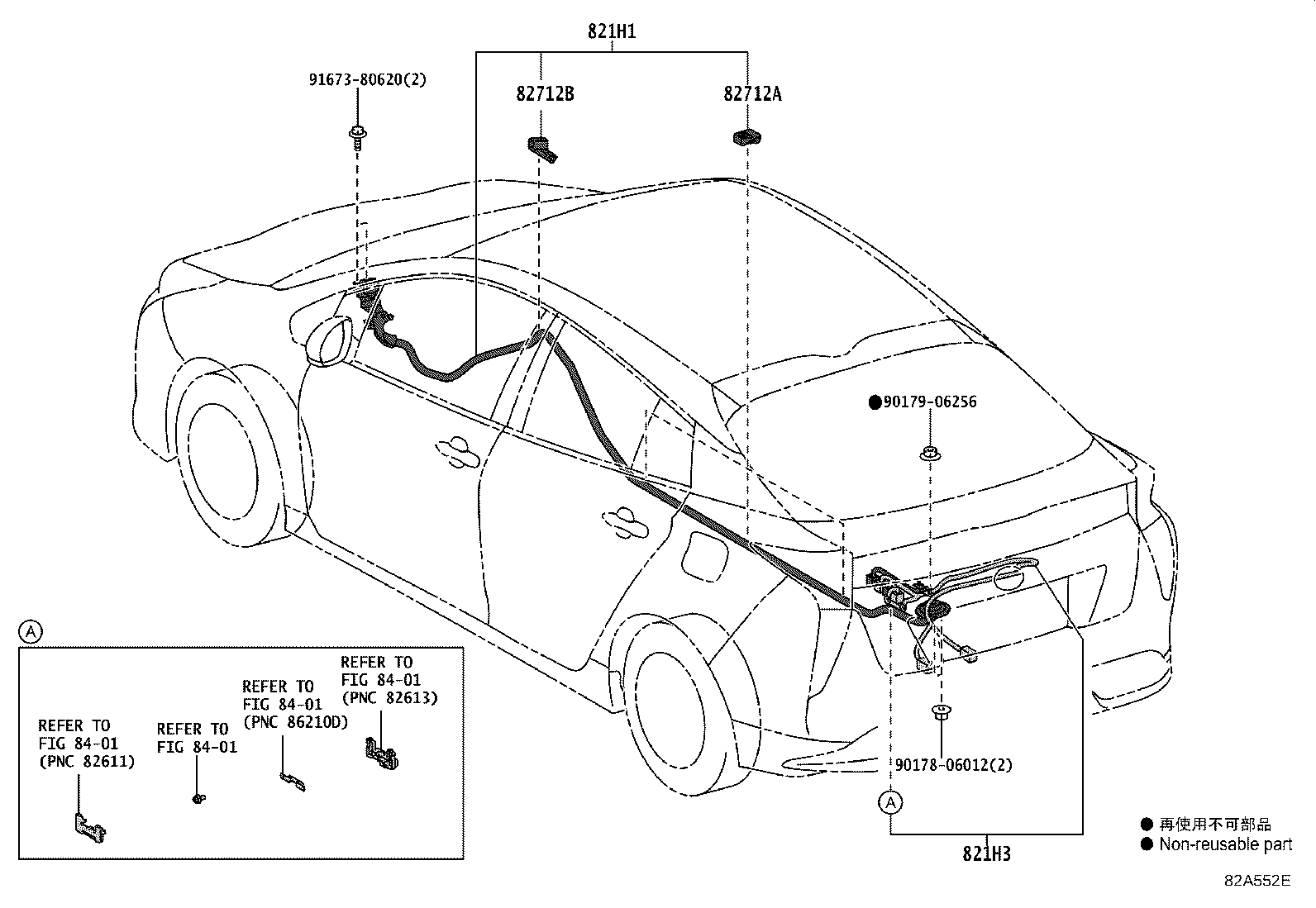

ILLUST NO. 6 OF11(1511- )
ｺｳｱﾂｹｰﾌﾞﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 821H1 - WIRE, FLOOR UNDER | ||||
| 821H1-47030 |
ZVW55..CBU |
1 | ||
| 821H3 - WIRE, HV BATTERY PACK | ||||
| 821H3-47020 |
ZVW55..(A,S)..CBU 外部電源−有り(AC100V 1500W:2個) |
1 | ||
| 821H3-47010 |
ZVW55..(A,S)..CBU |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-47530 |
ZVW5#..CBU |
3 | ||
| 82712B - SUPPORT, WIRING HARNESS | ||||
| 82712-47410 |
ZVW5#..CBU |
1 | ||
| Common parts | ||||
| 90178-06012 | ||||
| 90179-06256 | ||||
| 91673-80620 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 8 OF11(1511- )

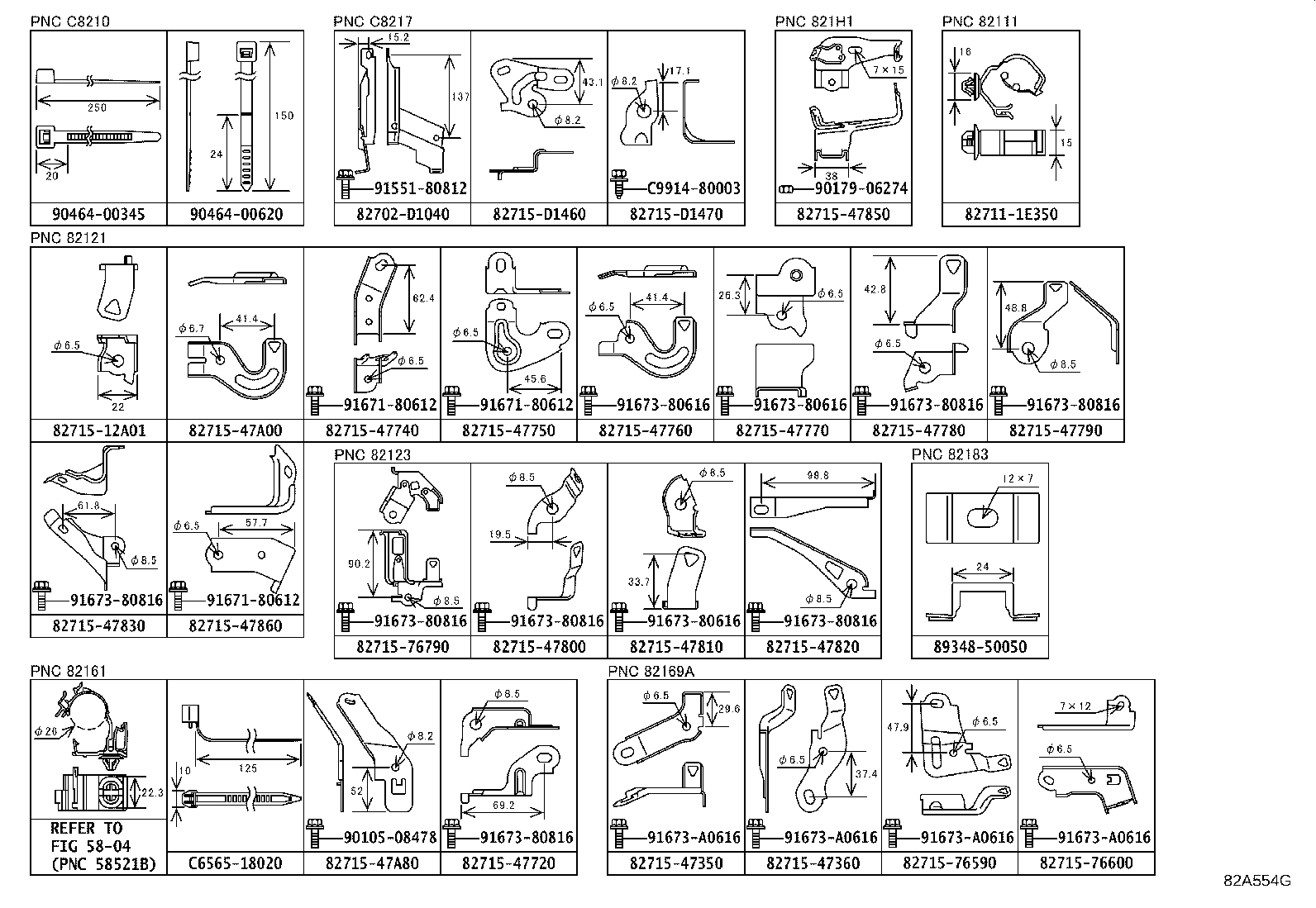

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-D1040 | ||||
| 82711-1E350 | ||||
| 82715-12A01 | ||||
| 82715-47350 | ||||
| 82715-47360 | ||||
| 82715-47720 | ||||
| 82715-47740 | ||||
| 82715-47750 | ||||
| 82715-47760 | ||||
| 82715-47770 | ||||
| 82715-47780 | ||||
| 82715-47790 | ||||
| 82715-47800 | ||||
| 82715-47810 | ||||
| 82715-47820 | ||||
| 82715-47830 | ||||
| 82715-47850 | ||||
| 82715-47860 | ||||
| 82715-47A00 | ||||
| 82715-47A80 | ||||
| 82715-76590 | ||||
| 82715-76600 | ||||
| 82715-76790 | ||||
| 82715-D1460 | ||||
| 82715-D1470 | ||||
| 89348-50050 | ||||
| 90105-08478 | ||||
| 90179-06274 | ||||
| 90464-00345 | ||||
| 90464-00620 | ||||
| 91551-80812 | ||||
| 91671-80612 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 91673-A0616 | ||||
| C6565-18020 | ||||
| C9914-80003 | ||||
| Linked diagrams | ||||
| 5804 | ||||

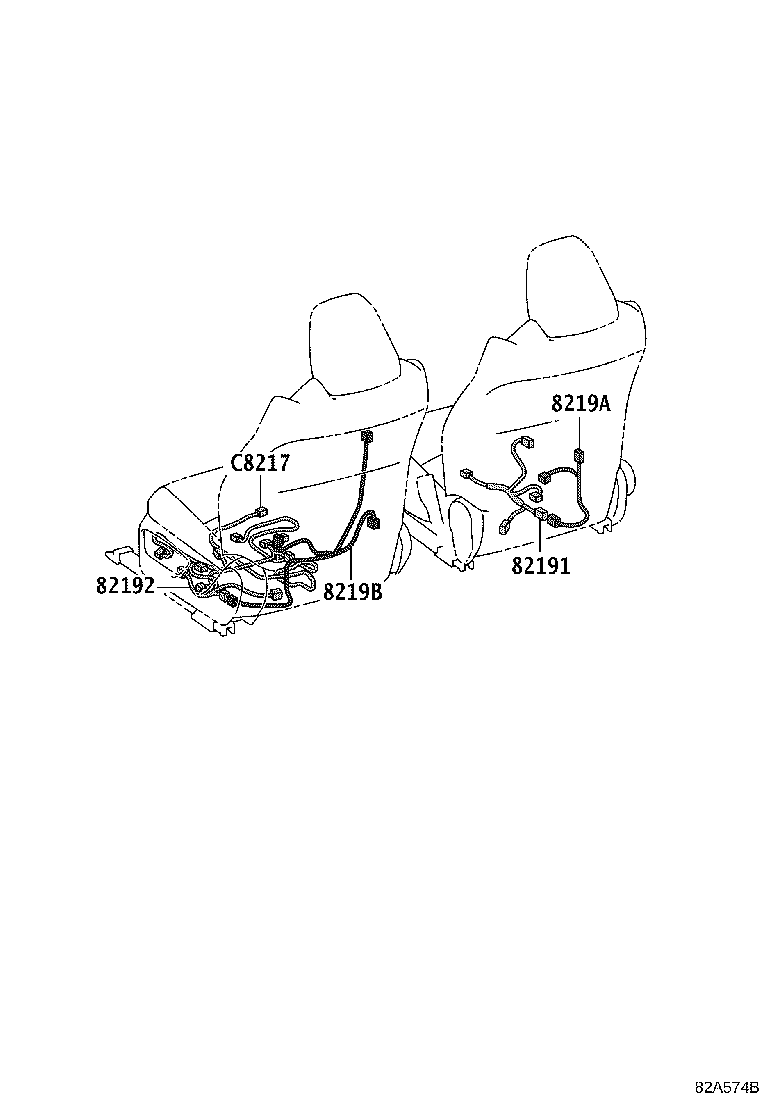

ILLUST NO. 7 OF11(1511- )
ｼｰﾄ
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 9 OF11(1511- )

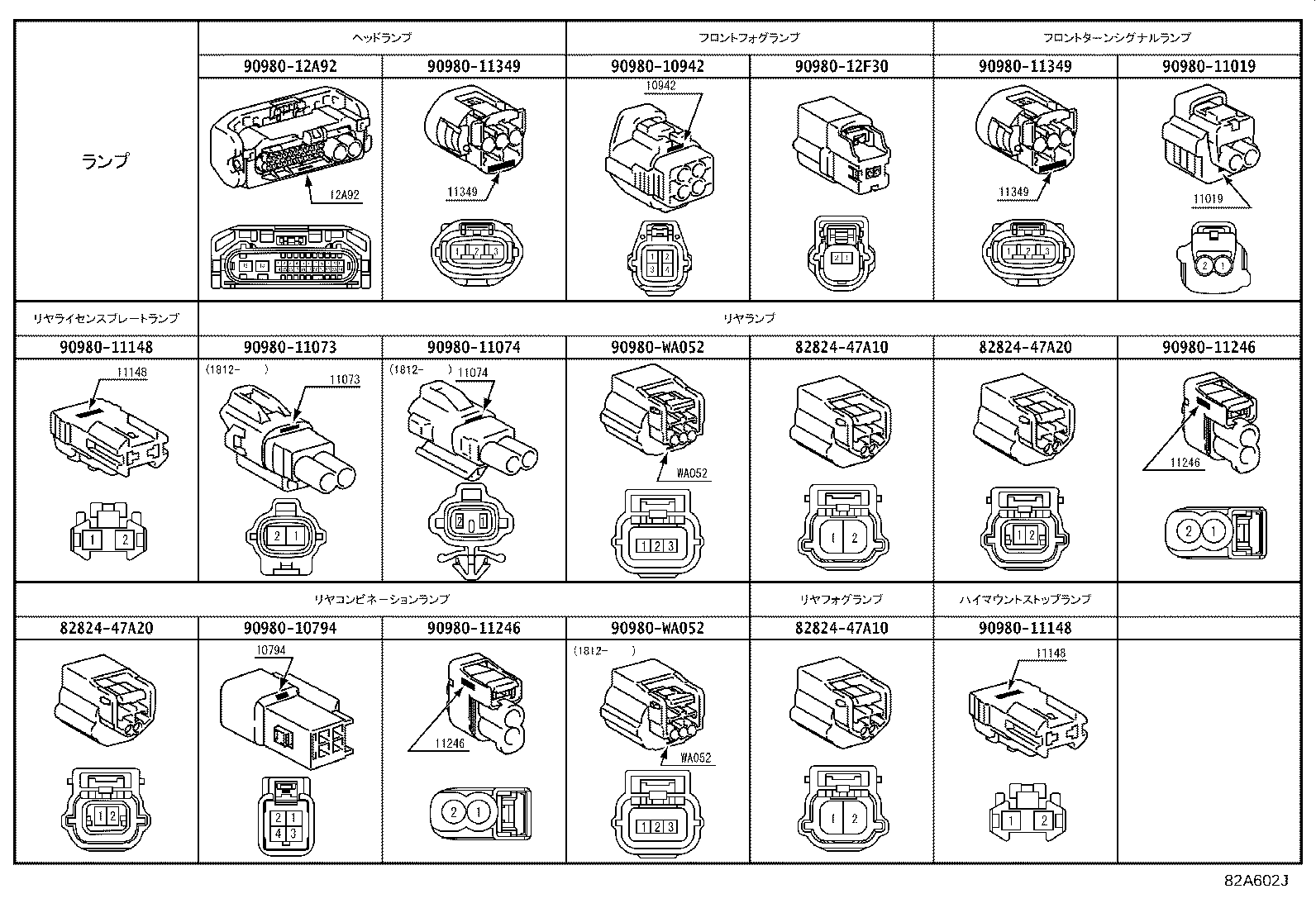

ｺﾈｸﾀ 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-47A10 | ||||
| 82824-47A20 | ||||
| 90980-10794 | ||||
| 90980-10942 | ||||
| 90980-11019 | ||||
| 90980-11073 | ||||
| 90980-11074 | ||||
| 90980-11148 | ||||
| 90980-11246 | ||||
| 90980-11349 | ||||
| 90980-12A92 | ||||
| 90980-12F30 | ||||
| 90980-WA052 | ||||
ILLUST NO.10 OF11(1511- )
ｺﾈｸﾀ 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-12380 | ||||
| 90980-12416 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12699 | ||||
| 90980-12790 | ||||
| 90980-12A59 | ||||
ILLUST NO.11 OF11(1511- )

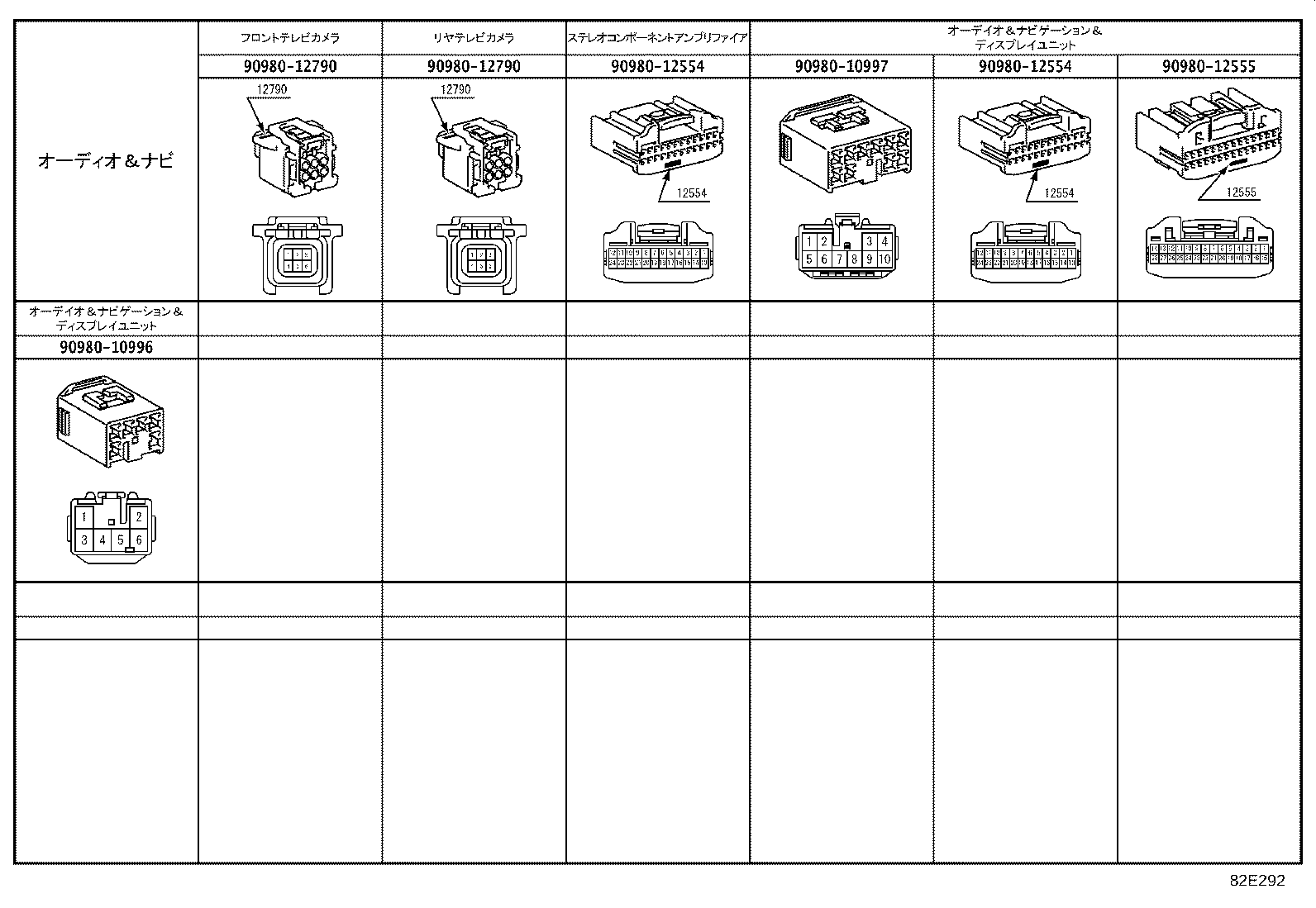

ｺﾈｸﾀ 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12790 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
