ZVW55-AHXEB (2015)

Toyota Prius

Production Nov 2015 - Dec 2018
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )

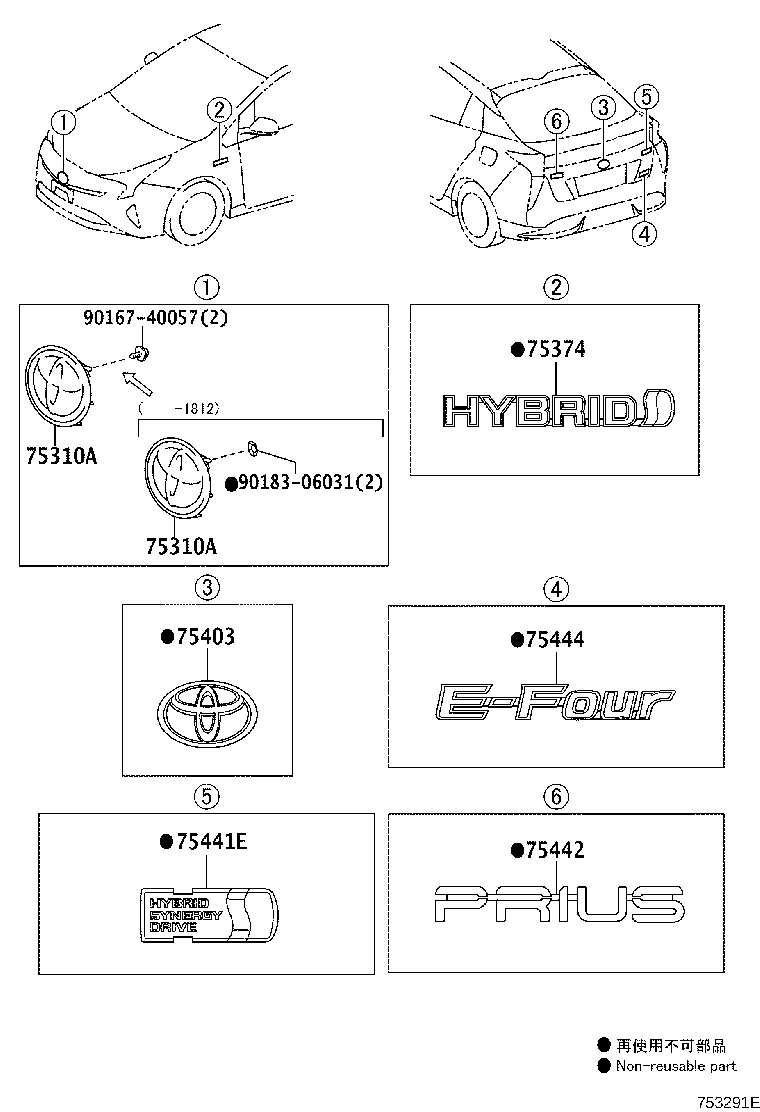

Click highlighted areas on diagram

diagram 75310A 75310A 75374 75403 75441E 75442 75444 9016740057 9018306031
Part # Description Qty Price
75310A - EMBLEM ASSY, RADIATOR GRILLE
53141-47030

ZVW50,55..S..CBU

Toyota Safety Sense−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り

 1
75310-47060

ZVW5#..(E,S)..CBU

 1
53141-47030

ZVW5#..(E,S)..CBU

Toyota Safety Sense−有り

 1
53141-47030

ZVW51,55..(A,PREM)..CBU

 1
53141-47030

ZVW50,55..S..CBU

Toyota Safety Sense−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り

 1
53141-47030

ZVW50,55..S..CBU

Toyota Safety Sense−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
75310A - EMBLEM ASSY, RADIATOR GRILLE
53141-47030

ZVW50,55..S..CBU

Toyota Safety Sense−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り

 1
75310-47060

ZVW5#..(E,S)..CBU

 1
53141-47030

ZVW5#..(E,S)..CBU

Toyota Safety Sense−有り

 1
53141-47030

ZVW51,55..(A,PREM)..CBU

 1
53141-47030

ZVW50,55..S..CBU

Toyota Safety Sense−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り

 1
53141-47030

ZVW50,55..S..CBU

Toyota Safety Sense−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
75374 - EMBLEM, SIDE PANEL
75374-47140

ZVW5#..CBU

右側

 1
75374-47150

ZVW5#..CBU

左側

 1
75403 - ORNAMENT SUB-ASSY, BACK DOOR
75403-48010

ZVW5#..CBU

 1
75441E - PLATE, BACK DOOR NAME, NO.1
75441-47120

ZVW5#..CBU

HYBRID SYNERGY DRIVE

 1
75442 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2
75442-47130

ZVW5#..CBU

PRIUS

 1
75444 - PLATE, LUGGAGE COMPARTMENT DOOR, NO.4
75444-47030

ZVW55..CBU

E−Four

 1
Common parts
90167-40057
90183-06031
