ZVW55-AHXEB (2015)

Toyota Prius

Production Nov 2015 - Dec 2018
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )

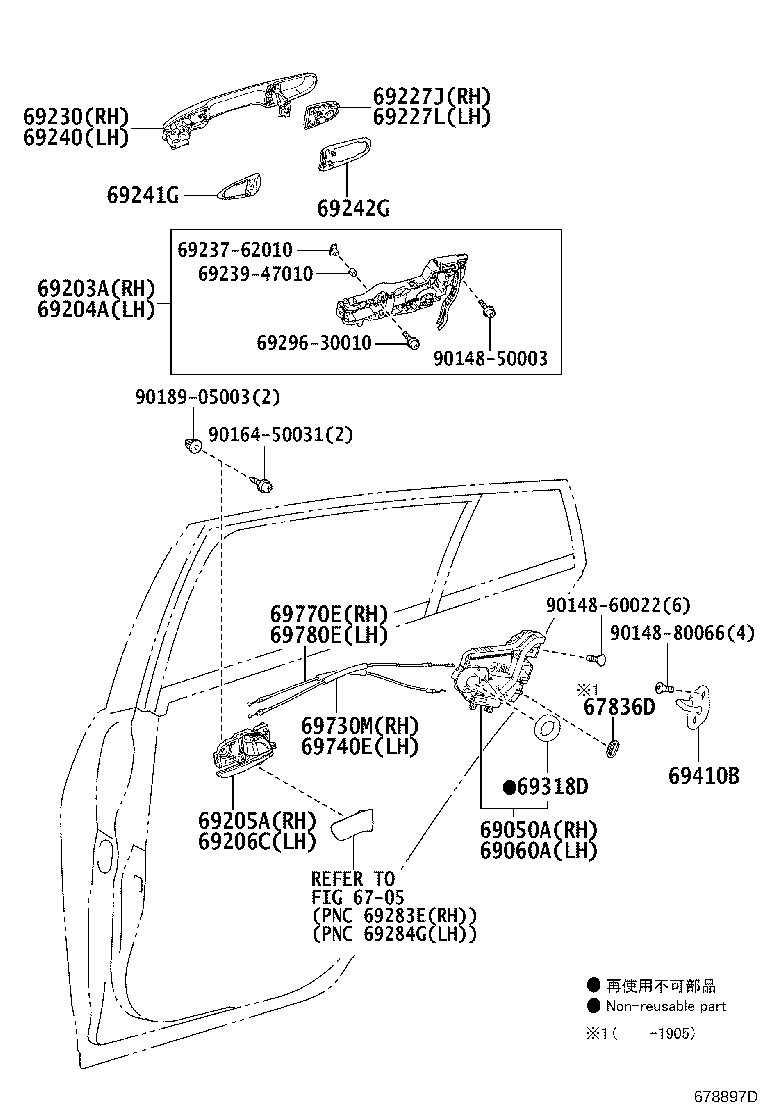

Click highlighted areas on diagram

diagram 6705 67836D 69050A 69060A 69203A 69204A 69205A 69206C 69227J 69227L 69230 6923762010 6923947010 69240 69241G 69242G 6929630010 69318D 69410B 69730M 69740E 69770E 69780E 9014850003 9014860022 9014880066 9016450031 9018905003
Part # Description Qty Price
67836D - COVER, REAR DOOR LOCK CHILD PROTECTION
67836-33030

ZVW5#..CBU

 2
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-52250

ZVW5#..CBU

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-52280

ZVW5#..CBU

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-47040

ZVW5#..CBU

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-47030

ZVW5#..CBU

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-47070C0

ZVW5#..(A,E,S)..CBU

BLACK,TRIM1#,2#

 1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-47070C0

ZVW5#..(A,E,S)..CBU

BLACK,TRIM1#,2#

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-47020

ZVW5#..CBU

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69227-47020

ZVW5#..CBU

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-47020A0

ZVW5#..CBU

SUPER WHITE 2,040

 1
69211-47020A1

ZVW5#..CBU

WHITE PEARL CS.,070

 1
69211-47020G0

ZVW5#..CBU

THERMO-TECT LIME GREEN,6W7

 1
69211-47021A1

ZVW51,55..(A,E)..CBU

WHITE PEARL CS.,070

 1
69211-47021B1

ZVW5#..CBU

GRAY ME.,1G3

 1
69211-47020E0

ZVW5#..CBU

STEEL BLONDE,4X1

 1
69211-47020B1

ZVW5#..CBU

GRAY ME.,1G3

 1
69211-47021C0

ZVW5#..CBU

ATTITUDE BLACK MC.,218

 1
69211-47021B0

ZVW5#..CBU

SILVER ME.,1F7

 1
69211-47020J0

ZVW5#..CBU

DK.BLUE M.M.,8W7

 1
69211-47020B0

ZVW5#..CBU

SILVER ME.,1F7

 1
69211-47020C0

ZVW5#..CBU

ATTITUDE BLACK MC.,218

 1
69211-47021A1

ZVW5#..(PREM,S)..CBU

WHITE PEARL CS.,070 ,2QJ

 1
69211-47021E0

ZVW51,55..(A,E,PREM)..CBU

STEEL BLONDE,4X1

 1
69211-47021E0

ZVW50,55..S..CBU

STEEL BLONDE,2RB ,4X1

 1
69211-47020H0

ZVW5#..CBU

FROSTY GREEN MC.,781

 1
69211-47021G0

ZVW5#..CBU

THERMO-TECT LIME GREEN,6W7

 1
69211-47020D0

ZVW5#..CBU

EMOTIONAL RED,3T7

 1
69211-47021J0

ZVW50,55..S..CBU

DK.BLUE M.M.,2RC ,8W7

 1
69211-47021D0

ZVW5#..(A,E,S)..CBU

EMOTIONAL RED,3T7

 1
69211-47021A0

ZVW5#..CBU

SUPER WHITE 2,040

 1
69211-47021J0

ZVW51,55..(A,E,PREM)..CBU

DK.BLUE M.M.,8W7

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69211-47020B0

ZVW5#..CBU

SILVER ME.,1F7

 1
69211-47020D0

ZVW5#..CBU

EMOTIONAL RED,3T7

 1
69211-47020A0

ZVW5#..CBU

SUPER WHITE 2,040

 1
69211-47020E0

ZVW5#..CBU

STEEL BLONDE,4X1

 1
69211-47020H0

ZVW5#..CBU

FROSTY GREEN MC.,781

 1
69211-47020A1

ZVW5#..CBU

WHITE PEARL CS.,070

 1
69211-47021B1

ZVW5#..CBU

GRAY ME.,1G3

 1
69211-47021A1

ZVW51,55..(A,E)..CBU

WHITE PEARL CS.,070

 1
69211-47020J0

ZVW5#..CBU

DK.BLUE M.M.,8W7

 1
69211-47020G0

ZVW5#..CBU

THERMO-TECT LIME GREEN,6W7

 1
69211-47020B1

ZVW5#..CBU

GRAY ME.,1G3

 1
69211-47021A1

ZVW5#..(PREM,S)..CBU

WHITE PEARL CS.,070 ,2QJ

 1
69211-47021C0

ZVW5#..CBU

ATTITUDE BLACK MC.,218

 1
69211-47021E0

ZVW50,55..S..CBU

STEEL BLONDE,2RB ,4X1

 1
69211-47021D0

ZVW5#..(A,E,S)..CBU

EMOTIONAL RED,3T7

 1
69211-47021J0

ZVW51,55..(A,E,PREM)..CBU

DK.BLUE M.M.,8W7

 1
69211-47021G0

ZVW5#..CBU

THERMO-TECT LIME GREEN,6W7

 1
69211-47021E0

ZVW51,55..(A,E,PREM)..CBU

STEEL BLONDE,4X1

 1
69211-47021J0

ZVW50,55..S..CBU

DK.BLUE M.M.,2RC ,8W7

 1
69211-47020C0

ZVW5#..CBU

ATTITUDE BLACK MC.,218

 1
69211-47021B0

ZVW5#..CBU

SILVER ME.,1F7

 1
69211-47021A0

ZVW5#..CBU

SUPER WHITE 2,040

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-47020

ZVW5#..CBU

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-47030

ZVW5#..CBU

 2
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-47010

ZVW5#..CBU

 2
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-20110

ZVW5#..CBU

 2
69730M - CABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER
69730-47080

ZVW5#..CBU

 1
69740E - CABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER
69730-47080

ZVW5#..CBU

 1
69770E - CABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK K
69770-47100

ZVW5#..CBU

 1
69780E - CABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK K
69770-47100

ZVW5#..CBU

 1
Common parts
69237-62010
69239-47010
69296-30010
90148-50003
90148-60022
90148-80066
90164-50031
90189-05003
Linked diagrams
6705
