ZVW55-AHXEB (2015)

Toyota Prius

Production Nov 2015 - Dec 2018
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )

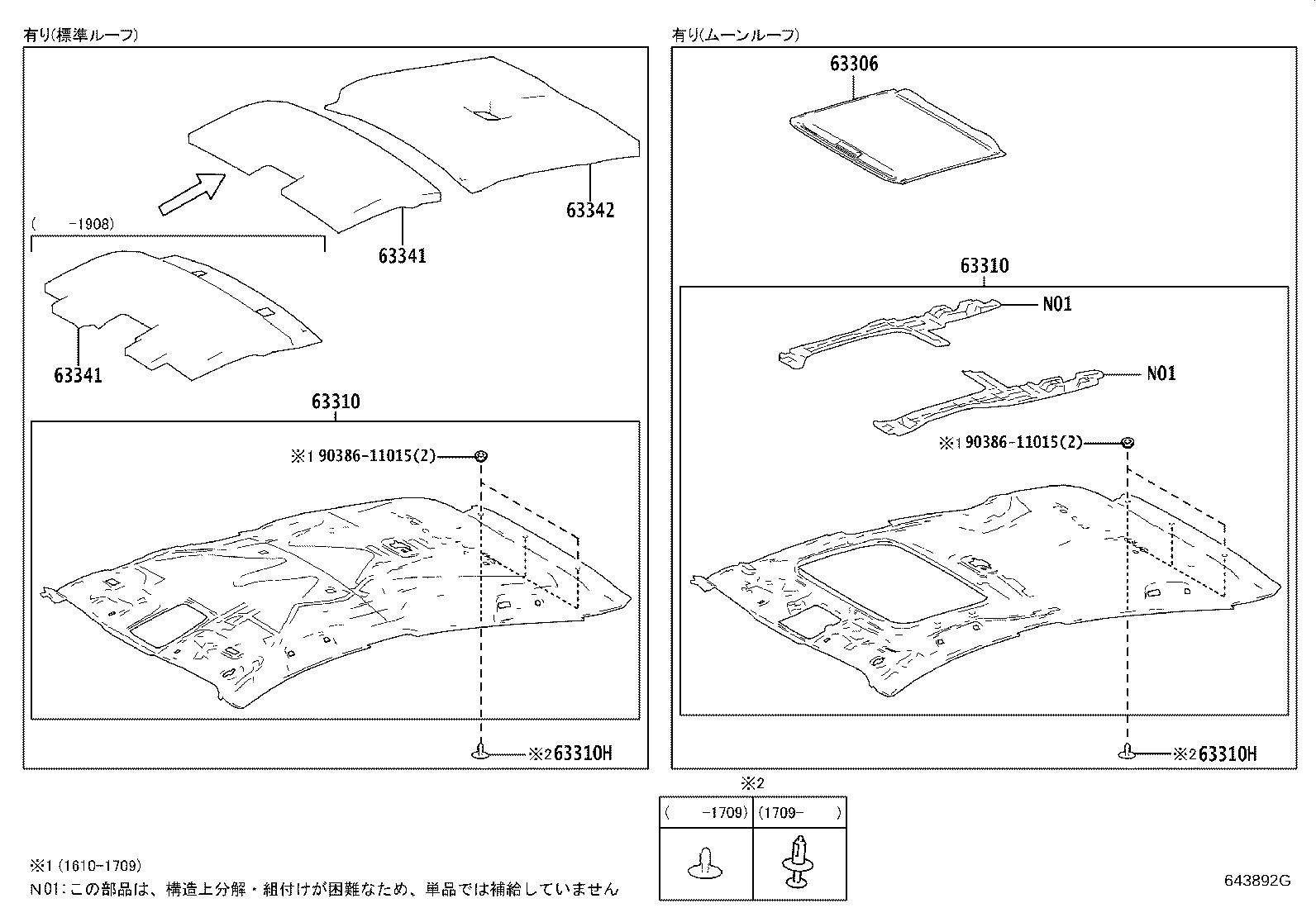

Click highlighted areas on diagram

diagram 63306 63310 63310 63310H 63310H 63341 63341 63342 9038611015 9038611015
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63306-47070B0

ZVW5#..(A,PREM,S)..CBU

ﾑｰﾝﾙｰﾌ−有り,COOL GRAY,TRIM1#,2#

 1
63310 - HEADLINING ASSY, ROOF
63310-47160B0

ZVW5#..(A,S)..CBU

COOL GRAY,TRIM1#,2#

 1
63310-47170B0

ZVW5#..(A,PREM,S)..CBU

ﾑｰﾝﾙｰﾌ−有り,COOL GRAY,TRIM1#,2#

 1
63310-47171B0

ZVW5#..(A,PREM,S)..CBU

ﾑｰﾝﾙｰﾌ−有り,COOL GRAY,TRIM1#,2#

 1
63310-47161B0

ZVW5#..(A,S)..CBU

COOL GRAY,TRIM1#,2#

 1
63310 - HEADLINING ASSY, ROOF
63310-47160B0

ZVW5#..(A,S)..CBU

COOL GRAY,TRIM1#,2#

 1
63310-47170B0

ZVW5#..(A,PREM,S)..CBU

ﾑｰﾝﾙｰﾌ−有り,COOL GRAY,TRIM1#,2#

 1
63310-47171B0

ZVW5#..(A,PREM,S)..CBU

ﾑｰﾝﾙｰﾌ−有り,COOL GRAY,TRIM1#,2#

 1
63310-47161B0

ZVW5#..(A,S)..CBU

COOL GRAY,TRIM1#,2#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05164P9

ZVW5#..(A,S)..CBU

COOL GRAY,TRIM1#,2#

 3
90467-05168B2

ZVW5#..(A,S)..CBU

COOL GRAY,TRIM1#,2#

 3
63310H - CLIP(FOR ROOF HEADLINING)
90467-05164P9

ZVW5#..(A,S)..CBU

COOL GRAY,TRIM1#,2#

 3
90467-05168B2

ZVW5#..(A,S)..CBU

COOL GRAY,TRIM1#,2#

 3
63341 - PAD, ROOF SILENCER, NO.1
63341-47070

ZVW5#..CBU

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-47070

ZVW5#..CBU

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-47140

ZVW5#..CBU

 1
Common parts
90386-11015
