ZVW55-AHXEB (2015)
Toyota Prius

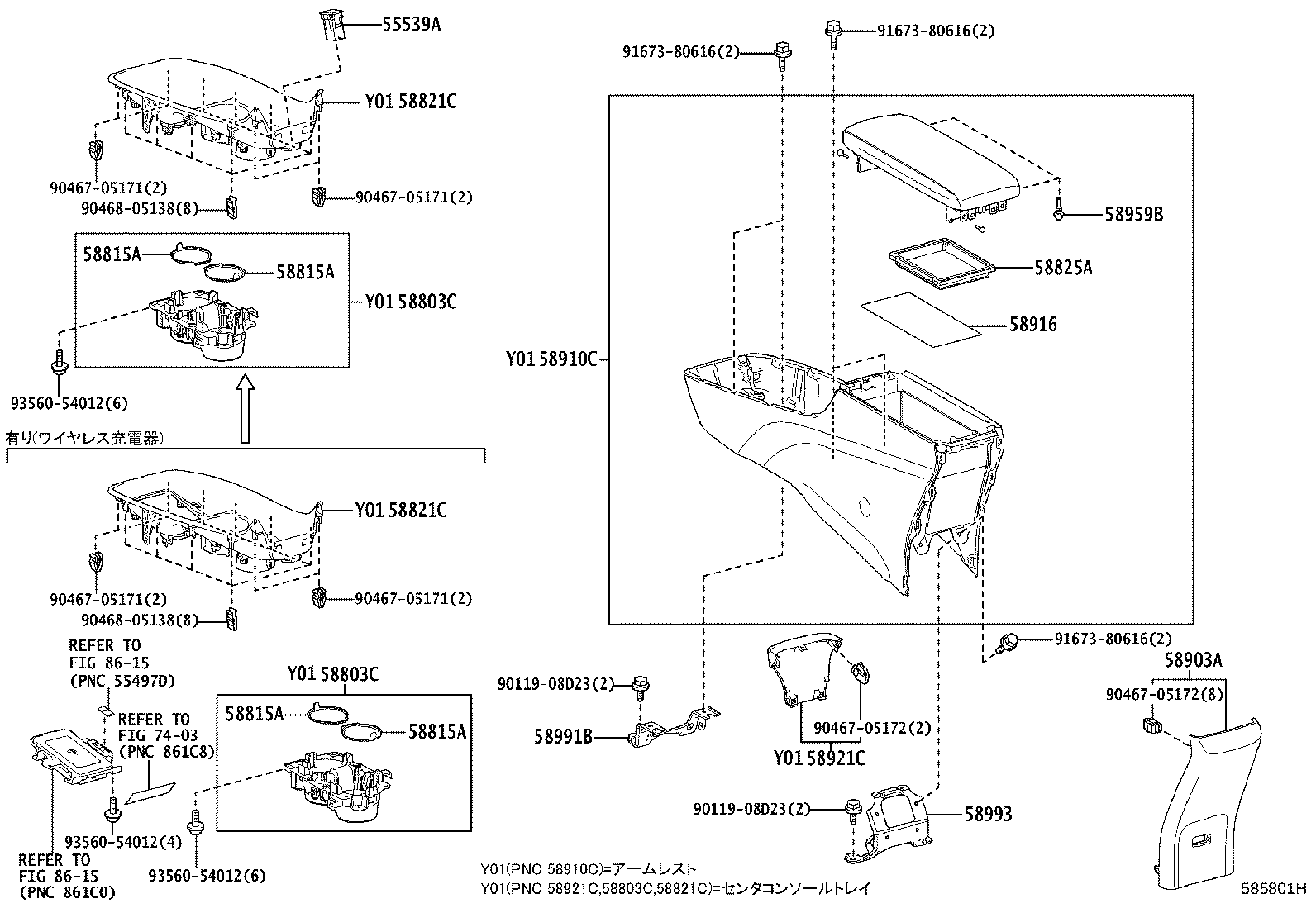

(1511-1812)A,PREM,S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-58070C0 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ,BLACK |
1 | ||
| 55539-58070C0 |
ZVW5#..(A,PREM,S)..CBU BLACK |
1 | ||
| 55539-58070C1 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL,BLACK |
1 | ||
| 55539-58070C1 |
ZVW5#..(A,PREM,S)..CBU BLACK |
1 | ||
| 55539-58070C0 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & JBL,BLACK |
1 | ||
| 55539-58070C1 |
ZVW51,55..(A,PREM)..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ,BLACK |
1 | ||
| 58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER | ||||
| 58803-47011C0 |
ZVW51,55..A..CBU おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK METALLC,TRIM20 |
1 | ||
| 58803-47020 |
ZVW50,55..S..CBU |
1 | ||
| 58803-47011C0 |
ZVW51,55..A..CBU BLACK METALLC,TRIM20,21 |
1 | ||
| 58803-47011A0 |
ZVW51,55..(A,PREM)..CBU WHITE |
1 | ||
| 58803-47010 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 58803-47011A0 |
ZVW50,55..S..CBU S”Safety Plus”*(A),WHITE,TRIM1# |
1 | ||
| 58803-47010 |
ZVW51,55..(A,PREM)..CBU おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り |
1 | ||
| 58803-47011A0 |
ZVW51,55..(A,PREM)..CBU WHITE,TRIM1#,20,21 |
1 | ||
| 58803-47011C0 |
ZVW50,55..S..CBU S”Safety Plus”*(A),BLACK METALLC,TRIM2# |
1 | ||
| 58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER | ||||
| 58803-47011C0 |
ZVW51,55..A..CBU おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK METALLC,TRIM20 |
1 | ||
| 58803-47020 |
ZVW50,55..S..CBU |
1 | ||
| 58803-47011C0 |
ZVW51,55..A..CBU BLACK METALLC,TRIM20,21 |
1 | ||
| 58803-47011A0 |
ZVW51,55..(A,PREM)..CBU WHITE |
1 | ||
| 58803-47010 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 58803-47011A0 |
ZVW50,55..S..CBU S”Safety Plus”*(A),WHITE,TRIM1# |
1 | ||
| 58803-47010 |
ZVW51,55..(A,PREM)..CBU おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り |
1 | ||
| 58803-47011A0 |
ZVW51,55..(A,PREM)..CBU WHITE,TRIM1#,20,21 |
1 | ||
| 58803-47011C0 |
ZVW50,55..S..CBU S”Safety Plus”*(A),BLACK METALLC,TRIM2# |
1 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-47080 |
ZVW5#..(A,PREM,S)..CBU |
2 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-47080 |
ZVW5#..(A,PREM,S)..CBU |
2 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-47080 |
ZVW5#..(A,PREM,S)..CBU |
2 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-47080 |
ZVW5#..(A,PREM,S)..CBU |
2 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-47041A0 |
ZVW51,55..(A,PREM)..CBU おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,WHITE |
1 | ||
| 58821-47041A0 |
ZVW51,55..A..CBU おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,WHITE,TRIM1#,2# |
1 | ||
| 58821-47041C0 |
ZVW51,55..A..CBU おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK METALLC,TRIM20,21 |
1 | ||
| 58821-47041A0 |
ZVW51,55..A..CBU おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,WHITE,TRIM1#,20,21 |
1 | ||
| 58821-47051A0 |
ZVW51,55..(A,PREM)..CBU WHITE,TRIM1#,20,21 |
1 | ||
| 58821-47051A0 |
ZVW51,55..(A,PREM)..CBU WHITE |
1 | ||
| 58821-47041A0 |
ZVW51,55..(A,PREM)..CBU おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,WHITE,TRIM1# |
1 | ||
| 58821-47040 |
ZVW51,55..(A,PREM)..CBU おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り |
1 | ||
| 58821-47041A0 |
ZVW51,55..(A,PREM)..CBU おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,WHITE,TRIM1# |
1 | ||
| 58821-47051C0 |
ZVW51,55..A..CBU BLACK METALLC,TRIM20,21 |
1 | ||
| 58821-47070 |
ZVW50,55..S..CBU |
1 | ||
| 58821-47051C0 |
ZVW50,55..S..CBU S”Safety Plus”*(A),BLACK METALLC,TRIM2# |
1 | ||
| 58821-47041C0 |
ZVW51,55..A..CBU おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK METALLC,TRIM20 |
1 | ||
| 58821-47050 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 58821-47041C0 |
ZVW51,55..(A,PREM)..CBU おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK METALLC,TRIM2# |
1 | ||
| 58821-47051A0 |
ZVW50,55..S..CBU S”Safety Plus”*(A),WHITE,TRIM1# |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-47041A0 |
ZVW51,55..(A,PREM)..CBU おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,WHITE |
1 | ||
| 58821-47041A0 |
ZVW51,55..A..CBU おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,WHITE,TRIM1#,2# |
1 | ||
| 58821-47041C0 |
ZVW51,55..A..CBU おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK METALLC,TRIM20,21 |
1 | ||
| 58821-47041A0 |
ZVW51,55..A..CBU おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,WHITE,TRIM1#,20,21 |
1 | ||
| 58821-47051A0 |
ZVW51,55..(A,PREM)..CBU WHITE,TRIM1#,20,21 |
1 | ||
| 58821-47051A0 |
ZVW51,55..(A,PREM)..CBU WHITE |
1 | ||
| 58821-47041A0 |
ZVW51,55..(A,PREM)..CBU おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,WHITE,TRIM1# |
1 | ||
| 58821-47040 |
ZVW51,55..(A,PREM)..CBU おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り |
1 | ||
| 58821-47041A0 |
ZVW51,55..(A,PREM)..CBU おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,WHITE,TRIM1# |
1 | ||
| 58821-47051C0 |
ZVW51,55..A..CBU BLACK METALLC,TRIM20,21 |
1 | ||
| 58821-47070 |
ZVW50,55..S..CBU |
1 | ||
| 58821-47051C0 |
ZVW50,55..S..CBU S”Safety Plus”*(A),BLACK METALLC,TRIM2# |
1 | ||
| 58821-47041C0 |
ZVW51,55..A..CBU おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK METALLC,TRIM20 |
1 | ||
| 58821-47050 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 58821-47041C0 |
ZVW51,55..(A,PREM)..CBU おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK METALLC,TRIM2# |
1 | ||
| 58821-47051A0 |
ZVW50,55..S..CBU S”Safety Plus”*(A),WHITE,TRIM1# |
1 | ||
| 58825A - POCKET, CONSOLE BOX | ||||
| 58825-47060 |
ZVW5#..(A,PREM,S)..CBU |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-47060C0 |
ZVW5#..(A,S)..CBU 外部電源−有り(AC100V 1500W:2個),BLACK,TRIM1#,2# |
1 | ||
| 58903-47070C0 |
ZVW5#..(A,S)..CBU BLACK,TRIM1#,2# |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-47030C2 |
ZVW5#..(A,S)..CBU ”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”&ｼｰﾄ表皮−合成皮革,BLACK,TRIM1#,2# |
1 | ||
| 58910-47040C2 |
ZVW5#..(A,S)..CBU BLACK,TRIM1#,2# |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-47020 |
ZVW5#..(A,PREM,S)..CBU |
1 | ||
| 58921C - PLATE, BOX, UPPER NO.1 | ||||
| 58921-47020 |
ZVW51,55..(A,PREM)..CBU |
1 | ||
| 58921-47021A0 |
ZVW51,55..(A,PREM)..CBU WHITE,TRIM1#,2# |
1 | ||
| 58921-47030 |
ZVW50,55..S..CBU |
1 | ||
| 58921-47021A0 |
ZVW51,55..(A,PREM)..CBU WHITE,TRIM1#,20,21 |
1 | ||
| 58921-47021A0 |
ZVW50,55..S..CBU S”Safety Plus”*(A),WHITE,TRIM1# |
1 | ||
| 58921-47021C0 |
ZVW51,55..A..CBU BLACK METALLC,TRIM20,21 |
1 | ||
| 58921-47021C0 |
ZVW50,55..S..CBU S”Safety Plus”*(A),BLACK METALLC,TRIM2# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 90541-03078 |
ZVW5#..(A,PREM,S)..CBU |
2 | ||
| 58991B - BRACKET, CONSOLE BOX MOUNTING, FRONT | ||||
| 58991-47020 |
ZVW5#..(A,PREM,S)..CBU |
1 | ||
| 58993 - BRACKET, CONSOLE BOX MOUNTING, REAR | ||||
| 58996-47030 |
ZVW5#..(A,PREM,S)..CBU |
1 | ||
| Common parts | ||||
| 90119-08D23 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90468-05138 | ||||
| 91673-80616 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8615 | ||||

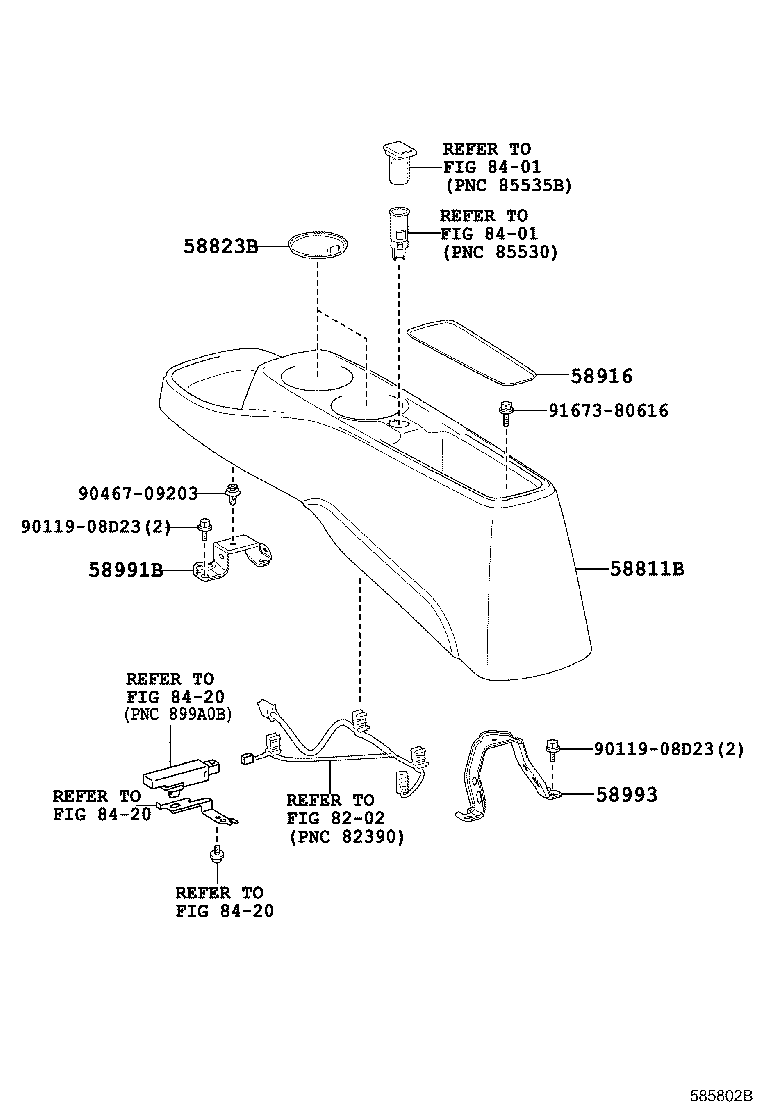

(1511- )E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-47020 |
ZVW5#..(A,PREM,S)..CBU |
1 | ||
| 58991B - BRACKET, CONSOLE BOX MOUNTING, FRONT | ||||
| 58991-47020 |
ZVW5#..(A,PREM,S)..CBU |
1 | ||
| 58993 - BRACKET, CONSOLE BOX MOUNTING, REAR | ||||
| 58996-47030 |
ZVW5#..(A,PREM,S)..CBU |
1 | ||
| Common parts | ||||
| 90119-08D23 | ||||
| 90467-09203 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
| 8420 | ||||
