ZVW55-AHXEB (2015)
Toyota Prius
Production
Nov 2015
-
Dec 2018
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1511- )

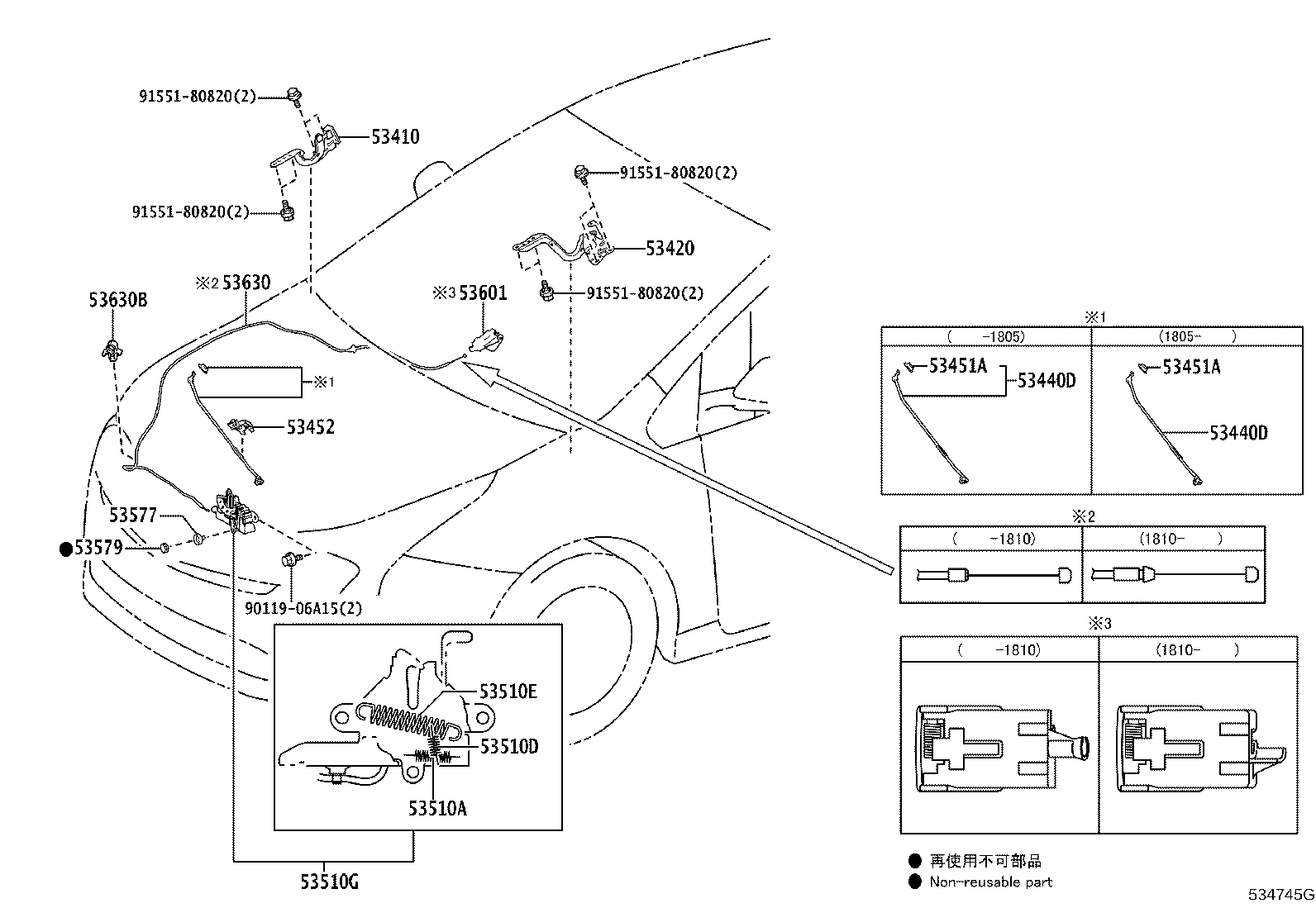

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-47130 |
ZVW5#..CBU |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-47130 |
ZVW5#..CBU |
1 | ||
| 53440D - SUPPORT ASSY, HOOD | ||||
| 53440-47070 |
ZVW5#..CBU |
1 | ||
| 53440-47060 |
ZVW5#..CBU |
1 | ||
| 53440D - SUPPORT ASSY, HOOD | ||||
| 53440-47070 |
ZVW5#..CBU |
1 | ||
| 53440-47060 |
ZVW5#..CBU |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 90480-15025 |
ZVW5#..CBU |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 90480-15025 |
ZVW5#..CBU |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-47050 |
ZVW5#..CBU |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09055 |
ZVW5#..CBU 線径=0.9,ｺｲﾙ巻数=21 |
1 | ||
| 53510D - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-12063 |
ZVW5#..CBU 線径=1.2,ｺｲﾙ巻数=8.5 |
1 | ||
| 53510E - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-14085 |
ZVW5#..CBU 線径=1.4,ｺｲﾙ巻数=12 |
1 | ||
| 53510G - LOCK ASSY, HOOD, W/COURTESY LAMP SWITCH | ||||
| 53510-47140 |
ZVW5#..CBU |
1 | ||
| 53577 - BOLT, HOOD LOCK | ||||
| 53577-33010 |
ZVW5#..CBU |
1 | ||
| 53579 - CAP, HOOD LOCK NUT | ||||
| 53579-50010 |
ZVW5#..CBU |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-52010C0 |
ZVW5#..(A,PREM,S)..CBU BLACK,TRIM1#,2# |
1 | ||
| 53601-30100C0 |
ZVW5#..(A,PREM,S)..CBU BLACK,TRIM1#,2# |
1 | ||
| 53601-52010C1 |
ZVW5#..(A,S)..CBU BLACK,TRIM1#,2# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-47091 |
ZVW5#..CBU |
1 | ||
| 53630-47090 |
ZVW5#..CBU |
1 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90959-01369 |
ZVW5#..CBU |
1 | ||
| Common parts | ||||
| 90119-06A15 | ||||
| 91551-80820 | ||||
