ZVW55-AHXEB (2015)
Toyota Prius
Production
Nov 2015
-
Dec 2018
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

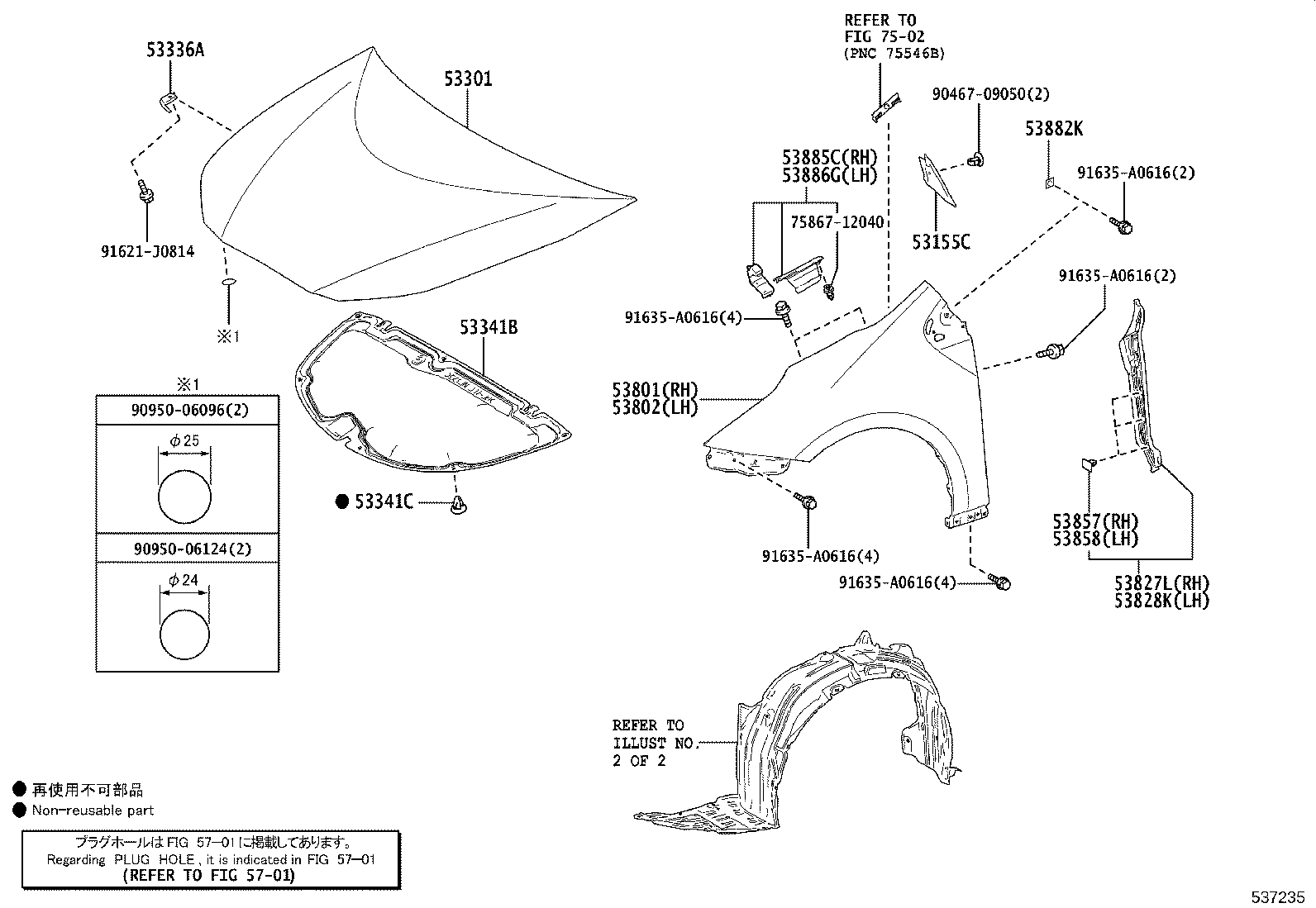

ILLUST NO. 1 OF 2(1511- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53155C - SEAL, RADIATOR GRILLE, NO.1 | ||||
| 53155-47010 |
ZVW5#..CBU |
2 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-47110 |
ZVW5#..CBU |
1 | ||
| 53336A - BRACKET, HOOD STAY | ||||
| 53336-47010 |
ZVW5#..CBU |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-47040 |
ZVW5#..CBU |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
ZVW5#..CBU |
6 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-47080 |
ZVW5#..CBU |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-47100 |
ZVW5#..CBU |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-47050 |
ZVW5#..CBU |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-47070 |
ZVW5#..CBU |
1 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-12010 |
ZVW5#..CBU |
3 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-12010 |
ZVW5#..CBU |
3 | ||
| 53882K - SEAL, FRONT FENDER | ||||
| 53882-33060 |
ZVW5#..CBU |
2 | ||
| 53885C - SEAL, FENDER APRON MUDGUARD, RH | ||||
| 53807-47020 |
ZVW5#..CBU |
1 | ||
| 53886G - SEAL, FENDER APRON MUDGUARD, LH | ||||
| 53808-47020 |
ZVW5#..CBU |
1 | ||
| Common parts | ||||
| 75867-12040 | ||||
| 90467-09050 | ||||
| 90950-06096 | ||||
| 90950-06124 | ||||
| 91621-J0814 | ||||
| 91635-A0616 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 7502 | ||||

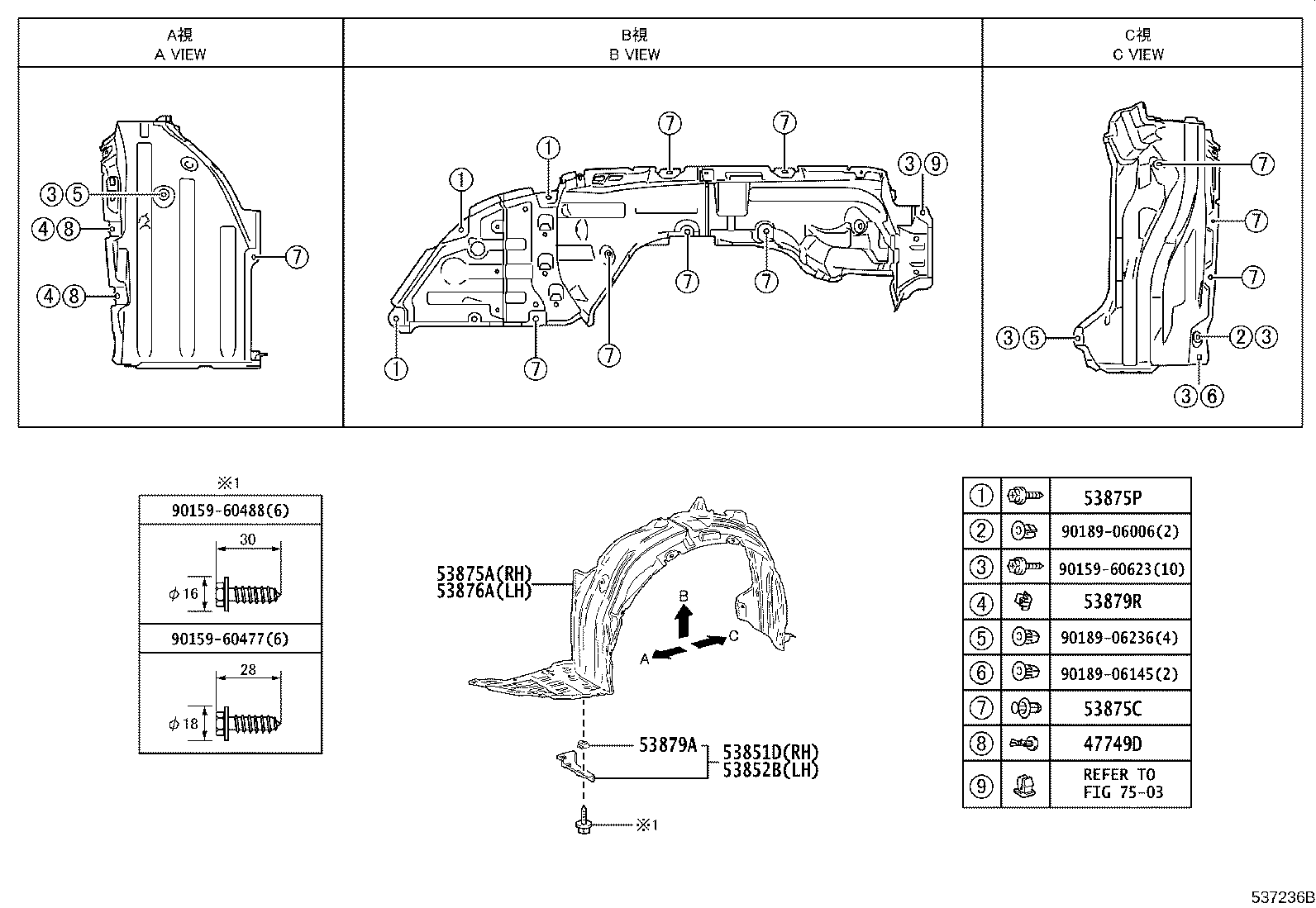

ILLUST NO. 2 OF 2(1511- )
Click highlighted areas on diagram
ﾌｴﾝﾀﾞﾗｲﾅ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749D - CLIP, PIN HOLD | ||||
| 47749-50090 |
ZVW5#..CBU |
4 | ||
| 47749-30030 |
ZVW5#..CBU |
4 | ||
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-47061 |
ZVW5#..CBU |
1 | ||
| 53851-47060 |
ZVW5#..CBU |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-47040 |
ZVW5#..CBU |
1 | ||
| 53852-47041 |
ZVW5#..CBU |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-47070 |
ZVW5#..CBU |
1 | ||
| 53875C - CLIP, FRONT FENDER LINER | ||||
| 90467-07214 |
ZVW5#..CBU |
18 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60477 |
ZVW5#..CBU |
6 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-47110 |
ZVW5#..CBU |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-17020 |
ZVW5#..CBU |
6 | ||
| 53879-47020 |
ZVW5#..CBU |
6 | ||
| 53879R - RETAINER, FRONT FENDER LINER | ||||
| 53879-30050 |
ZVW5#..CBU |
4 | ||
| 53879-30060 |
ZVW5#..CBU |
4 | ||
| Common parts | ||||
| 90159-60477 | ||||
| 90159-60488 | ||||
| 90159-60623 | ||||
| 90189-06006 | ||||
| 90189-06145 | ||||
| 90189-06236 | ||||
| Linked diagrams | ||||
| 7503 | ||||
