ZVW55-AHXEB (2015)
Toyota Prius

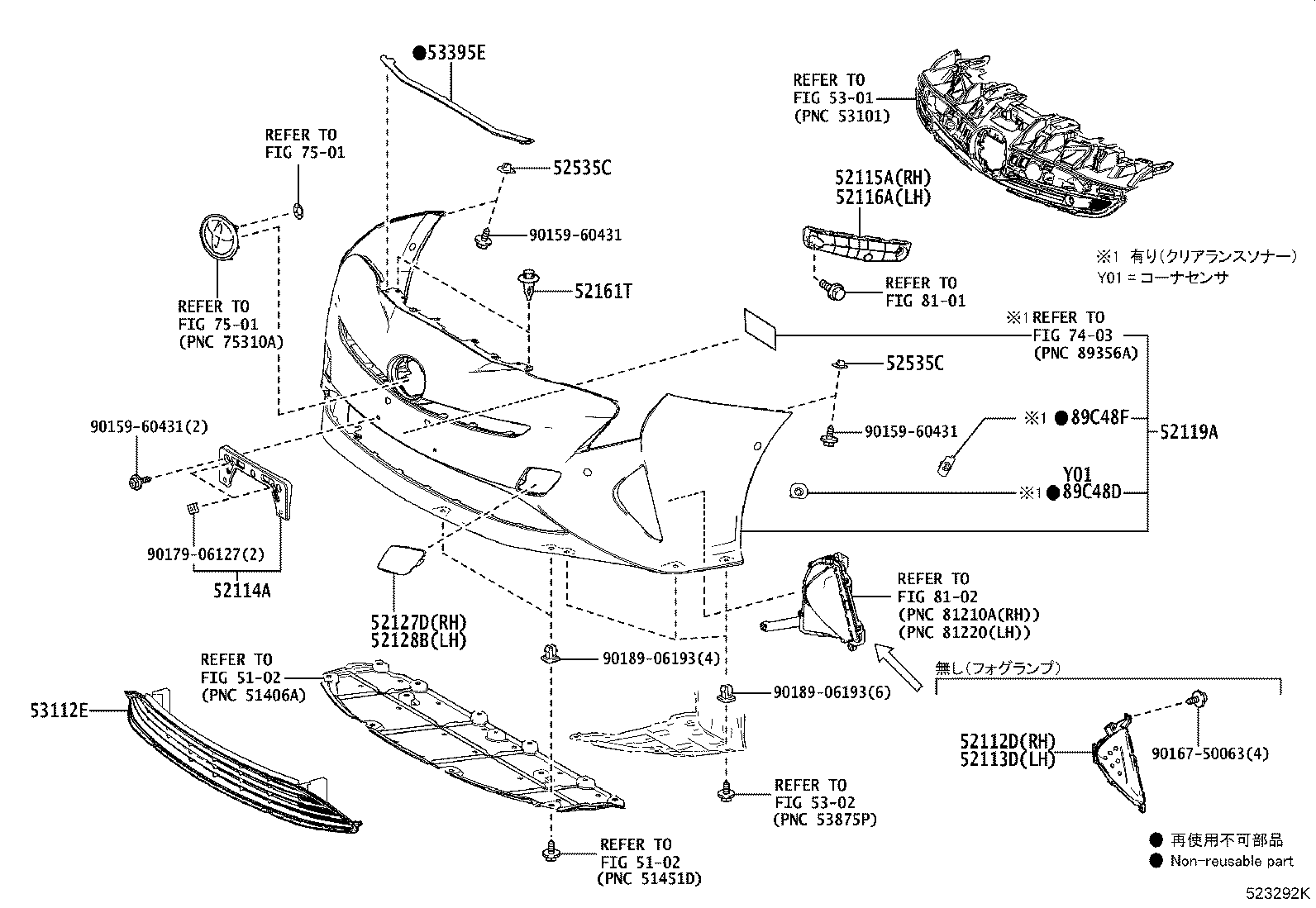

ILLUST NO. 1 OF 2(1511-1812)
ﾊﾞﾝﾊﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52112-47060 |
ZVW5#..(E,S)..CBU 塗装不要 |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52113-47060 |
ZVW5#..(E,S)..CBU 塗装不要 |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-47170 |
ZVW5#..CBU |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-47050 |
ZVW5#..CBU |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-47050 |
ZVW5#..CBU |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-47963G0 |
ZVW51,55..(A,PREM)..CBU THERMO-TECT LIME GREEN,6W7 |
1 | ||
| 52119-47B20A1 |
ZVW5#..(E,S)..CBU WHITE PEARL CS.,070,FRAME NO.=8,9XXXXXX |
1 | ||
| 52119-47B20E0 |
ZVW5#..(E,S)..CBU STEEL BLONDE,4X1,FRAME NO.=8,9XXXXXX |
1 | ||
| 52119-47B20B0 |
ZVW5#..(E,S)..CBU SILVER ME.,1F7 |
1 | ||
| 52119-47963A0 |
ZVW51,55..(A,PREM)..CBU SUPER WHITE 2,040 |
1 | ||
| 52119-47B20B1 |
ZVW5#..(E,S)..CBU GRAY ME.,1G3 |
1 | ||
| 52119-47D40E0 |
ZVW5#..(E,S)..CBU STEEL BLONDE ME.,4X1,FRAME NO.=6,7XXXXXX |
1 | ||
| 52119-47B20D0 |
ZVW5#..(E,S)..CBU EMOTIONAL RED,3T7 |
1 | ||
| 52119-47963A0 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SUPER WHITE 2,040 |
1 | ||
| 52119-47B20G0 |
ZVW5#..(E,S)..CBU THERMO-TECT LIME GREEN,6W7 |
1 | ||
| 52119-47B20J0 |
ZVW5#..(E,S)..CBU DK.BLUE M.M.,8W7 |
1 | ||
| 52119-47963A0 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SUPER WHITE 2,040 |
1 | ||
| 52119-47B20A0 |
ZVW5#..(E,S)..CBU SUPER WHITE 2,040 |
1 | ||
| 52119-47963A0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SUPER WHITE 2,040 |
1 | ||
| 52119-47D40A1 |
ZVW5#..(E,S)..CBU WHITE PEARL CS.,070,FRAME NO.=6,7XXXXXX |
1 | ||
| 52119-47963A1 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070,FRAME NO.=8,9XwXXXX |
1 | ||
| 52119-47963A1 |
ZVW50,55..S..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070,eRAME NO.=8,9XXXXXX |
1 | ||
| 52119-47963A1 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070,FRAME NO.=8,9XXXXXX |
1 | ||
| 52119-47963B1 |
ZVW51,55..(A,PREM)..CBU GRAY ME.,1G3 |
1 | ||
| 52119-47963B0 |
ZVW50,55..S..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1F7 |
1 | ||
| 52119-47963B0 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1F7 |
1 | ||
| 52119-47963A1 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070 ,2QJ,FRAME NO.=8,9XXXXXX |
1 | ||
| 52119-47B20C0 |
ZVW5#..(E,S)..CBU ATTITUDE BLACK MC.,218 |
1 | ||
| 52119-47963B1 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GRAY ME.,1G3 |
1 | ||
| 52119-47963C0 |
ZVW51,55..(A,PREM)..CBU ATTITUDE BLACK MC.,218 |
1 | ||
| 52119-47963B1 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GRAY ME.,1G3 |
1 | ||
| 52119-47963C0 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,ATTITUDE BLACK MC.,218 |
1 | ||
| 52119-47963B0 |
ZVW51,55..(A,PREM)..CBU SILVER ME.,1F7 |
1 | ||
| 52119-47963B1 |
ZVW50,55..S..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GRAY ME.,1G3 |
1 | ||
| 52119-47963D0 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,EMOTIONAL RED,3T7 |
1 | ||
| 52119-47963A1 |
ZVW51,55..A..CBU WHITE PEARL CS.,070,FRAME NO.=8,9XXXXXX |
1 | ||
| 52119-47963A0 |
ZVW50,55..S..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SUPER WHITE 2,040 |
1 | ||
| 52119-47963C0 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,ATTITUDE BLACK MC.,218 |
1 | ||
| 52119-47963D0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,EMOTIONAL RED,3T7 |
1 | ||
| 52119-47963E0 |
ZVW51,55..(A,PREM)..CBU STEEL BLONDE,4X1,FRAME NO.=8,9XXXXXX |
1 | ||
| 52119-47963B0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1F7 |
1 | ||
| 52119-47963B1 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GRAY ME.,1G3 |
1 | ||
| 52119-47963D0 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,EMOTIONAL RED,3T7 |
1 | ||
| 52119-47963D0 |
ZVW50,55..S..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,EMOTIONAL RED,3T7 |
1 | ||
| 52119-47963D0 |
ZVW51,55..A..CBU EMOTIONAL RED,3T7 |
1 | ||
| 52119-47963C0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,ATTITUDE BLACK MC.,218 |
1 | ||
| 52119-47963G0 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,THERMO-TECT LIME GREEN,6W7 |
1 | ||
| 52119-47963B0 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1F7 |
1 | ||
| 52119-47963E0 |
ZVW50,55..S..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STEEL BLONDE,4X1,FRAME NO.=8,9XXXXXX |
1 | ||
| 52119-47963G0 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,THERMO-TECT LIME GREEN,6W7 |
1 | ||
| 52119-47971A1 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070 ,2QJ,FRAME NO.=6,7XXXXXX |
1 | ||
| 52119-47963E0 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STEEL BLONDE,2RB ,4X1,FRAME NO.=8,9XXXXwX |
1 | ||
| 52119-47963G0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,THERMO-TECT LIME GREEN,6W7 |
1 | ||
| 52119-47963E0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STEEL BLONDE,4X1,FRAME NO.=8,9XXXXXX |
1 | ||
| 52119-47963G0 |
ZVW50,55..S..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,THERMO-TECT LIME GREEN,6W7 |
1 | ||
| 52119-47963J0 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.BLUE M.M.,2RC ,8W7 |
1 | ||
| 52119-47963C0 |
ZVW50,55..S..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,ATTITUDE BLACK MC.,218 |
1 | ||
| 52119-47963J0 |
ZVW51,55..(A,PREM)..CBU DK.BLUE M.M.,8W7 |
1 | ||
| 52119-47971A1 |
ZVW50,55..S..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070,eRAME NO.=6,7XXXXXX |
1 | ||
| 52119-47971E0 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STEEL BLONDE,2RB ,4X1,FRAME NO.=6,7XXXXwX |
1 | ||
| 52119-47963J0 |
ZVW50,55..S..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.BLUE M.M.,8W7 |
1 | ||
| 52119-47B20A2 |
ZVW5#..(E,S)..CBU SUPER WHITE 2,040 |
1 | ||
| 52119-47963J0 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.BLUE M.M.,8W7 |
1 | ||
| 52119-47963J0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.BLUE M.M.,8W7 |
1 | ||
| 52119-47B20C1 |
ZVW5#..(E,S)..CBU ATTITUDE BLACK MC.,218 |
1 | ||
| 52119-47971E0 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STEEL BLONDE,4X1,FRAME NO.=6,7XXXXXX |
1 | ||
| 52119-47971E0 |
ZVW51,55..(A,PREM)..CBU STEEL BLONDE,4X1,FRAME NO.=6,7XXXXXX |
1 | ||
| 52119-47971A1 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070,FRAME NO.=6,7XXXXXX |
1 | ||
| 52119-47963E0 |
ZVW50,55..S..CBU Toyota Safety Sense−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STEEL BLONDE,4X1,FRAME NO.=8,9XXXXXX |
1 | ||
| 52119-47971A1 |
ZVW51,55..A..CBU WHITE PEARL CS.,070,FRAME NO.=6,7XXXXXX |
1 | ||
| 52119-47971E0 |
ZVW50,55..S..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STEEL BLONDE,4X1,FRAME NO.=6,7XXXXXX |
1 | ||
| 52119-47971E0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STEEL BLONDE,4X1,FRAME NO.=6,7XXXXXX |
1 | ||
| 52119-47B20E1 |
ZVW5#..(E,S)..CBU STEEL BLONDE ME.,4X1,FRAME NO.=8,9XXXXXX |
1 | ||
| 52119-47971A1 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070,FRAME NO.=6,7XwXXXX |
1 | ||
| 52119-47B20A3 |
ZVW5#..(E,S)..CBU WHITE PEARL CS.,070,FRAME NO.=8,9XXXXXX |
1 | ||
| 52119-47B20B2 |
ZVW5#..(E,S)..CBU SILVER ME.,1F7 |
1 | ||
| 52119-47B20J1 |
ZVW5#..(E,S)..CBU DK.BLUE M.M.,8W7 |
1 | ||
| 52119-47B20D1 |
ZVW5#..(E,S)..CBU EMOTIONAL RED,3T7 |
1 | ||
| 52119-47D40E1 |
ZVW5#..(E,S)..CBU STEEL BLONDE ME.,4X1,FRAME NO.=6,7XXXXXX |
1 | ||
| 52119-47B20B3 |
ZVW5#..(E,S)..CBU GRAY ME.,1G3 |
1 | ||
| 52119-47B20G1 |
ZVW5#..(E,S)..CBU THERMO-TECT LIME GREEN,6W7 |
1 | ||
| 52119-47D40A3 |
ZVW5#..(E,S)..CBU WHITE PEARL CS.,070,FRAME NO.=6,7XXXXXX |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-47070A1 |
ZVW51,55..(A,E)..CBU WHITE PEARL CS.,070,FRAME NO.=8,9XXXXXX |
1 | ||
| 52127-47070B0 |
ZVW5#..CBU SILVER ME.,1F7 |
1 | ||
| 52127-47070C0 |
ZVW5#..CBU ATTITUDE BLACK MC.,218 |
1 | ||
| 52127-47070E0 |
ZVW51,55..(A,E,PREM)..CBU STEEL BLONDE,4X1,FRAME NO.=8,9XXXXXX |
1 | ||
| 52127-47070J0 |
ZVW50,55..S..CBU DK.BLUE M.M.,2RC ,8W7 |
1 | ||
| 52127-47070J0 |
ZVW51,55..(A,E,PREM)..CBU DK.BLUE M.M.,8W7 |
1 | ||
| 52127-47070A1 |
ZVW5#..(PREM,S)..CBU WHITE PEARL CS.,070 ,2QJ,FRAME NO.=8,9XXXXXX |
1 | ||
| 52127-47070A0 |
ZVW5#..CBU SUPER WHITE 2,040 |
1 | ||
| 52127-47150A1 |
ZVW5#..(PREM,S)..CBU WHITE PEARL CS.,070 ,2QJ,FRAME NO.=6,7XXXXXX |
1 | ||
| 52127-47070E0 |
ZVW50,55..S..CBU STEEL BLONDE,2RB ,4X1,FRAME NO.=8,9XXXXXX |
1 | ||
| 52127-47150E0 |
ZVW51,55..(A,E,PREM)..CBU STEEL BLONDE ME.,4X1,FRAME NO.=6,7XXXXXX |
1 | ||
| 52127-47150E0 |
ZVW50,55..S..CBU STEEL BLONDE ME.,2RB ,4X1,FRAME NO.=6,7XXXXXX |
1 | ||
| 52127-47070G0 |
ZVW5#..CBU THERMO-TECT LIME GREEN,6W7 |
1 | ||
| 52127-47150A1 |
ZVW51,55..(A,E)..CBU WHITE PEARL CS.,070,FRAME NO.=6,7XXXXXX |
1 | ||
| 52127-47070B1 |
ZVW5#..CBU GRAY ME.,1G3 |
1 | ||
| 52127-47070D0 |
ZVW5#..(A,E,S)..CBU EMOTIONAL RED,3T7 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-47050A0 |
ZVW5#..CBU SUPER WHITE 2,040 |
1 | ||
| 52128-47050A1 |
ZVW51,55..(A,E)..CBU WHITE PEARL CS.,070,FRAME NO.=8,9XXXXXX |
1 | ||
| 52128-47050E0 |
ZVW50,55..S..CBU STEEL BLONDE,2RB ,4X1,FRAME NO.=8,9XXXXXX |
1 | ||
| 52128-47050B0 |
ZVW5#..CBU SILVER ME.,1F7 |
1 | ||
| 52128-47050C0 |
ZVW5#..CBU ATTITUDE BLACK MC.,218 |
1 | ||
| 52128-47050A1 |
ZVW5#..(PREM,S)..CBU WHITE PEARL CS.,070 ,2QJ,FRAME NO.=8,9XXXXXX |
1 | ||
| 52128-47050J0 |
ZVW50,55..S..CBU DK.BLUE M.M.,2RC ,8W7 |
1 | ||
| 52128-47050D0 |
ZVW5#..(A,E,S)..CBU EMOTIONAL RED,3T7 |
1 | ||
| 52128-47050G0 |
ZVW5#..CBU THERMO-TECT LIME GREEN,6W7 |
1 | ||
| 52128-47050E0 |
ZVW51,55..(A,E,PREM)..CBU STEEL BLONDE,4X1,FRAME NO.=8,9XXXXXX |
1 | ||
| 52128-47110E0 |
ZVW50,55..S..CBU STEEL BLONDE ME.,2RB ,4X1,FRAME NO.=6,7XXXXXX |
1 | ||
| 52128-47110A1 |
ZVW5#..(PREM,S)..CBU WHITE PEARL CS.,070 ,2QJ,FRAME NO.=6,7XXXXXX |
1 | ||
| 52128-47110A1 |
ZVW51,55..(A,E)..CBU WHITE PEARL CS.,070,FRAME NO.=6,7XXXXXX |
1 | ||
| 52128-47050B1 |
ZVW5#..CBU GRAY ME.,1G3 |
1 | ||
| 52128-47050J0 |
ZVW51,55..(A,E,PREM)..CBU DK.BLUE M.M.,8W7 |
1 | ||
| 52128-47110E0 |
ZVW51,55..(A,E,PREM)..CBU STEEL BLONDE ME.,4X1,FRAME NO.=6,7XXXXXX |
1 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ZVW5#..CBU |
2 | ||
| 52535C - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-50060 |
ZVW5#..CBU |
2 | ||
| 52535C - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-50060 |
ZVW5#..CBU |
2 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-47240 |
ZVW5#..CBU 塗装不要 |
1 | ||
| 53395E - SEAL, HOOD TO FRONT END PANEL | ||||
| 53395-47040 |
ZVW5#..CBU |
1 | ||
| 89C48D - RETAINER, ULTRASONIC SENSOR, FRONT CORNER | ||||
| 89348-47020A0 |
ZVW51,55..(A,PREM)..CBU SUPER WHITE 2,040,左側 |
1 | ||
| 89348-47020A1 |
ZVW51,55..A..CBU WHITE PEARL CS.,070,左側 |
1 | ||
| 89348-47020A0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SUPER WHITE 2,040,左側 |
1 | ||
| 89348-47020D0 |
ZVW51,55..A..CBU EMOTIONAL RED,3T7,左側 |
1 | ||
| 89348-47020A1 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070 ,2QJ,左側 |
1 | ||
| 89348-47020E0 |
ZVW51,55..(A,PREM)..CBU STEEL BLONDE,4X1,左側 |
1 | ||
| 89348-47020B0 |
ZVW51,55..(A,PREM)..CBU SILVER ME.,1F7,左側 |
1 | ||
| 89348-47020B1 |
ZVW51,55..(A,PREM)..CBU GRAY ME.,1G3,左側 |
1 | ||
| 89348-47030A0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SUPER WHITE 2,040,右側 |
1 | ||
| 89348-47020B0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1F7,左側 |
1 | ||
| 89348-47020J0 |
ZVW51,55..(A,PREM)..CBU DK.BLUE M.M.,8W7,左側 |
1 | ||
| 89348-47020D0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,EMOTIONAL RED,3T7,左側 |
1 | ||
| 89348-47020J0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.BLUE M.M.,2RC ,8W7,左側 |
1 | ||
| 89348-47020E0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STEEL BLONDE,2RB ,4X1,左側 |
1 | ||
| 89348-47020G0 |
ZVW51,55..(A,PREM)..CBU THERMO-TECT LIME GREEN,6W7,左側 |
1 | ||
| 89348-47030A1 |
ZVW51,55..A..CBU WHITE PEARL CS.,070,右側 |
1 | ||
| 89348-47030B0 |
ZVW51,55..(A,PREM)..CBU SILVER ME.,1F7,右側 |
1 | ||
| 89348-47020G0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,THERMO-TECT LIME GREEN,6W7,左側 |
1 | ||
| 89348-47030C0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,ATTITUDE BLACK MC.,218,右側 |
1 | ||
| 89348-47030E0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STEEL BLONDE,2RB ,4X1,右側 |
1 | ||
| 89348-47030A1 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070 ,2QJ,右側 |
1 | ||
| 89348-47020C0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,ATTITUDE BLACK MC.,218,左側 |
1 | ||
| 89348-47030B1 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GRAY ME.,1G3,右側 |
1 | ||
| 89348-47030A0 |
ZVW51,55..(A,PREM)..CBU SUPER WHITE 2,040,右側 |
1 | ||
| 89348-47030G0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,THERMO-TECT LIME GREEN,6W7,右側 |
1 | ||
| 89348-47030E0 |
ZVW51,55..(A,PREM)..CBU STEEL BLONDE,4X1,右側 |
1 | ||
| 89348-47030G0 |
ZVW51,55..(A,PREM)..CBU THERMO-TECT LIME GREEN,6W7,右側 |
1 | ||
| 89348-47030B1 |
ZVW51,55..(A,PREM)..CBU GRAY ME.,1G3,右側 |
1 | ||
| 89348-47030B0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1F7,右側 |
1 | ||
| 89348-47030D0 |
ZVW51,55..A..CBU EMOTIONAL RED,3T7,右側 |
1 | ||
| 89348-47030C0 |
ZVW51,55..(A,PREM)..CBU ATTITUDE BLACK MC.,218,右側 |
1 | ||
| 89348-47030J0 |
ZVW51,55..(A,PREM)..CBU DK.BLUE M.M.,8W7,右側 |
1 | ||
| 89348-47030D0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,EMOTIONAL RED,3T7,右側 |
1 | ||
| 89348-47020C0 |
ZVW51,55..(A,PREM)..CBU ATTITUDE BLACK MC.,218,左側 |
1 | ||
| 89348-47030J0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.BLUE M.M.,2RC ,8W7,右側 |
1 | ||
| 89348-47020B1 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GRAY ME.,1G3,左側 |
1 | ||
| 89C48F - RETAINER, ULTRASONIC SENSOR, FRONT SIDE | ||||
| 89348-47040A0 |
ZVW51,55..(A,PREM)..CBU SUPER WHITE 2,040,右側 |
1 | ||
| 89348-47040A1 |
ZVW51,55..A..CBU WHITE PEARL CS.,070,右側 |
1 | ||
| 89348-47040C0 |
ZVW51,55..(A,PREM)..CBU ATTITUDE BLACK MC.,218,右側 |
1 | ||
| 89348-47040A1 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070 ,2QJ,右側 |
1 | ||
| 89348-47040D0 |
ZVW51,55..A..CBU EMOTIONAL RED,3T7,右側 |
1 | ||
| 89348-47040A0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SUPER WHITE 2,040,右側 |
1 | ||
| 89348-47040B1 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GRAY ME.,1G3,右側 |
1 | ||
| 89348-47040B0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1F7,右側 |
1 | ||
| 89348-47040D0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,EMOTIONAL RED,3T7,右側 |
1 | ||
| 89348-47040E0 |
ZVW51,55..(A,PREM)..CBU STEEL BLONDE,4X1,右側 |
1 | ||
| 89348-47040J0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.BLUE M.M.,2RC ,8W7,右側 |
1 | ||
| 89348-47050A0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SUPER WHITE 2,040,左側 |
1 | ||
| 89348-47040B0 |
ZVW51,55..(A,PREM)..CBU SILVER ME.,1F7,右側 |
1 | ||
| 89348-47040G0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,THERMO-TECT LIME GREEN,6W7,右側 |
1 | ||
| 89348-47050A1 |
ZVW51,55..A..CBU WHITE PEARL CS.,070,左側 |
1 | ||
| 89348-47040C0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,ATTITUDE BLACK MC.,218,右側 |
1 | ||
| 89348-47040G0 |
ZVW51,55..(A,PREM)..CBU THERMO-TECT LIME GREEN,6W7,右側 |
1 | ||
| 89348-47050A0 |
ZVW51,55..(A,PREM)..CBU SUPER WHITE 2,040,左側 |
1 | ||
| 89348-47050B0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1F7,左側 |
1 | ||
| 89348-47050C0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,ATTITUDE BLACK MC.,218,左側 |
1 | ||
| 89348-47050A1 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070 ,2QJ,左側 |
1 | ||
| 89348-47050B0 |
ZVW51,55..(A,PREM)..CBU SILVER ME.,1F7,左側 |
1 | ||
| 89348-47050C0 |
ZVW51,55..(A,PREM)..CBU ATTITUDE BLACK MC.,218,左側 |
1 | ||
| 89348-47040B1 |
ZVW51,55..(A,PREM)..CBU GRAY ME.,1G3,右側 |
1 | ||
| 89348-47050B1 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GRAY ME.,1G3,左側 |
1 | ||
| 89348-47050B1 |
ZVW51,55..(A,PREM)..CBU GRAY ME.,1G3,左側 |
1 | ||
| 89348-47040J0 |
ZVW51,55..(A,PREM)..CBU DK.BLUE M.M.,8W7,右側 |
1 | ||
| 89348-47050D0 |
ZVW51,55..A..CBU EMOTIONAL RED,3T7,左側 |
1 | ||
| 89348-47040E0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STEEL BLONDE,2RB ,4X1,右側 |
1 | ||
| 89348-47050J0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.BLUE M.M.,2RC ,8W7,左側 |
1 | ||
| 89348-47050E0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STEEL BLONDE,2RB ,4X1,左側 |
1 | ||
| 89348-47050G0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,THERMO-TECT LIME GREEN,6W7,左側 |
1 | ||
| 89348-47050D0 |
ZVW50,55..S..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,EMOTIONAL RED,3T7,左側 |
1 | ||
| 89348-47050E0 |
ZVW51,55..(A,PREM)..CBU STEEL BLONDE,4X1,左側 |
1 | ||
| 89348-47050G0 |
ZVW51,55..(A,PREM)..CBU THERMO-TECT LIME GREEN,6W7,左側 |
1 | ||
| 89348-47050J0 |
ZVW51,55..(A,PREM)..CBU DK.BLUE M.M.,8W7,左側 |
1 | ||
| Common parts | ||||
| 90159-60431 | ||||
| 90167-50063 | ||||
| 90179-06127 | ||||
| 90189-06193 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5301 | ||||
| 5302 | ||||
| 7403 | ||||
| 7501 | ||||
| 8101 | ||||
| 8102 | ||||

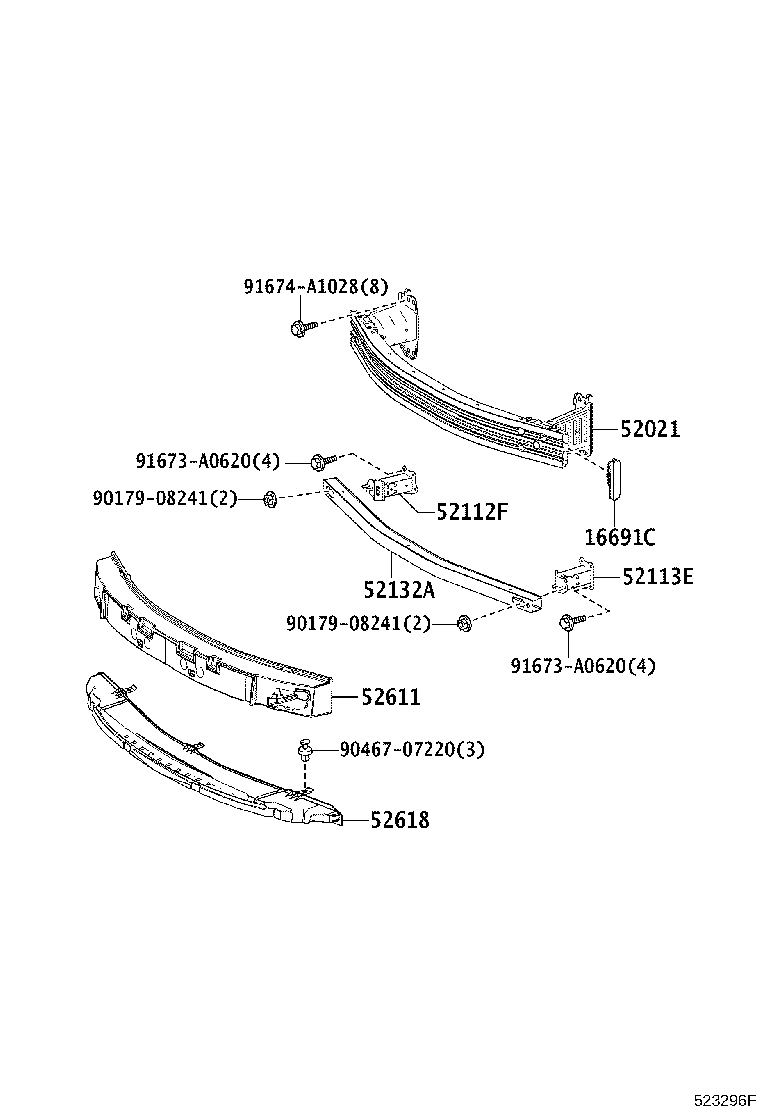

ILLUST NO. 2 OF 2(1511-1812)
ﾘｲﾝﾎｰｽﾒﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16691C - PLATE, RADIATOR SIDE AIR GUIDE, FRONT | ||||
| 16691-37040 |
2ZRFXE..ZVW5#..CBU |
2 | ||
| 16691-37020 |
2ZRFXE..ZVW5#..CBU |
2 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-47110 |
ZVW5#..CBU |
1 | ||
| 52112F - EXTENSION, FRONT BUMPER, RH | ||||
| 52102-47020 |
ZVW5#..CBU |
1 | ||
| 52113E - EXTENSION, FRONT BUMPER, LH | ||||
| 52103-47010 |
ZVW5#..CBU |
1 | ||
| 52132A - REINFORCEMENT, FRONT BUMPER, NO.2 | ||||
| 52132-47010 |
ZVW5#..CBU |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-47140 |
ZVW5#..CBU |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-47090 |
ZVW5#..CBU |
1 | ||
| Common parts | ||||
| 90179-08241 | ||||
| 90467-07220 | ||||
| 91673-A0620 | ||||
| 91674-A1028 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
