ZVW55-AHXEB (2015)

Toyota Prius

Production Nov 2015 - Dec 2018
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )

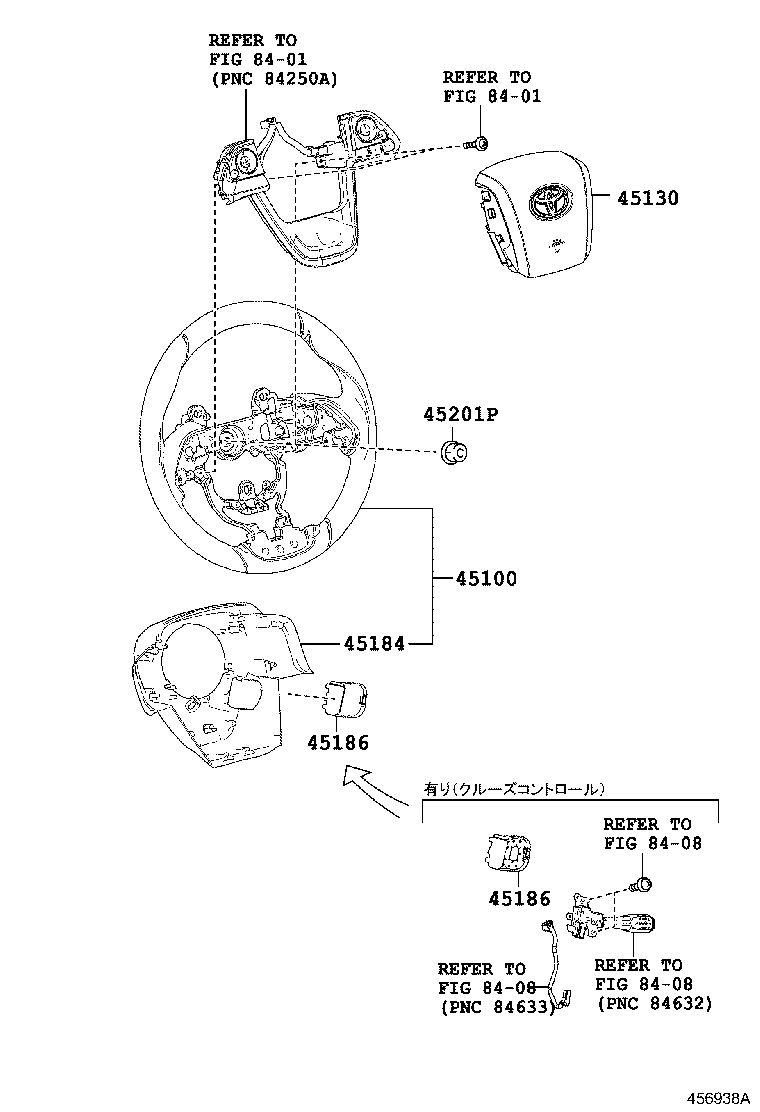

Click highlighted areas on diagram

3ﾎﾝｽﾎﾟｰｸ

diagram 45100 45130 45184 45186 45186 45201P 8401 8401 8408 8408 8408
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-47251C0

ZVW5#..(A,S)..CBU

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#,2#

 1
45100-47252C0

ZVW5#..(A,S)..CBU

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#,2#

 1
45100-47250C0

ZVW5#..(A,S)..CBU

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#,2#

 1
45130 - BUTTON ASSY, HORN
45130-47231C0

ZVW5#..(A,S)..CBU

BLACK,TRIM1#,2#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-47040C0

ZVW5#..(A,E,S)..CBU

BLACK,TRIM1#,2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-47050C0

ZVW51,55..A..CBU

BLACK,TRIM1#,2#

 1
45186-47040C0

ZVW5#..(E,S)..CBU

BLACK,TRIM1#,2#

 1
45186-47050C0

ZVW50,55..S..CBU

Toyota Safety Sense−有り,BLACK,TRIM1#,2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-47050C0

ZVW51,55..A..CBU

BLACK,TRIM1#,2#

 1
45186-47040C0

ZVW5#..(E,S)..CBU

BLACK,TRIM1#,2#

 1
45186-47050C0

ZVW50,55..S..CBU

Toyota Safety Sense−有り,BLACK,TRIM1#,2#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

ZVW5#..CBU

 1
Linked diagrams
8401
8408
