ZVW55-AHXEB (2015)

Toyota Prius

Production Nov 2015 - Dec 2018
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

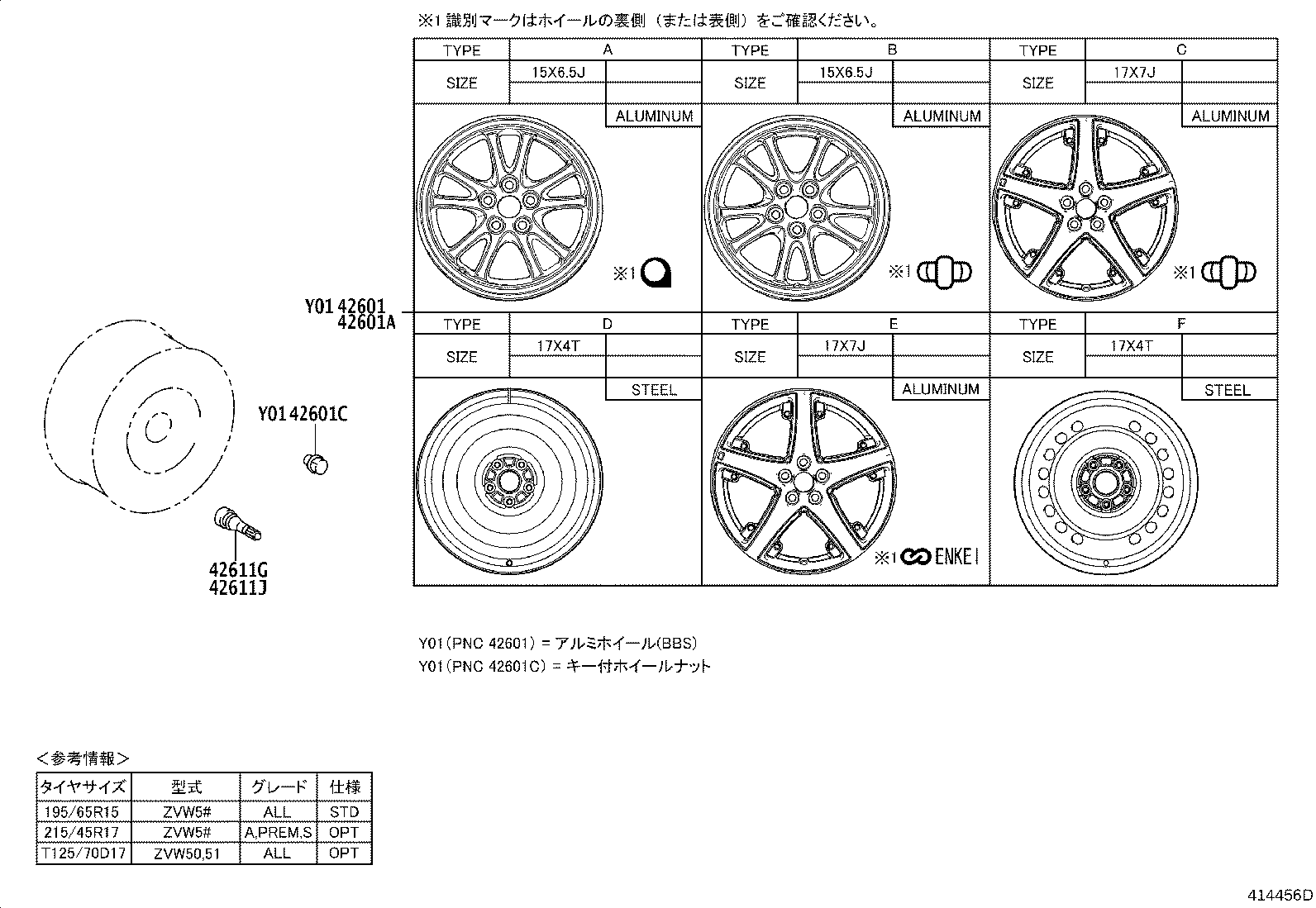

ILLUST NO. 1 OF 3(1511- )

Click highlighted areas on diagram

ﾃﾞｨｽｸﾎｲｰﾙ

diagram 42601 42601A 42601C 42611G 42611J
Part # Description Qty Price
42601 - WHEEL, DISC
42611-47450

ZVW5#..CBU

15X6.5J,#,TYPE B:ｲﾗｽﾄ参照

 4
42611-47500

ZVW50,55..S..CBU

17X7J,#,S”Safety Plus”*(A)&S“Safety Plus･swo Tone”*(B),TYPE C:ｲﾗｽﾄ参照

 4
42611-47510

ZVW50,55..S..CBU

17X7J,#,S”Safety Plus”*(A)&S“Safety Plus･swo Tone”*(B),TYPE E:ｲﾗｽﾄ参照

 4
42611-47440

ZVW5#..CBU

15X6.5J,#,TYPE A:ｲﾗｽﾄ参照

 4
42611-47510

ZVW5#..(A,PREM,S)..CBU

17X7J,#,”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”,TYPE E:ｲﾗｽﾄ参照

 4
42611-47500

ZVW5#..(A,PREM,S)..CBU

17X7J,#,”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”,TYPE C:ｲﾗｽﾄ参照

 4
42601C - NUT, HUB (FOR AXLE)
90942-01033

ZVW5#..CBU

 20
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

ZVW5#..CBU

 4

ILLUST NO. 3 OF 3(1511- )

Click highlighted areas on diagram

ﾊﾞﾗﾝｽｳｪｲﾄ

diagram 9094203146 9094203147 9094203148 9094203149 9094203150 9094203151 9094203152 9094203153 9094203154 9094203167 9094203208 9094203209 9094203210 9094203211 9094203212 9094203213 9094203214 9094203264 9094203265 9094203267 9094203273
Part # Description Qty Price
Common parts
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03167
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03264
90942-03265
90942-03267
90942-03273

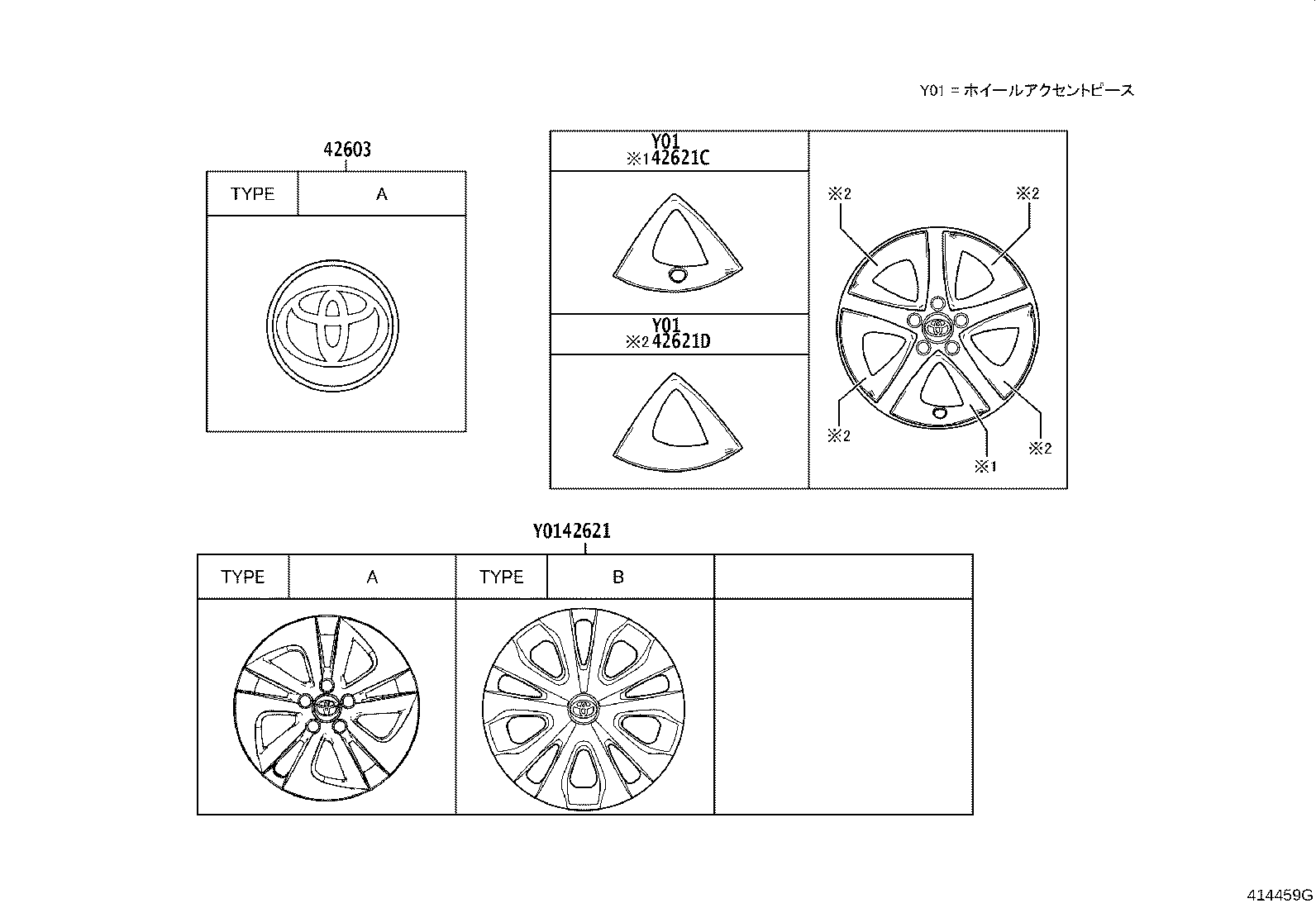

ILLUST NO. 2 OF 3(1511- )

Click highlighted areas on diagram

ﾎｲｰﾙﾊﾌﾞｵｰﾅﾒﾝﾄ & ﾎｲｰﾙｷｬｯﾌﾟ

diagram 42603 42621 42621C 42621D
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-52170

ZVW50,55..S..CBU

*ALU,S”Safety Plus”*(A)&S“Safety Plus･Two@Tone”*(B)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−215/45R17,7J,ｱﾙ~,TYPE A:ｲﾗｽﾄ参照

 4
42603-52170

ZVW5#..(A,PREM,S)..CBU

*ALU,”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−215/45RP7,7J,ｱﾙﾐ,TYPE A:ｲﾗｽﾄ参照

 4
42621 - CAP, WHEEL
42602-47200

ZVW51,55..(A,PREM)..CBU

TYPE A:ｲﾗｽﾄ参照

 4
42602-47180

ZVW5#..(E,S)..CBU

TYPE A:ｲﾗｽﾄ参照

 4
42621C - CAP, WHEEL, W/VALVE HOLE
42602-47210

ZVW50,55..S..CBU

S”Safety Plus”*(A)&S“Safety Plus･Two Tone”*(B),ｼﾙﾊﾞｰ

 4
42602-47210

ZVW5#..(A,PREM,S)..CBU

”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”,ｼﾙﾊﾞｰ

 4
42621D - CAP, WHEEL, W/O VALVE HOLE
42602-47160

ZVW5#..(A,PREM,S)..CBU

”ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”,ｼﾙﾊﾞｰ

 16
42602-47160

ZVW50,55..S..CBU

S”Safety Plus”*(A)&S“Safety Plus･Two Tone”*(B),ｼﾙﾊﾞｰ

 16
