ZVW55-AHXEB (2015)
Toyota Prius
Production
Nov 2015
-
Dec 2018
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

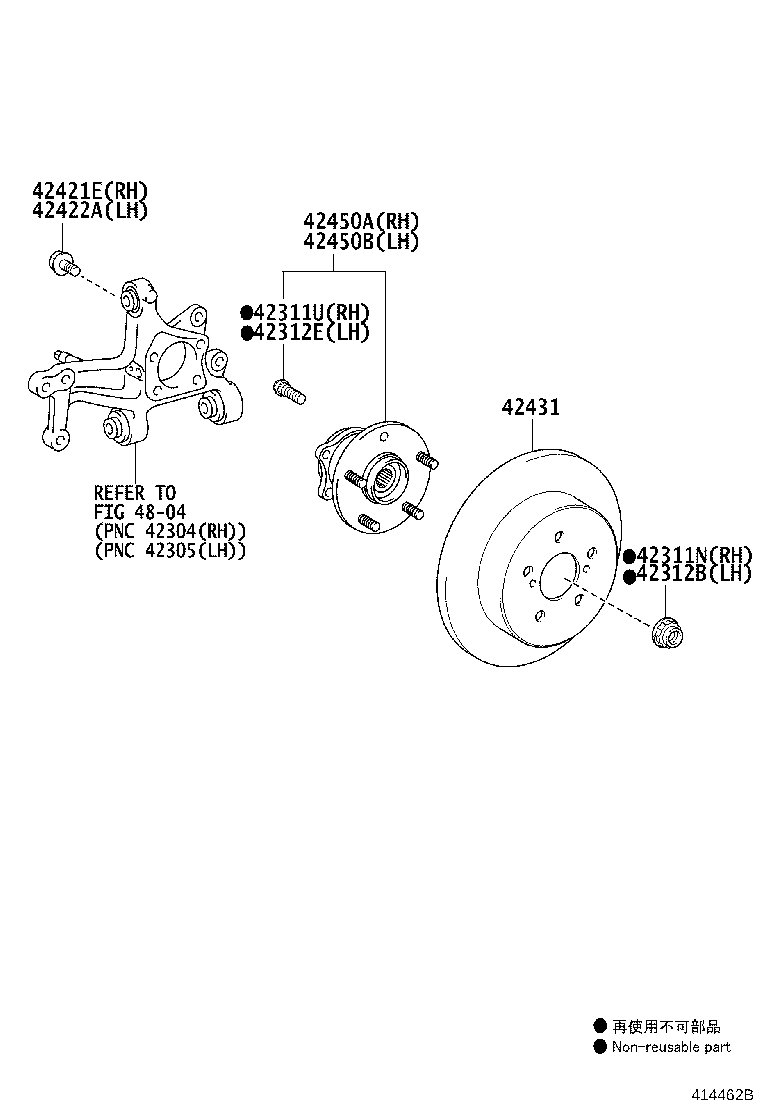

ILLUST NO. 1 OF 2(1511- )ZVW55
Click highlighted areas on diagram
ﾘﾔｱｸｽﾙ ﾊﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90177-22001 |
ZVW55..CBU |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02049 |
ZVW5#..CBU |
5 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90177-22001 |
ZVW55..CBU |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02049 |
ZVW5#..CBU |
5 | ||
| 42421E - BOLT (FOR REAR AXLE BEARING CASE RH) | ||||
| 90105-12350 |
ZVW5#..CBU |
4 | ||
| 90105-12406 |
ZVW5#..CBU |
4 | ||
| 42422A - BOLT (FOR REAR AXLE BEARING CASE LH) | ||||
| 90105-12406 |
ZVW5#..CBU |
4 | ||
| 90105-12350 |
ZVW5#..CBU |
4 | ||
| 42431 - DISC, REAR | ||||
| 42431-12310 |
ZVW5#..CBU |
2 | ||
| 42450A - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42410-47030 |
ZVW55..CBU |
1 | ||
| 42450B - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42410-47030 |
ZVW55..CBU |
1 | ||
| Linked diagrams | ||||
| 4804 | ||||

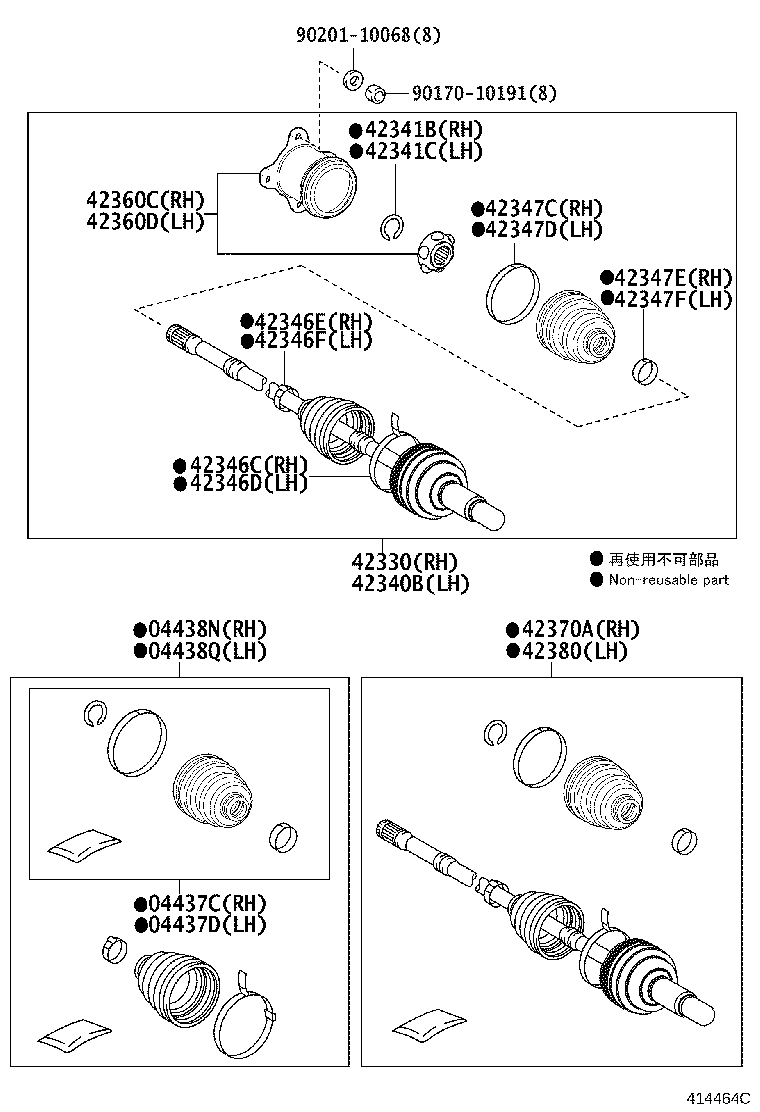

ILLUST NO. 2 OF 2(1511- )ZVW55
Click highlighted areas on diagram
ﾘﾔｱｸｽﾙ ｼｬﾌﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04437C - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04439-12011 |
ZVW55..CBU |
1 | ||
| 04439-12012 |
ZVW55..CBU |
1 | ||
| 04437D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04439-12011 |
ZVW55..CBU |
1 | ||
| 04439-12012 |
ZVW55..CBU |
1 | ||
| 04438N - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, RH | ||||
| 04429-48060 |
ZVW55..CBU |
1 | ||
| 04429-48061 |
ZVW55..CBU |
1 | ||
| 04438Q - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, LH | ||||
| 04429-48060 |
ZVW55..CBU |
1 | ||
| 04429-48061 |
ZVW55..CBU |
1 | ||
| 42330 - SHAFT ASSY, REAR DRIVE, RH | ||||
| 42340-47010 |
ZVW55..CBU |
1 | ||
| 42340B - SHAFT ASSY, REAR DRIVE, LH | ||||
| 42340-47010 |
ZVW55..CBU |
1 | ||
| 42341B - RING, SNAP (FOR REAR DRIVE SHAFT RH) | ||||
| 43425-48040 |
ZVW55..CBU |
1 | ||
| 42341C - RING, SNAP (FOR REAR DRIVE SHAFT LH) | ||||
| 43425-48040 |
ZVW55..CBU |
1 | ||
| 42346C - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) | ||||
| 42345-12280 |
ZVW55..CBU 内径=68.90 |
1 | ||
| 42346D - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) | ||||
| 42345-12280 |
ZVW55..CBU 内径=68.90 |
1 | ||
| 42346E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT R | ||||
| 42345-52270 |
ZVW55..CBU |
1 | ||
| 42346F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT L | ||||
| 42345-52270 |
ZVW55..CBU |
1 | ||
| 42347C - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) | ||||
| 42345-12120 |
ZVW55..CBU 内径=74.3 |
1 | ||
| 42347D - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH) | ||||
| 42345-12120 |
ZVW55..CBU 内径=74.3 |
1 | ||
| 42347E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH | ||||
| 42345-12130 |
ZVW55..CBU |
1 | ||
| 42347F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH | ||||
| 42345-12130 |
ZVW55..CBU |
1 | ||
| 42360C - JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH | ||||
| 42360-28010 |
ZVW55..CBU |
1 | ||
| 42360D - JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH | ||||
| 42360-28010 |
ZVW55..CBU |
1 | ||
| 42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH | ||||
| 42370-49345 |
ZVW55..CBU |
1 | ||
| 42370-49346 |
ZVW55..CBU |
1 | ||
| 42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH | ||||
| 42370-49345 |
ZVW55..CBU |
1 | ||
| 42370-49346 |
ZVW55..CBU |
1 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 90201-10068 | ||||
