ZVW55-AHXEB (2015)

Toyota Prius

Production Nov 2015 - Dec 2018
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )

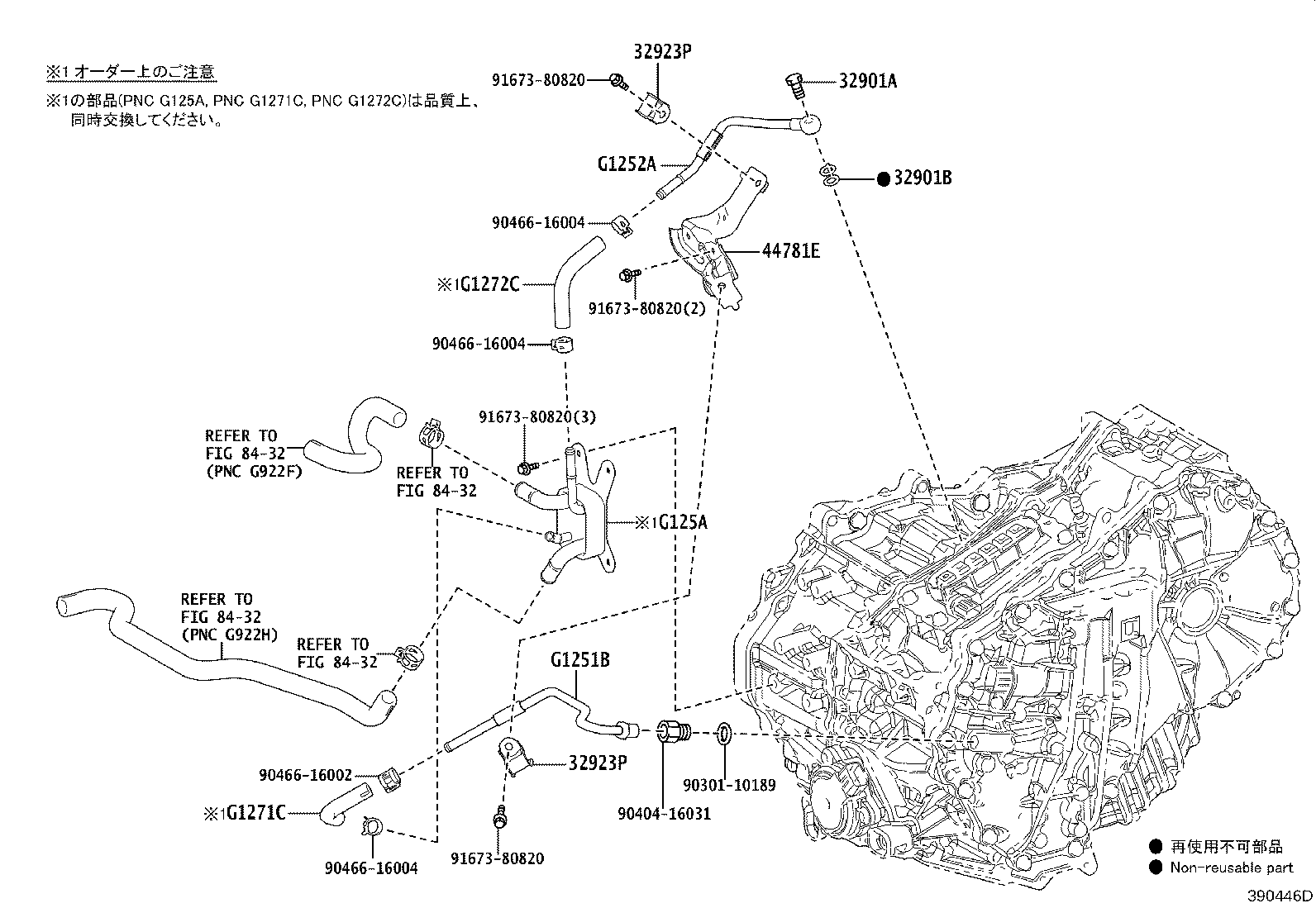

Click highlighted areas on diagram

diagram 32901A 32901B 32923P 32923P 44781E 8432 8432 8432 8432 9030110189 9040416031 9046616002 9046616004 9046616004 9046616004 9167380820 9167380820 9167380820 9167380820 G1251B G1252A G125A G1271C G1272C
Part # Description Qty Price
32901A - BOLT, UNION(FOR OIL COOLER)
90401-12039

ZVW5#..CBU

 1
32901B - GASKET(FOR OIL COOLER UNION)
90430-12037

ZVW5#..CBU

 1
32923P - CLAMP, OIL COOLER TUBE, NO.1
32923-52040

ZVW5#..CBU

 2
32923P - CLAMP, OIL COOLER TUBE, NO.1
32923-52040

ZVW5#..CBU

 2
44781E - BRACKET, HOSE
44781-47010

ZVW5#..CBU

 1
G1251B - PIPE, MOTOR COOLING, NO.1
G1251-47010

ZVW5#..CBU

 1
G1252A - PIPE, MOTOR COOLING, NO.2
G1252-47010

ZVW5#..CBU

 1
G125A - COOLER, MOTOR COOLING
G125A-47010

ZVW5#..CBU

 1
G1271C - HOSE, MOTOR COOLING, NO.1
G1271-47010

ZVW5#..CBU

 1
G1272C - HOSE, MOTOR COOLING, NO.2
G1272-47010

ZVW5#..CBU

 1
Common parts
90301-10189
90404-16031
90466-16002
90466-16004
91673-80820
Linked diagrams
8432
