ZVW51-AHXHB (2015)
Toyota Prius
(1511- )

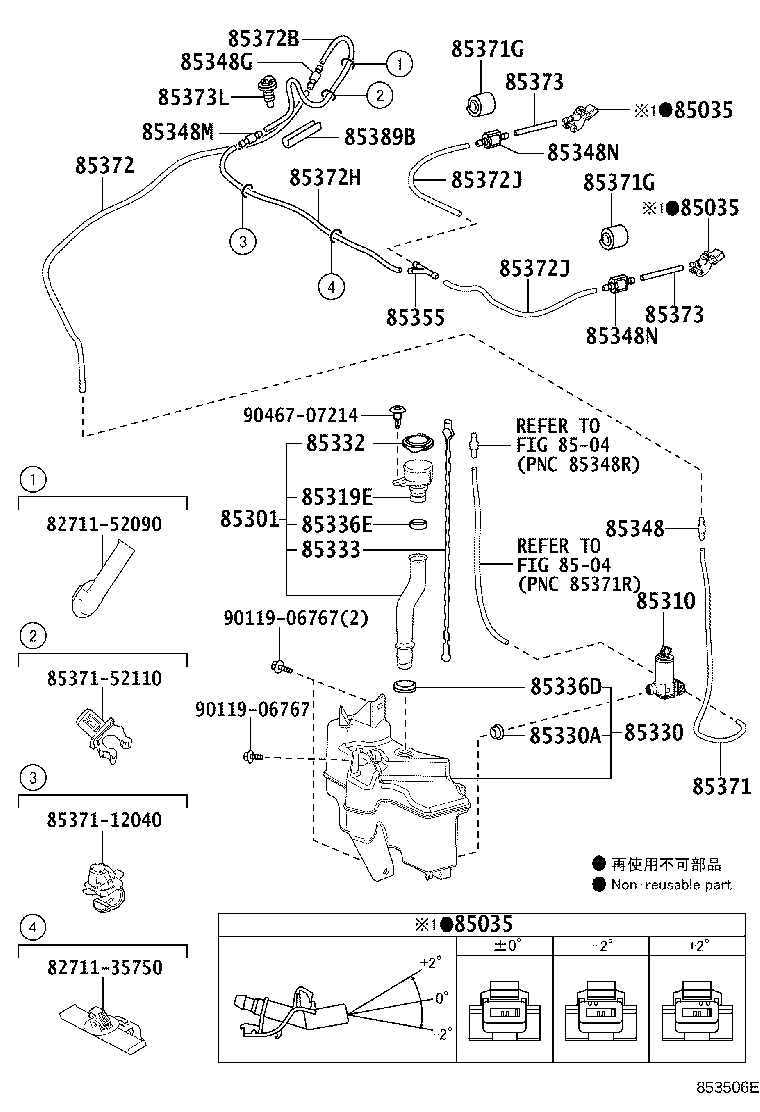

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-47090 |
ZVW5#..CBU 角度 0 |
2 | ||
| 85381-47110 |
ZVW5#..CBU 角度 +2 |
2 | ||
| 85381-47100 |
ZVW5#..CBU 角度 −2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-47090 |
ZVW5#..CBU 角度 0 |
2 | ||
| 85381-47110 |
ZVW5#..CBU 角度 +2 |
2 | ||
| 85381-47100 |
ZVW5#..CBU 角度 −2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-47090 |
ZVW5#..CBU 角度 0 |
2 | ||
| 85381-47110 |
ZVW5#..CBU 角度 +2 |
2 | ||
| 85381-47100 |
ZVW5#..CBU 角度 −2 |
2 | ||
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85319-47160 |
ZVW5#..(A,PREM,S)..CBU |
1 | ||
| 85319-47210 |
ZVW51..E |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-47060 |
ZVW51..E |
1 | ||
| 85330-47090 |
ZVW5#..(A,PREM,S)..CBU |
1 | ||
| 85330-47080 |
ZVW51..E |
1 | ||
| 85330-47070 |
ZVW5#..(A,PREM,S)..CBU |
1 | ||
| 85319E - INLET WASHER | ||||
| 85318-47200 |
ZVW5#..CBU |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-47160 |
ZVW5#..CBU |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
ZVW5#..CBU |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85386-60050 |
ZVW5#..CBU |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85312-47020 |
ZVW5#..CBU |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-30160 |
ZVW5#..CBU |
1 | ||
| 85336E - PACKING, WINDSHIELD WASHER INLET HOSE | ||||
| 85336-42320 |
ZVW5#..CBU |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
ZVW5#..CBU |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85334-22470 |
ZVW5#..CBU |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85349-89122 |
ZVW5#..CBU |
1 | ||
| 85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85321-26020 |
ZVW5#..CBU |
2 | ||
| 85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85321-26020 |
ZVW5#..CBU |
2 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85348-14390 |
ZVW5#..CBU |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
ZVW5#..CBU *H,L=560 |
1 | ||
| 85371G - PROTECTOR, FRONT WASHER | ||||
| 85389-26080 |
ZVW5#..CBU |
2 | ||
| 85371G - PROTECTOR, FRONT WASHER | ||||
| 85389-26080 |
ZVW5#..CBU |
2 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33075 |
ZVW5#..CBU *H,L=790 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
ZVW5#..CBU *H,L=740 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
ZVW5#..CBU *H,L=530 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-33080 |
ZVW5#..CBU *H,L=250 |
2 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-33080 |
ZVW5#..CBU *H,L=250 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
ZVW5#..CBU *H,L=60 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
ZVW5#..CBU *H,L=60 |
2 | ||
| 85373L - GROMMET, WASHER | ||||
| 85373-47030 |
ZVW5#..CBU |
1 | ||
| 85389B - PROTECTOR, WINDSHIELD WASHER | ||||
| 85389-12850 |
ZVW5#..CBU |
1 | ||
| Common parts | ||||
| 82711-35750 | ||||
| 82711-52090 | ||||
| 85371-12040 | ||||
| 85371-52110 | ||||
| 90119-06767 | ||||
| 90467-07214 | ||||
| Linked diagrams | ||||
| 8504 | ||||
