ZVW51-AHXHB (2018)

Toyota Prius

Production Dec 2018 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

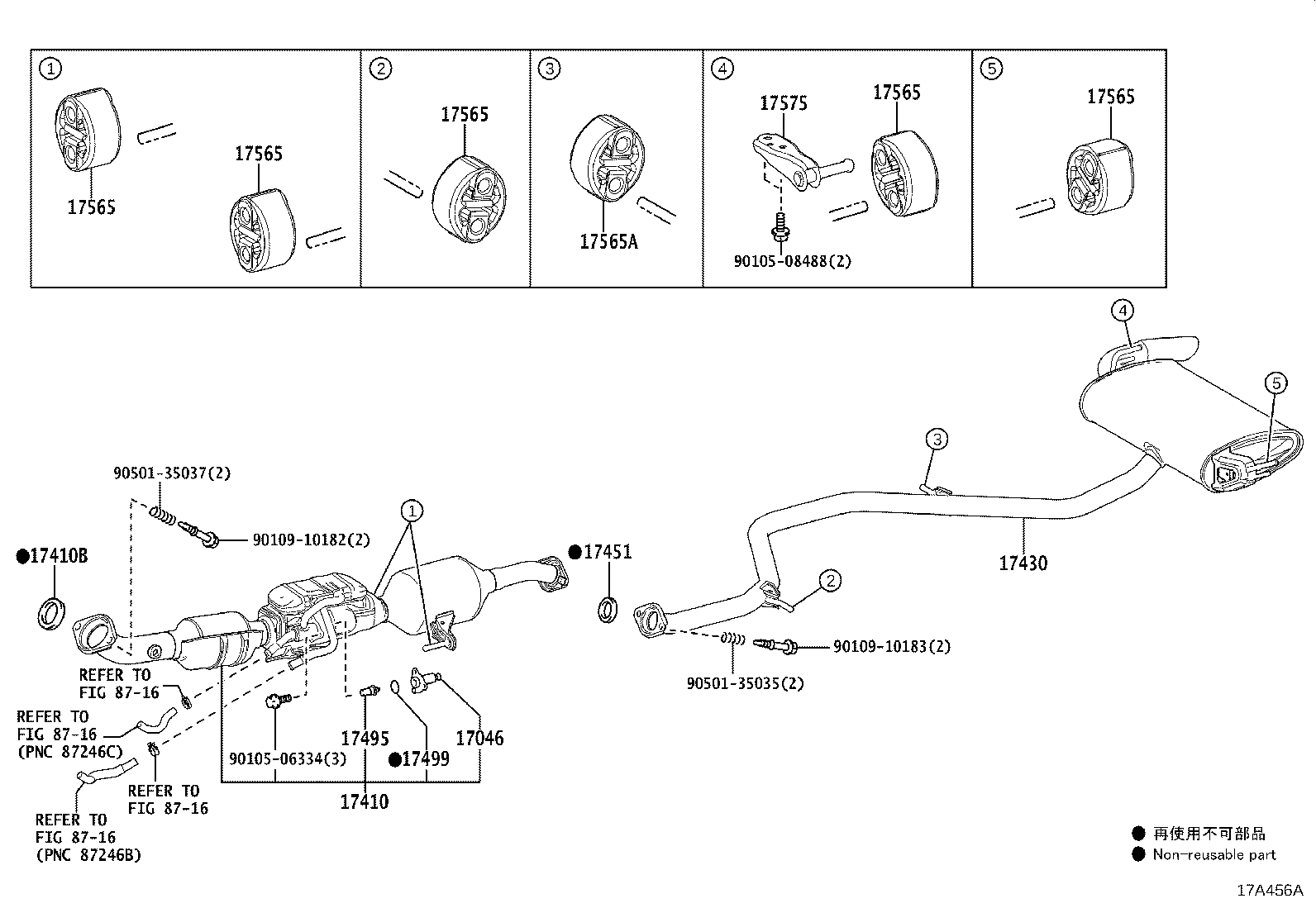

(1511-1908)

Click highlighted areas on diagram

diagram 17046 17410 17410B 17430 17451 17495 17499 17565 17565 17565 17565 17565 17565A 17575 8716 8716 8716 8716 9010506334 9010508488 9010910182 9010910183 9050135035 9050135037
Part # Description Qty Price
17046 - ACTUATOR SUB-ASSY, EXHAUST PIPE GAS CONTROL
17046-37100

2ZRFXE..ZVW5#..CBU

 1
17046-24010

2ZRFXE..ZVW5#..CBU

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-37B72

2ZRFXE..ZVW5#..CBU

*114=TOYOTA/TL3/Y,寒冷地仕様

 1
17410-37B62

2ZRFXE..ZVW5#..CBU

 1
17410-37C70

2ZRFXE..ZVW5#..CBU

 1
17410B - GASKET, EXHAUST PIPE
17451-28040

2ZRFXE..ZVW5#..CBU

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-37A80

2ZRFXE..ZVW51..CBU

 1
17430-37530

2ZRFXE..ZVW51..CBU

寒冷地仕様

 1
17430-37741

2ZRFXE..ZVW51..CBU

 1
17430-37A90

2ZRFXE..ZVW51..CBU

寒冷地仕様

 1
17451 - GASKET, EXHAUST PIPE
17451-23042

2ZRFXE..ZVW5#..CBU

 1
17495 - ACTUATOR, EXHAUST PIPE GAS CONTROL
17495-24010

2ZRFXE..ZVW5#..CBU

 1
17495-37020

2ZRFXE..ZVW5#..CBU

 1
17499 - GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR
17499-24010

2ZRFXE..ZVW5#..CBU

 1
17499-37020

2ZRFXE..ZVW5#..CBU

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

2ZRFXE..ZVW5#..CBU

 5
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

2ZRFXE..ZVW5#..CBU

 5
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

2ZRFXE..ZVW5#..CBU

 5
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

2ZRFXE..ZVW5#..CBU

 5
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

2ZRFXE..ZVW5#..CBU

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2ZRFXE..ZVW5#..CBU

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-37030

2ZRFXE..ZVW5#..CBU

 1
Common parts
90105-06334
90105-08488
90109-10182
90109-10183
90501-35035
90501-35037
Linked diagrams
8716

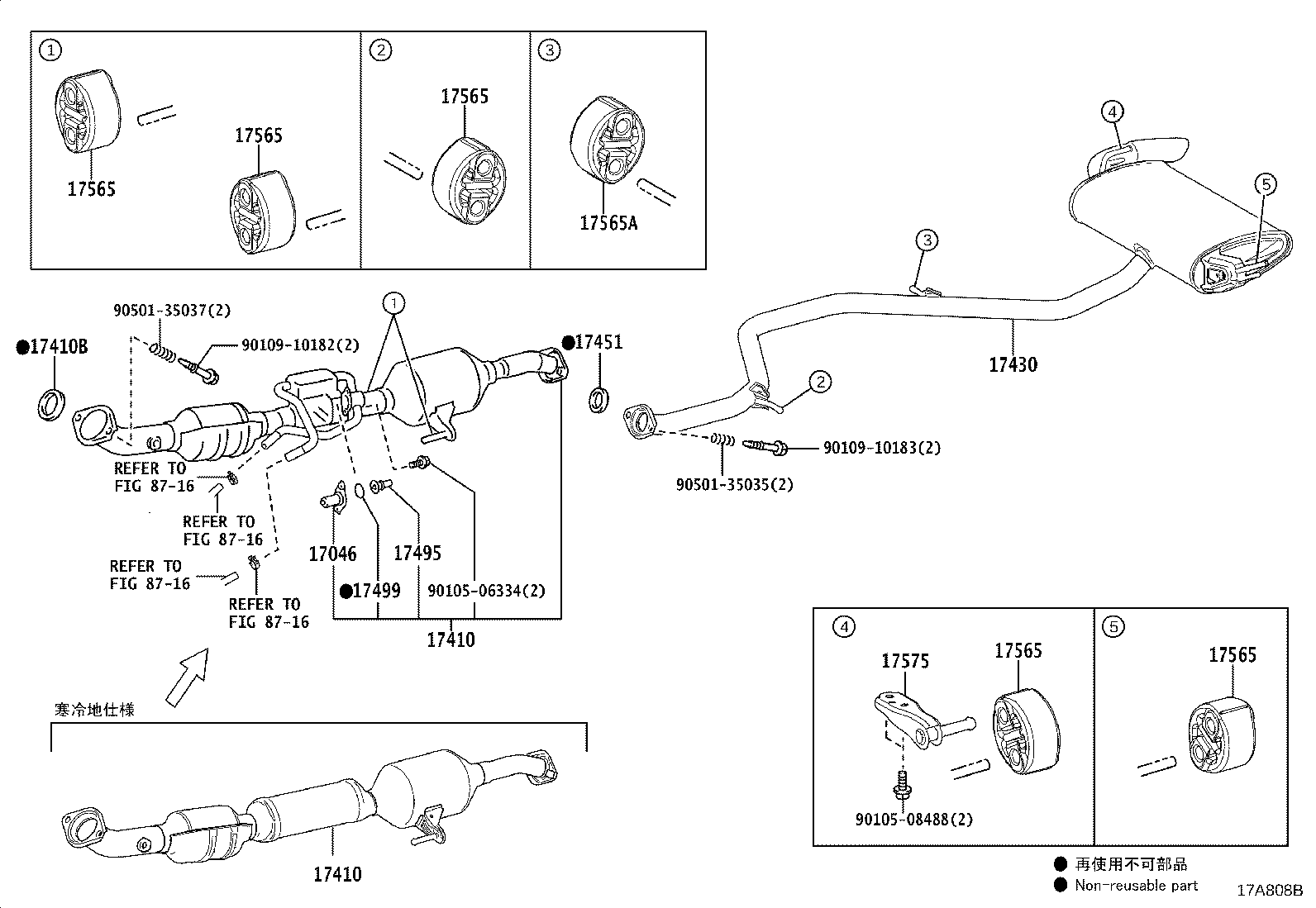

(1908-2106)

Click highlighted areas on diagram

diagram 17046 17410 17410 17410B 17430 17451 17495 17499 17565 17565 17565 17565 17565 17565A 17575 8716 8716 8716 8716 9010506334 9010508488 9010910182 9010910183 9050135035 9050135037
Part # Description Qty Price
17046 - ACTUATOR SUB-ASSY, EXHAUST PIPE GAS CONTROL
17046-37100

2ZRFXE..ZVW5#..CBU

 1
17046-24010

2ZRFXE..ZVW5#..CBU

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-37B72

2ZRFXE..ZVW5#..CBU

*114=TOYOTA/TL3/Y,寒冷地仕様

 1
17410-37B62

2ZRFXE..ZVW5#..CBU

 1
17410-37C70

2ZRFXE..ZVW5#..CBU

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-37B72

2ZRFXE..ZVW5#..CBU

*114=TOYOTA/TL3/Y,寒冷地仕様

 1
17410-37B62

2ZRFXE..ZVW5#..CBU

 1
17410-37C70

2ZRFXE..ZVW5#..CBU

 1
17410B - GASKET, EXHAUST PIPE
17451-28040

2ZRFXE..ZVW5#..CBU

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-37A80

2ZRFXE..ZVW51..CBU

 1
17430-37530

2ZRFXE..ZVW51..CBU

寒冷地仕様

 1
17430-37741

2ZRFXE..ZVW51..CBU

 1
17430-37A90

2ZRFXE..ZVW51..CBU

寒冷地仕様

 1
17451 - GASKET, EXHAUST PIPE
17451-23042

2ZRFXE..ZVW5#..CBU

 1
17495 - ACTUATOR, EXHAUST PIPE GAS CONTROL
17495-24010

2ZRFXE..ZVW5#..CBU

 1
17495-37020

2ZRFXE..ZVW5#..CBU

 1
17499 - GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR
17499-24010

2ZRFXE..ZVW5#..CBU

 1
17499-37020

2ZRFXE..ZVW5#..CBU

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

2ZRFXE..ZVW5#..CBU

 5
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

2ZRFXE..ZVW5#..CBU

 5
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

2ZRFXE..ZVW5#..CBU

 5
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

2ZRFXE..ZVW5#..CBU

 5
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

2ZRFXE..ZVW5#..CBU

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2ZRFXE..ZVW5#..CBU

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-37030

2ZRFXE..ZVW5#..CBU

 1
Common parts
90105-06334
90105-08488
90109-10182
90109-10183
90501-35035
90501-35037
Linked diagrams
8716
