ZVW51-AHXGB (2018)
Toyota Prius
Production
Dec 2018
-
Sep 9999
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1511-2002)

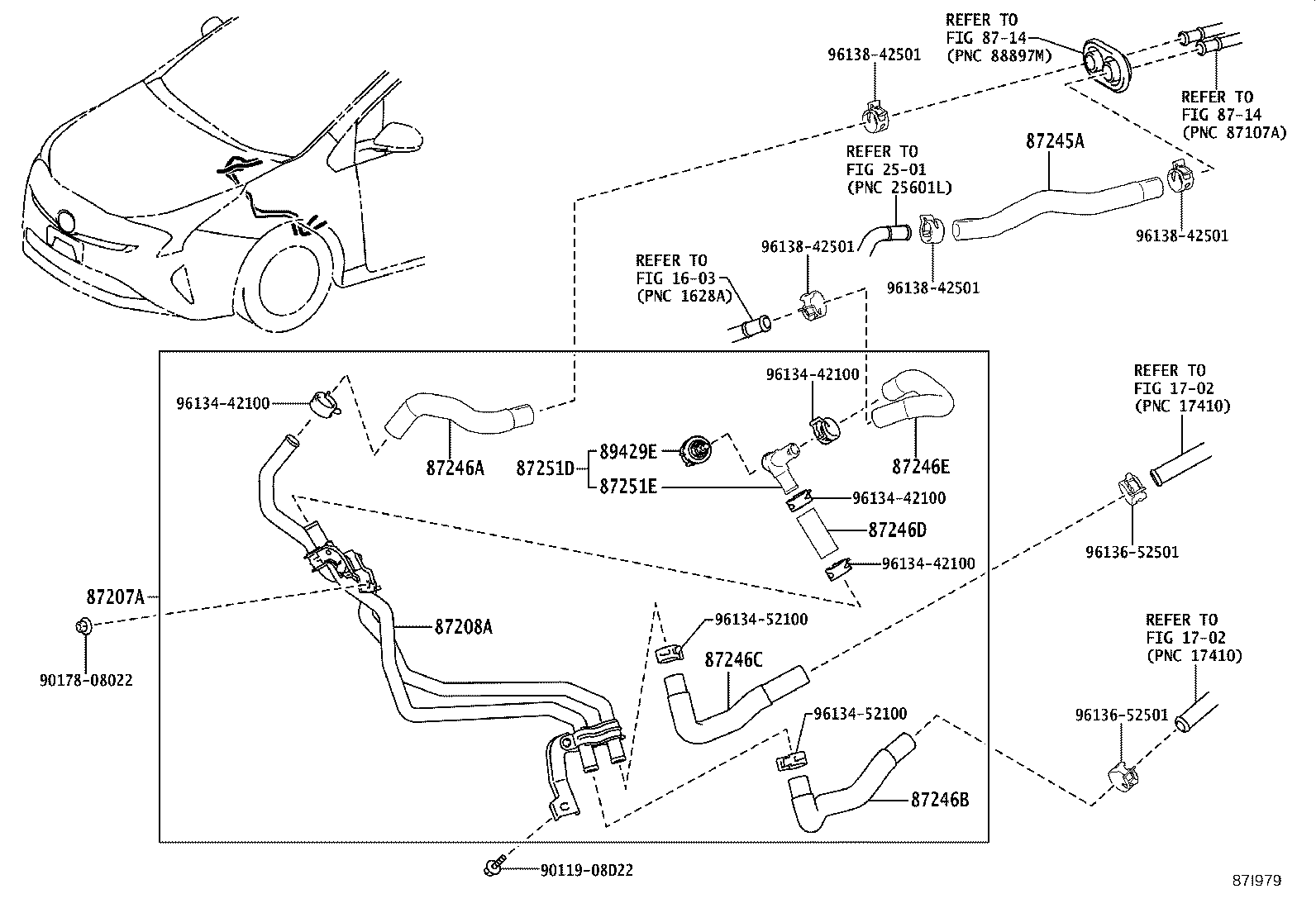

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87207A - PIPE & HOSE SUB-ASSY, WATER A | ||||
| 87207-47100 |
ZVW5#..CBU |
1 | ||
| 87207-47080 |
ZVW5#..CBU |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-47070 |
ZVW5#..CBU |
1 | ||
| 87208-47030 |
ZVW5#..CBU |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-47370 |
ZVW5#..CBU 寒冷地仕様 |
1 | ||
| 87245-47330 |
ZVW5#..CBU |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-47430 |
ZVW5#..CBU |
1 | ||
| 87245-47340 |
ZVW5#..CBU 寒冷地仕様 |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-47420 |
ZVW5#..CBU |
1 | ||
| 87245-47450 |
ZVW5#..CBU |
1 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 87245-47440 |
ZVW5#..CBU |
1 | ||
| 87245-47410 |
ZVW5#..CBU |
1 | ||
| 87246D - HOSE, HEATER WATER, OUTLET D | ||||
| 87245-47400 |
ZVW5#..CBU |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-47390 |
ZVW5#..CBU |
1 | ||
| 87251D - JOINT, WATER, NO.1 | ||||
| 87252-47030 |
ZVW5#..CBU |
1 | ||
| 87251E - JOINT, WATER, NO.2 | ||||
| 87251-47030 |
ZVW5#..CBU |
1 | ||
| 89429E - SENSOR, WATER TEMPERATURE | ||||
| 89429-47010 |
ZVW5#..CBU |
1 | ||
| Common parts | ||||
| 90119-08D22 | ||||
| 90178-08022 | ||||
| 96134-42100 | ||||
| 96134-52100 | ||||
| 96136-52501 | ||||
| 96138-42501 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1702 | ||||
| 2501 | ||||
| 8714 | ||||
(2002- )

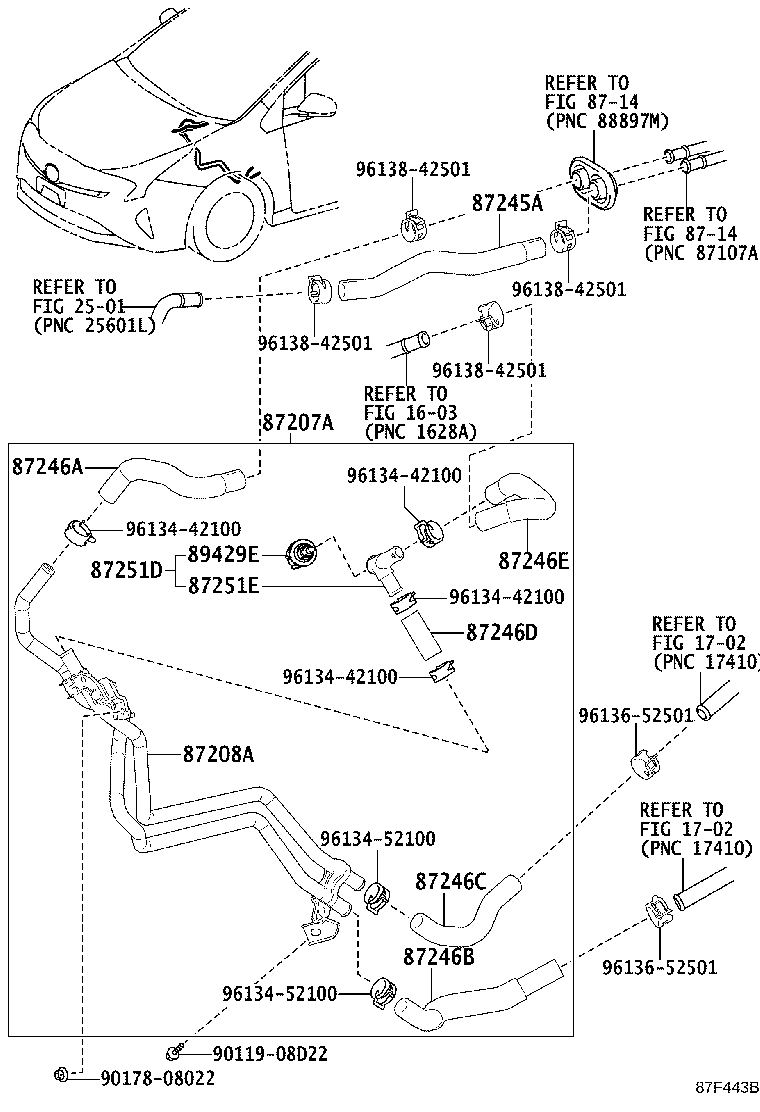

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87207A - PIPE & HOSE SUB-ASSY, WATER A | ||||
| 87207-47100 |
ZVW5#..CBU |
1 | ||
| 87207-47080 |
ZVW5#..CBU |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-47070 |
ZVW5#..CBU |
1 | ||
| 87208-47030 |
ZVW5#..CBU |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-47370 |
ZVW5#..CBU 寒冷地仕様 |
1 | ||
| 87245-47330 |
ZVW5#..CBU |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-47430 |
ZVW5#..CBU |
1 | ||
| 87245-47340 |
ZVW5#..CBU 寒冷地仕様 |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-47420 |
ZVW5#..CBU |
1 | ||
| 87245-47450 |
ZVW5#..CBU |
1 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 87245-47440 |
ZVW5#..CBU |
1 | ||
| 87245-47410 |
ZVW5#..CBU |
1 | ||
| 87246D - HOSE, HEATER WATER, OUTLET D | ||||
| 87245-47400 |
ZVW5#..CBU |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-47390 |
ZVW5#..CBU |
1 | ||
| 87251D - JOINT, WATER, NO.1 | ||||
| 87252-47030 |
ZVW5#..CBU |
1 | ||
| 87251E - JOINT, WATER, NO.2 | ||||
| 87251-47030 |
ZVW5#..CBU |
1 | ||
| 89429E - SENSOR, WATER TEMPERATURE | ||||
| 89429-47010 |
ZVW5#..CBU |
1 | ||
| Common parts | ||||
| 90119-08D22 | ||||
| 90178-08022 | ||||
| 96134-42100 | ||||
| 96134-52100 | ||||
| 96136-52501 | ||||
| 96138-42501 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1702 | ||||
| 2501 | ||||
| 8714 | ||||
