ZVW51-AHXGB (2015)

Toyota Prius

Production Nov 2015 - Dec 2018
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1511-1812)

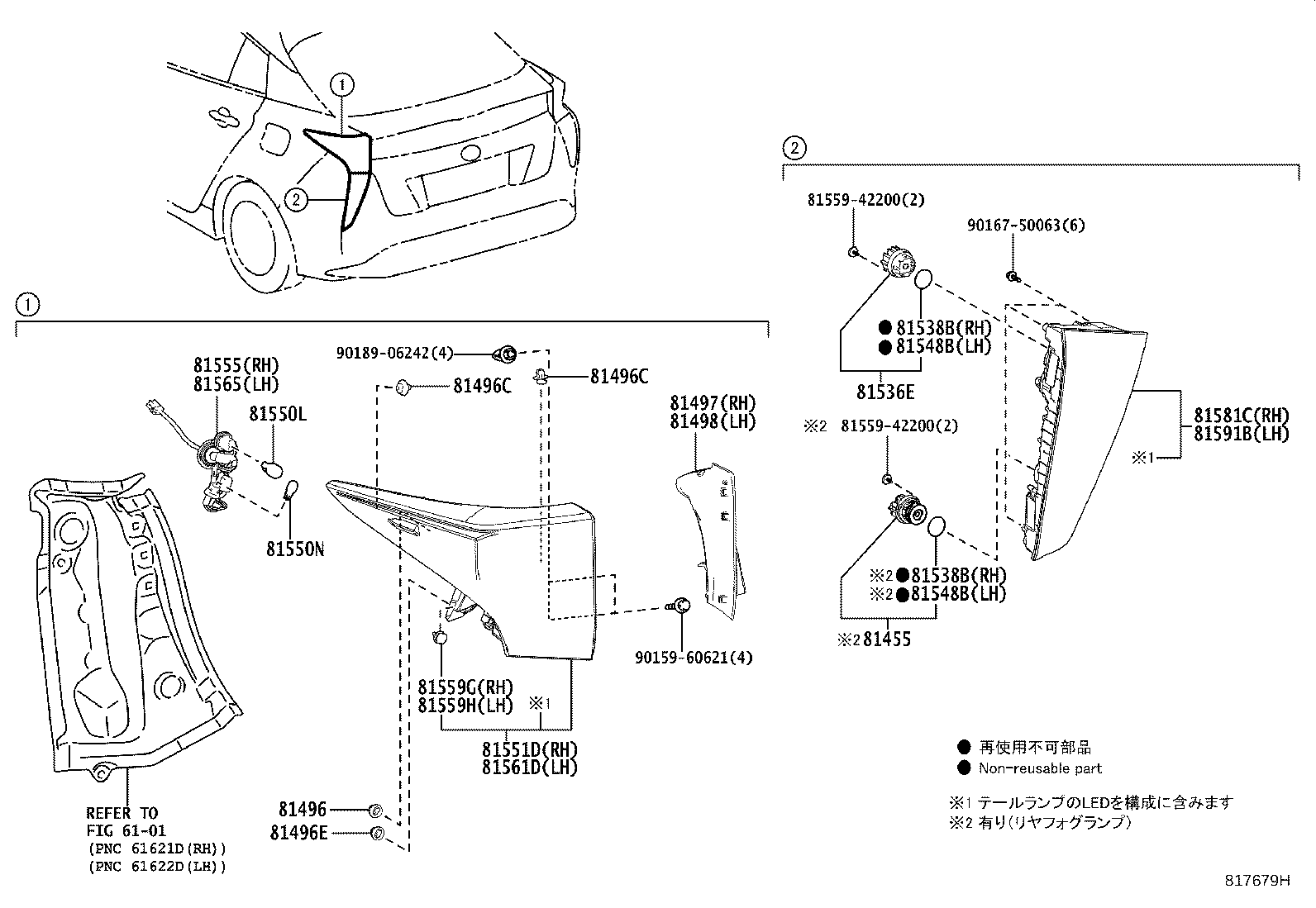

Click highlighted areas on diagram

diagram 6101 81455 81496 81496C 81496C 81496E 81497 81498 81536E 81538B 81538B 81548B 81548B 81550L 81550N 81551D 81555 8155942200 8155942200 81559G 81559H 81561D 81565 81581C 81591B 9015960621 9016750063 9018906242
Part # Description Qty Price
81455 - LED, REAR FOG LAMP
81455-42060

ZVW5#..CBU

寒冷地仕様

 2
81496 - GUIDE, REAR COMBINATION LAMP
81496-52020

ZVW5#..CBU

 2
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-48010

ZVW5#..CBU

ｲｴﾛｰ

 4
81496-60010

ZVW5#..CBU

 4
81496-60010

ZVW5#..CBU

ﾎﾜｲﾄ

 4
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-48010

ZVW5#..CBU

ｲｴﾛｰ

 4
81496-60010

ZVW5#..CBU

 4
81496-60010

ZVW5#..CBU

ﾎﾜｲﾄ

 4
81496E - GUIDE, REAR COMBINATION LAMP, NO.3
76817-26040

ZVW5#..CBU

 2
81496-52020

ZVW5#..CBU

 2
81497 - COVER, REAR COMBINATION LAMP, RH
81497-47020

ZVW5#..CBU

 1
81498 - COVER, REAR COMBINATION LAMP, LH
81498-47020

ZVW5#..CBU

 1
81536E - LED, STOP LAMP
81536-42200

ZVW5#..CBU

 2
81538B - GASKET, REAR COMBINATION LAMP, NO.3 RH
81538-42200

ZVW5#..CBU

 1
81538-42200

ZVW5#..CBU

寒冷地仕様

 2
81538B - GASKET, REAR COMBINATION LAMP, NO.3 RH
81538-42200

ZVW5#..CBU

 1
81538-42200

ZVW5#..CBU

寒冷地仕様

 2
81548B - GASKET, REAR COMBINATION LAMP, NO.3 LH
81538-42200

ZVW5#..CBU

 1
81538-42200

ZVW5#..CBU

寒冷地仕様

 2
81548B - GASKET, REAR COMBINATION LAMP, NO.3 LH
81538-42200

ZVW5#..CBU

 1
81538-42200

ZVW5#..CBU

寒冷地仕様

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15011

ZVW5#..CBU

12V 21W,ｱﾝﾊﾞｰ

 2
81550N - BULB, BACK UP LAMP
90981-11059

ZVW5#..CBU

12V 16W

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-47280

ZVW5#..CBU

 1
81551-47282

ZVW5#..CBU

 1
81551-47281

ZVW5#..CBU

 1
81551-47283

ZVW5#..CBU

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-47290

ZVW5#..CBU

 1
81559G - CLIP, RR COMBINATION LAMP, RH
81559-47291

ZVW5#..CBU

 1
81559-47290

ZVW5#..CBU

 1
81559H - CLIP, RR COMBINATION LAMP, LH
81559-47290

ZVW5#..CBU

 1
81559-47291

ZVW5#..CBU

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-47153

ZVW5#..CBU

 1
81561-47152

ZVW5#..CBU

 1
81561-47150

ZVW5#..CBU

 1
81561-47151

ZVW5#..CBU

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-47290

ZVW5#..CBU

 1
81581C - LENS AND BODY, REAR LAMP, RH
81581-47011

ZVW5#..CBU

寒冷地仕様

 1
81581-47020

ZVW5#..CBU

 1
81581-47021

ZVW5#..CBU

 1
81581-47010

ZVW5#..CBU

寒冷地仕様

 1
81591B - LENS AND BODY, REAR LAMP, LH
81591-47020

ZVW5#..CBU

 1
81591-47010

ZVW5#..CBU

寒冷地仕様

 1
81591-47021

ZVW5#..CBU

 1
81591-47011

ZVW5#..CBU

寒冷地仕様

 1
Common parts
81559-42200
90159-60621
90167-50063
90189-06242
Linked diagrams
6101
