ZVW51-AHXGB (2015)

Toyota Prius

Production Nov 2015 - Dec 2018
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1511-1812)

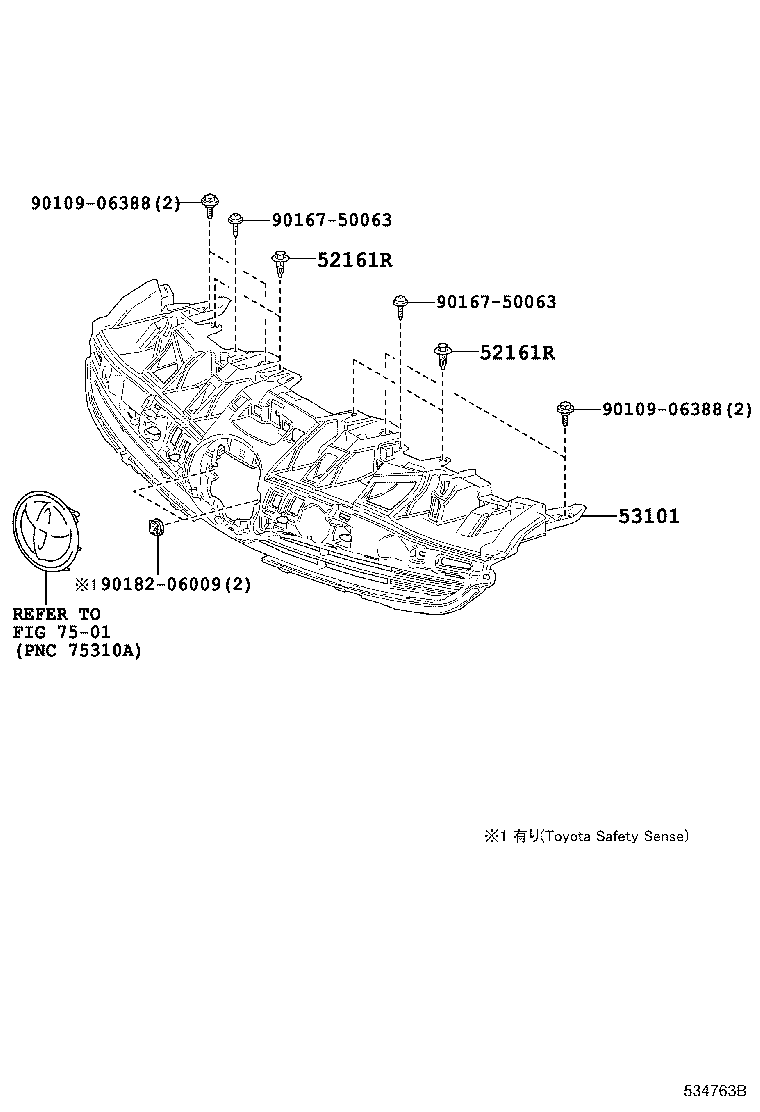

Click highlighted areas on diagram

diagram 52161R 52161R 53101 7501 9010906388 9010906388 9016750063 9016750063 9018206009
Part # Description Qty Price
52161R - PIECE, FRONT BUMPER
52161-16010

ZVW5#..CBU

 4
52161R - PIECE, FRONT BUMPER
52161-16010

ZVW5#..CBU

 4
53101 - GRILLE SUB-ASSY, RADIATOR
53101-47030

ZVW51,55..(A,PREM)..CBU

塗装不要

 1
53101-47080

ZVW5#..(E,S)..CBU

塗装不要

 1
53101-47032

ZVW51,55..(A,PREM)..CBU

塗装不要

 1
53101-47081

ZVW5#..(E,S)..CBU

塗装不要

 1
53101-47031

ZVW51,55..(A,PREM)..CBU

塗装不要

 1
Common parts
90109-06388
90167-50063
90182-06009
Linked diagrams
7501
