ZVW51-AHXBB (2018)

Toyota Prius

Production Dec 2018 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1812-2106)

Click highlighted areas on diagram

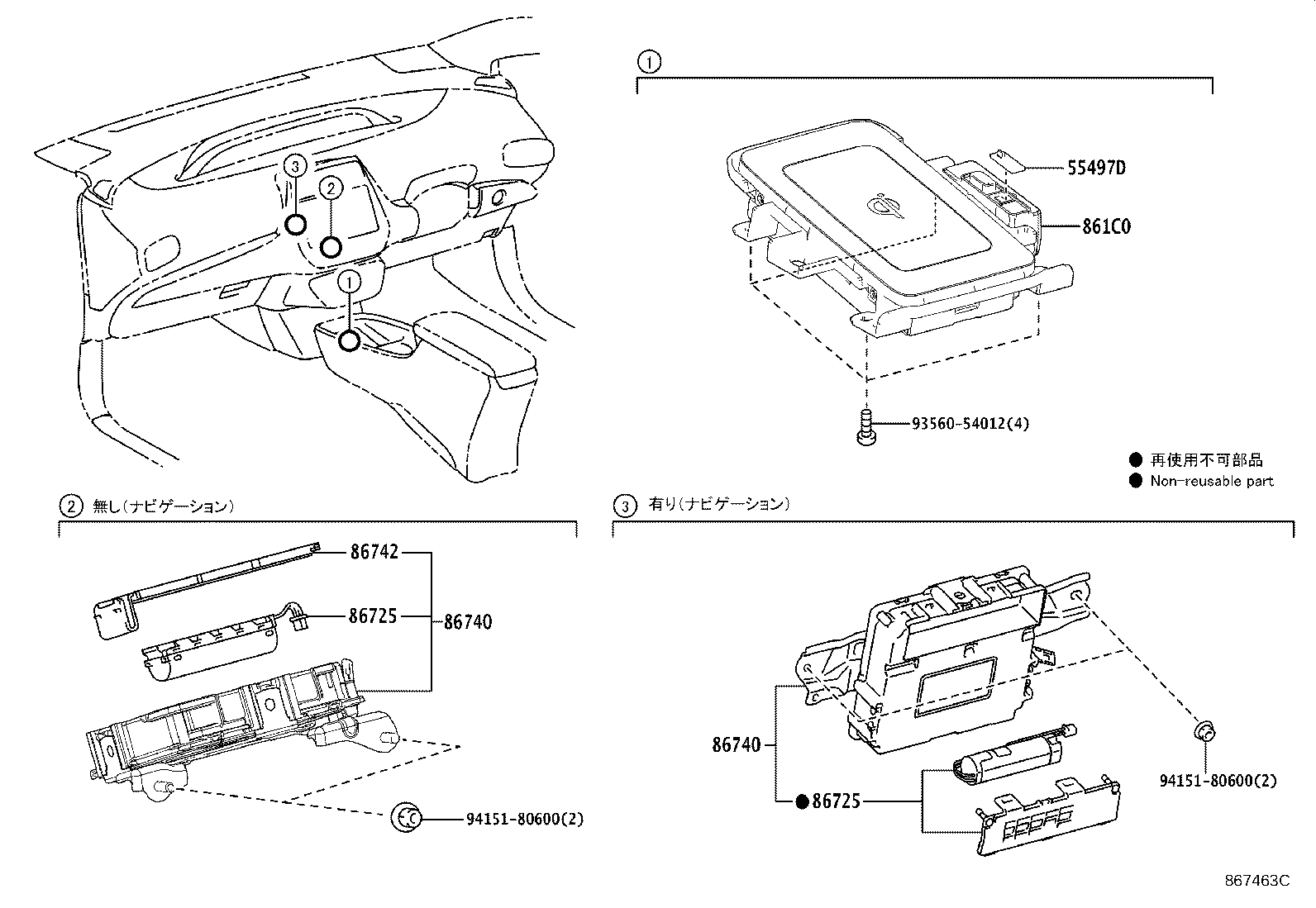

diagram 55497D 861C0 86725 86725 86740 86740 86742 9356054012 9415180600 9415180600
Part # Description Qty Price
55497D - LENS, WARNING LAMP
55497-47010

ZVW5#..A..CBU

おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り

 1
861C0 - CRADLE ASSY, MOBILE WIRELESS CHARGER
861C0-47031C0

ZVW5#..A..CBU

おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK METALLC,TRIM1#,2#

 1
861C0-47030C0

ZVW5#..(A,PREM)..CBU

おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK METALLC,TRIM1#,2#

 1
86725 - BATTERY, MOBILEPHONE
86725-58010

ZVW5#..CBU

 1
86725-48010

ZVW5#..A..CBU

ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ

 1
86725 - BATTERY, MOBILEPHONE
86725-58010

ZVW5#..CBU

 1
86725-48010

ZVW5#..A..CBU

ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ

 1
86740 - TRANSCEIVER ASSY, TELEPHONE
86740-47210

ZVW5#..A..CBU

ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ

 1
86740-47220

ZVW5#..CBU

 1
86740 - TRANSCEIVER ASSY, TELEPHONE
86740-47210

ZVW5#..A..CBU

ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ

 1
86740-47220

ZVW5#..CBU

 1
86742 - COVER, TRANSCEIVER
86742-58020

ZVW5#..CBU

 1
Common parts
93560-54012
94151-80600
