ZVW51-AHXBB (2018)
Toyota Prius

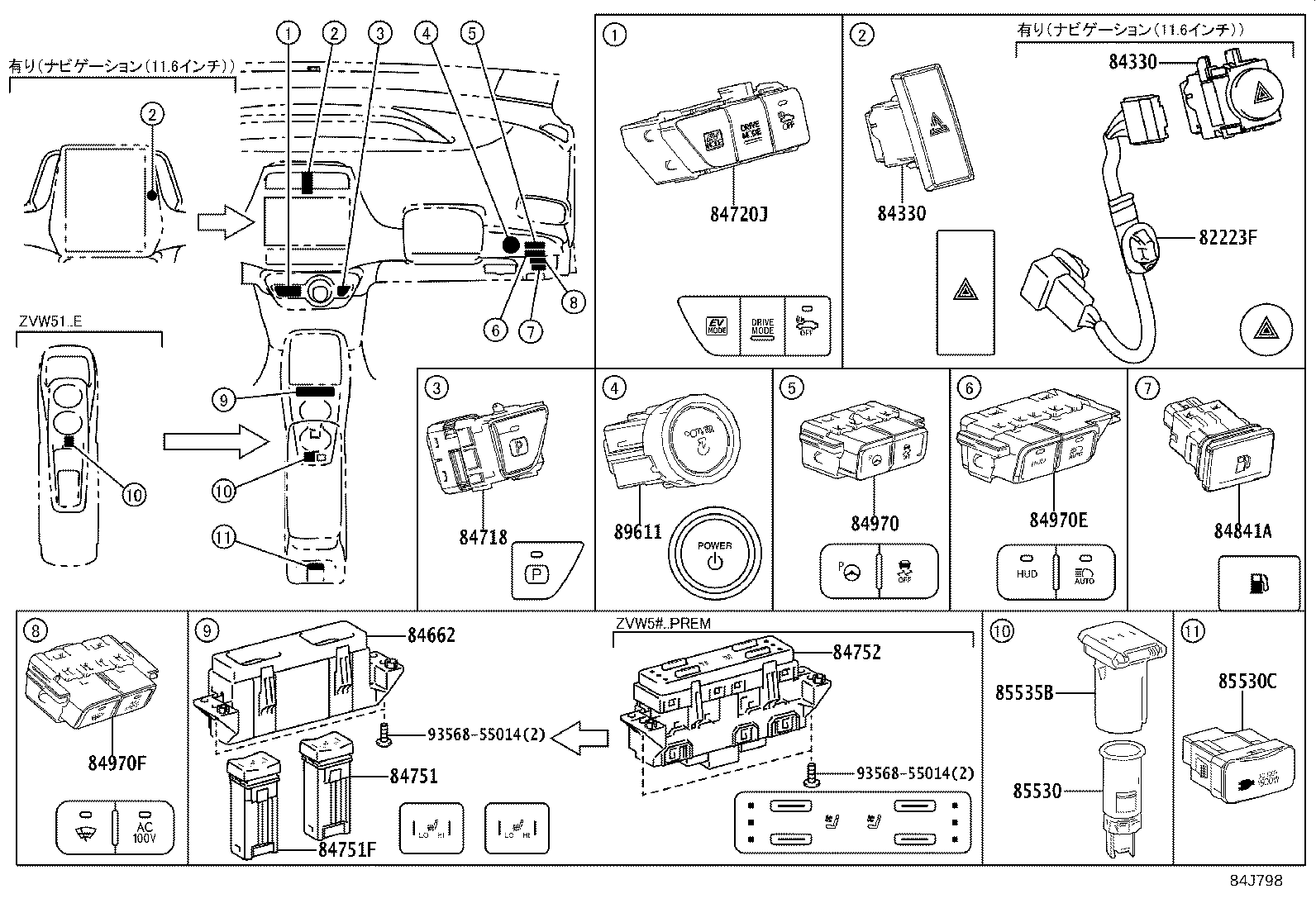

ILLUST NO. 5 OF 9(1812- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82223F - WIRE, SWITCH | ||||
| 82223-47030 |
ZVW5#..A..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-47050 |
ZVW5#..CBU |
1 | ||
| 84332-47060 |
ZVW5#..A..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-47050 |
ZVW5#..CBU |
1 | ||
| 84332-47060 |
ZVW5#..A..CBU ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝ(11.6ｲﾝﾁ) & 6ｽﾋﾟｰｶ |
1 | ||
| 84662 - PANEL, COOLER CONTROL SWITCH | ||||
| 84662-47010 |
ZVW5#..(A,S)..CBU “ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T) |
1 | ||
| 84718 - SWITCH, TRANSMISSION SHIFT MAIN | ||||
| 84718-47120 |
ZVW5#..CBU |
1 | ||
| 84720J - SWITCH ASSY, PATTERN SELECT | ||||
| 84010-47290 |
ZVW5#..CBU |
1 | ||
| 84010-47620 |
ZVW51..E ﾊﾞｯｸﾓﾆﾀ− 有り(*PVM) |
1 | ||
| 84010-47620 |
ZVW5#..(A,PREM,S)..CBU ﾊﾞｯｸﾓﾆﾀ− 有り(*PVM) |
1 | ||
| 84010-47620 |
ZVW5#..(A,PREM)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 84010-47300 |
ZVW5#..CBU |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-47080 |
ZVW5#..(A,S)..CBU “ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T) |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-47090 |
ZVW5#..(A,S)..CBU “ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T) |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-47020 |
ZVW5#..CBU |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84010-47270 |
ZVW5#..(A,PREM)..CBU |
1 | ||
| 84010-47280 |
ZVW5#..(E,S)..CBU |
1 | ||
| 84970E - SWITCH ASSY, COMBINATION NO.2 | ||||
| 84010-47490 |
ZVW5#..(A,PREM)..CBU |
1 | ||
| 84010-47510 |
ZVW5#..(E,S)..CBU |
1 | ||
| 84970F - SWITCH ASSY, COMBINATION, NO.3 | ||||
| 84010-47330 |
ZVW5#..(A,S)..CBU 寒冷地仕様&外部電源−有り(AC100V 1500W:2個) |
1 | ||
| 84010-47330 |
ZVW5#..(A,E,S)..CBU 寒冷地仕様 |
1 | ||
| 84010-47340 |
ZVW5#..(A,E,S)..CBU 寒冷地仕様 |
1 | ||
| 84010-47350 |
ZVW5#..(A,S)..CBU 外部電源−有り(AC100V 1500W:2個) |
1 | ||
| 84010-47350 |
ZVW5#..(A,E,S)..CBU |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
ZVW5#..CBU |
1 | ||
| 85530C - SOCKET ASSY, POWER OUTLET, CENTER | ||||
| 85530-47020 |
ZVW5#..(A,PREM,S)..CBU |
1 | ||
| 85530-75010C0 |
ZVW5#..(A,S)..CBU 外部電源−有り(AC100V 1500W:2個),BLACK |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-47030 |
ZVW5#..CBU |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-30142 |
ZVW5#..CBU |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||

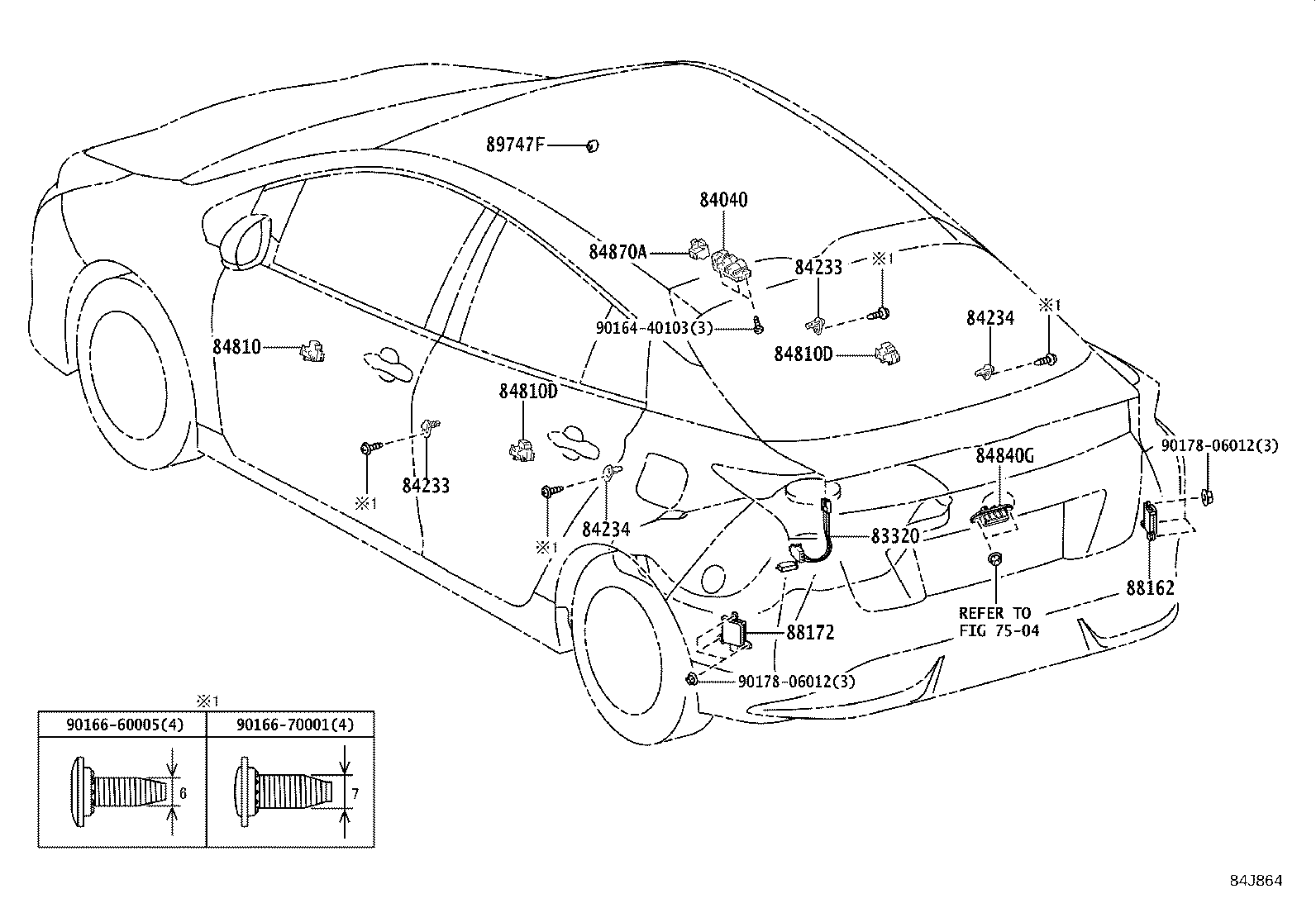

ILLUST NO. 8 OF 9(1812- )
ﾄﾞｱ & ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-76010 |
ZVW5#..CBU |
1 | ||
| 83320-10270 |
ZVW5#..CBU |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-52060 |
ZVW5#..CBU |
1 | ||
| 84040-30310 |
ZVW5#..CBU |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ZVW5#..CBU |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ZVW5#..CBU |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ZVW5#..CBU |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ZVW5#..CBU |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-26040 |
ZVW5#..CBU |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-26040 |
ZVW5#..CBU |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-26040 |
ZVW5#..CBU |
2 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-47040 |
ZVW5#..CBU |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-47070 |
ZVW5#..CBU |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-47050 |
ZVW5#..(A,PREM)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) , ﾅﾋﾞﾚﾃﾞｨｾｯﾄ用 |
1 | ||
| 88162-47050 |
ZVW5#..(A,PREM)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 88162-47031 |
ZVW5#..(A,PREM)..CBU |
1 | ||
| 88162-47051 |
ZVW5#..(A,PREM)..CBU ﾊﾞｯｸﾓﾆﾀ− 有り(*PVM) |
1 | ||
| 88162-47050 |
ZVW5#..(A,PREM)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) |
1 | ||
| 88162-47051 |
ZVW5#..(A,PREM)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) |
1 | ||
| 88162-47050 |
ZVW5#..(A,PREM)..CBU ﾊﾞｯｸﾓﾆﾀ− 有り(*PVM) |
1 | ||
| 88162-47030 |
ZVW5#..(A,PREM)..CBU |
1 | ||
| 88162-47051 |
ZVW5#..(A,PREM)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 88162-47051 |
ZVW5#..(A,PREM)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) , ﾅﾋﾞﾚﾃﾞｨｾｯﾄ用 |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-47051 |
ZVW5#..(A,PREM)..CBU ﾊﾞｯｸﾓﾆﾀ− 有り(*PVM) |
1 | ||
| 88162-47050 |
ZVW5#..(A,PREM)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) , ﾅﾋﾞﾚﾃﾞｨｾｯﾄ用 |
1 | ||
| 88162-47051 |
ZVW5#..(A,PREM)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) |
1 | ||
| 88162-47050 |
ZVW5#..(A,PREM)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) |
1 | ||
| 88162-47050 |
ZVW5#..(A,PREM)..CBU ﾊﾞｯｸﾓﾆﾀ− 有り(*PVM) |
1 | ||
| 88162-47051 |
ZVW5#..(A,PREM)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) , ﾅﾋﾞﾚﾃﾞｨｾｯﾄ用 |
1 | ||
| 88162-47030 |
ZVW5#..(A,PREM)..CBU |
1 | ||
| 88162-47050 |
ZVW5#..(A,PREM)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 88162-47051 |
ZVW5#..(A,PREM)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 88162-47031 |
ZVW5#..(A,PREM)..CBU |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-52010 |
ZVW5#..(A,PREM)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) |
1 | ||
| 89747-52010 |
ZVW5#..(A,PREM)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 89747-52010 |
ZVW5#..(A,PREM)..CBU ﾊﾞｯｸﾓﾆﾀ− 有り(*PVM) |
1 | ||
| 89747-52010 |
ZVW5#..(A,PREM)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) , ﾅﾋﾞﾚﾃﾞｨｾｯﾄ用 |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
| 90178-06012 | ||||
| Linked diagrams | ||||
| 7504 | ||||
