ZVW51-AHXBB (2018)
Toyota Prius
Production
Dec 2018
-
Sep 9999
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1812- )ZVW55 ; (1812- )ZVW51..S ; (1812-)ZVW51..A,E,PREM

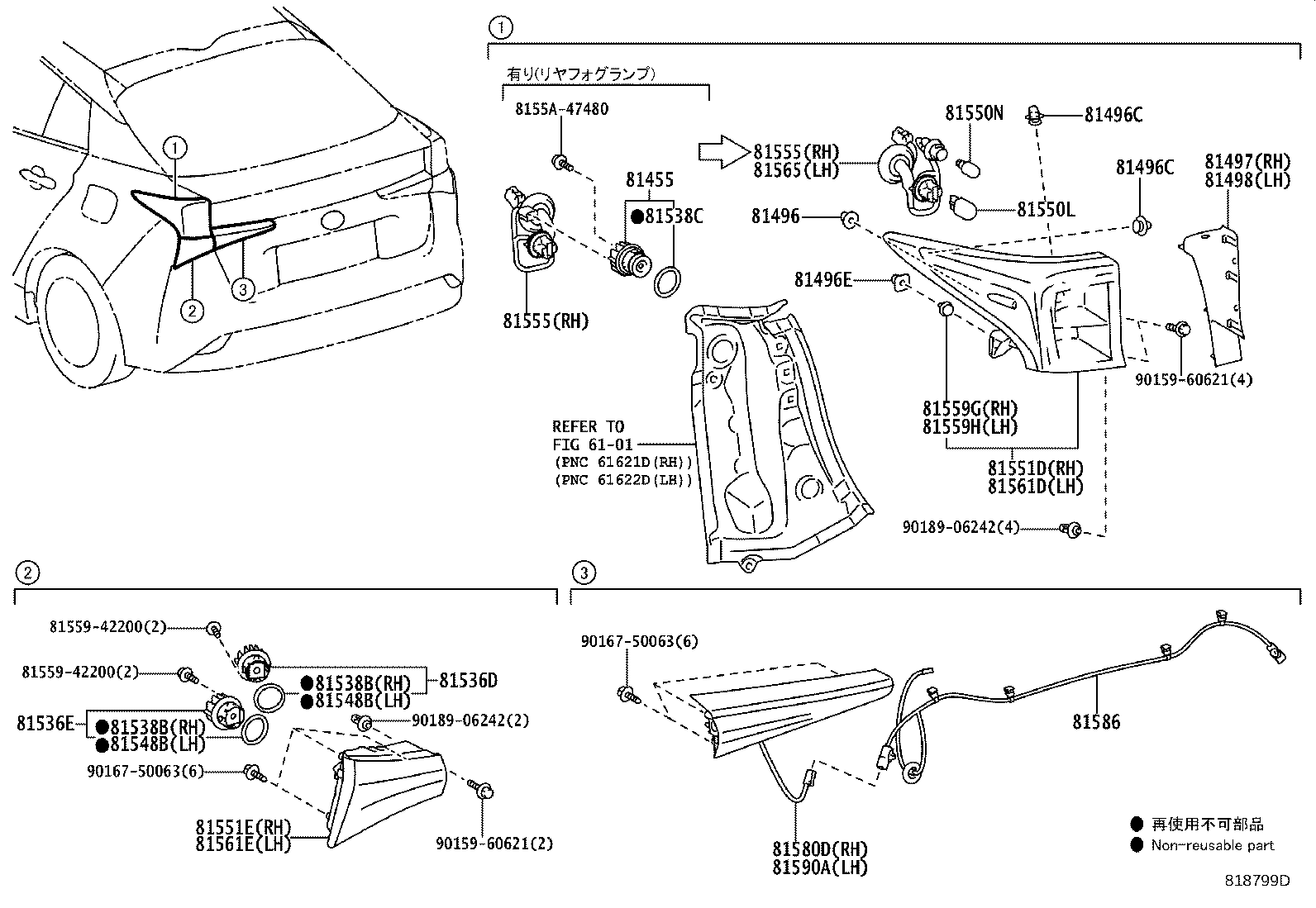

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81455 - LED, REAR FOG LAMP | ||||
| 81455-42060 |
ZVW5#..CBU 寒冷地仕様 |
1 | ||
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-52020 |
ZVW5#..CBU |
2 | ||
| 81496C - GUIDE, REAR COMBINATION LAMP, NO.2 | ||||
| 81496-48010 |
ZVW5#..CBU ｲｴﾛｰ |
4 | ||
| 81496-60010 |
ZVW5#..CBU ﾎﾜｲﾄ |
4 | ||
| 81496C - GUIDE, REAR COMBINATION LAMP, NO.2 | ||||
| 81496-48010 |
ZVW5#..CBU ｲｴﾛｰ |
4 | ||
| 81496-60010 |
ZVW5#..CBU ﾎﾜｲﾄ |
4 | ||
| 81496E - GUIDE, REAR COMBINATION LAMP, NO.3 | ||||
| 76817-26040 |
ZVW5#..CBU |
2 | ||
| 81497 - COVER, REAR COMBINATION LAMP, RH | ||||
| 81497-47040 |
ZVW5#..CBU |
1 | ||
| 81498 - COVER, REAR COMBINATION LAMP, LH | ||||
| 81498-47040 |
ZVW5#..CBU |
1 | ||
| 81536D - LED, TAIL LAMP | ||||
| 81536-42230 |
ZVW5#..CBU |
2 | ||
| 81536E - LED, STOP LAMP | ||||
| 81536-42200 |
ZVW5#..CBU |
2 | ||
| 81538B - GASKET, REAR COMBINATION LAMP, NO.3 RH | ||||
| 81538-42200 |
ZVW5#..CBU |
2 | ||
| 81538B - GASKET, REAR COMBINATION LAMP, NO.3 RH | ||||
| 81538-42200 |
ZVW5#..CBU |
2 | ||
| 81538C - GASKET, REAR FOG LAMP | ||||
| 81538-42200 |
ZVW5#..CBU 寒冷地仕様 |
1 | ||
| 81548B - GASKET, REAR COMBINATION LAMP, NO.3 LH | ||||
| 81538-42200 |
ZVW5#..CBU |
2 | ||
| 81548B - GASKET, REAR COMBINATION LAMP, NO.3 LH | ||||
| 81538-42200 |
ZVW5#..CBU |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15011 |
ZVW5#..CBU 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
ZVW5#..CBU 12V 16W,寒冷地仕様 |
1 | ||
| 90981-11059 |
ZVW5#..CBU 12V 16W |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-47471 |
ZVW5#..CBU |
1 | ||
| 81551-47472 |
ZVW5#..CBU |
1 | ||
| 81551-47470 |
ZVW5#..CBU |
1 | ||
| 81551-47482 |
ZVW5#..CBU 寒冷地仕様 |
1 | ||
| 81551-47481 |
ZVW5#..CBU 寒冷地仕様 |
1 | ||
| 81551-47480 |
ZVW5#..CBU 寒冷地仕様 |
1 | ||
| 81551E - LENS & BODY, REAR COMBINATION LAMP, NO.2 RH | ||||
| 81457-47020 |
ZVW5#..CBU |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-47480 |
ZVW5#..CBU 寒冷地仕様 |
1 | ||
| 81555-47470 |
ZVW5#..CBU |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-47480 |
ZVW5#..CBU 寒冷地仕様 |
1 | ||
| 81555-47470 |
ZVW5#..CBU |
1 | ||
| 81559G - CLIP, RR COMBINATION LAMP, RH | ||||
| 81559-47291 |
ZVW5#..CBU |
1 | ||
| 81559H - CLIP, RR COMBINATION LAMP, LH | ||||
| 81559-47291 |
ZVW5#..CBU |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-47470 |
ZVW5#..CBU |
1 | ||
| 81561-47472 |
ZVW5#..CBU |
1 | ||
| 81561-47471 |
ZVW5#..CBU |
1 | ||
| 81561E - LENS & BODY, REAR COMBINATION LAMP, NO.2 LH | ||||
| 81456-47020 |
ZVW5#..CBU |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-47470 |
ZVW5#..CBU |
1 | ||
| 81580D - LAMP ASSY, REAR, RH | ||||
| 81580-47070 |
ZVW5#..CBU |
1 | ||
| 81586 - CORD, REAR LAMP | ||||
| 81935-47050 |
ZVW5#..CBU |
1 | ||
| 81590A - LAMP ASSY, REAR, LH | ||||
| 81590-47070 |
ZVW5#..CBU |
1 | ||
| Common parts | ||||
| 81559-42200 | ||||
| 8155A-47480 | ||||
| 90159-60621 | ||||
| 90167-50063 | ||||
| 90189-06242 | ||||
| Linked diagrams | ||||
| 6101 | ||||
