ZVW51-AHXBB (2018)
Toyota Prius
Production
Dec 2018
-
Sep 9999
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1812- )

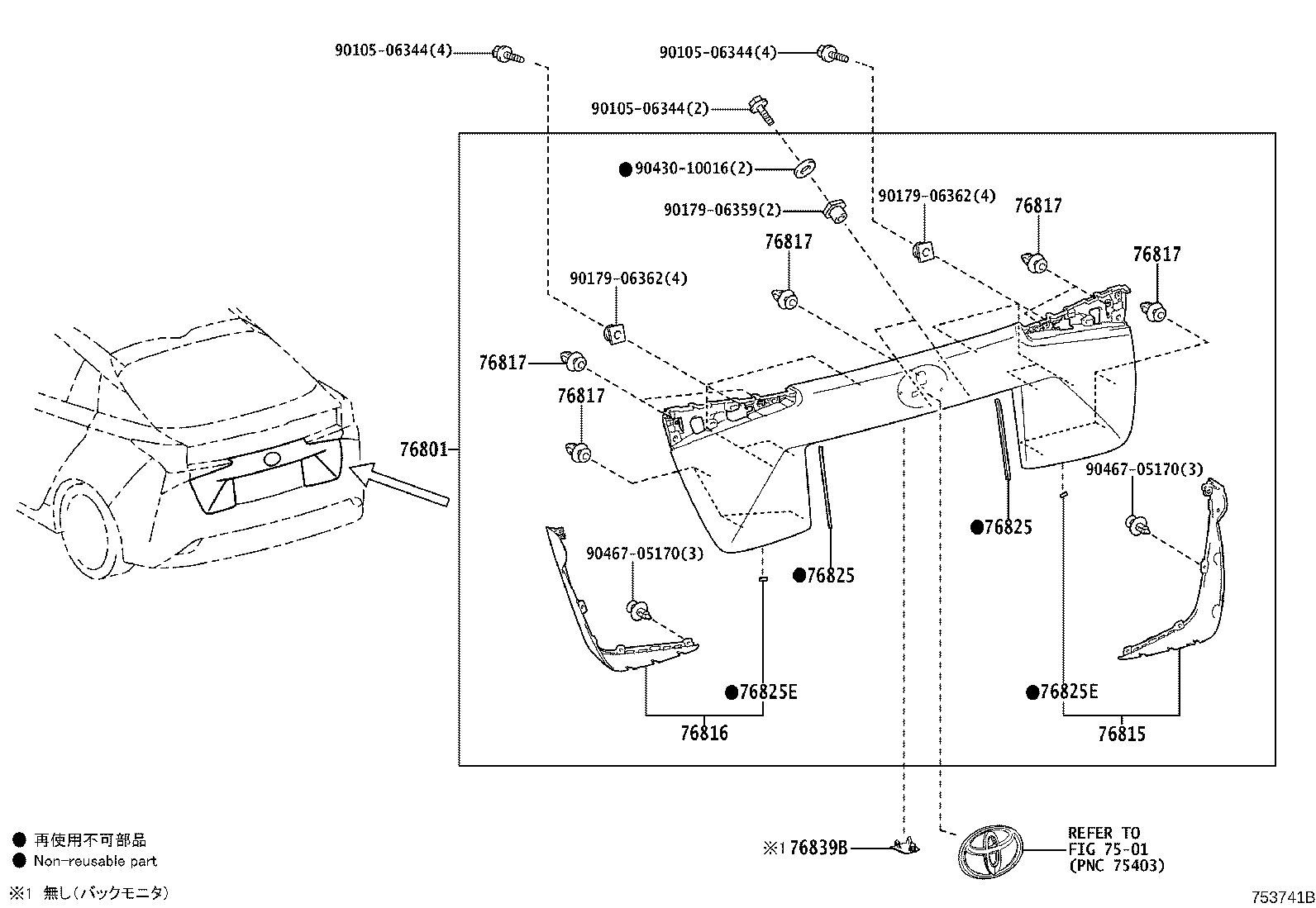

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-47170A0 |
ZVW5#..CBU SUPER WHITE 2,040 |
1 | ||
| 76801-47170B1 |
ZVW5#..E,PREM GRAY ME.,1G3 |
1 | ||
| 76801-47170B1 |
ZVW5#..(A,S)..CBU GRAY ME.,1G3 ,2XD |
1 | ||
| 76801-47170G0 |
ZVW5#..CBU THERMO-TECT LIME GREEN,6W7 |
1 | ||
| 76801-47170B0 |
ZVW5#..CBU SILVER ME.,1F7 |
1 | ||
| 76801-47170D0 |
ZVW5#..CBU EMOTIONAL RED 2,3U5 |
1 | ||
| 76801-47170A2 |
ZVW5#..(A,S)..CBU PLATINUM WHITE PEARL MC.,089 ,2XC |
1 | ||
| 76801-47170C0 |
ZVW5#..CBU ATTITUDE BLACK MC.,218 |
1 | ||
| 76801-47170A1 |
ZVW5#..CBU WHITE PEARL CS.,070 |
1 | ||
| 76801-47170E0 |
ZVW5#..CBU STEEL BLONDE ME.,4X1 |
1 | ||
| 76801-47170A2 |
ZVW5#..E,PREM PLATINUM WHITE PEARL MC.,089 |
1 | ||
| 76801-47170J0 |
ZVW5#..CBU BLUE ME.,8X7 |
1 | ||
| 76815 - MOULDING, BACK DOOR OUTSIDE GARNISH, LOWER RH | ||||
| 76815-47030 |
ZVW5#..CBU |
1 | ||
| 76816 - MOULDING, BACK DOOR OUTSIDE GARNISH, LOWER LH | ||||
| 76816-47030 |
ZVW5#..CBU |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 90467-09206 |
ZVW5#..CBU |
11 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 90467-09206 |
ZVW5#..CBU |
11 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 90467-09206 |
ZVW5#..CBU |
11 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 90467-09206 |
ZVW5#..CBU |
11 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 90467-09206 |
ZVW5#..CBU |
11 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-47010 |
ZVW5#..CBU |
2 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-47010 |
ZVW5#..CBU |
2 | ||
| 76825E - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2 | ||||
| 76822-47011 |
ZVW5#..CBU |
2 | ||
| 76825E - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2 | ||||
| 76822-47011 |
ZVW5#..CBU |
2 | ||
| 76839B - COVER, BACK DOOR GARNISH | ||||
| 76839-47030 |
ZVW51..E |
1 | ||
| 76839-47030 |
ZVW5#..(A,PREM,S)..CBU |
1 | ||
| Common parts | ||||
| 90105-06344 | ||||
| 90179-06359 | ||||
| 90179-06362 | ||||
| 90430-10016 | ||||
| 90467-05170 | ||||
| Linked diagrams | ||||
| 7501 | ||||
