ZVW51-AHXBB (2018)
Toyota Prius
(1812- )

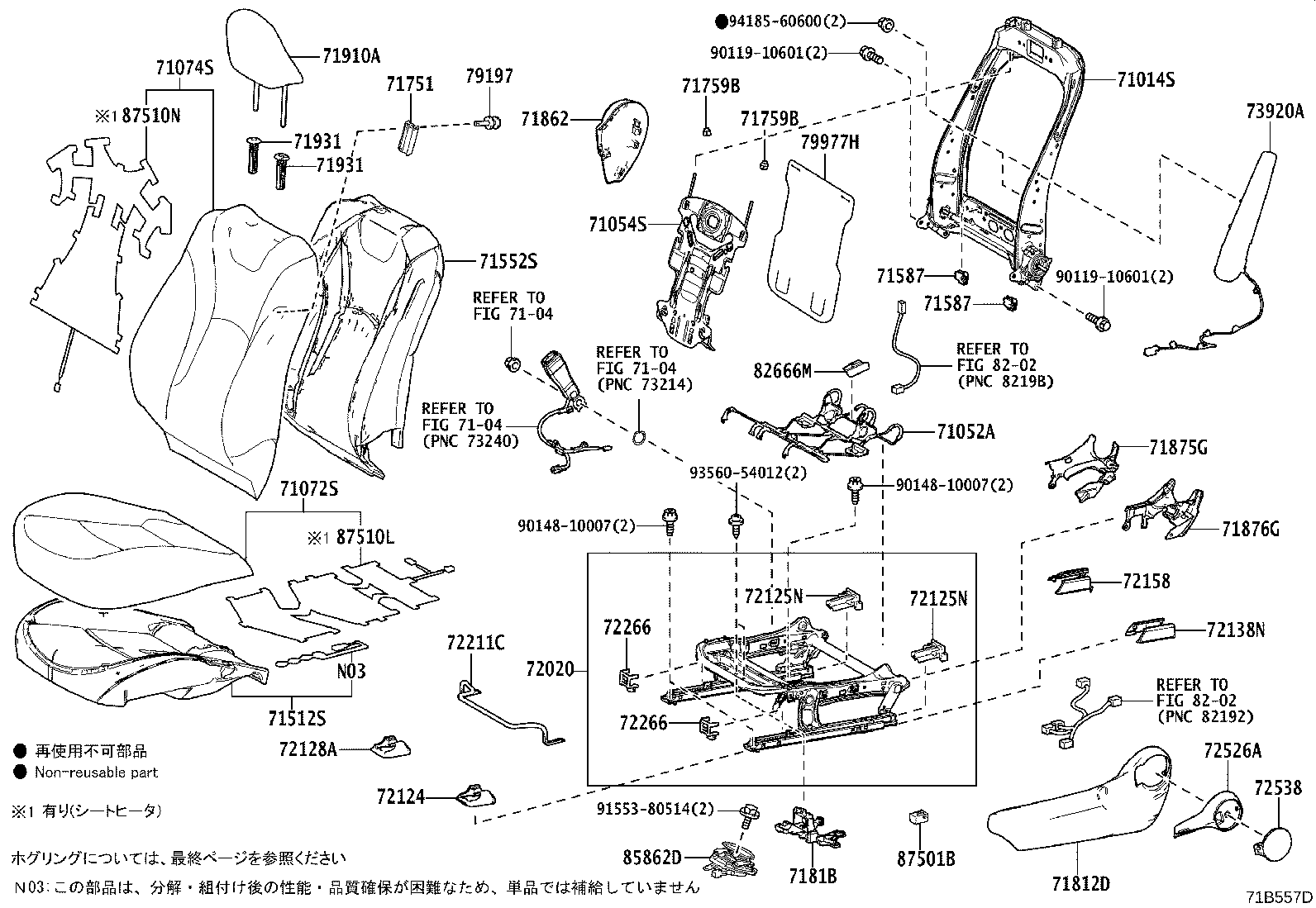

LH,ﾏﾆｭｱﾙ 4WAY ｼｰﾄ ｱﾘ(ｼｰﾄﾍﾞﾝﾁﾚｰｼｮﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-47150 |
ZVW5#..CBU |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-47090 |
ZVW5#..CBU |
1 | ||
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-47050 |
ZVW5#..(A,E,S)..CBU |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-47B40C0 |
ZVW5#..(A,S)..CBU “ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T),BLACK,TRIM2# |
1 | ||
| 71072-47B40B0 |
ZVW5#..(A,S)..CBU “ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T),COOL GRAY,TRIM1# |
1 | ||
| 71072-47D10B6 |
ZVW5#..A..CBU COOL GRAY,TRIM1# |
1 | ||
| 71072-47C70C6 |
ZVW51..E BLACK,TRIM2# |
1 | ||
| 71072-47D10C4 |
ZVW5#..A..CBU BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-47C20B4 |
ZVW5#..A..CBU COOL GRAY,TRIM1# |
1 | ||
| 71074-47C20C4 |
ZVW5#..A..CBU BLACK,TRIM2# |
1 | ||
| 71074-47B60C4 |
ZVW51..E BLACK,TRIM2# |
1 | ||
| 71074-47D00C8 |
ZVW5#..(A,S)..CBU “ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T),BLACK,TRIM2# |
1 | ||
| 71074-47D00B8 |
ZVW5#..(A,S)..CBU “ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T),COOL GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-47040 |
ZVW5#..(A,E,S)..CBU |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-47220 |
ZVW5#..(A,E,S)..CBU |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
ZVW5#..CBU |
4 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
ZVW5#..CBU |
4 | ||
| 71751 - HANGER, SEAT COVER | ||||
| 71751-47050 |
ZVW5#..A..CBU 有り(助手席回転ﾁﾙﾄｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏﾁｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ) |
1 | ||
| 71751-47050 |
ZVW5#..A..CBU ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE1)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏﾁｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ) |
1 | ||
| 71751-47050 |
ZVW5#..A..CBU 有り(助手席回転ﾁﾙﾄｼｰﾄ & ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏﾁｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ) |
1 | ||
| 71751-47050 |
ZVW5#..CBU |
2 | ||
| 71751-47050 |
ZVW5#..A..CBU ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE4)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏﾁｯｸTYPE4)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRP & ｻｲﾄﾞ=*PASのみ & *CUSA) |
1 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-52050 |
ZVW5#..CBU |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-52050 |
ZVW5#..CBU |
4 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-47140C1 |
ZVW5#..CBU BLACK,TRIM1#,2# |
1 | ||
| 7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH | ||||
| 7181B-47010 |
ZVW5#..CBU |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-47100C1 |
ZVW5#..CBU BLACK,TRIM1#,2# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-47090C1 |
ZVW5#..CBU BLACK,TRIM1#,2# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-47070C1 |
ZVW5#..CBU BLACK,TRIM1#,2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-47530B5 |
ZVW5#..A..CBU ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE1)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏﾁｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),COOL GRAY/TURQUOISE,TRIM1# |
1 | ||
| 71910-47530B5 |
ZVW5#..A..CBU ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE4)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏﾁｯｸTYPE4)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRP & ｻｲﾄﾞ=*PASのみ & *CUSA),COOL GRAY/TURQUOISE,TRIM1# |
1 | ||
| 71910-47530B5 |
ZVW5#..A..CBU 有り(助手席回転ﾁﾙﾄｼｰﾄ & ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏﾁｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),COOL GRAY/TURQUOISE,TRIM1# |
1 | ||
| 71910-47530B5 |
ZVW5#..A..CBU 有り(助手席回転ﾁﾙﾄｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏﾁｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),COOL GRAY/TURQUOISE,TRIM1# |
1 | ||
| 71910-47530C8 |
ZVW5#..A..CBU 有り(助手席回転ﾁﾙﾄｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏﾁｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71910-47540B7 |
ZVW5#..(A,S)..CBU “ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T),COOL GRAY,TRIM1# |
2 | ||
| 71910-47530B5 |
ZVW5#..A..CBU COOL GRAY/TURQUOISE,TRIM1# |
2 | ||
| 71910-47530C8 |
ZVW5#..A..CBU 有り(助手席回転ﾁﾙﾄｼｰﾄ & ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏﾁｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71910-47530C8 |
ZVW5#..A..CBU ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE4)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏﾁｯｸTYPE4)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRP & ｻｲﾄﾞ=*PASのみ & *CUSA),BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71910-47530C8 |
ZVW5#..A..CBU BLACK/DK.GRAY,TRIM2# |
2 | ||
| 71910-47530C8 |
ZVW5#..A..CBU ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE1)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏﾁｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71910-4754022 |
ZVW5#..(A,S)..CBU “ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T),BLACK/BLUE,TRIM2# |
2 | ||
| 71910-47600C4 |
ZVW51..E BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050B0 |
ZVW5#..A..CBU ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE1)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏ`ｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),COOL GRAY,TRIM10 |
1 | ||
| 71930-47050B0 |
ZVW5#..A..CBU ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE4)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏ`ｯｸTYPE4)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRP & ｻｲﾄﾞ=*PASのみ &@*CUSA),COOL GRAY,TRIM10 |
1 | ||
| 71930-47050B0 |
ZVW5#..A..CBU ﾛｯｸ付,有り(助手席回転ﾁﾙﾄｼｰﾄ & ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−WELCAa(ﾌﾚﾝﾄﾞﾏﾁｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),COOL GRAY,TRIM10 |
1 | ||
| 71930-47050B0 |
ZVW5#..A..CBU ﾛｯｸ付,有り(助手席回転ﾁﾙﾄｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏ`ｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),COOL GRAY,TRIM10 |
1 | ||
| 71930-47050C5 |
ZVW5#..A..CBU ﾛｯｸ付,有り(助手席回転ﾁﾙﾄｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏ`ｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),BLACK,TRIM10,2# |
1 | ||
| 71930-47050C5 |
ZVW5#..A..CBU ﾛｯｸ付,有り(助手席回転ﾁﾙﾄｼｰﾄ & ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−WELCAa(ﾌﾚﾝﾄﾞﾏﾁｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),BLACK,TRIM10,2# |
1 | ||
| 71931-47030B0 |
ZVW5#..A..CBU ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE1)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏ`ｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),COOL GRAY,TRIM10 |
1 | ||
| 71930-47050C5 |
ZVW5#..(A,S)..CBU ﾛｯｸ付,BLACK,TRIM10,2# |
2 | ||
| 71930-47050B0 |
ZVW5#..(A,S)..CBU ﾛｯｸ付,COOL GRAY,TRIM10 |
2 | ||
| 71930-47050C5 |
ZVW5#..A..CBU ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE1)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏ`ｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),BLACK,TRIM10,2# |
1 | ||
| 71931-47030B0 |
ZVW5#..A..CBU ﾛｯｸ無,有り(助手席回転ﾁﾙﾄｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏ`ｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),COOL GRAY,TRIM10 |
1 | ||
| 71930-47050C5 |
ZVW5#..A..CBU ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE4)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏ`ｯｸTYPE4)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRP & ｻｲﾄﾞ=*PASのみ &@*CUSA),BLACK,TRIM10,2# |
1 | ||
| 71931-47030C4 |
ZVW5#..A..CBU ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE4)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏ`ｯｸTYPE4)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRP & ｻｲﾄﾞ=*PASのみ &@*CUSA),BLACK,TRIM10,2# |
1 | ||
| 71931-47030B0 |
ZVW5#..A..CBU ﾛｯｸ無,有り(助手席回転ﾁﾙﾄｼｰﾄ & ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−WELCAa(ﾌﾚﾝﾄﾞﾏﾁｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),COOL GRAY,TRIM10 |
1 | ||
| 71931-47030B0 |
ZVW5#..(A,S)..CBU ﾛｯｸ無,COOL GRAY,TRIM10 |
2 | ||
| 71931-47030C4 |
ZVW5#..A..CBU ﾛｯｸ無,有り(助手席回転ﾁﾙﾄｼｰﾄ & ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−WELCAa(ﾌﾚﾝﾄﾞﾏﾁｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),BLACK,TRIM10,2# |
1 | ||
| 71931-47030C4 |
ZVW51..E ﾛｯｸ無,BLACK,TRIM1#,2# |
2 | ||
| 71931-47030C4 |
ZVW5#..A..CBU ﾛｯｸ無,有り(助手席回転ﾁﾙﾄｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏ`ｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),BLACK,TRIM10,2# |
1 | ||
| 71930-47050C5 |
ZVW51..E ﾛｯｸ付,BLACK,TRIM1#,2# |
2 | ||
| 71931-47030C4 |
ZVW5#..(A,S)..CBU ﾛｯｸ無,BLACK,TRIM10,2# |
2 | ||
| 71931-47030B0 |
ZVW5#..A..CBU ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE4)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏ`ｯｸTYPE4)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRP & ｻｲﾄﾞ=*PASのみ &@*CUSA),COOL GRAY,TRIM10 |
1 | ||
| 71931-47030C4 |
ZVW5#..A..CBU ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE1)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏ`ｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),BLACK,TRIM10,2# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050B0 |
ZVW5#..A..CBU ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE1)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏ`ｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),COOL GRAY,TRIM10 |
1 | ||
| 71930-47050B0 |
ZVW5#..A..CBU ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE4)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏ`ｯｸTYPE4)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRP & ｻｲﾄﾞ=*PASのみ &@*CUSA),COOL GRAY,TRIM10 |
1 | ||
| 71930-47050B0 |
ZVW5#..A..CBU ﾛｯｸ付,有り(助手席回転ﾁﾙﾄｼｰﾄ & ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−WELCAa(ﾌﾚﾝﾄﾞﾏﾁｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),COOL GRAY,TRIM10 |
1 | ||
| 71930-47050B0 |
ZVW5#..A..CBU ﾛｯｸ付,有り(助手席回転ﾁﾙﾄｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏ`ｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),COOL GRAY,TRIM10 |
1 | ||
| 71930-47050C5 |
ZVW5#..A..CBU ﾛｯｸ付,有り(助手席回転ﾁﾙﾄｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏ`ｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),BLACK,TRIM10,2# |
1 | ||
| 71930-47050C5 |
ZVW5#..A..CBU ﾛｯｸ付,有り(助手席回転ﾁﾙﾄｼｰﾄ & ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−WELCAa(ﾌﾚﾝﾄﾞﾏﾁｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),BLACK,TRIM10,2# |
1 | ||
| 71931-47030B0 |
ZVW5#..A..CBU ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE1)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏ`ｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),COOL GRAY,TRIM10 |
1 | ||
| 71930-47050C5 |
ZVW5#..(A,S)..CBU ﾛｯｸ付,BLACK,TRIM10,2# |
2 | ||
| 71930-47050B0 |
ZVW5#..(A,S)..CBU ﾛｯｸ付,COOL GRAY,TRIM10 |
2 | ||
| 71930-47050C5 |
ZVW5#..A..CBU ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE1)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏ`ｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),BLACK,TRIM10,2# |
1 | ||
| 71931-47030B0 |
ZVW5#..A..CBU ﾛｯｸ無,有り(助手席回転ﾁﾙﾄｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏ`ｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),COOL GRAY,TRIM10 |
1 | ||
| 71930-47050C5 |
ZVW5#..A..CBU ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE4)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏ`ｯｸTYPE4)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRP & ｻｲﾄﾞ=*PASのみ &@*CUSA),BLACK,TRIM10,2# |
1 | ||
| 71931-47030C4 |
ZVW5#..A..CBU ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE4)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏ`ｯｸTYPE4)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRP & ｻｲﾄﾞ=*PASのみ &@*CUSA),BLACK,TRIM10,2# |
1 | ||
| 71931-47030B0 |
ZVW5#..A..CBU ﾛｯｸ無,有り(助手席回転ﾁﾙﾄｼｰﾄ & ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−WELCAa(ﾌﾚﾝﾄﾞﾏﾁｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),COOL GRAY,TRIM10 |
1 | ||
| 71931-47030B0 |
ZVW5#..(A,S)..CBU ﾛｯｸ無,COOL GRAY,TRIM10 |
2 | ||
| 71931-47030C4 |
ZVW5#..A..CBU ﾛｯｸ無,有り(助手席回転ﾁﾙﾄｼｰﾄ & ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−WELCAa(ﾌﾚﾝﾄﾞﾏﾁｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),BLACK,TRIM10,2# |
1 | ||
| 71931-47030C4 |
ZVW51..E ﾛｯｸ無,BLACK,TRIM1#,2# |
2 | ||
| 71931-47030C4 |
ZVW5#..A..CBU ﾛｯｸ無,有り(助手席回転ﾁﾙﾄｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏ`ｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),BLACK,TRIM10,2# |
1 | ||
| 71930-47050C5 |
ZVW51..E ﾛｯｸ付,BLACK,TRIM1#,2# |
2 | ||
| 71931-47030C4 |
ZVW5#..(A,S)..CBU ﾛｯｸ無,BLACK,TRIM10,2# |
2 | ||
| 71931-47030B0 |
ZVW5#..A..CBU ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE4)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏ`ｯｸTYPE4)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRP & ｻｲﾄﾞ=*PASのみ &@*CUSA),COOL GRAY,TRIM10 |
1 | ||
| 71931-47030C4 |
ZVW5#..A..CBU ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE1)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏ`ｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ),BLACK,TRIM10,2# |
1 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-47381 |
ZVW5#..(A,E,S)..CBU |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-47060 |
ZVW5#..CBU |
1 | ||
| 72125N - COVER, SEAT TRACK, UPPER NO.4 | ||||
| 72125-47010 |
ZVW5#..CBU |
2 | ||
| 72125N - COVER, SEAT TRACK, UPPER NO.4 | ||||
| 72125-47010 |
ZVW5#..CBU |
2 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72123-47060 |
ZVW5#..CBU |
1 | ||
| 72138N - COVER, SEAT TRACK BRACKET, OUTER REAR LH | ||||
| 72137-47060 |
ZVW5#..CBU |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-47080 |
ZVW5#..CBU |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-47050 |
ZVW5#..(E,S)..CBU |
2 | ||
| 72211-47050 |
ZVW5#..(A,PREM)..CBU |
1 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-47010 |
ZVW5#..CBU |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-47010 |
ZVW5#..CBU |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47040C1 |
ZVW5#..CBU BLACK,TRIM1#,2# |
1 | ||
| 72538 - COVER, RECLINING HINGE OUTER, LH | ||||
| 72551-47030C1 |
ZVW5#..CBU BLACK,TRIM1#,2# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-47110 |
ZVW5#..CBU |
1 | ||
| 79197 - HOOK, SEAT BACK COVER | ||||
| 79197-47010 |
ZVW5#..A..CBU 有り(助手席回転ﾁﾙﾄｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏﾁｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ) |
1 | ||
| 79197-47010 |
ZVW5#..A..CBU ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE1)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏﾁｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ) |
1 | ||
| 79197-47010 |
ZVW5#..A..CBU 有り(助手席回転ﾁﾙﾄｼｰﾄ & ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏﾁｯｸTYPE1 OR 助手席回転ﾁﾙﾄｼｰﾄ) |
1 | ||
| 79197-47010 |
ZVW5#..CBU |
2 | ||
| 79197-47010 |
ZVW5#..A..CBU ﾌﾚﾝﾄﾞﾏﾁｯｸ(TYPE4)&ﾌﾛﾝﾄｼｰﾄ−WELCAB(ﾌﾚﾝﾄﾞﾏﾁｯｸTYPE4)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRP & ｻｲﾄﾞ=*PASのみ & *CUSA) |
1 | ||
| 82666M - HOLDER, CONNECTOR | ||||
| 82666-47630 |
ZVW5#..CBU |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-47190 |
ZVW5#..(A,S)..CBU “ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T) |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87530-47040 |
ZVW5#..(A,S)..CBU “ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ”*(T) |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 91553-80514 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
