ZVW50-AHXEB (2015)
Toyota Prius
(1511-1812)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

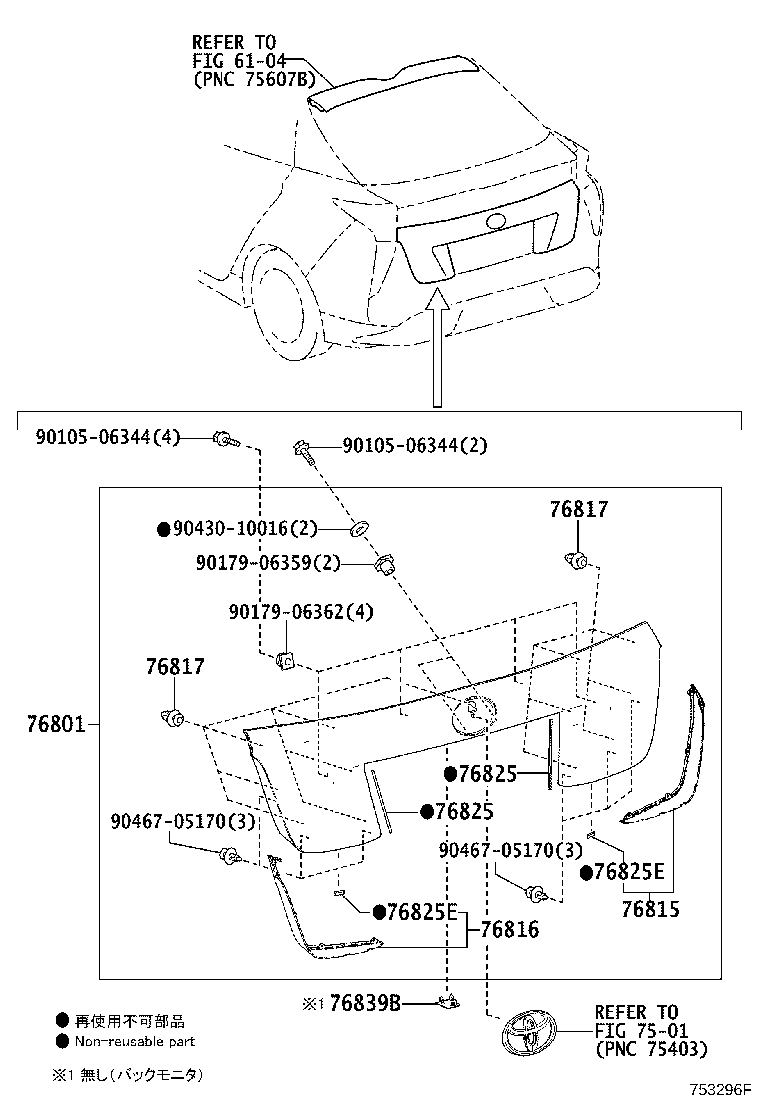

| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-47110A0 |
ZVW5#..CBU SUPER WHITE 2,040 |
1 | ||
| 76801-47110B0 |
ZVW5#..(A,PREM,S)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) , ﾅﾋﾞﾚﾃﾞｨｾｯﾄ用,SILVER ME.,1F7 |
1 | ||
| 76801-47110A0 |
ZVW5#..(A,PREM,S)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) , ﾅﾋﾞﾚﾃﾞｨｾｯﾄ用,SUPER WHITE 2,040 |
1 | ||
| 76801-47110B0 |
ZVW5#..CBU SILVER ME.,1F7 |
1 | ||
| 76801-47110A1 |
ZVW5#..(PREM,S)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) , ﾅﾋﾞﾚﾃﾞｨｾｯﾄ用,WHITE PEARL CS.,070 ,2QJ |
1 | ||
| 76801-47110C0 |
ZVW5#..CBU ATTITUDE BLACK MC.,218 |
1 | ||
| 76801-47110C0 |
ZVW5#..(A,PREM,S)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) , ﾅﾋﾞﾚﾃﾞｨｾｯﾄ用,ATTITUDE BLACK MC.,218 |
1 | ||
| 76801-47110A1 |
ZVW5#..(A,E,S)..CBU WHITE PEARL CS.,070 |
1 | ||
| 76801-47110G0 |
ZVW5#..(A,PREM,S)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) , ﾅﾋﾞﾚﾃﾞｨｾｯﾄ用,THERMO-TECT LIME GREEN,6W7 |
1 | ||
| 76801-47110B1 |
ZVW5#..CBU GRAY ME.,1G3 |
1 | ||
| 76801-47110E0 |
ZVW5#..CBU STEEL BLONDE,4X1 |
1 | ||
| 76801-47110J0 |
ZVW5#..CBU DK.BLUE M.M.,8W7 |
1 | ||
| 76801-47110B1 |
ZVW5#..(A,PREM,S)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) , ﾅﾋﾞﾚﾃﾞｨｾｯﾄ用,GRAY ME.,1G3 |
1 | ||
| 76801-47110G0 |
ZVW5#..CBU THERMO-TECT LIME GREEN,6W7 |
1 | ||
| 76801-47110D0 |
ZVW5#..(A,E,S)..CBU EMOTIONAL RED,3T7 |
1 | ||
| 76801-47110D0 |
ZVW5#..(A,S)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) , ﾅﾋﾞﾚﾃﾞｨｾｯﾄ用,EMOTIONAL RED,3T7 |
1 | ||
| 76801-47110J0 |
ZVW50,55..S..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) , ﾅﾋﾞﾚﾃﾞｨｾｯﾄ用,DK.BLUE M.M.,2RC ,8W7 |
1 | ||
| 76801-47110E0 |
ZVW50,55..S..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ付き) , ﾅﾋﾞﾚﾃﾞｨｾｯﾄ用,STEEL BLONDE,2RB ,4X1 |
1 | ||
| 76815 - MOULDING, BACK DOOR OUTSIDE GARNISH, LOWER RH | ||||
| 76815-47010 |
ZVW5#..CBU |
1 | ||
| 76816 - MOULDING, BACK DOOR OUTSIDE GARNISH, LOWER LH | ||||
| 76816-47010 |
ZVW5#..CBU |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 75867-33040 |
ZVW5#..CBU |
13 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 75867-33040 |
ZVW5#..CBU |
13 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-47010 |
ZVW5#..CBU |
2 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-47010 |
ZVW5#..CBU |
2 | ||
| 76825E - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2 | ||||
| 76822-47010 |
ZVW5#..CBU |
2 | ||
| 76822-47011 |
ZVW5#..CBU |
2 | ||
| 76825E - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2 | ||||
| 76822-47010 |
ZVW5#..CBU |
2 | ||
| 76822-47011 |
ZVW5#..CBU |
2 | ||
| 76839B - COVER, BACK DOOR GARNISH | ||||
| 76839-47010 |
ZVW5#..CBU |
1 | ||
| Common parts | ||||
| 90105-06344 | ||||
| 90179-06359 | ||||
| 90179-06362 | ||||
| 90430-10016 | ||||
| 90467-05170 | ||||
| Linked diagrams | ||||
| 6104 | ||||
| 7501 | ||||
