ZVW30-AHXBB (2011)

Toyota Prius

Production Dec 2011 - Nov 2015
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )L

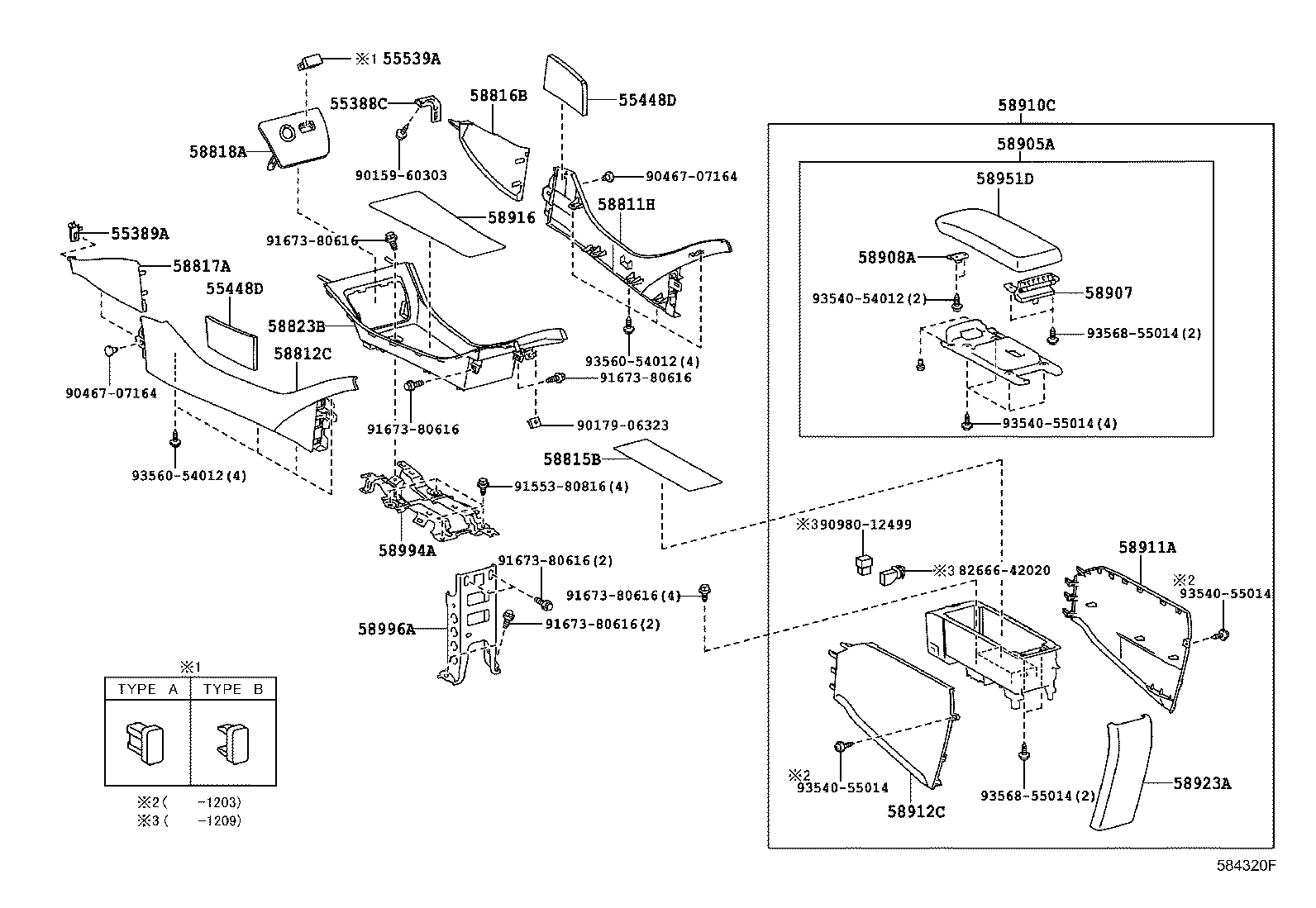

Click highlighted areas on diagram

diagram 55388C 55389A 55448D 55448D 55539A 58811H 58812C 58815B 58816B 58817A 58818A 58823B 58905A 58907 58908A 58910C 58911A 58912C 58916 58923A 58951D 58994A 58996A 8266642020 9015960303 9017906323 9046707164 9046707164 9098012499 9155380816 9167380616 9167380616 9167380616 9167380616 9167380616 9167380616 9354054012 9354055014 9354055014 9354055014 9356054012 9356054012 9356855014 9356855014
Part # Description Qty Price
55388C - BRACKET, CONSOLE MOUNTING, RH
55389-42020

ZVW30..CBU

 1
55389-42020

ZVW30..CBU

 1
55389A - BRACKET, CONSOLE MOUNTING, LH
55388-42020

ZVW30..CBU

 1
55388-42020

ZVW30..CBU

 1
55448D - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.1
55448-47070

ZVW30..CBU

 2
55448-47070

ZVW30..CBU

 2
55448D - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.1
55448-47070

ZVW30..CBU

 2
55448-47070

ZVW30..CBU

 2
55539A - COVER, SPARE SWITCH HOLE
55539-47060

ZVW30..L

TYPE B:ｲﾗｽﾄ参照

 1
55539-28160C0

ZVW30..L

BLACK,TYPE A:ｲﾗｽﾄ参照

 1
55539-28170C0

ZVW30..L

BLACK,TYPE B:ｲﾗｽﾄ参照

 1
55539-28160C0

ZVW30..L

BLACK,TYPE A:ｲﾗｽﾄ参照

 1
58811H - BOX, CONSOLE, RH
58811-47010G0

ZVW30..CBU

AQUA,TRIM6#

 1
58811-47010B0

ZVW30..CBU

MD.GRAY,TRIM1#

 1
58811-47010C0

ZVW30..(G,L)..CBU

BLACK,TRIM2#

 1
58812C - BOX, CONSOLE, LH
58812-47010G0

ZVW30..CBU

AQUA,TRIM6#

 1
58812-47010B0

ZVW30..CBU

MD.GRAY,TRIM1#

 1
58812-47010C0

ZVW30..(G,L)..CBU

BLACK,TRIM2#

 1
58815B - CARPET, CONSOLE BOX
58815-47030

ZVW30..CBU

 1
58815-47070

ZVW30..L

 1
58816B - INSERT, CONSOLE BOX
58816-47010B0

ZVW30..CBU

MD.GRAY,TRIM1#

 1
58816-47010G0

ZVW30..CBU

AQUA,TRIM6#

 1
58816-47010C0

ZVW30..(G,L)..CBU

BLACK,TRIM2#

 1
58817A - INSERT, CONSOLE BOX, FRONT NO.2
58817-47010C0

ZVW30..(G,L)..CBU

BLACK,TRIM2#

 1
58817-47010B0

ZVW30..CBU

MD.GRAY,TRIM1#

 1
58817-47010G0

ZVW30..CBU

AQUA,TRIM6#

 1
58818A - COVER, CONSOLE BOX, FR
58818-47030B0

ZVW30..L

MD.GRAY,TRIM1#,TYPE B:ｲﾗｽﾄ参照

 1
58818-47030G0

ZVW30..L

AQUA,TRIM6#,TYPE B:ｲﾗｽﾄ参照

 1
58818-47070C0

ZVW30..L

BLACK,TRIM2#

 1
58823B - BOX, CONSOLE COMPARTMENT
58823-47020B0

ZVW30..CBU

MD.GRAY,TRIM1#

 1
58823-47020C0

ZVW30..(G,L)..CBU

BLACK,TRIM2#

 1
58823-47020G0

ZVW30..CBU

AQUA,TRIM6#

 1
58905A - DOOR SUB-ASSY, CONSOLE COMPARTMENT, REAR
58905-47070B2

ZVW30..L

MD.GRAY,TRIM1#

 1
58905-47071C0

ZVW30..L

BLACK,TRIM2#

 1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-12080B0

ZVW30..L

DK.GRAY

 1
58907-12080B0

ZVW30..L

DK.GRAY

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-32021

ZVW30..L

 1
58908-32021

ZVW30..L

 1
58910C - BOX ASSY, CONSOLE, REAR
58901-47122C0

ZVW30..L

BLACK,TRIM2#

 1
58901-47120B0

ZVW30..L

MD.GRAY,TRIM1#

 1
58901-47121C0

ZVW30..L

BLACK,TRIM2#

 1
58911A - PANEL, BOX SIDE, NO.1
58911-47040C0

ZVW30..L

BLACK,TRIM2#

 1
58911-47040B0

ZVW30..L

MD.GRAY,TRIM1#

 1
58912C - PANEL, BOX SIDE, NO.2
58912-47050B0

ZVW30..L

MD.GRAY,TRIM1#

 1
58912-47050C0

ZVW30..L

BLACK,TRIM2#

 1
58916 - MAT, BOX BOTTOM
58916-47010B1

ZVW30..CBU

MD.GRAY,TRIM1#

 1
58916-47010C1

ZVW30..L

BLACK,TRIM2#

 1
58916-47010B0

ZVW30..CBU

GRAY,TRIM6#

 1
58923A - PANEL, CONSOLE REAR END
58923-47040B0

ZVW30..L

MD.GRAY,TRIM1#

 1
58923-47040C0

ZVW30..L

BLACK,TRIM2#

 1
58951D - DOOR, CONSOLE COMPARTMENT, OUTER
58951-47030C0

ZVW30..L

BLACK,TRIM2#

 1
58951-47030B2

ZVW30..L

MD.GRAY,TRIM1#

 1
58994A - BRACKET, CONSOLE BOX MOUNTING, NO.4
58994-47010

ZVW30..CBU

 1
58994-47010

ZVW30..CBU

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-47020

ZVW30..CBU

 1
58996-47020

ZVW30..CBU

 1
Common parts
82666-42020
90159-60303
90179-06323
90467-07164
90980-12499
91553-80816
91673-80616
93540-54012
93540-55014
93560-54012
93568-55014
