ZVW30-AHXBB (2009)
Toyota Prius
Production
Apr 2009
-
Dec 2011
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

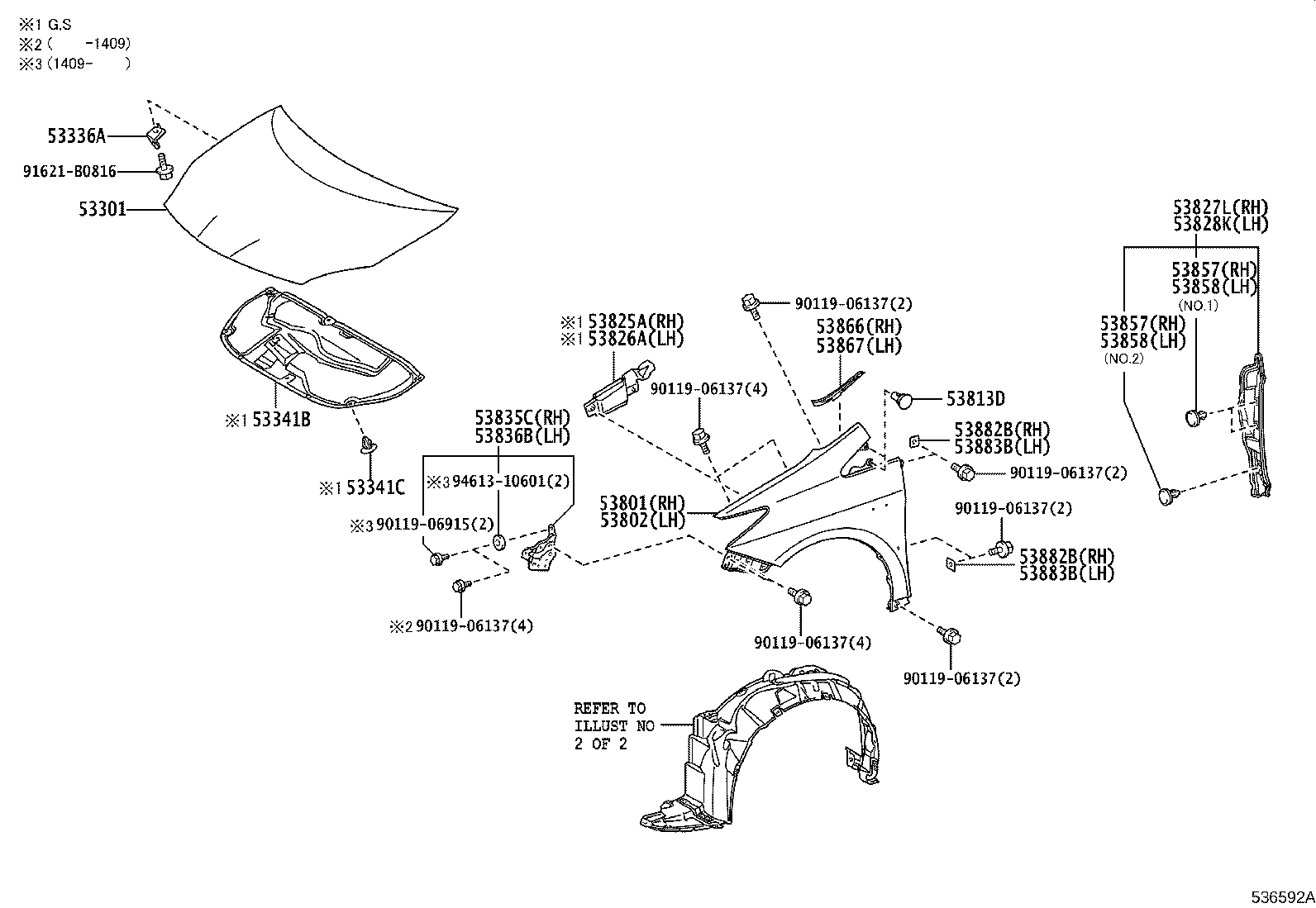

ILLUST NO. 1 OF 2(0904- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-47060 |
ZVW30..CBU |
1 | ||
| 53336A - BRACKET, HOOD STAY | ||||
| 53336-47010 |
ZVW30..CBU |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-47050 |
ZVW30..CBU |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-47050 |
ZVW30..CBU |
1 | ||
| 53813D - EXTENSION, FRONT FENDER | ||||
| 53813-47040 |
ZVW30..CBU |
4 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-47030 |
ZVW30..CBU |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-47030 |
ZVW30..CBU |
1 | ||
| 53835C - BRACKET, FRONT SIDE PANEL, RH | ||||
| 53835-47010 |
ZVW30..CBU |
1 | ||
| 53836B - BRACKET, FRONT SIDE PANEL, LH | ||||
| 53836-47010 |
ZVW30..CBU |
1 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-47020 |
ZVW30..CBU NO.1 |
2 | ||
| 53857-47011 |
ZVW30..CBU NO.2 |
1 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-47020 |
ZVW30..CBU NO.1 |
2 | ||
| 53857-47011 |
ZVW30..CBU NO.2 |
1 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-47011 |
ZVW30..CBU NO.2 |
1 | ||
| 53857-47020 |
ZVW30..CBU NO.1 |
2 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-47011 |
ZVW30..CBU NO.2 |
1 | ||
| 53857-47020 |
ZVW30..CBU NO.1 |
2 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-47020 |
ZVW30..CBU |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-47030 |
ZVW30..CBU |
1 | ||
| 53882B - SEAL, FRONT FENDER, RH | ||||
| 53882-16030 |
ZVW30..CBU |
2 | ||
| 53882B - SEAL, FRONT FENDER, RH | ||||
| 53882-16030 |
ZVW30..CBU |
2 | ||
| 53883B - SEAL, FRONT FENDER, LH | ||||
| 53882-16030 |
ZVW30..CBU |
2 | ||
| 53883B - SEAL, FRONT FENDER, LH | ||||
| 53882-16030 |
ZVW30..CBU |
2 | ||
| Common parts | ||||
| 90119-06137 | ||||
| 90119-06915 | ||||
| 91621-B0816 | ||||
| 94613-10601 | ||||

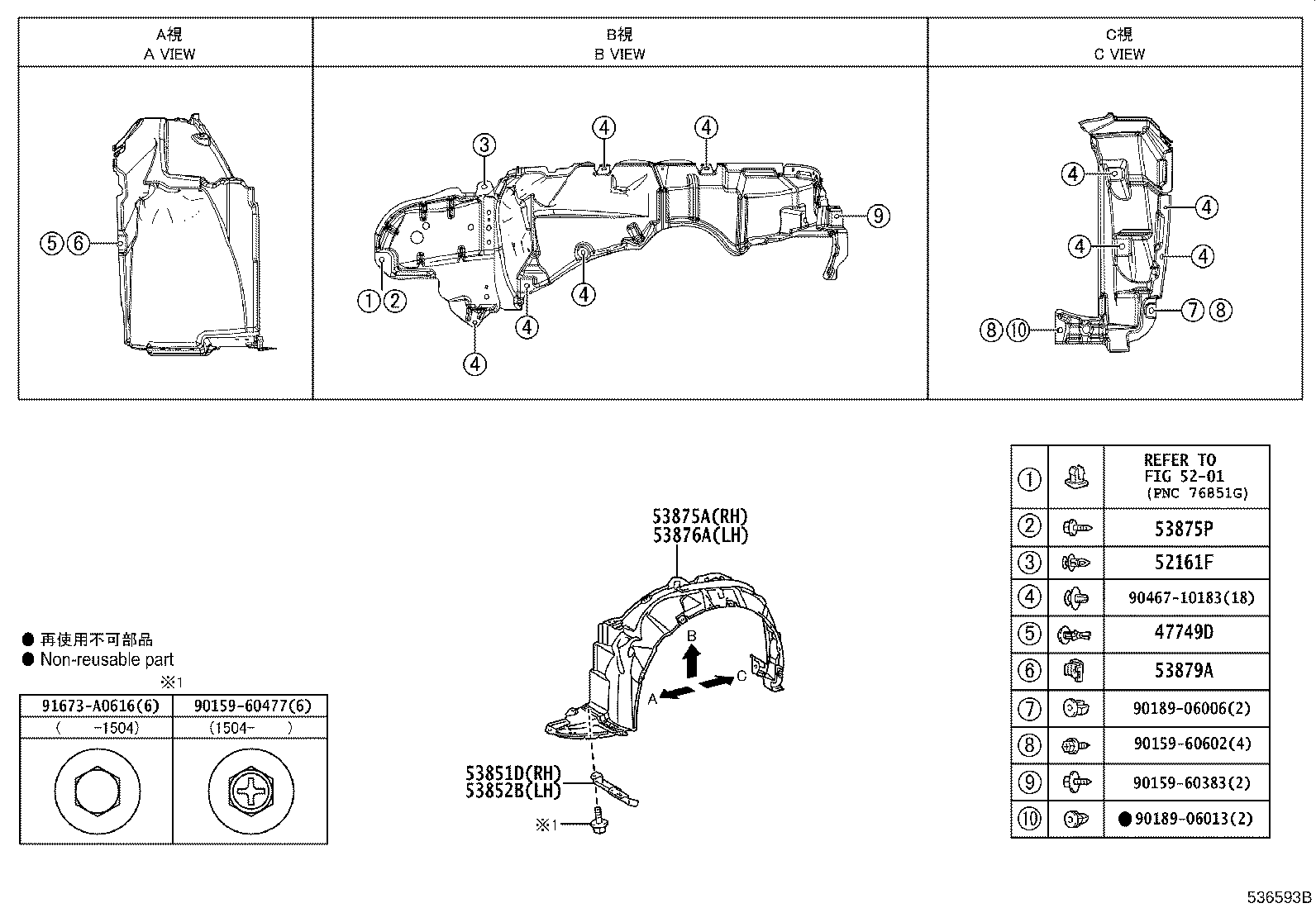

ILLUST NO. 2 OF 2(0904- )
Click highlighted areas on diagram
ﾌｪﾝﾀﾞﾗｲﾅ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749D - CLIP, PIN HOLD | ||||
| 47749-58010 |
ZVW30..CBU |
2 | ||
| 52161F - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ZVW30..CBU |
2 | ||
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-47040 |
ZVW30..CBU |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-47020 |
ZVW30..CBU |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-47030 |
ZVW30..CBU |
1 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60488 |
ZVW30..CBU |
2 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-47030 |
ZVW30..CBU |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-58010 |
ZVW30..CBU |
2 | ||
| Common parts | ||||
| 90159-60383 | ||||
| 90159-60477 | ||||
| 90159-60602 | ||||
| 90189-06006 | ||||
| 90189-06013 | ||||
| 90467-10183 | ||||
| 91673-A0616 | ||||
| Linked diagrams | ||||
| 5201 | ||||
