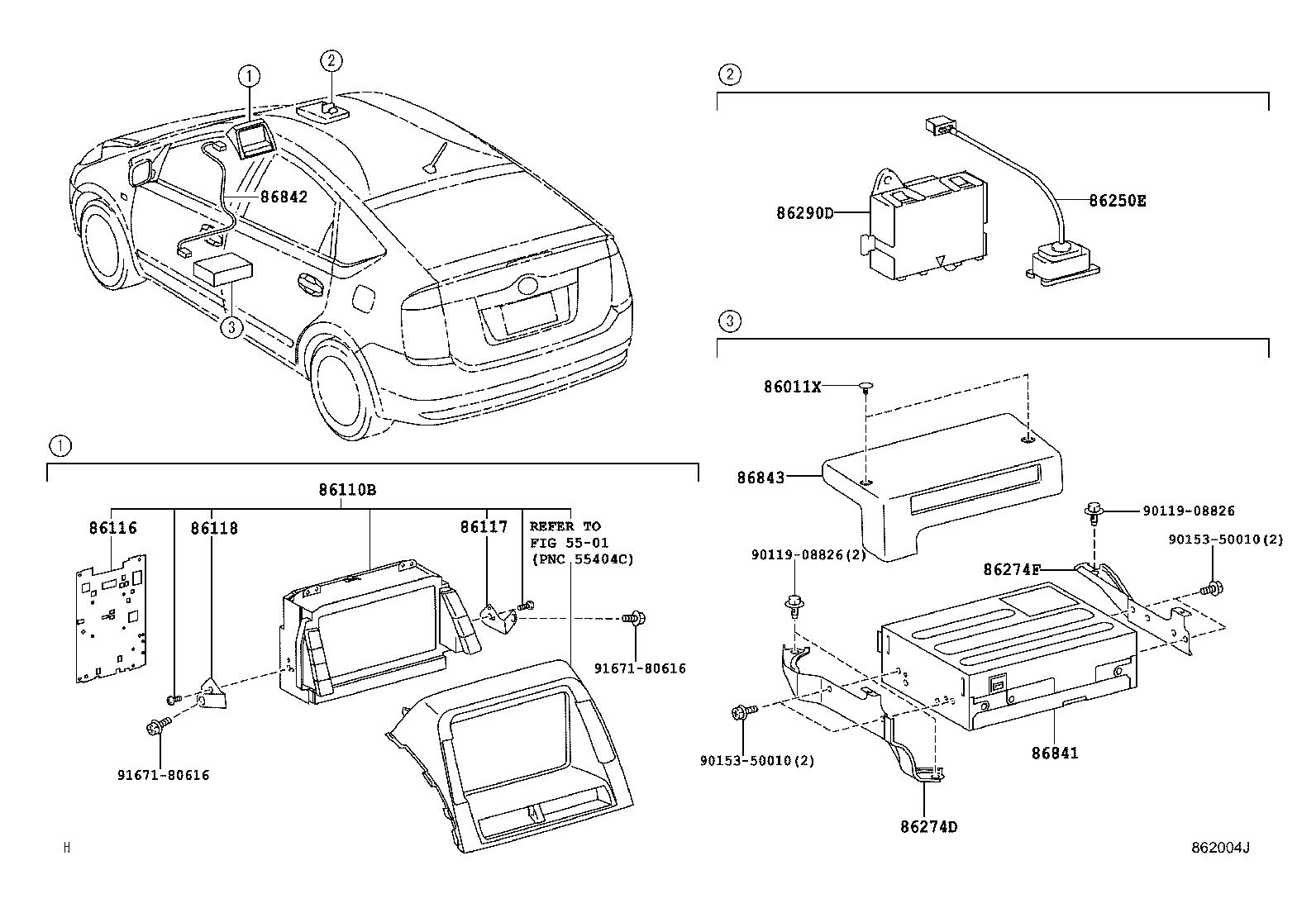

Toyota Prius NHW20 NAVIGATION & FRONT MONITOR DISPLAY

Part #	Description	Period	Qty
86011X - CLIP, NAVIGATION
90467-05112C0	NHW20 EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り,BLACK,TRIM0#,1#	08/2003 - 11/2005	2
86110B - MULTI-DISPLAY ASSY
86110-47050	NHW20 EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り	08/2003 - 12/2003	1
86110-47200C0	NHW20..G FUJITSU TEN,ｵｰﾃﾞｨｵ−05AM/FM+CD+MD 6ｽﾋﾟｰｶ&EMViﾅﾋﾞｹﾞｰｼｮﾝ付)−有り,BLACK,TRIM1#,4#	11/2005 - 10/2007	1
86110-47201C0	NHW20..G FUJITSU TEN,ｵｰﾃﾞｨｵ−05AM/FM+CD+MD 6ｽﾋﾟｰｶ&EMViﾅﾋﾞｹﾞｰｼｮﾝ付)−有り,BLACK,TRIM1#,4#	10/2007 - 03/2009	1
86110-47200C0	NHW20..G FUJITSU TEN,ｵｰﾃﾞｨｵ−05AM/FM,DVDｵｰﾄﾁｪﾝｼﾞｬｰ,MDCJBL 9SP&EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り,BLACK,TRIM1#,4#	11/2005 - 10/2007	1
86110-47060	NHW20	08/2003 - 12/2003	1
86110-47201C0	NHW20..G FUJITSU TEN,ｵｰﾃﾞｨｵ−05AM/FM,DVDｵｰﾄﾁｪﾝｼﾞｬｰ,MDCJBL 9SP&EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り,BLACK,TRIM1#,4#	10/2007 - 03/2009	1
86116 - CONTROLLER, VIDEO
86116-48150	NHW20..G ｵｰﾃﾞｨｵ−05AM/FM+CD+MD 6ｽﾋﾟｰｶ&EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り	11/2005 - 10/2007	1
86116-48151	NHW20..G ｵｰﾃﾞｨｵ−05AM/FM,DVDｵｰﾄﾁｪﾝｼﾞｬｰ,MD,JBL 9SP&EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り	10/2007 - 03/2009	1
86116-47030	NHW20 EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り	08/2003 - 01/2004	1
86116-47040	NHW20	08/2003 - 01/2004	1
86116-48150	NHW20..G ｵｰﾃﾞｨｵ−05AM/FM,DVDｵｰﾄﾁｪﾝｼﾞｬｰ,MD,JBL 9SP&EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り	11/2005 - 10/2007	1
86116-47042	NHW20	11/2005 - 12/2999	1
86116-48151	NHW20..G ｵｰﾃﾞｨｵ−05AM/FM+CD+MD 6ｽﾋﾟｰｶ&EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り	10/2007 - 03/2009	1
86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A
86117-47010	NHW20	08/2003 - 01/2004	1
86117-47010	NHW20	11/2005 - 12/2999	1
86118 - BRACKET, MULTI-DISPLAY CONTROLER, B
86118-47010	NHW20	08/2003 - 01/2004	1
86118-47010	NHW20	11/2005 - 12/2999	1
86250E - MICROPHONE ASSY, AMPLIFIER
86250-47010	NHW20 EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り	08/2003 - 11/2005	1
86274D - BRACKET, DISC PLAYER
86274-47050	NHW20 EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り	08/2003 - 11/2005	1
86274F - BRACKET, DISC PLAYER, NO.2
86274-47060	NHW20 EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り	08/2003 - 11/2005	1
86290D - AMPLIFIER ASSY, MICROPHONE
86290-47010	NHW20 EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り	08/2003 - 11/2005	1
86841 - COMPUTER, NAVIGATION
86841-52020	NHW20 EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り	08/2003 - 11/2005	1
86840-47071	NHW20 EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り	04/2006 - 08/2006	1
86840-47076	NHW20 EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り	04/2008 - 08/2008	1
86840-47070	NHW20 EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り	11/2005 - 03/2006	1
86840-47074	NHW20 EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り	07/2007 - 08/2007	1
86840-47073	NHW20 EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り	04/2007 - 06/2007	1
86840-47075	NHW20 EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り	08/2007 - 03/2008	1
86840-47072	NHW20 EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り	09/2006 - 03/2007	1
86843 - COVER, NAVIGATION COMPUTER
86804-47010	NHW20 EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り	08/2003 - 11/2005	1
Common parts
90119-08826
90153-50010
91671-80616
Linked diagrams
5501

NHW20-AHEGB (2005)

(0511- )
