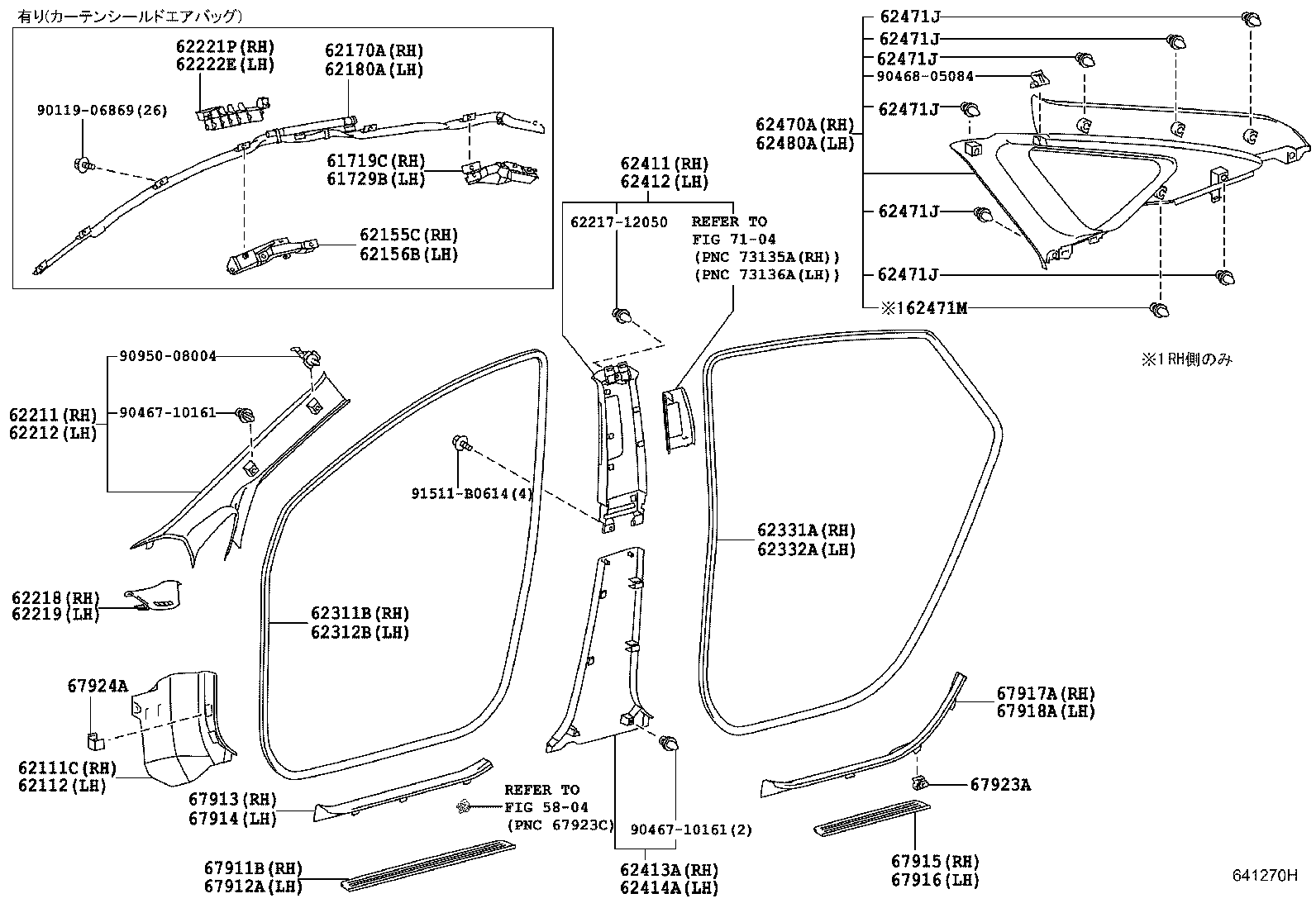

NHW20-AHEGB (2005)
Toyota Prius
(0511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61719C - BRACKET, ROOF SIDE RAIL, RH | ||||
| 61719-47020 |
NHW20 SRSｴｱﾊﾞｯｸﾞ−ｻｲﾄﾞ,ｶｰﾃﾝ |
1 | ||
| 61719-47020 |
NHW20 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 61729B - BRACKET, ROOF SIDE RAIL, LH | ||||
| 61729-47010 |
NHW20 SRSｴｱﾊﾞｯｸﾞ−ｻｲﾄﾞ,ｶｰﾃﾝ |
1 | ||
| 61729-47010 |
NHW20 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-47030B0 |
NHW20 MD.GRAY,TRIM18,19 |
1 | ||
| 62111-47030E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 62111-47030A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-47030A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 62112-47030E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 62112-47030B0 |
NHW20 MD.GRAY,TRIM18,19 |
1 | ||
| 62155C - BRACKET, CURTAIN SHIELD AIR BAG, RH | ||||
| 62155-47010 |
NHW20 SRSｴｱﾊﾞｯｸﾞ−ｻｲﾄﾞ,ｶｰﾃﾝ |
1 | ||
| 62155-47010 |
NHW20 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 62156B - BRACKET, CURTAIN SHIELD AIR BAG, LH | ||||
| 62156-47010 |
NHW20 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 62156-47010 |
NHW20 SRSｴｱﾊﾞｯｸﾞ−ｻｲﾄﾞ,ｶｰﾃﾝ |
1 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-47010 |
NHW20 SRSｴｱﾊﾞｯｸﾞ−ｻｲﾄﾞ,ｶｰﾃﾝ |
1 | ||
| 62170-47010 |
NHW20 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-47010 |
NHW20 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 62180-47010 |
NHW20 SRSｴｱﾊﾞｯｸﾞ−ｻｲﾄﾞ,ｶｰﾃﾝ |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-47040B0 |
NHW20..G LT.GRAY,TRIM18,19 |
1 | ||
| 62210-47050B0 |
NHW20..G SRSｴｱﾊﾞｯｸﾞ−ｻｲﾄﾞ,ｶｰﾃﾝ,LT.GRAY,TRIM18,19 |
1 | ||
| 62210-47040E0 |
NHW20..G GREGE,TRIM4# |
1 | ||
| 62210-47040B0 |
NHW20..G LT.GRAY,TRIM1# |
1 | ||
| 62210-47050E0 |
NHW20..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 62210-47040A0 |
NHW20..G IVORY,TRIM0# |
1 | ||
| 62210-47050A0 |
NHW20..G SRSｴｱﾊﾞｯｸﾞ−ｻｲﾄﾞ,ｶｰﾃﾝ,IVORY,TRIM0# |
1 | ||
| 62210-47050B0 |
NHW20..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),LT.GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-47040B0 |
NHW20..G LT.GRAY,TRIM18,19 |
1 | ||
| 62220-47040A0 |
NHW20..G IVORY,TRIM0# |
1 | ||
| 62220-47050A0 |
NHW20..G SRSｴｱﾊﾞｯｸﾞ−ｻｲﾄﾞ,ｶｰﾃﾝ,IVORY,TRIM0# |
1 | ||
| 62220-47050B0 |
NHW20..G SRSｴｱﾊﾞｯｸﾞ−ｻｲﾄﾞ,ｶｰﾃﾝ,LT.GRAY,TRIM18,19 |
1 | ||
| 62220-47040B0 |
NHW20..G LT.GRAY,TRIM1# |
1 | ||
| 62220-47050B0 |
NHW20..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),LT.GRAY,TRIM1# |
1 | ||
| 62220-47040E0 |
NHW20..G GREGE,TRIM4# |
1 | ||
| 62220-47050E0 |
NHW20..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 62218 - PIECE, FRONT PILLAR GARNISH CORNER, RH | ||||
| 62218-47020B1 |
NHW20..G LT.GRAY,TRIM1# |
1 | ||
| 62218-47020B1 |
NHW20..G LT.GRAY,TRIM18,19 |
1 | ||
| 62218-47020A1 |
NHW20..G IVORY,TRIM0# |
1 | ||
| 62218-47020E0 |
NHW20..G GREGE,TRIM4# |
1 | ||
| 62219 - PIECE, FRONT PILLAR GARNISH CORNER, LH | ||||
| 62219-47020A1 |
NHW20..G IVORY,TRIM0# |
1 | ||
| 62219-47020B1 |
NHW20..G LT.GRAY,TRIM1# |
1 | ||
| 62219-47020E0 |
NHW20..G GREGE,TRIM4# |
1 | ||
| 62219-47020B1 |
NHW20..G LT.GRAY,TRIM18,19 |
1 | ||
| 62221P - SPACER, FRONT PILLAR, NO.1 RH | ||||
| 62221-47040 |
NHW20 SRSｴｱﾊﾞｯｸﾞ−ｻｲﾄﾞ,ｶｰﾃﾝ |
1 | ||
| 62221-47040 |
NHW20 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 62222E - SPACER, FRONT PILLAR, NO.1 LH | ||||
| 62222-47030 |
NHW20 SRSｴｱﾊﾞｯｸﾞ−ｻｲﾄﾞ,ｶｰﾃﾝ |
1 | ||
| 62222-47030 |
NHW20 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-47020B0 |
NHW20 MD.GRAY,TRIM18,19 |
1 | ||
| 62311-47020A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 62311-47020E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-47020A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 62312-47020B0 |
NHW20 MD.GRAY,TRIM18,19 |
1 | ||
| 62312-47020E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-47020E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 62331-47020B0 |
NHW20 MD.GRAY,TRIM18,19 |
1 | ||
| 62331-47020A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-47020B0 |
NHW20 MD.GRAY,TRIM18,19 |
1 | ||
| 62332-47020A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 62332-47020E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-47040B1 |
NHW20..G LT.GRAY,TRIM18,19 |
1 | ||
| 62410-47040A1 |
NHW20..G IVORY,TRIM0# |
1 | ||
| 62410-47040B1 |
NHW20..G LT.GRAY,TRIM1# |
1 | ||
| 62410-47040B2 |
NHW20..G LT.GRAY,TRIM1# |
1 | ||
| 62410-47040E1 |
NHW20..G GREGE,TRIM4# |
1 | ||
| 62410-47040E0 |
NHW20..G GREGE,TRIM4# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-47040B1 |
NHW20..G LT.GRAY,TRIM18,19 |
1 | ||
| 62420-47040B1 |
NHW20..G LT.GRAY,TRIM1# |
1 | ||
| 62420-47040B2 |
NHW20..G LT.GRAY,TRIM1# |
1 | ||
| 62420-47040E1 |
NHW20..G GREGE,TRIM4# |
1 | ||
| 62420-47040A1 |
NHW20..G IVORY,TRIM0# |
1 | ||
| 62420-47040E0 |
NHW20..G GREGE,TRIM4# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-47020B0 |
NHW20 MD.GRAY,TRIM18,19 |
1 | ||
| 62413-47020A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 62413-47020E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-47020B0 |
NHW20 MD.GRAY,TRIM18,19 |
1 | ||
| 62414-47020A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 62414-47020E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 62470A - GARNISH ASSY, ROOF SIDE, INNER RH | ||||
| 62470-47030B0 |
NHW20 SRSｴｱﾊﾞｯｸﾞ−ｻｲﾄﾞ,ｶｰﾃﾝ,GRAY,TRIM18,19 |
1 | ||
| 62470-47050E0 |
NHW20 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 62470-47020B0 |
NHW20 NEW GRAY,TRIM18,19 |
1 | ||
| 62470-47020A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 62470-47040E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 62470-47030A0 |
NHW20 SRSｴｱﾊﾞｯｸﾞ−ｻｲﾄﾞ,ｶｰﾃﾝ,IVORY,TRIM0# |
1 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-10161 |
NHW20 |
13 | ||
| 90467-10161 |
NHW20 |
12 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-10161 |
NHW20 |
13 | ||
| 90467-10161 |
NHW20 |
12 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-10161 |
NHW20 |
13 | ||
| 90467-10161 |
NHW20 |
12 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-10161 |
NHW20 |
13 | ||
| 90467-10161 |
NHW20 |
12 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-10161 |
NHW20 |
13 | ||
| 90467-10161 |
NHW20 |
12 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-10161 |
NHW20 |
13 | ||
| 90467-10161 |
NHW20 |
12 | ||
| 62471M - CLIP | ||||
| 62217-13010 |
NHW20 |
1 | ||
| 62480A - GARNISH ASSY, ROOF SIDE, INNER LH | ||||
| 62480-47020A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 62480-47030A0 |
NHW20 SRSｴｱﾊﾞｯｸﾞ−ｻｲﾄﾞ,ｶｰﾃﾝ,IVORY,TRIM0# |
1 | ||
| 62480-47020B0 |
NHW20 GRAY,TRIM18,19 |
1 | ||
| 62480-47030E0 |
NHW20 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 62480-47020E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 62480-47030B0 |
NHW20 SRSｴｱﾊﾞｯｸﾞ−ｻｲﾄﾞ,ｶｰﾃﾝ,GRAY,TRIM18,19 |
1 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-47020 |
NHW20 |
1 | ||
| 67911-63010C0 |
NHW20 BLACK |
1 | ||
| 67911-63010C0 |
NHW20 BLACK,TRIM0#,1# |
1 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67911-47020 |
NHW20 |
1 | ||
| 67911-63010C0 |
NHW20 BLACK |
1 | ||
| 67911-63010C0 |
NHW20 BLACK,TRIM0#,1# |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-47020E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 67913-47020A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 67913-47020B0 |
NHW20 MD.GRAY,TRIM18,19 |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-47020B0 |
NHW20 MD.GRAY,TRIM18,19 |
1 | ||
| 67914-47020E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 67914-47020A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 67915 - PLATE, REAR DOOR SCUFF, OUTSIDE RH | ||||
| 67915-63010C0 |
NHW20 BLACK,TRIM0#,1# |
1 | ||
| 67915-47020 |
NHW20 |
1 | ||
| 67915-63010C0 |
NHW20 BLACK |
1 | ||
| 67916 - PLATE, REAR DOOR SCUFF, OUTSIDE LH | ||||
| 67915-63010C0 |
NHW20 BLACK |
1 | ||
| 67915-63010C0 |
NHW20 BLACK,TRIM0#,1# |
1 | ||
| 67915-47020 |
NHW20 |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-47020E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 67917-47020A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 67917-47020B0 |
NHW20 MD.GRAY,TRIM18,19 |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-47020E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 67918-47020B0 |
NHW20 MD.GRAY,TRIM18,19 |
1 | ||
| 67918-47020A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 67923A - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-20090 |
NHW20 ﾎﾜｲﾄ |
4 | ||
| 67923-47030 |
NHW20 ﾌﾞﾗｯｸ |
2 | ||
| 67924A - CLAMP, DOOR SCUFF PLATE, NO.2 | ||||
| 67924-46010 |
NHW20 |
4 | ||
| 67924-46010 |
NHW20 |
4 | ||
| Common parts | ||||
| 62217-12050 | ||||
| 90119-06869 | ||||
| 90467-10161 | ||||
| 90468-05084 | ||||
| 90950-08004 | ||||
| 91511-B0614 | ||||
| Linked diagrams | ||||
| 5804 | ||||
| 7104 | ||||
