NHW20-AHEGB (2005)
Toyota Prius

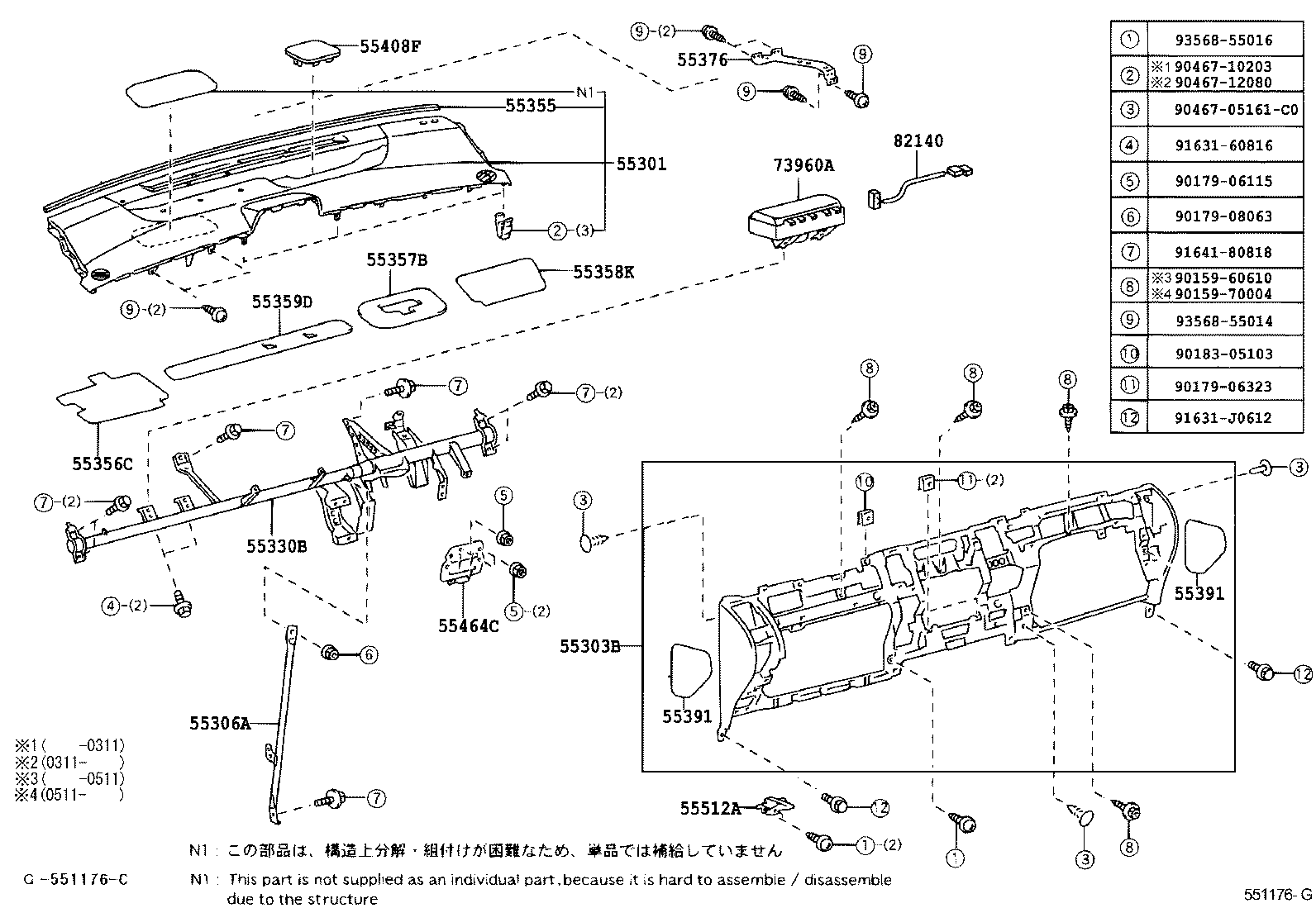

ILLUST NO. 1 OF 2(0308-0705)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55300-47010C0 |
NHW20 BLACK,TRIM0#,18,19 |
1 | ||
| 55300-47020C0 |
NHW20..G ｵｰﾃﾞｨｵ−05AM/FM,DVDｵｰﾄﾁｪﾝｼﾞｬｰ,MD,JBL 9SP,BLACK,TRIM1#,4# |
1 | ||
| 55300-47020C0 |
NHW20..G ｵｰﾃﾞｨｵ−AM/FM,MD,CD−JBL−9SP,BLACK,TRIM0#,18,19 |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-47010 |
NHW20 |
1 | ||
| 55303-47010 |
NHW20 |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-47030 |
NHW20 |
1 | ||
| 55306-47030 |
NHW20 |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-47030 |
NHW20 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-68010 |
NHW20 |
1 | ||
| 55355-68010 |
NHW20..G ｵｰﾃﾞｨｵ−05AM/FM,DVDｵｰﾄﾁｪﾝｼﾞｬｰ,MD,JBL 9SP |
1 | ||
| 55355-68010 |
NHW20 |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-47020 |
NHW20 |
1 | ||
| 55356-47040 |
NHW20 |
1 | ||
| 55356-47020 |
NHW20 |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-47020 |
NHW20 |
1 | ||
| 55357-47020 |
NHW20 |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-47030 |
NHW20 |
1 | ||
| 55358-47060 |
NHW20 |
1 | ||
| 55358-47030 |
NHW20 |
1 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-47010 |
NHW20 |
1 | ||
| 55359-47010 |
NHW20 |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-47010 |
NHW20 |
1 | ||
| 55376-47010 |
NHW20 |
1 | ||
| 55391 - CUSHION, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55391-47010 |
NHW20 |
2 | ||
| 55391-47010 |
NHW20 |
2 | ||
| 55391 - CUSHION, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55391-47010 |
NHW20 |
2 | ||
| 55391-47010 |
NHW20 |
2 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-47010C0 |
NHW20..G ｵｰﾃﾞｨｵ−AM/FM,MD,CD−JBL−9SP,BLACK,TRIM0#,18,19 |
1 | ||
| 55408-47010C0 |
NHW20..G ｵｰﾃﾞｨｵ−05AM/FM,DVDｵｰﾄﾁｪﾝｼﾞｬｰ,MD,JBL 9SP,BLACK,TRIM1#,4# |
1 | ||
| 55464C - INSERT, INSTRUMENT PANEL LOWER PAD, RH | ||||
| 55464-47010 |
NHW20 |
1 | ||
| 55464-47010 |
NHW20 |
1 | ||
| 55512A - PLATE, GLOVE COMPARTMENT | ||||
| 55512-47010 |
NHW20 |
1 | ||
| 55512-47010 |
NHW20 |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-47020 |
NHW20 |
1 | ||
| 73960-47020 |
NHW20 |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-47020 |
NHW20 |
1 | ||
| 82140-47020 |
NHW20 |
1 | ||
| Common parts | ||||
| 90159-60610 | ||||
| 90159-70004 | ||||
| 90179-06115 | ||||
| 90179-06323 | ||||
| 90179-08063 | ||||
| 90183-05103 | ||||
| 90467-05161C0 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 91631-60816 | ||||
| 91631-J0612 | ||||
| 91641-80818 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||

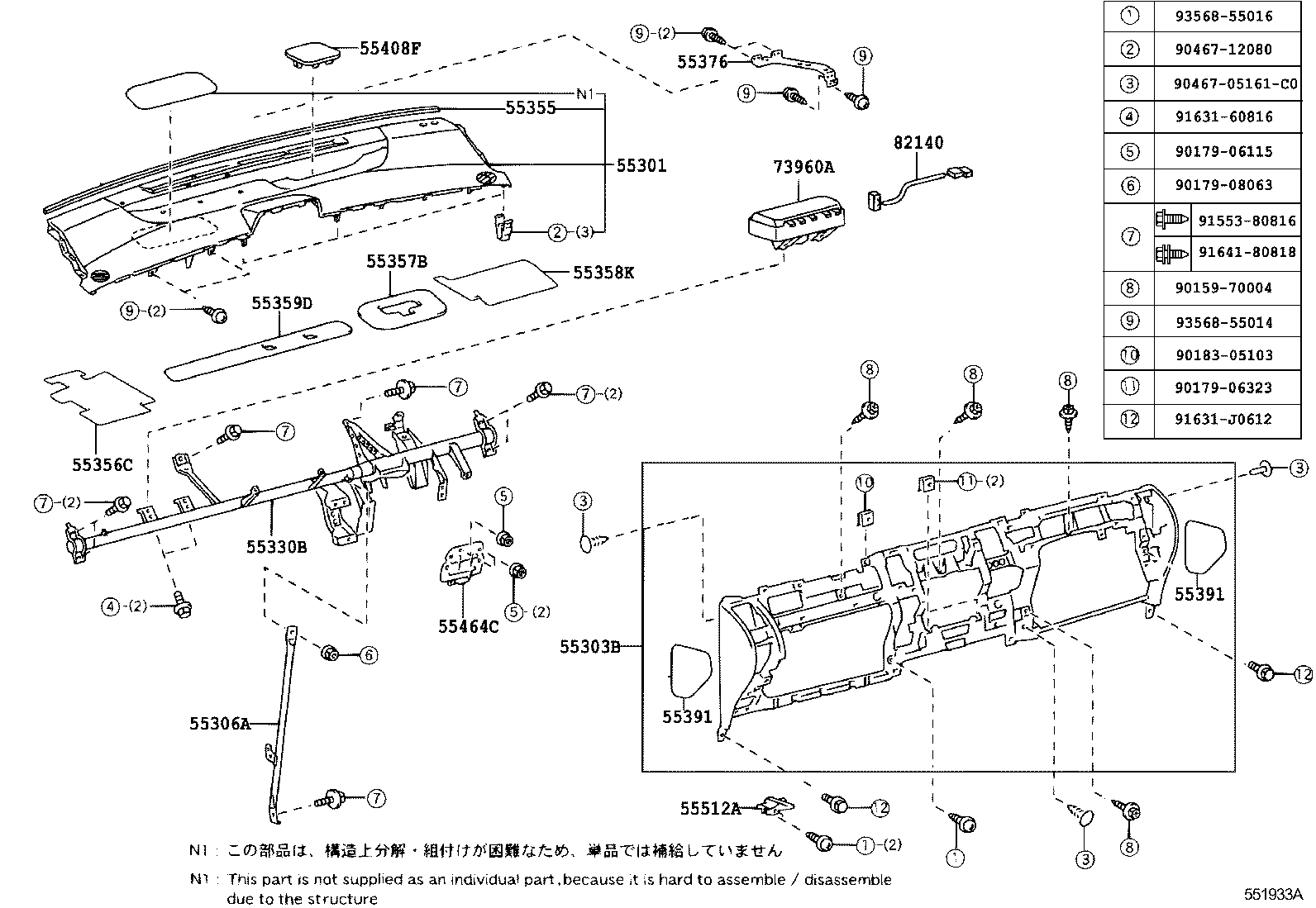

ILLUST NO. 1 OF 2(0705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55300-47010C0 |
NHW20 BLACK,TRIM0#,18,19 |
1 | ||
| 55300-47020C0 |
NHW20..G ｵｰﾃﾞｨｵ−05AM/FM,DVDｵｰﾄﾁｪﾝｼﾞｬｰ,MD,JBL 9SP,BLACK,TRIM1#,4# |
1 | ||
| 55300-47020C0 |
NHW20..G ｵｰﾃﾞｨｵ−AM/FM,MD,CD−JBL−9SP,BLACK,TRIM0#,18,19 |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-47010 |
NHW20 |
1 | ||
| 55303-47010 |
NHW20 |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-47030 |
NHW20 |
1 | ||
| 55306-47030 |
NHW20 |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-47030 |
NHW20 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-68010 |
NHW20 |
1 | ||
| 55355-68010 |
NHW20..G ｵｰﾃﾞｨｵ−05AM/FM,DVDｵｰﾄﾁｪﾝｼﾞｬｰ,MD,JBL 9SP |
1 | ||
| 55355-68010 |
NHW20 |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-47020 |
NHW20 |
1 | ||
| 55356-47040 |
NHW20 |
1 | ||
| 55356-47020 |
NHW20 |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-47020 |
NHW20 |
1 | ||
| 55357-47020 |
NHW20 |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-47030 |
NHW20 |
1 | ||
| 55358-47060 |
NHW20 |
1 | ||
| 55358-47030 |
NHW20 |
1 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-47010 |
NHW20 |
1 | ||
| 55359-47010 |
NHW20 |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-47010 |
NHW20 |
1 | ||
| 55376-47010 |
NHW20 |
1 | ||
| 55391 - CUSHION, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55391-47010 |
NHW20 |
2 | ||
| 55391-47010 |
NHW20 |
2 | ||
| 55391 - CUSHION, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55391-47010 |
NHW20 |
2 | ||
| 55391-47010 |
NHW20 |
2 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-47010C0 |
NHW20..G ｵｰﾃﾞｨｵ−AM/FM,MD,CD−JBL−9SP,BLACK,TRIM0#,18,19 |
1 | ||
| 55408-47010C0 |
NHW20..G ｵｰﾃﾞｨｵ−05AM/FM,DVDｵｰﾄﾁｪﾝｼﾞｬｰ,MD,JBL 9SP,BLACK,TRIM1#,4# |
1 | ||
| 55464C - INSERT, INSTRUMENT PANEL LOWER PAD, RH | ||||
| 55464-47010 |
NHW20 |
1 | ||
| 55464-47010 |
NHW20 |
1 | ||
| 55512A - PLATE, GLOVE COMPARTMENT | ||||
| 55512-47010 |
NHW20 |
1 | ||
| 55512-47010 |
NHW20 |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-47020 |
NHW20 |
1 | ||
| 73960-47020 |
NHW20 |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-47020 |
NHW20 |
1 | ||
| 82140-47020 |
NHW20 |
1 | ||
| Common parts | ||||
| 90159-70004 | ||||
| 90179-06115 | ||||
| 90179-06323 | ||||
| 90179-08063 | ||||
| 90183-05103 | ||||
| 90467-05161C0 | ||||
| 90467-12080 | ||||
| 91553-80816 | ||||
| 91631-60816 | ||||
| 91631-J0612 | ||||
| 91641-80818 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||
