NHW20-AHEGB (2005)
Toyota Prius
Production
Nov 2005
-
Mar 2009
Engine
1NZFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0511- )

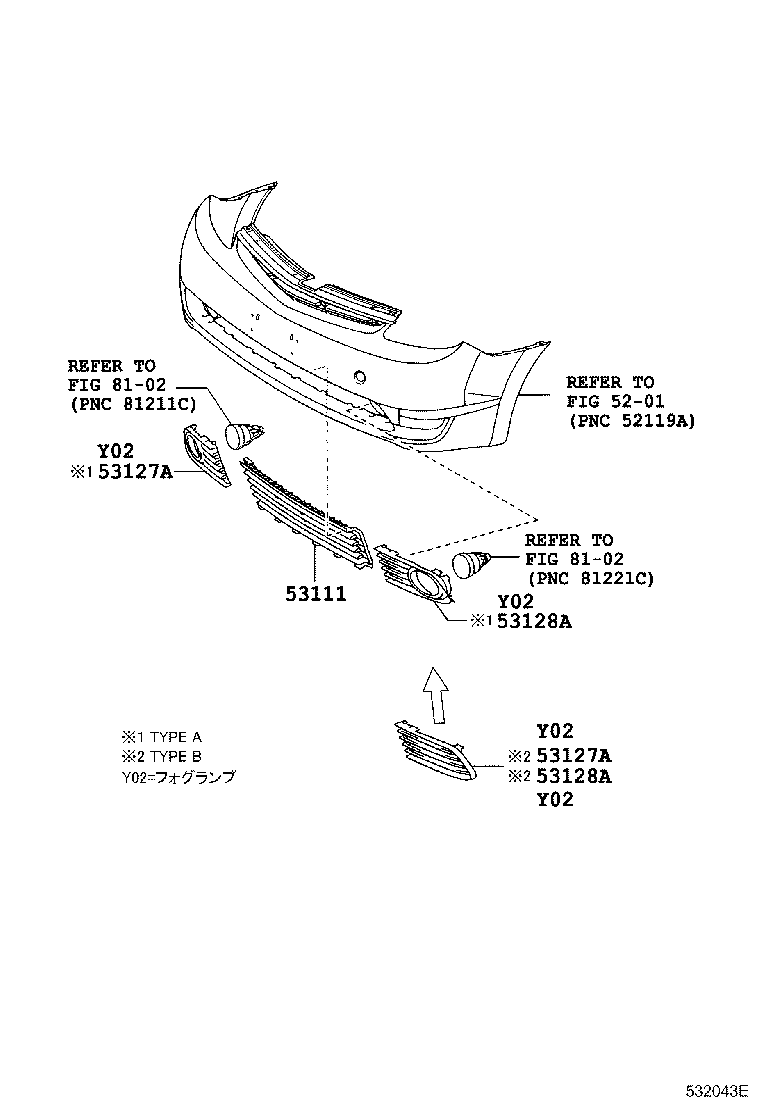

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53111-47010 |
NHW20 |
1 | ||
| 53127A - GRILLE, RADIATOR, LOWER RH | ||||
| 53112-47030 |
NHW20 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 53112-47030 |
NHW20 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 53112-47020 |
NHW20 |
1 | ||
| 53127A - GRILLE, RADIATOR, LOWER RH | ||||
| 53112-47030 |
NHW20 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 53112-47030 |
NHW20 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 53112-47020 |
NHW20 |
1 | ||
| 53128A - GRILLE, RADIATOR, LOWER LH | ||||
| 53113-47030 |
NHW20 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 53113-47020 |
NHW20 |
1 | ||
| 53113-47030 |
NHW20 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 53128A - GRILLE, RADIATOR, LOWER LH | ||||
| 53113-47030 |
NHW20 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 53113-47020 |
NHW20 |
1 | ||
| 53113-47030 |
NHW20 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| Linked diagrams | ||||
| 5201 | ||||
| 8102 | ||||
