NHW20-AHEGB (2003)

Toyota Prius

Production Aug 2003 - Nov 2005
Engine 1NZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )

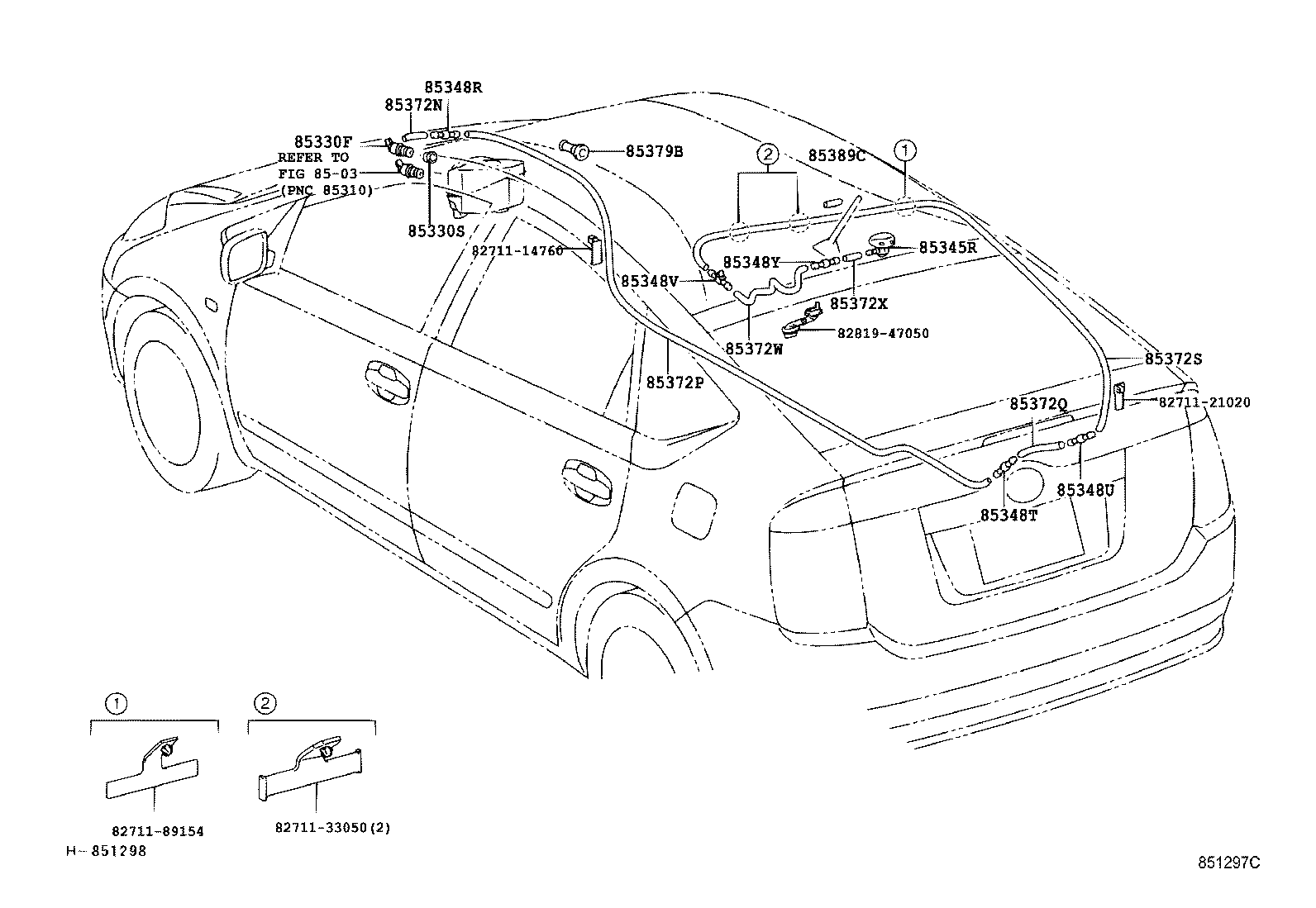

Click highlighted areas on diagram

diagram 8271114760 8271121020 8271133050 8271189154 8281947050 8503 85330F 85330S 85345R 85348R 85348T 85348U 85348V 85348Y 85372N 85372P 85372Q 85372S 85372W 85372X 85379B 85389C
Part # Description Qty Price
85330F - MOTOR & PUMP ASSY, RR WASHER
85330-60160

NHW20

寒冷地仕様&有り(間欠ﾘﾔﾜｲﾊﾟｰ)

 1
85330-60160

NHW20

有り(間欠ﾘﾔﾜｲﾊﾟｰ)

 1
85330S - BUSH, REAR WASHER JAR
85336-60300

NHW20

寒冷地仕様&有り(間欠ﾘﾔﾜｲﾊﾟｰ)

 1
85336-60300

NHW20

有り(間欠ﾘﾔﾜｲﾊﾟｰ)

 1
85345R - NOZZLE, REAR WASHER
85391-47010

NHW20

有り(間欠ﾘﾔﾜｲﾊﾟｰ)

 1
85391-47010

NHW20

有り(間欠ﾘﾔﾜｲﾊﾟｰ)&EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85375-10260

NHW20

有り(間欠ﾘﾔﾜｲﾊﾟｰ)

 1
85375-10260

NHW20

有り(間欠ﾘﾔﾜｲﾊﾟｰ)&EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85375-10260

NHW20

有り(間欠ﾘﾔﾜｲﾊﾟｰ)

 1
85375-10260

NHW20

有り(間欠ﾘﾔﾜｲﾊﾟｰ)&EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85375-10260

NHW20

有り(間欠ﾘﾔﾜｲﾊﾟｰ)

 1
85375-10260

NHW20

有り(間欠ﾘﾔﾜｲﾊﾟｰ)&EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85375-20800

NHW20

有り(間欠ﾘﾔﾜｲﾊﾟｰ)

 1
85375-20800

NHW20

有り(間欠ﾘﾔﾜｲﾊﾟｰ)&EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り

 1
85348Y - JOINT, REAR WASHER HOSE, NO.5
85375-10260

NHW20

有り(間欠ﾘﾔﾜｲﾊﾟｰ)&EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り

 1
85375-10260

NHW20

有り(間欠ﾘﾔﾜｲﾊﾟｰ)

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

NHW20

*H,L=60,有り(間欠ﾘﾔﾜｲﾊﾟｰ)

 1
90099-33080

NHW20

*H,L=60,寒冷地仕様&有り(間欠ﾘﾔﾜｲﾊﾟｰ)

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-33589

NHW20

*H,L=3000,有り(間欠ﾘﾔﾜｲﾊﾟｰ)

 1
90099-33589

NHW20

*H,L=3000,有り(間欠ﾘﾔﾜｲﾊﾟｰ)&EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90099-33299

NHW20

*H,L=40,有り(間欠ﾘﾔﾜｲﾊﾟｰ)&EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り

 1
90099-33299

NHW20

*H,L=40,有り(間欠ﾘﾔﾜｲﾊﾟｰ)

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90099-33589

NHW20

*H,L=1810,有り(間欠ﾘﾔﾜｲﾊﾟｰ)

 1
90099-33589

NHW20

*H,L=1860,有り(間欠ﾘﾔﾜｲﾊﾟｰ)

 1
90099-33589

NHW20

*H,L=1860,有り(間欠ﾘﾔﾜｲﾊﾟｰ)&EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り

 1
90099-33589

NHW20

*H,L=1810,有り(間欠ﾘﾔﾜｲﾊﾟｰ)&EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り

 1
85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
90099-33299

NHW20

*H,L=320,有り(間欠ﾘﾔﾜｲﾊﾟｰ)&EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り

 1
90099-33299

NHW20

*H,L=290,有り(間欠ﾘﾔﾜｲﾊﾟｰ)

 1
85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
90446-07001

NHW20

*H,L=60,有り(間欠ﾘﾔﾜｲﾊﾟｰ)&EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り

 1
90446-07001

NHW20

*H,L=60,有り(間欠ﾘﾔﾜｲﾊﾟｰ)

 1
85379B - GROMMET, WASHER, A
85379-16180

NHW20

有り(間欠ﾘﾔﾜｲﾊﾟｰ)&EMV(ﾅﾋﾞｹﾞｰｼｮﾝ付)−有り

 1
85379-16180

NHW20

有り(間欠ﾘﾔﾜｲﾊﾟｰ)

 1
Common parts
82711-14760
82711-21020
82711-33050
82711-89154
82819-47050
Linked diagrams
8503
