NHW20-AHEGB (2003)

Toyota Prius

Production Aug 2003 - Nov 2005
Engine 1NZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )

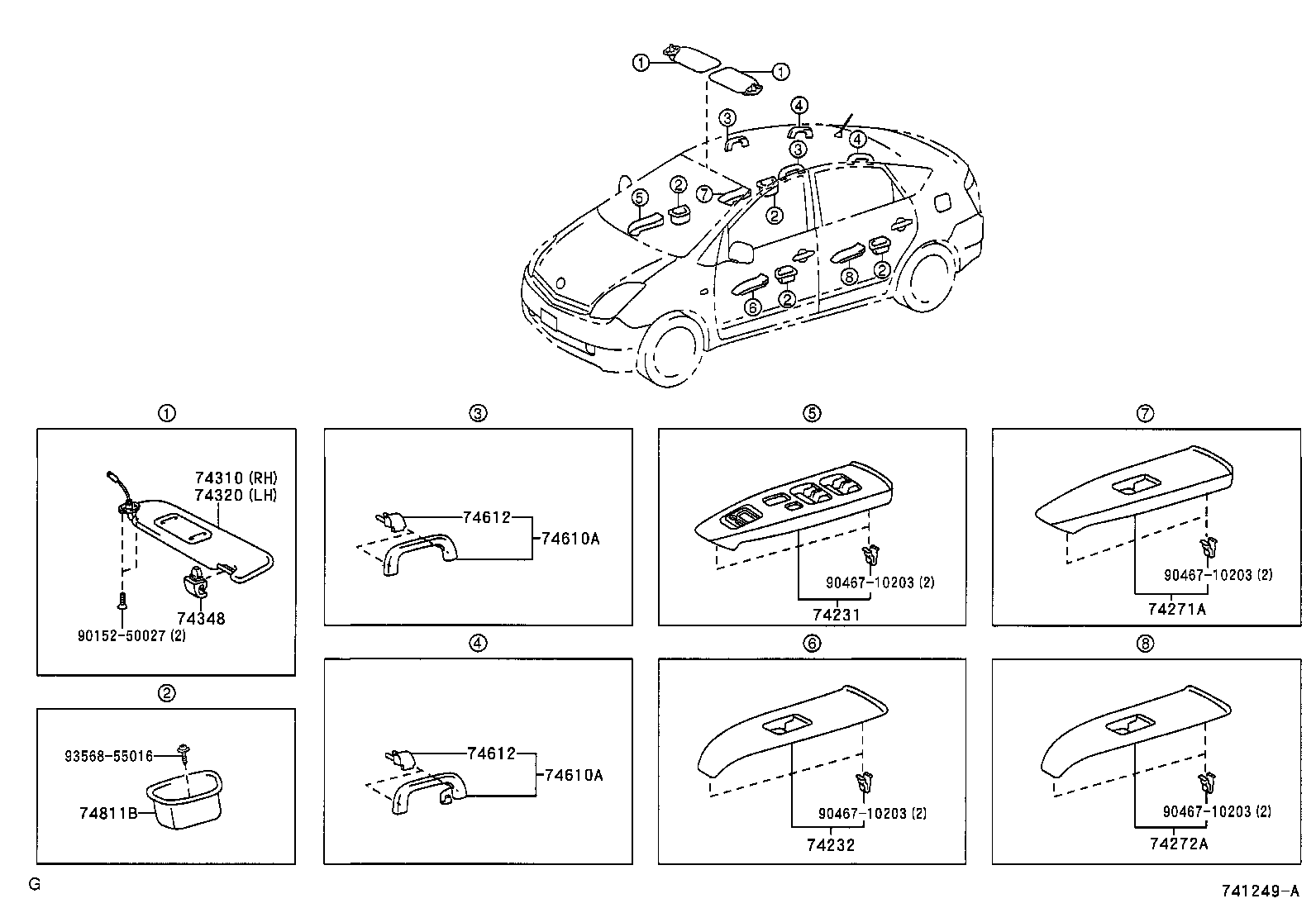

Click highlighted areas on diagram

diagram 74231 74232 74271A 74272A 74310 74320 74348 74610A 74610A 74612 74612 74811B 9015250027 9046710203 9046710203 9046710203 9046710203 9356855016
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-47060

NHW20

 1
74231-47061

NHW20

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-47051

NHW20

 1
74232-47050

NHW20

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-47041

NHW20

 1
74271-47040

NHW20

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-47041

NHW20

 1
74272-47040

NHW20

 1
74310 - VISOR ASSY, RH
74310-47081A3

NHW20

IVORY,TRIM0#

 1
74310-47080B3

NHW20

GRAY,TRIM18,19

 1
74310-47082A3

NHW20

IVORY,TRIM0#

 1
74310-47082B3

NHW20

GRAY,TRIM18,19

 1
74310-47080A3

NHW20

IVORY,TRIM0#

 1
74310-47081B3

NHW20

GRAY,TRIM18,19

 1
74320 - VISOR ASSY, LH
74320-47070A3

NHW20

IVORY,TRIM0#

 1
74320-47072A3

NHW20

IVORY,TRIM0#

 1
74320-47072B3

NHW20

GRAY,TRIM18,19

 1
74320-47071A3

NHW20

IVORY,TRIM0#

 1
74320-47070B3

NHW20

GRAY,TRIM18,19

 1
74320-47071B3

NHW20

GRAY,TRIM18,19

 1
74348 - HOLDER, VISOR
74348-12040A0

NHW20

IVORY,TRIM0#

 2
74348-12040B0

NHW20

LT.GRAY,TRIM18,19

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-52010B1

NHW20

GRAY,TRIM18,19,ﾘﾔ

 2
74610-68010A0

NHW20

IVORY,TRIM0#,ﾌﾛﾝﾄ

 2
74610-52010A0

NHW20

IVORY,TRIM0#,ﾘﾔ

 2
74610-68010B1

NHW20

GRAY,TRIM18,19,ﾌﾛﾝﾄ

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-52010B1

NHW20

GRAY,TRIM18,19,ﾘﾔ

 2
74610-68010A0

NHW20

IVORY,TRIM0#,ﾌﾛﾝﾄ

 2
74610-52010A0

NHW20

IVORY,TRIM0#,ﾘﾔ

 2
74610-68010B1

NHW20

GRAY,TRIM18,19,ﾌﾛﾝﾄ

 2
74612 - COVER, ASSIST GRIP
74612-68010B1

NHW20

GRAY,TRIM18,19

 8
74612-68010A0

NHW20

IVORY,TRIM0#

 8
74612 - COVER, ASSIST GRIP
74612-68010B1

NHW20

GRAY,TRIM18,19

 8
74612-68010A0

NHW20

IVORY,TRIM0#

 8
74811B - HANDLE, DOOR PULL
74811-12060E1

NHW20

MD.NEUTRAL BONE,TRIM0#

 4
74811-12060B3

NHW20

MD.GRAY,TRIM18,19

 4
Common parts
90152-50027
90467-10203
93568-55016
