NHW20-AHEGB (2003)
Toyota Prius
Production
Aug 2003
-
Nov 2005
Engine
1NZFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0308-1002)

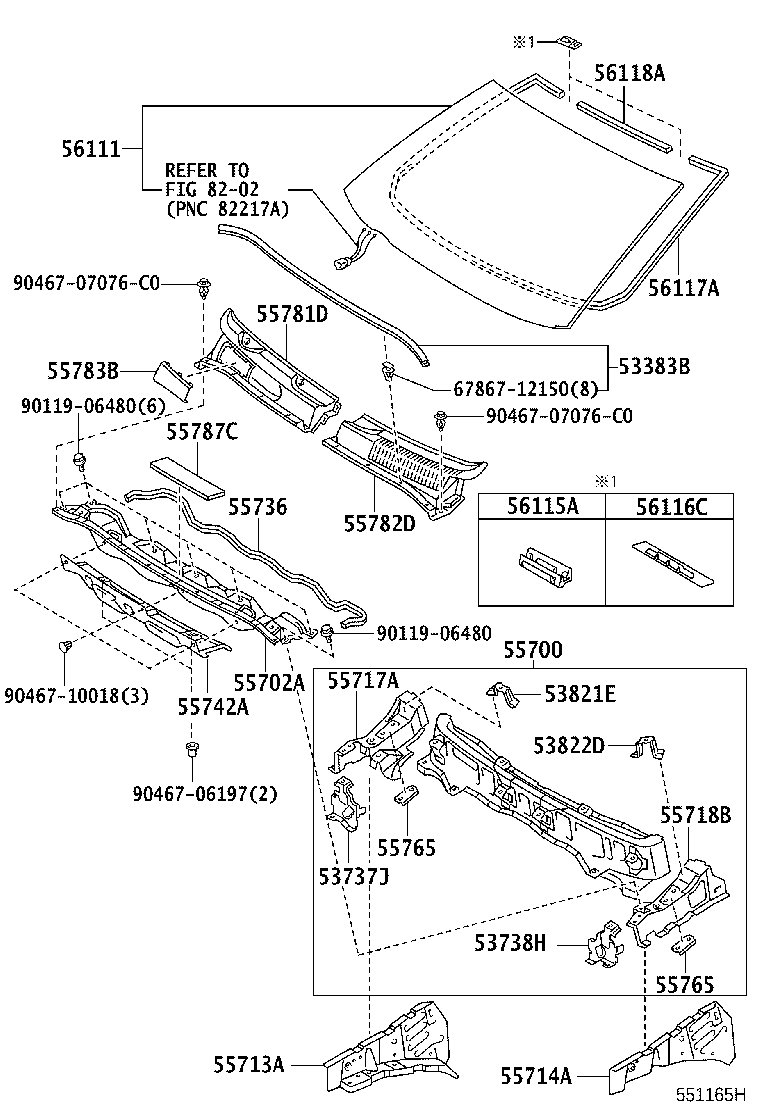

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383B - SEAL, HOOD TO COWL TOP | ||||
| 53383-47020 |
NHW20 |
1 | ||
| 53737J - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH | ||||
| 53737-47010 |
NHW20 |
1 | ||
| 53738H - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH | ||||
| 53738-47010 |
NHW20 |
1 | ||
| 53821E - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-47010 |
NHW20 |
1 | ||
| 53822D - BRACKET, FRONT FENDER, REAR LH | ||||
| 53822-47010 |
NHW20 |
1 | ||
| 55700 - PANEL ASSY, FRONT | ||||
| 55700-47050 |
NHW20 |
1 | ||
| 55702A - PANEL SUB-ASSY, COWL TOP, OUTER FRONT | ||||
| 55702-47040 |
NHW20 |
1 | ||
| 55702-47041 |
NHW20 |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-47020 |
NHW20 |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-47020 |
NHW20 |
1 | ||
| 55717A - PANEL, COWL TOP SIDE, INNER RH | ||||
| 55717-47020 |
NHW20 |
1 | ||
| 55718B - PANEL, COWL TOP SIDE, INNER LH | ||||
| 55718-47020 |
NHW20 |
1 | ||
| 55736 - SEAL, WATER GUARD PLATE | ||||
| 55736-47010 |
NHW20 |
1 | ||
| 55742A - SHEET, COWL TOP INSULATOR | ||||
| 55742-47010 |
NHW20 |
1 | ||
| 55765 - BRACKET, HOOD DAMPER MOUNTING | ||||
| 55765-44010 |
NHW20 |
2 | ||
| 55765 - BRACKET, HOOD DAMPER MOUNTING | ||||
| 55765-44010 |
NHW20 |
2 | ||
| 55781D - LOUVER, COWL TOP VENTILATOR, RH | ||||
| 55708-47040 |
NHW20 |
1 | ||
| 55782D - LOUVER, COWL TOP VENTILATOR, LH | ||||
| 55709-47040 |
NHW20 |
1 | ||
| 55709-47041 |
NHW20 |
1 | ||
| 55709-47061 |
NHW20 寒冷地仕様 |
1 | ||
| 55709-47060 |
NHW20 寒冷地仕様 |
1 | ||
| 55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1 | ||||
| 55783-47020 |
NHW20 |
1 | ||
| 55787C - INSULATOR, COWL TOP PANEL, NO.1 | ||||
| 55787-47010 |
NHW20 |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-47010 |
NHW20 *IRCL,T=4.76,ｸﾞﾘｰﾝ |
1 | ||
| 56101-47110 |
NHW20 *IRCL,T=4.76,ｸﾞﾘｰﾝ |
1 | ||
| 56101-47150 |
NHW20 *IRCL,T=4.76,ｸﾞﾘｰﾝ,寒冷地仕様 |
1 | ||
| 56101-47050 |
NHW20 *IRCL,T=4.76,ｸﾞﾘｰﾝ,寒冷地仕様 |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-22010 |
NHW20 |
2 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
NHW20 |
2 | ||
| 56117A - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-47010 |
NHW20 *D,L=3470 |
1 | ||
| 56117-47010 |
NHW20 *D,L=3470,寒冷地仕様 |
1 | ||
| 56118A - DAM, WINDOW GLASS ADHESIVE, NO.2 | ||||
| 64813-52010 |
NHW20 *D,L=637 |
1 | ||
| 64813-52010 |
NHW20 *D,L=637,寒冷地仕様 |
1 | ||
| Common parts | ||||
| 67867-12150 | ||||
| 90119-06480 | ||||
| 90467-06197 | ||||
| 90467-07076C0 | ||||
| 90467-10018 | ||||
| Linked diagrams | ||||
| 8202 | ||||
