NHW20-AHEGB (2003)

Toyota Prius

Production Aug 2003 - Nov 2005
Engine 1NZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )

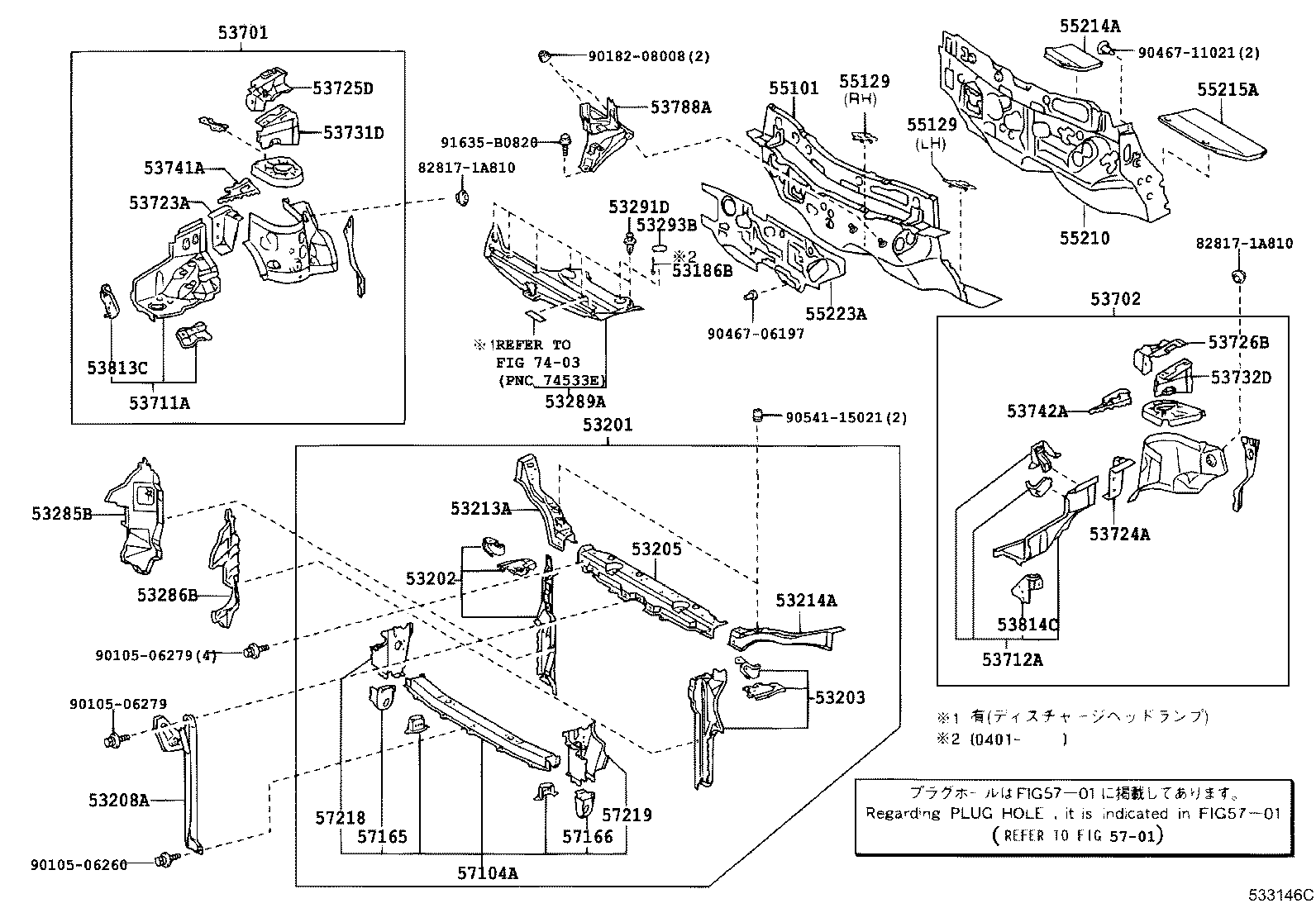

Click highlighted areas on diagram

diagram 53186B 53201 53202 53203 53205 53208A 53213A 53214A 53285B 53286B 53289A 53291D 53293B 53701 53702 53711A 53712A 53723A 53724A 53725D 53726B 53731D 53732D 53741A 53742A 53788A 53813C 53814C 55101 55129 55129 55210 55214A 55215A 55223A 5701 57104A 57165 57166 57218 57219 7403 828171A810 828171A810 9010506260 9010506279 9010506279 9018208008 9046706197 9046711021 9054115021 91635B0820
Part # Description Qty Price
53186B - LINK, RADIATOR GRILLE, NO.1
53186-47010

NHW20..G

 1
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-47020

NHW20

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-47900

NHW20

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-47900

NHW20

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-47020

NHW20

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-47010

NHW20

 1
53213A - SUPPORT, RADIATOR, UPPER RH
53213-47020

NHW20

 1
53214A - SUPPORT, RADIATOR, UPPER LH
53214-47900

NHW20

 1
53285B - SEAL, RADIATOR SIDE AIR, NO.1
53285-47010

NHW20

 1
53286B - SEAL, RADIATOR SIDE AIR, NO.2
53286-47010

NHW20

 1
53289A - COVER, RADIATOR SUPPORT OPENING
53289-47020

NHW20..G

ﾂｰﾘﾝｸﾞｾﾚｸｼｮﾝ

 1
53289-47020

NHW20..G

ﾌﾟﾚﾐｱﾑ *(P)

 1
53289-47010

NHW20..G

 1
53291D - CLIP, RADIATOR SUPPORT TO FRAME
55346-47010

NHW20..G

 6
90467-06133C0

NHW20..G

BLACK,TRIM0#,1#

 6
53293B - SEAL, RADIATOR SUPPORT SERVICE HOLE
53293-47010

NHW20..G

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-47030

NHW20

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-47030

NHW20

 1
53711A - APRON, FRONT FENDER, W/SUPPORT, FRONT RH
53711-47900

NHW20

 1
53712A - APRON, FRONT FENDER, W/SUPPORT, FRONT LH
53712-47900

NHW20

 1
53723A - REINFORCEMENT, FRONT SPRING SUPPORT, RH
53723-12080

NHW20

 1
53724A - REINFORCEMENT, FRONT SPRING SUPPORT, LH
53724-12070

NHW20

 1
53725D - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH
53725-47010

NHW20

 1
53726B - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH
53726-13010

NHW20

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-12160

NHW20

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-12140

NHW20

 1
53741A - PLATE, FENDER APRON REINFORCE, RH
53741-13010

NHW20

 1
53742A - PLATE, FRONT FENDER APRON REINFORCEMENT
53742-13010

NHW20

 1
53788A - GUSSET, FRONT FENDER APRON, LOWER LH
53708-47032

NHW20

 1
53708-47041

NHW20

 1
53708-47040

NHW20

 1
53708-47042

NHW20

 1
53813C - EXTENSION, FRONT FENDER, RH
53813-47010

NHW20

 1
53814C - EXTENSION, FRONT FENDER, LH
53814-47010

NHW20

 1
55101 - PANEL SUB-ASSY, DASH
55101-47040

NHW20

 1
55101-47041

NHW20

 1
55129 - COVER, DASH PANEL HOLE
55139-32010

NHW20

左側

 1
55139-47010

NHW20

左側

 1
55129-47010

NHW20

右側

 1
55129-32030

NHW20

右側

 1
55129 - COVER, DASH PANEL HOLE
55139-32010

NHW20

左側

 1
55139-47010

NHW20

左側

 1
55129-47010

NHW20

右側

 1
55129-32030

NHW20

右側

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-47060

NHW20

 1
55210-47041

NHW20

 1
55214A - PAD, DASH PANEL INSULATOR, NO.2
55214-47010

NHW20

 1
55215A - PAD, DASH PANEL INSULATOR, NO.3
55215-47010

NHW20

 1
55223A - INSULATOR, DASH PANEL, OUTER
55223-47030

NHW20

 1
55223-47031

NHW20

 1
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-47010

NHW20

 1
57165 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH
57165-47020

NHW20

 1
57166 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH
57166-47020

NHW20

 1
57218 - GUSSET, FRONT SIDE MEMBER, NO.1
57218-47020

NHW20

 1
57219 - GUSSET, FRONT SIDE MEMBER, NO.2
57219-47020

NHW20

 1
Common parts
82817-1A810
90105-06260
90105-06279
90182-08008
90467-06197
90467-11021
90541-15021
91635-B0820
Linked diagrams
5701
7403
