NHW11-AEEGB (2000)

Toyota Prius

Production May 2000 - Aug 2003
Engine 1NZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )

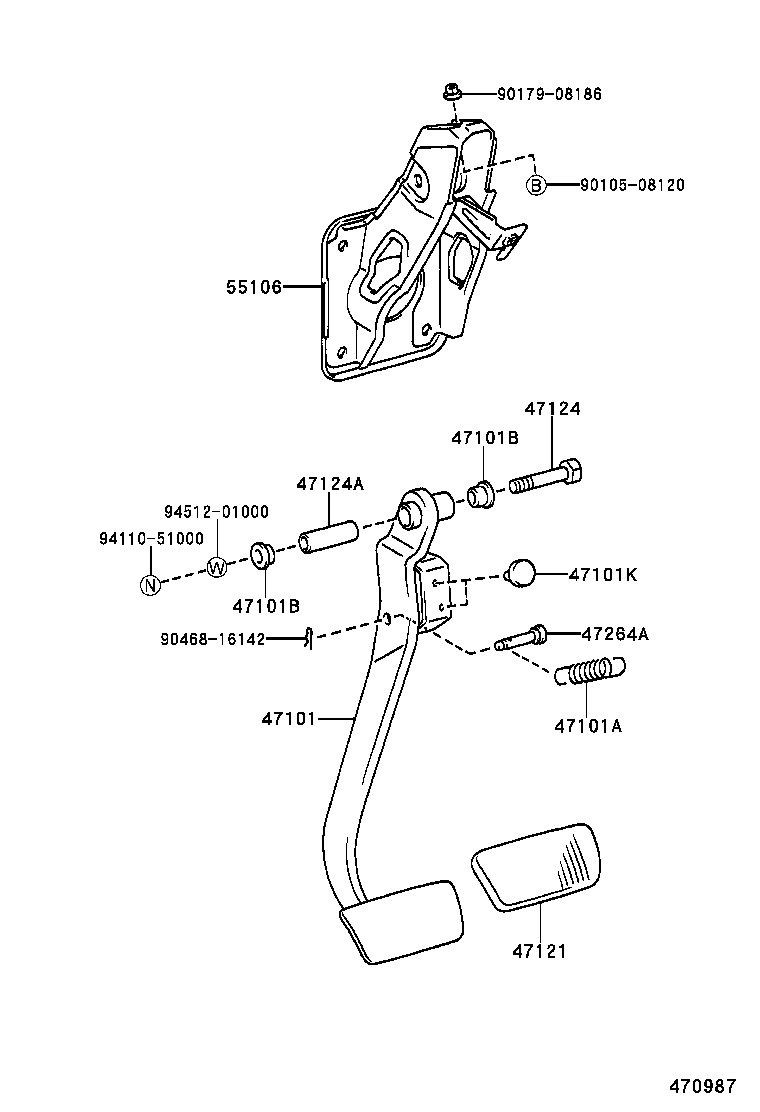

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47101K 47121 47124 47124A 47264A 55106 9010508120 9017908186 9046816142 9411051000 9451201000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-47020

NHW11

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90905-07030

NHW11

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

NHW1#

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

NHW1#

 2
47101K - CUSHION(FOR PARKING LOCK CABLE)
90541-06049

NHW11

 1
47121 - PAD, BRAKE PEDAL
47121-50010

NHW11

 1
47124 - SHAFT, BRAKE PEDAL
90109-10167

NHW11

 1
47264A - PIN(FOR PUSH ROD)
47148-12020

NHW1#

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-47020

NHW11

 1
Common parts
90105-08120
90179-08186
90468-16142
94110-51000
94512-01000
