NHW11-AEEEB (2000)

Toyota Prius

Production May 2000 - Aug 2003
Engine 1NZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )

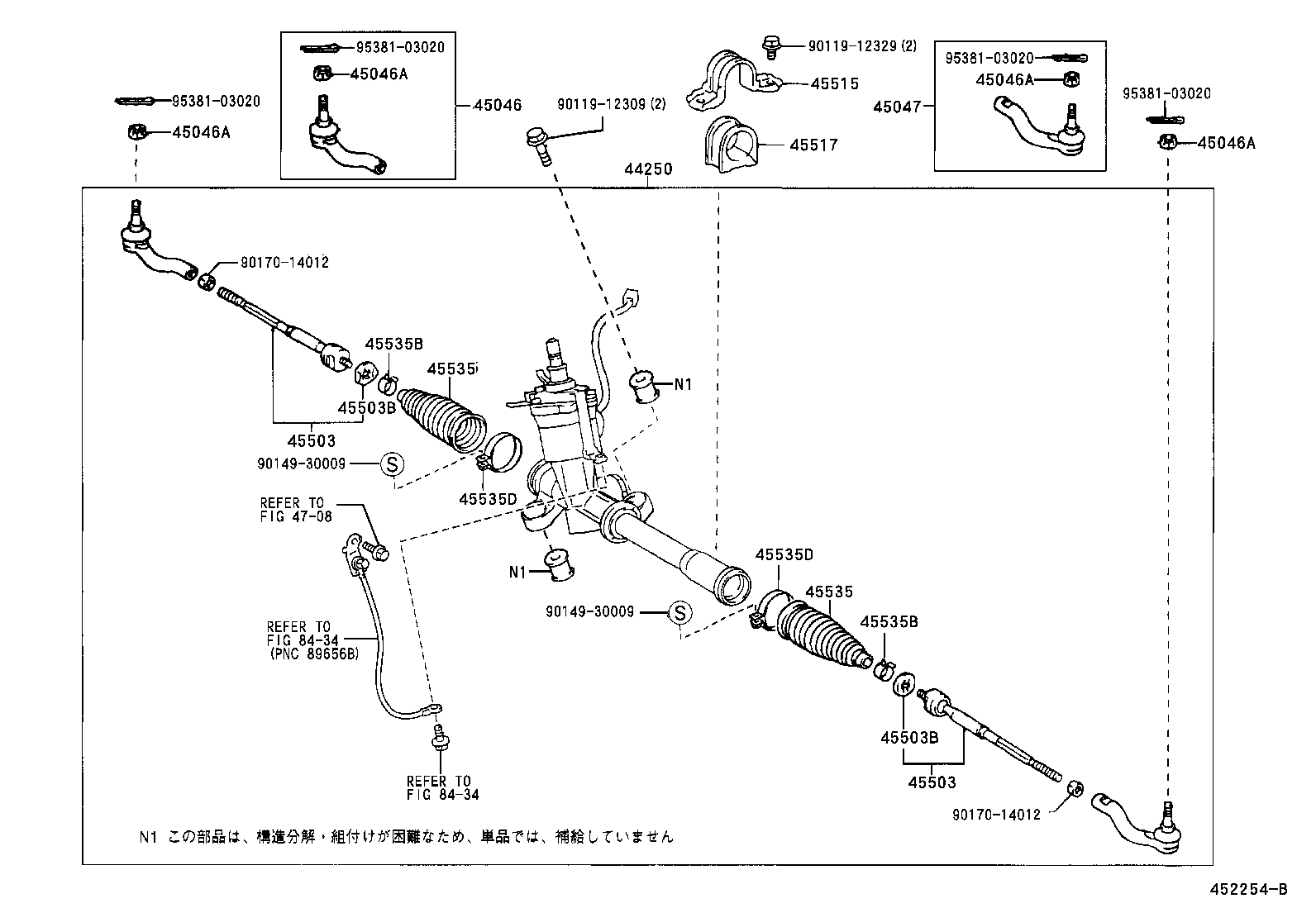

Click highlighted areas on diagram

diagram 44250 45046 45046A 45046A 45046A 45046A 45047 45503 45503 45503B 45503B 45515 45517 45535 45535 45535B 45535B 45535D 45535D 4708 8434 8434 9011912309 9011912329 9014930009 9014930009 9017014012 9017014012 9538103020 9538103020 9538103020 9538103020
Part # Description Qty Price
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44200-47050

NHW11

 1
45046 - END SUB-ASSY, TIE ROD, RH
45046-49115

NHW11

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

NHW1#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

NHW1#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

NHW1#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

NHW1#

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-49045

NHW11

 1
45503 - END SUB-ASSY, STEERING RACK
45503-49075

NHW11

 2
45503 - END SUB-ASSY, STEERING RACK
45503-49075

NHW11

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-18004

NHW11

外径=37

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-18004

NHW11

外径=37

 2
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-20150

NHW1#

 1
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-47020

NHW11

 1
45535 - BOOT, STEERING RACK, NO.1
45535-47011

NHW1#

 2
45535 - BOOT, STEERING RACK, NO.1
45535-47011

NHW1#

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019

NHW1#

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019

NHW1#

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-60004

NHW1#

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-60004

NHW1#

 2
Common parts
90119-12309
90119-12329
90149-30009
90170-14012
95381-03020
Linked diagrams
4708
8434
