NHW10-AEEEB (1997)

Toyota Prius

Production Dec 1997 - May 2000
Engine 1NZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

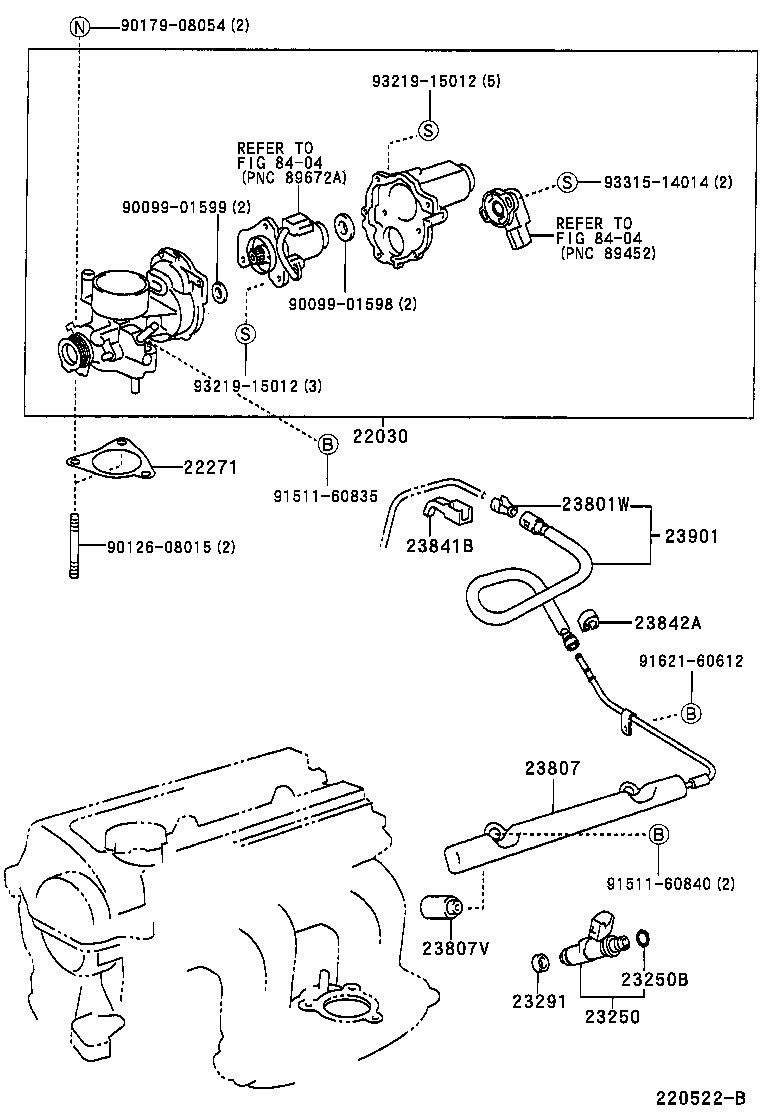

ILLUST NO. 1 OF 2(9712-0005)

Click highlighted areas on diagram

diagram 22030 22271 23250 23250B 23291 23801W 23807 23807V 23841B 23842A 23901 8404 8404 9009901598 9009901599 9012608015 9017908054 9151160835 9151160840 9162160612 9321915012 9321915012 9331514014
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-21010

1NZFXE..NHW10

 1
22271 - GASKET, THROTTLE BODY
22271-21010

1NZFXE..NHW10

 1
23250 - INJECTOR ASSY, FUEL
23209-21010

1NZFXE..NHW10

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

1NZFXE..NHW10

 4
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

1NZFXE..NHW1#

 4
23801W - CLIP, FUEL TUBE CONNECTOR
90923-07010

1NZFXE..NHW10

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-21010

1NZFXE..NHW10

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-21010

1NZFXE..NHW1#

 2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-32050

1NZFXE..NHW10

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-22020

1NZFXE..NHW1#

 1
23901 - TUBE SUB-ASSY, FUEL
23901-21010

1NZFXE..NHW10

 1
Common parts
90099-01598
90099-01599
90126-08015
90179-08054
91511-60835
91511-60840
91621-60612
93219-15012
93315-14014
Linked diagrams
8404

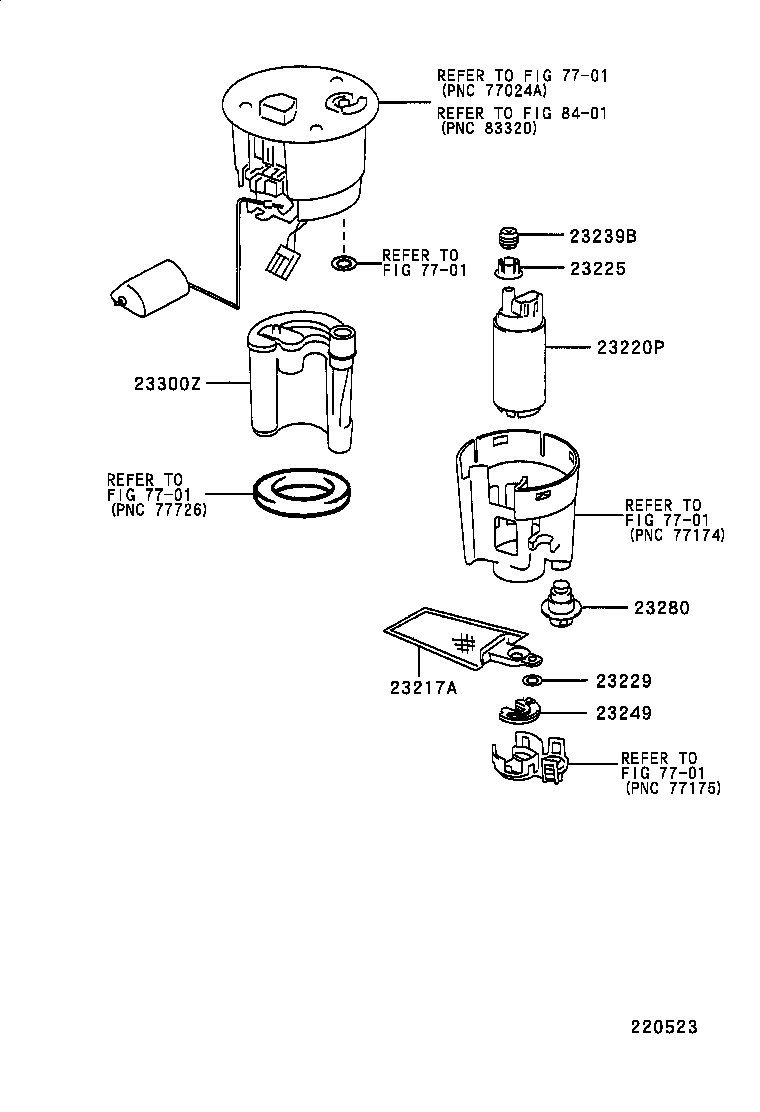

ILLUST NO. 2 OF 2(9712-0005)

Click highlighted areas on diagram

diagram 23217A 23220P 23225 23229 23239B 23249 23280 23300Z 7701 7701 7701 7701 7701 8401
Part # Description Qty Price
23217A - FILTER, FUEL PUMP
23217-74021

1NZFXE..NHW1#

 1
23220P - PUMP ASSY, FUEL
23221-21010

1NZFXE..NHW10

 1
23225 - SPACER, FUEL PUMP
23225-21010

1NZFXE..NHW1#

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

1NZFXE..NHW1#

 1
23239B - SEAL, FUEL PUMP FILTER
23239-21010

1NZFXE..NHW1#

 1
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74610

1NZFXE..NHW1#

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-22010

1NZFXE..NHW1#

 1
23300Z - FILTER, FUEL(FOR FUEL TANK)
23300-74330

1NZFXE..NHW1#

 1
Linked diagrams
7701
8401
