ZZT245-AEPEK (2001)
Toyota Premio/Allion
Production
Dec 2001
-
May 2007
Engine
1ZZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0112- )ZZT245

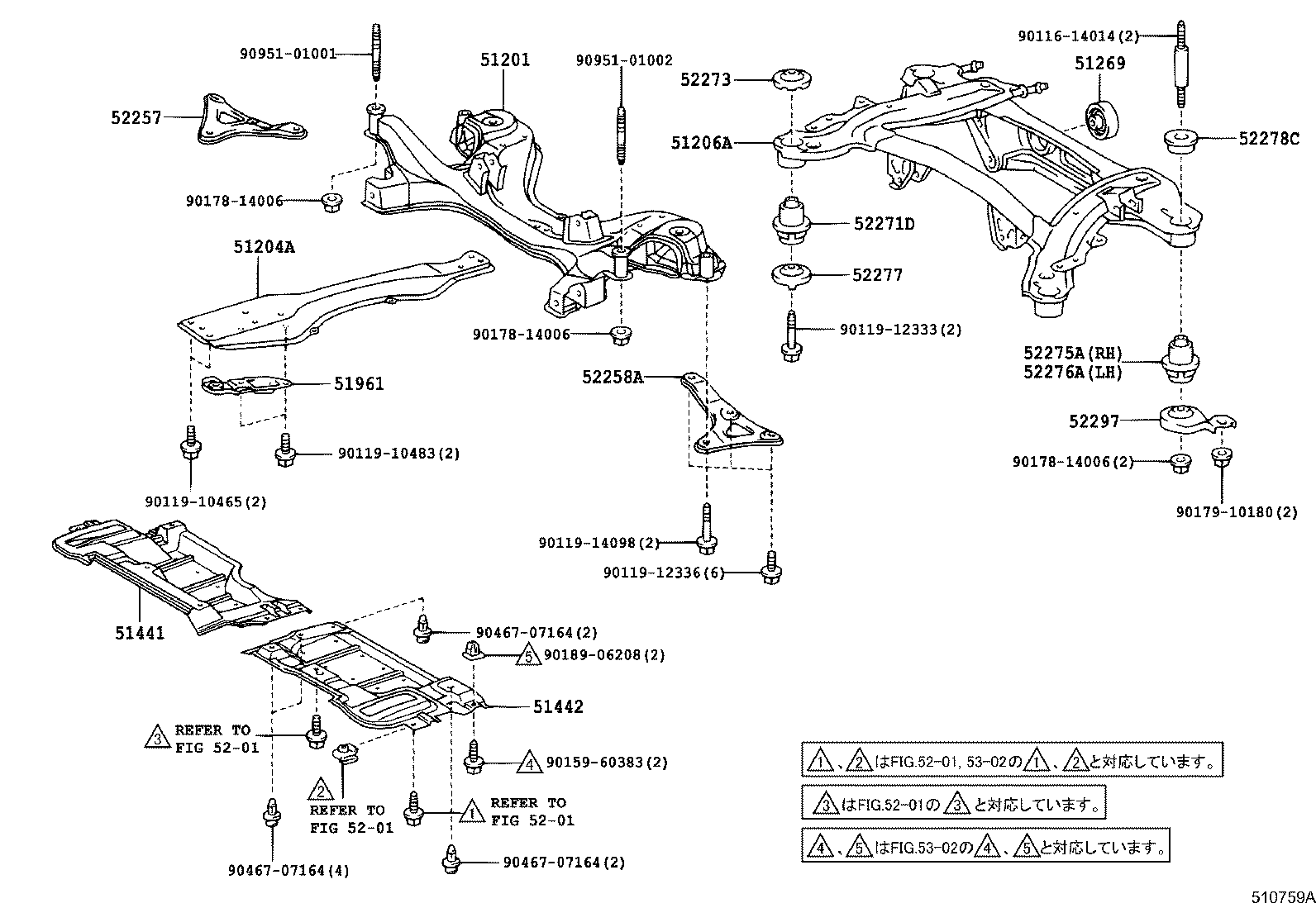

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-20370 |
ZZT245 |
1 | ||
| 51201-20370 |
ZZT245 |
1 | ||
| 51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER | ||||
| 51204-44020 |
ZZT245 |
1 | ||
| 51204-44020 |
ZZT245 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-32070 |
ZZT245 |
1 | ||
| 51206-32071 |
ZZT245 |
1 | ||
| 51206-20110 |
ZZT245 |
1 | ||
| 51269 - DAMPER, DIFFERENTIAL SUPPORT MEMBER | ||||
| 51269-32030 |
ZZT245 |
1 | ||
| 51269-32030 |
ZZT245 |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-20440 |
AZT240,NZT240,ZZT24# |
1 | ||
| 51441-20440 |
AZT240,NZT240,ZZT24# |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-20560 |
AZT240,NZT240,ZZT24# |
1 | ||
| 51442-20560 |
AZT240,NZT240,ZZT24# |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51963-32040 |
AZT240,NZT240,ZZT24# |
1 | ||
| 51963-32040 |
AZT240,NZT240,ZZT24# |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 52257-20070 |
AZT240,NZT240,ZZT24# |
1 | ||
| 52257-20070 |
AZT240,NZT240,ZZT24# |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 52258-20070 |
AZT240,NZT240,ZZT24# |
1 | ||
| 52258-20070 |
AZT240,NZT240,ZZT24# |
1 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-32040 |
ZZT245 |
2 | ||
| 52271-32040 |
ZZT245 |
2 | ||
| 52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER | ||||
| 52273-32020 |
ZZT245 |
2 | ||
| 52273-32020 |
ZZT245 |
2 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52275-32060 |
ZZT245 |
1 | ||
| 52275-32060 |
ZZT245 |
1 | ||
| 52276A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH | ||||
| 52276-32010 |
ZZT245 |
1 | ||
| 52276-32010 |
ZZT245 |
1 | ||
| 52277 - RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH | ||||
| 52277-32030 |
ZZT245 |
2 | ||
| 52277-32030 |
ZZT245 |
2 | ||
| 52278C - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER | ||||
| 52278-32020 |
ZZT245 |
2 | ||
| 52278-32020 |
ZZT245 |
2 | ||
| 52297 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH | ||||
| 52297-32010 |
ZZT245 |
2 | ||
| 52297-32010 |
ZZT245 |
2 | ||
| Common parts | ||||
| 90116-14014 | ||||
| 90119-10465 | ||||
| 90119-10483 | ||||
| 90119-12333 | ||||
| 90119-12336 | ||||
| 90119-14098 | ||||
| 90159-60383 | ||||
| 90178-14006 | ||||
| 90179-10180 | ||||
| 90189-06208 | ||||
| 90467-07164 | ||||
| 90951-01001 | ||||
| 90951-01002 | ||||
| Linked diagrams | ||||
| 5201 | ||||
