ZZT245-AEPEK (2001)
Toyota Premio/Allion

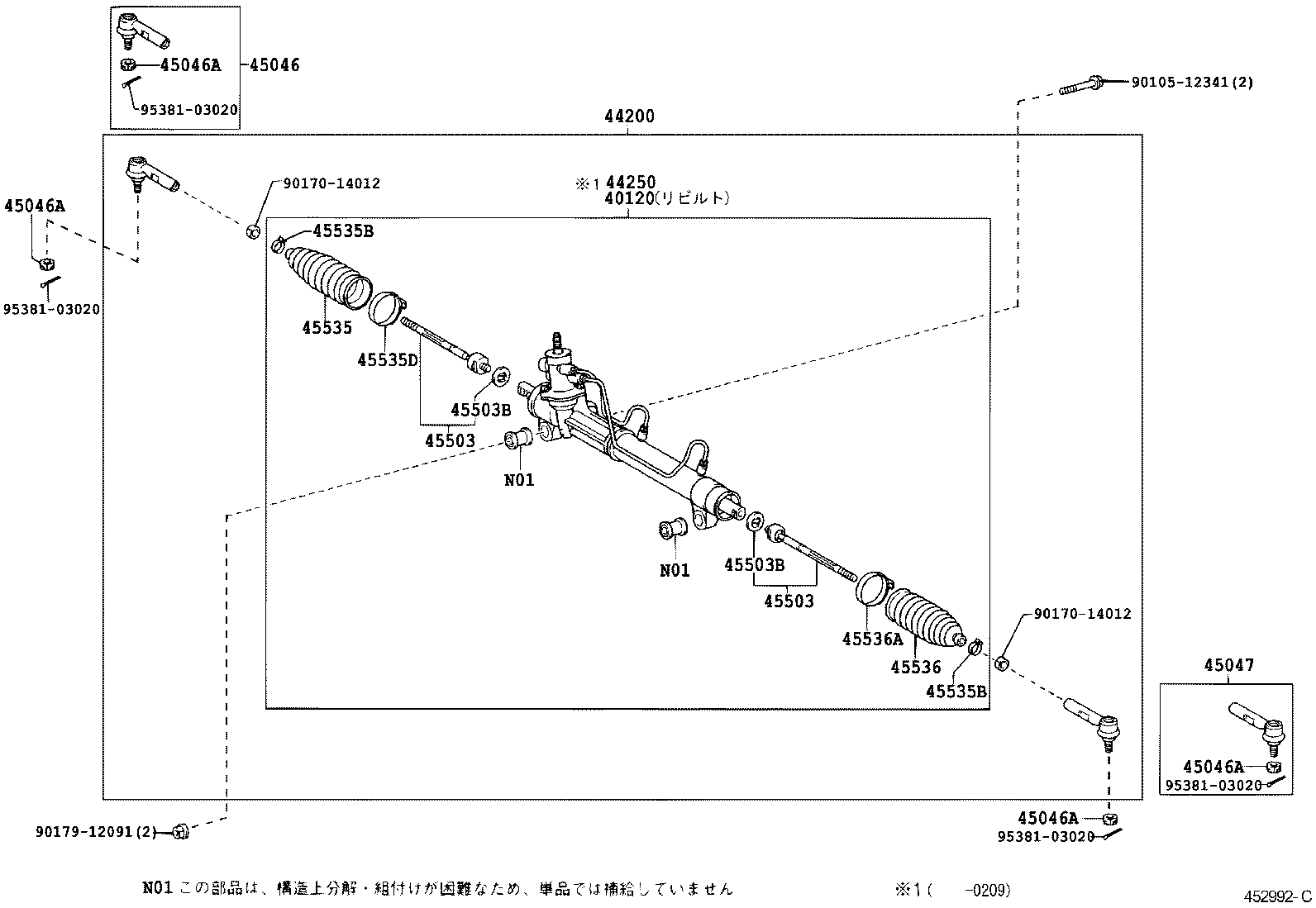

ILLUST NO. 1 OF 2(0112- )ZZT245
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 40120 - GEAR ASSY,POWER STEERING,REBUILT | ||||
| 40120-20840 |
ZZT245 ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｾﾝﾖｳ |
1 | ||
| 40120-20830 |
ZZT245 |
1 | ||
| 40120-20840 |
ZZT245 ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｾﾝﾖｳ |
1 | ||
| 40120-20830 |
ZZT245 |
1 | ||
| 44200 - LINK ASSY, POWER STEERING | ||||
| 44200-2B040 |
ZZT245 ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｾﾝﾖｳ |
1 | ||
| 44200-2B030 |
ZZT245 |
1 | ||
| 44200-2B040 |
ZZT245 ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｾﾝﾖｳ |
1 | ||
| 44200-2B030 |
ZZT245 |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-20840 |
ZZT245 ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｾﾝﾖｳ |
1 | ||
| 44250-20830 |
ZZT245 |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29305 |
ZZT245 |
1 | ||
| 45046-29305 |
ZZT245 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AZT240,NZT240,ZZT24# |
2 | ||
| 90171-12028 |
AZT240,NZT240,ZZT24# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AZT240,NZT240,ZZT24# |
2 | ||
| 90171-12028 |
AZT240,NZT240,ZZT24# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AZT240,NZT240,ZZT24# |
2 | ||
| 90171-12028 |
AZT240,NZT240,ZZT24# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AZT240,NZT240,ZZT24# |
2 | ||
| 90171-12028 |
AZT240,NZT240,ZZT24# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-29305 |
ZZT245 |
1 | ||
| 45046-29305 |
ZZT245 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19265 |
ZZT245 |
2 | ||
| 45503-19265 |
ZZT245 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19265 |
ZZT245 |
2 | ||
| 45503-19265 |
ZZT245 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AZT240,NZT240,ZZT24# 外径=35.2 |
2 | ||
| 90214-14009 |
AZT240,NZT240,ZZT24# 外径=35.2 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AZT240,NZT240,ZZT24# 外径=35.2 |
2 | ||
| 90214-14009 |
AZT240,NZT240,ZZT24# 外径=35.2 |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-13010 |
AZT240,NZT240,ZZT24# |
1 | ||
| 45535-13010 |
AZT240,NZT240,ZZT24# |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19019 |
AZT240,NZT240,ZZT24# |
2 | ||
| 90467-19019 |
AZT240,NZT240,ZZT24# |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19019 |
AZT240,NZT240,ZZT24# |
2 | ||
| 90467-19019 |
AZT240,NZT240,ZZT24# |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-55016 |
AZT240,NZT240,ZZT24# |
1 | ||
| 90460-55016 |
AZT240,NZT240,ZZT24# |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-13010 |
AZT240,NZT240,ZZT24# |
1 | ||
| 45535-13010 |
AZT240,NZT240,ZZT24# |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-55016 |
AZT240,NZT240,ZZT24# |
1 | ||
| 90460-55016 |
AZT240,NZT240,ZZT24# |
1 | ||
| Common parts | ||||
| 90105-12341 | ||||
| 90170-14012 | ||||
| 90179-12091 | ||||
| 95381-03020 | ||||

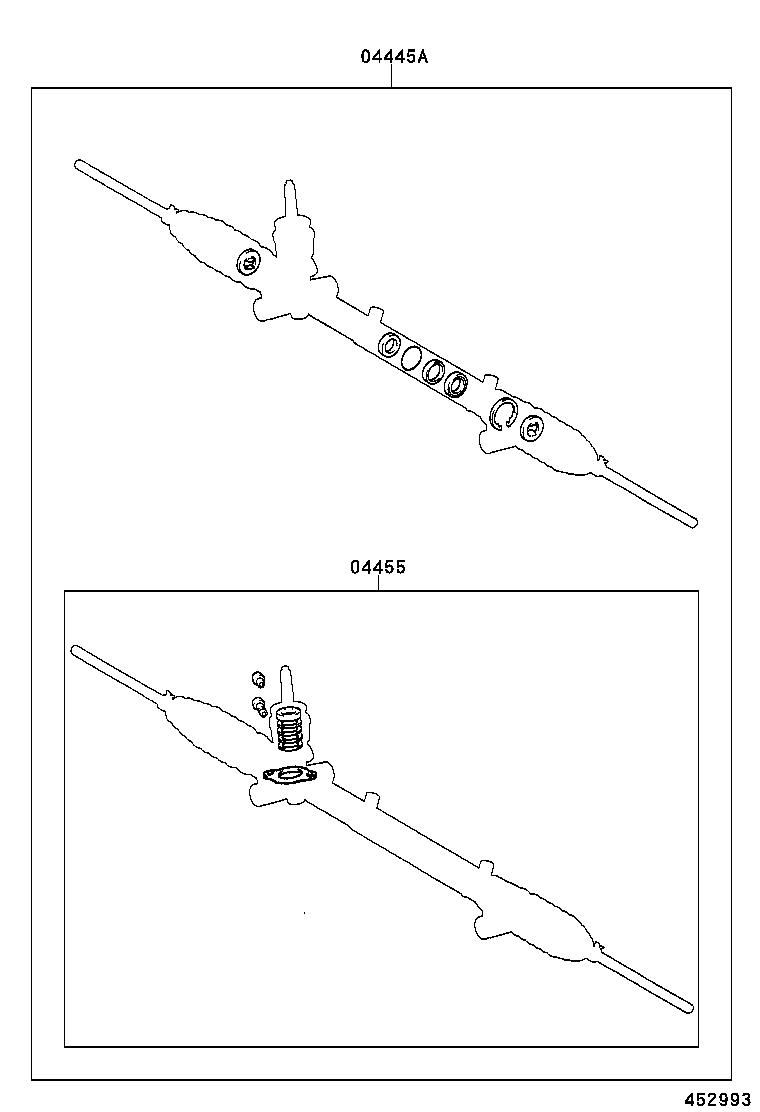

ILLUST NO. 2 OF 2(0112- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-13010 |
AZT240,NZT240,ZZT24# |
1 | ||
| 04445-13010 |
AZT240,NZT240,ZZT24# |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-44010 |
AZT240,NZT240,ZZT24# |
1 | ||
| 04455-44010 |
AZT240,NZT240,ZZT24# |
1 | ||
