ZZT240-AEPEK (2001)

Toyota Premio/Allion

Production Dec 2001 - May 2007
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0112- )

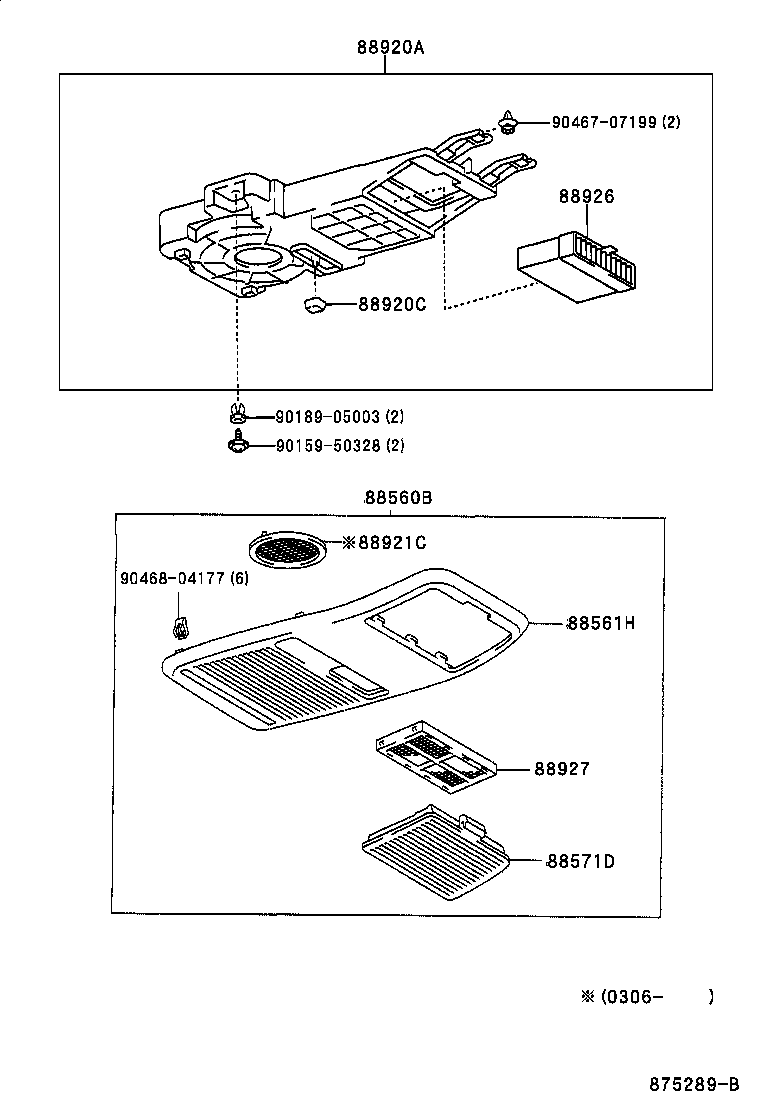

Click highlighted areas on diagram

diagram 88560B 88561H 88571D 88920A 88920C 88921C 88926 88927 9015950328 9018905003 9046707199 9046804177
Part # Description Qty Price
88560B - GRILLE ASSY, AIR INLET
88560-20020A0

AZT240,NZT240,ZZT24#

IVORY,TRIM0#

 1
88560-20021A0

AZT240,NZT240,ZZT24#

IVORY,TRIM0#

 1
88560-20021B0

AZT240,NZT240,ZZT24#

LT.GRAY,TRIM1#

 1
88560-20020B0

AZT240,NZT240,ZZT24#

LT.GRAY,TRIM1#

 1
88561H - GRILLE, AIR INLET
88561-20020A0

AZT240,NZT240,ZZT24#

IVORY,TRIM0#

 1
88561-20020B0

AZT240,NZT240,ZZT24#

LT.GRAY,TRIM1#

 1
88571D - GRILLE, AIR OUTLET
88571-22021A0

AZT240,NZT240,ZZT24#

IVORY,TRIM0#

 1
88571-22021B1

AZT240,NZT240,ZZT24#

LT.GRAY,TRIM1#

 1
88920A - PURIFIER ASSY, AIR
88920-20280A0

AZT240,NZT240,ZZT24#

IVORY,TRIM0#

 1
88920-20280B0

AZT240,NZT240,ZZT24#

LT.GRAY,TRIM1#

 1
88920C - KNOB, AIR PURIFIER LEVER
36324-22010A0

AZT240,NZT240,ZZT24#

IVORY,TRIM0#

 1
36324-22010B1

AZT240,NZT240,ZZT24#

LT.GRAY,TRIM1#

 1
88921C - FILTER, AIR, NO.1
88921-22010

AZT240,NZT240,ZZT24#

 1
88926 - FILTER, AIR PURIFIER
88926-22350

AZT240,NZT240,ZZT24#

 1
88927 - FILTER, AIR PURIFIER, NO.2
88927-22010

AZT240,NZT240,ZZT24#

 1
Common parts
90159-50328
90189-05003
90467-07199
90468-04177
