ZZT240-AEPEK (2001)

Toyota Premio/Allion

Production Dec 2001 - May 2007
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0112-0412)

Click highlighted areas on diagram

ｴｱ ﾀﾞｸﾄ

diagram 55843A 55844 55950G 55971C 55972C 87201 87211 87212 87213 9017906314 904670502022 904670502022 9046708186C0 9046708186C0 9046708186E0 9046708186E0 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price

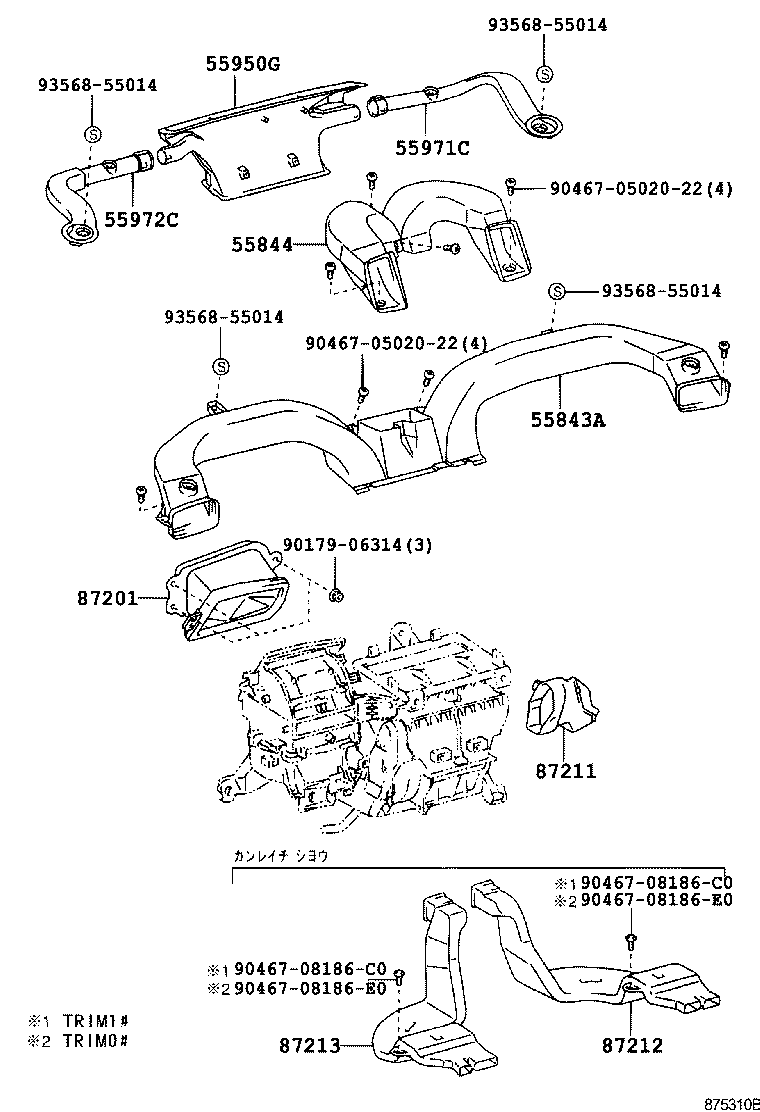

55843A - DUCT, HEATER TO REGISTER, NO.1
55843-20370

AZT240,NZT240,ZZT24#

 1
55843-20370

AZT240,NZT240,ZZT24#

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-20390

AZT240,NZT240,ZZT24#

 1
55844-20390

AZT240,NZT240,ZZT24#

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-20200

AZT240,NZT240,ZZT24#

 1
55950-20200

AZT240,NZT240,ZZT24#

 1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-20150

AZT240,NZT240,ZZT24#

 1
55971-20150

AZT240,NZT240,ZZT24#

 1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-20120

AZT240,NZT240,ZZT24#

 1
55972-20120

AZT240,NZT240,ZZT24#

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-20440

AZT240,NZT240,ZZT24#

 1
87201-20440

AZT240,NZT240,ZZT24#

 1
87211 - DUCT, AIR, NO.1
87211-12260

AZT240,NZT240,ZZT24#

 1
87211-12260

AZT240,NZT240,ZZT24#

 1
87212 - DUCT, AIR, REAR NO.1
87212-20130

AZT240,NZT240,ZZT240

 1
87212-20131

AZT240,NZT240,ZZT240

 1
87212-20131

AZT240,NZT240,ZZT240

 1
87213 - DUCT, AIR, REAR NO.2
87213-20110

AZT240,NZT240,ZZT24#

 1
87213-20111

AZT240,NZT240,ZZT24#

 1
87213-20111

AZT240,NZT240,ZZT24#

 1
Common parts
90179-06314
90467-0502022
90467-08186C0
90467-08186E0
93568-55014

ILLUST NO. 2 OF 2(0112-0412)

Click highlighted areas on diagram

ｺﾝﾄﾛ-ﾙ & ｾﾝｻ

diagram 8603 88625H 88625P 88625Q
Part # Description Qty Price

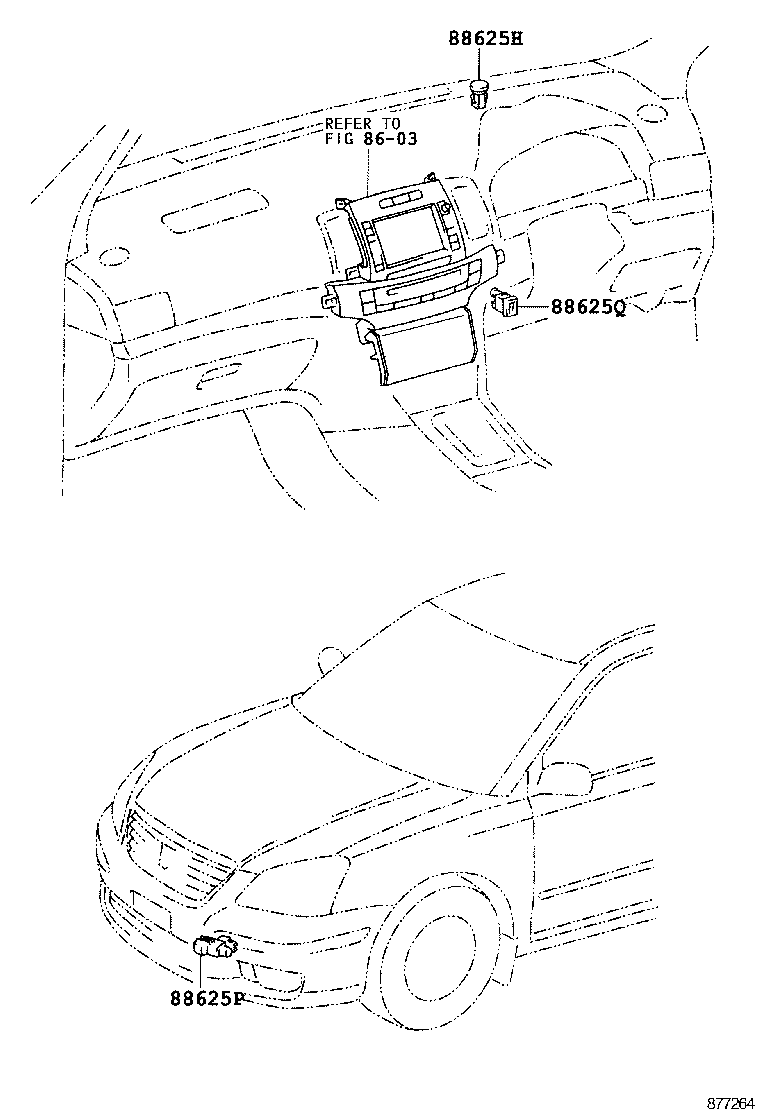

88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-47031

AZT240,NZT240,ZZT24#

 1
88625-47031

AZT240,NZT240,ZZT24#

 1
88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)
88625-32171

AZT240,NZT240,ZZT24#

 1
88625-32171

AZT240,NZT240,ZZT24#

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

AZT240,NZT240,ZZT24#

 1
88625-47021

AZT240,NZT240,ZZT24#

 1
Linked diagrams
8603

ILLUST NO. 1 OF 2(0412- )

Click highlighted areas on diagram

ｴｱ ﾀﾞｸﾄ

diagram 55843A 55844 55950G 55971C 55972C 87201 87211 87212 87213 9017906314 904670502022 904670502022 9046708186A1 9046708186A1 9046708186C0 9046708186C0 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-20370

AZT240,NZT240,ZZT24#

 1
55843-20370

AZT240,NZT240,ZZT24#

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-20390

AZT240,NZT240,ZZT24#

 1
55844-20390

AZT240,NZT240,ZZT24#

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-20200

AZT240,NZT240,ZZT24#

 1
55950-20200

AZT240,NZT240,ZZT24#

 1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-20150

AZT240,NZT240,ZZT24#

 1
55971-20150

AZT240,NZT240,ZZT24#

 1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-20120

AZT240,NZT240,ZZT24#

 1
55972-20120

AZT240,NZT240,ZZT24#

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-20440

AZT240,NZT240,ZZT24#

 1
87201-20440

AZT240,NZT240,ZZT24#

 1
87211 - DUCT, AIR, NO.1
87211-12260

AZT240,NZT240,ZZT24#

 1
87211-12260

AZT240,NZT240,ZZT24#

 1
87212 - DUCT, AIR, REAR NO.1
87212-20130

AZT240,NZT240,ZZT240

 1
87212-20131

AZT240,NZT240,ZZT240

 1
87212-20131

AZT240,NZT240,ZZT240

 1
87213 - DUCT, AIR, REAR NO.2
87213-20110

AZT240,NZT240,ZZT24#

 1
87213-20111

AZT240,NZT240,ZZT24#

 1
87213-20111

AZT240,NZT240,ZZT24#

 1
Common parts
90179-06314
90467-0502022
90467-08186A1
90467-08186C0
93568-55014

ILLUST NO. 2 OF 2(0412- )

Click highlighted areas on diagram

ｺﾝﾄﾛｰﾙ & ｾﾝｻ

diagram 8603 88625H 88625P 88625Q
Part # Description Qty Price
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-47031

AZT240,NZT240,ZZT24#

 1
88625-47031

AZT240,NZT240,ZZT24#

 1
88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)
88625-32171

AZT240,NZT240,ZZT24#

 1
88625-32171

AZT240,NZT240,ZZT24#

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

AZT240,NZT240,ZZT24#

 1
88625-47021

AZT240,NZT240,ZZT24#

 1
Linked diagrams
8603
