ZRT265-CEXEP (2016)
Toyota Premio/Allion

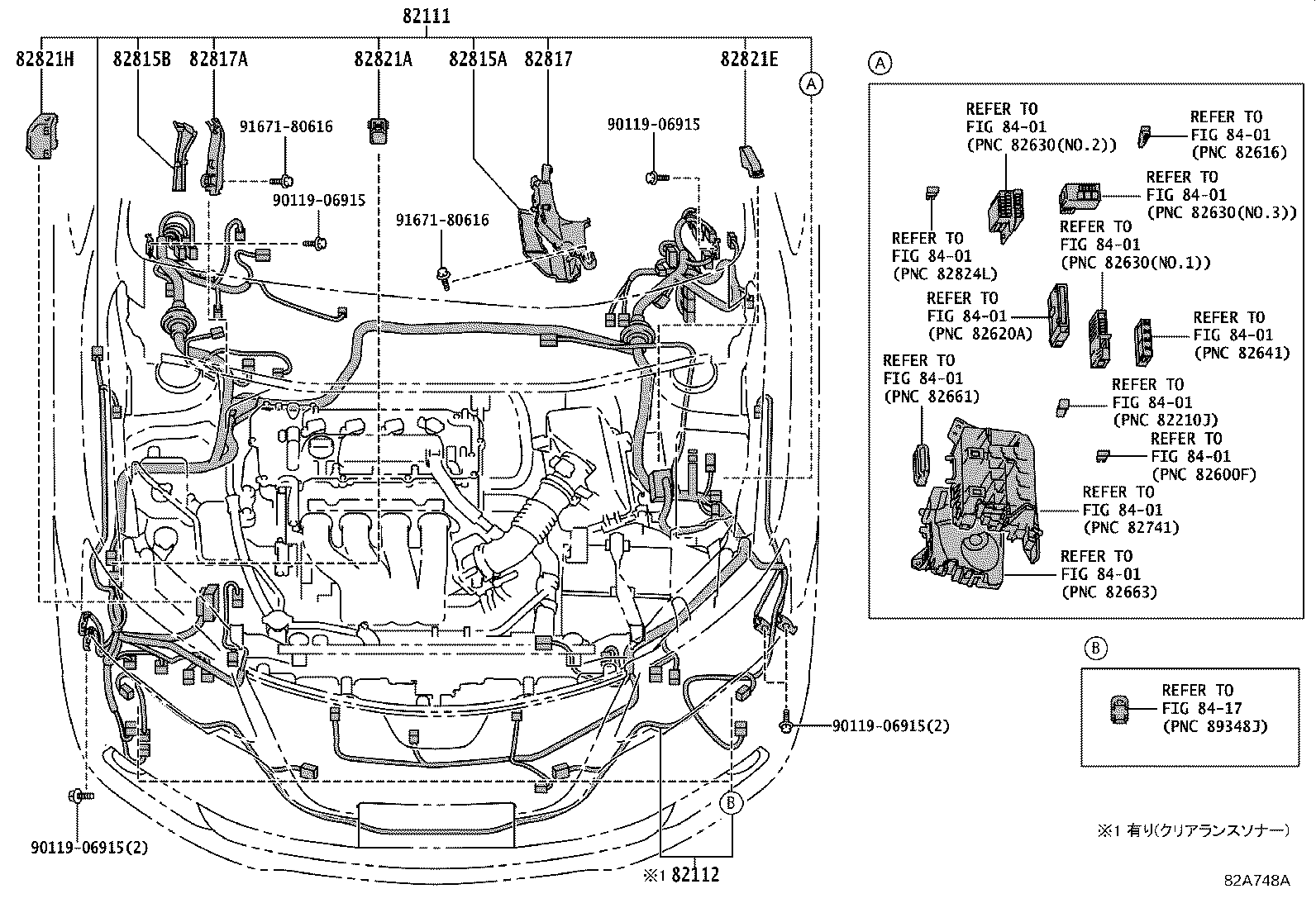

ILLUST NO. 1 OF10(1606- )
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-20J60 |
ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 82111-20J80 |
ZRT260,265..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 82111-20J70 |
ZRT260,265..CBU 寒冷地仕様 |
1 | ||
| 82111-20J50 |
ZRT260,265..CBU |
1 | ||
| 82111-20J90 |
ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ&有り(*AHB)&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 82111-20K00 |
ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−LED&有り(*AHB)&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−無し |
1 | ||
| 82111-20K20 |
ZRT260,265..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&有り(*AHB)&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 82111-20K00 |
ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−LED&有り(*AHB)&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 82111-20K10 |
ZRT260,265..CBU 寒冷地仕様&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 82111-20K10 |
ZRT260,265..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ&有り(*AHB)&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 82111-20K20 |
ZRT260,265..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&有り(*AHB)&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−無し |
1 | ||
| 82111-20K10 |
ZRT260,265..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ&有り(*AHB)&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−無し |
1 | ||
| 82111-20J90 |
ZRT260,265..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 82111-20J90 |
ZRT260,265..CBU |
1 | ||
| 82111-20K10 |
ZRT260,265..CBU 寒冷地仕様 |
1 | ||
| 82111-20J90 |
ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ&有り(*AHB)&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−無し |
1 | ||
| 82111-20K20 |
ZRT260,265..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&有り(*AHB) |
1 | ||
| 82111-20K00 |
ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 82111-20K20 |
ZRT260,265..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 82111-20K00 |
ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−LED&有り(*AHB) |
1 | ||
| 82111-20J50 |
ZRT260,265..CBU |
1 | ||
| 82111-20K00 |
ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−LED&有り(*AHB)&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―);ﾍｯﾄﾞﾗﾝﾌﾟ−LED&有り(*AHB)&ｸﾘｱﾗ塔X & ﾊﾞｯｸｿﾅｰ−無し;ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 82111-20J90 |
ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ&有り(*AHB)&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―);ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ&有り(*AHB)&ｸﾘAﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−無し;ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 82111-20K20 |
ZRT260,265..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&有り(*AHB)&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―);寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&有閨i*AHB)&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−無し;寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 82111-20J80 |
ZRT260,265..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 82111-20J70 |
ZRT260,265..CBU 寒冷地仕様 |
1 | ||
| 82111-20J60 |
ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 82111-20K00 |
ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−LED&有り(*AHB) |
1 | ||
| 82111-20K20 |
ZRT260,265..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&有り(*AHB) |
1 | ||
| 82111-20J90 |
ZRT260,265..CBU |
1 | ||
| 82111-20K10 |
ZRT260,265..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ&有り(*AHB)&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―);寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ風Lり(*AHB)&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−無し;寒冷地仕様&ｸﾘｱﾗﾝｽ& ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 82111-20K10 |
ZRT260,265..CBU 寒冷地仕様 |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-20670 |
NZT260,ZRT260,265..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 82112-20670 |
NZT260,ZRT260,265..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12250 |
NZT260,ZRT260,265..CBU |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12330 |
NZT260,ZRT260,265..CBU |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12D50 |
NZT260,ZRT260,265..CBU |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12E91 |
NZT260,ZRT260,265..CBU |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-35040 |
NZT260,ZRT260,265..CBU |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-52140 |
NZT260,ZRT260,265..CBU |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-12570 |
NZT260,ZRT260,265..CBU |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8417 | ||||
