ZRT265-CEXEP (2016)

Toyota Premio/Allion

Production Jun 2016 - Sep 9999
Engine 2ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1606- )2ZRFAE,3ZRFAE

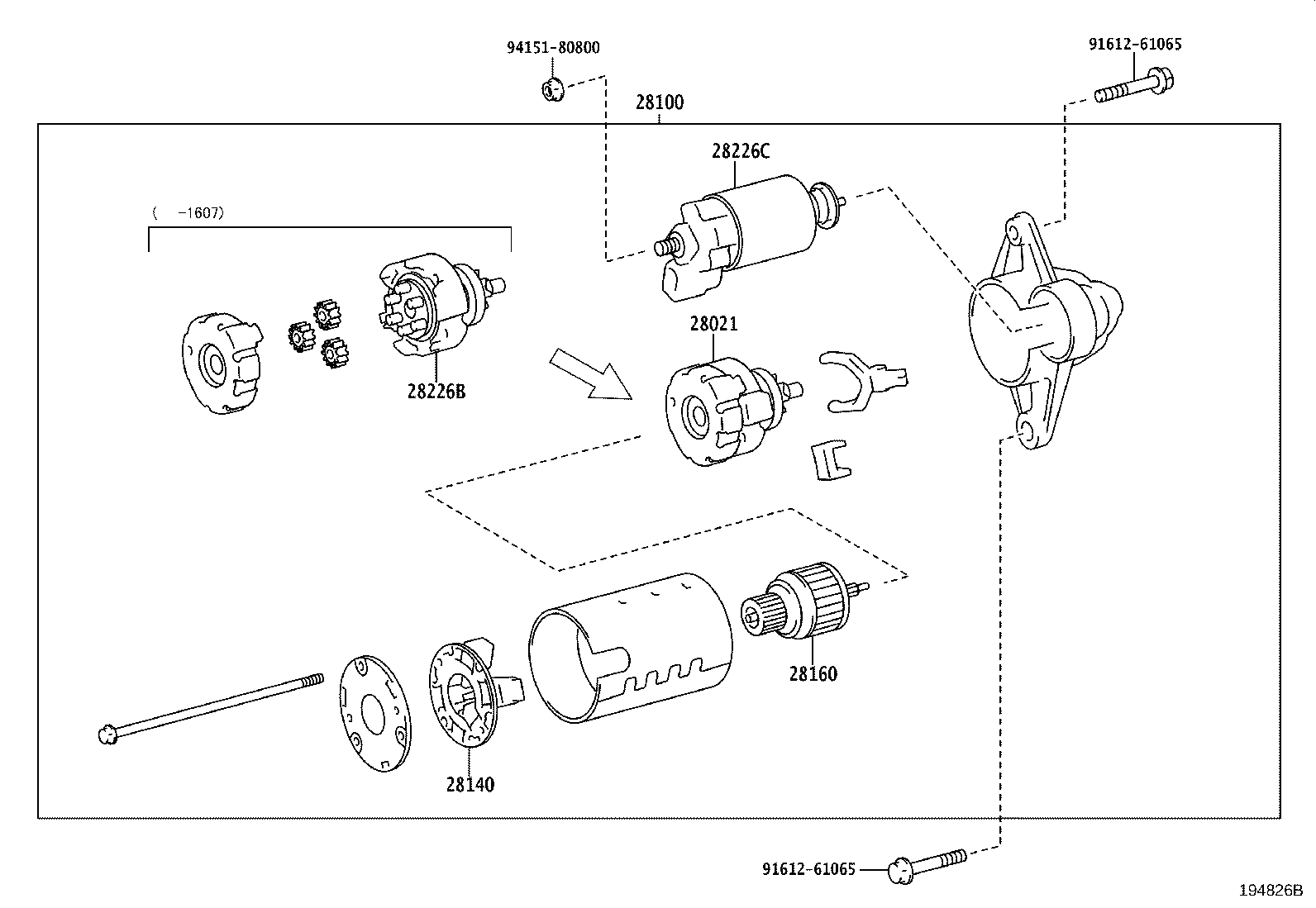

Click highlighted areas on diagram

12V 1.0KW,1.2KW

diagram 28021 28100 28140 28160 28226B 28226C 9161261065 9161261065 9415180800
Part # Description Qty Price
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-47170

2ZRFAE..ZRT260,265

 1
28100 - STARTER ASSY
28100-37130

2ZRFAE..ZRT260,265

12V 1.2KW,寒冷地仕様

 1
28100-37150

2ZRFAE..ZRT260,265

12V 1.0KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-21070

2ZRFAE..ZRT260,265

 1
28160 - ARMATURE ASSY, STARTER
28160-21070

2ZRFAE..ZRT260,265

 1
28160-21080

2ZRFAE..ZRT260,265

寒冷地仕様

 1
28226B - STARTER KIT, REPAIR SERVICE
28226-47170

2ZRFAE,3ZRFAE..ZRT26#..CBU

 1
28226C - STARTER KIT, REPAIR SERVICE, NO.2
28226-37130

2ZRFAE..ZRT260,265

 1
Common parts
91612-61065
94151-80800
