ZRT265-CEXEP (2016)
Toyota Premio/Allion
Production
Jun 2016
-
Sep 9999
Engine
2ZRFAE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0705-1609)2ZR#,3ZRFAE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04152 - ELEMENT KIT, OIL FILTER | ||||
| 04152-37010 |
2ZRFAE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 15609 - BRACKET SUB-ASSY, OIL FILTER | ||||
| 15609-37020 |
2ZRFAE..ZRT265 |
1 | ||
| 15609-37010 |
2ZRFAE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 15609-37060 |
2ZRFAE..ZRT260,265 |
1 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-20002 |
2ZRFAE..ZRT260,265 |
2 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-20002 |
2ZRFAE..ZRT260,265 |
2 | ||
| 15609H - RING, O(FOR OIL FILTER BRACKET) | ||||
| 96723-24020 |
2ZRFAE..ZRT260,265 |
2 | ||
| 15609H - RING, O(FOR OIL FILTER BRACKET) | ||||
| 96723-24020 |
2ZRFAE..ZRT260,265 |
2 | ||
| 15620 - CAP ASSY, OIL FILTER | ||||
| 15620-37010 |
2ZRFAE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 15620C - GASKET(FOR OIL FILTER CAP) | ||||
| 90301-69011 |
2ZRFAE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 15679 - CLIP, OIL FILTER BRACKET | ||||
| 15679-37011 |
2ZRFAE,3ZRFAE..ZRT26#..CBU |
1 | ||
| Common parts | ||||
| 90430-20004 | ||||
| 90430-20018 | ||||
| 91551-F0835 | ||||
(1609- )2ZRFAE,3ZRFAE

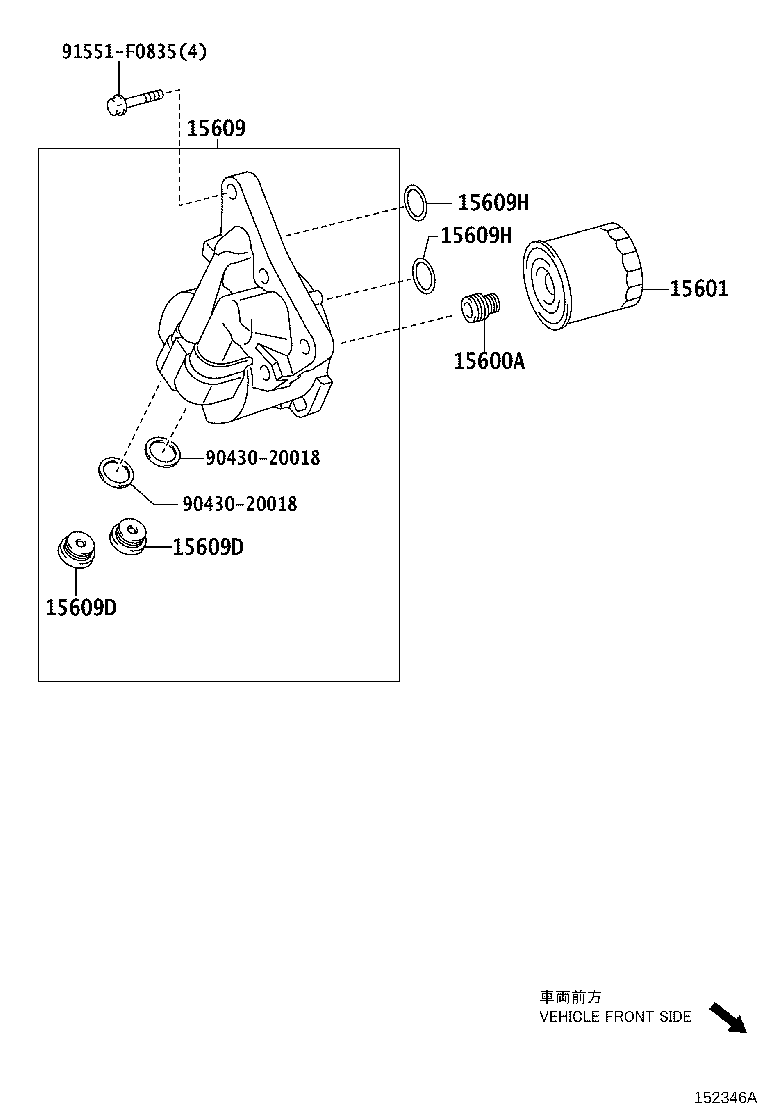

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15600A - UNION(FOR OIL FILTER) | ||||
| 90904-04006 |
2ZRFAE..ZRT260,265 |
1 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 90915-10003 |
2ZRFAE..ZRT260,265 |
1 | ||
| 15609 - BRACKET SUB-ASSY, OIL FILTER | ||||
| 15609-37020 |
2ZRFAE..ZRT265 |
1 | ||
| 15609-37010 |
2ZRFAE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 15609-37060 |
2ZRFAE..ZRT260,265 |
1 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-20002 |
2ZRFAE..ZRT260,265 |
2 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-20002 |
2ZRFAE..ZRT260,265 |
2 | ||
| 15609H - RING, O(FOR OIL FILTER BRACKET) | ||||
| 96723-24020 |
2ZRFAE..ZRT260,265 |
2 | ||
| 15609H - RING, O(FOR OIL FILTER BRACKET) | ||||
| 96723-24020 |
2ZRFAE..ZRT260,265 |
2 | ||
| Common parts | ||||
| 90430-20018 | ||||
| 91551-F0835 | ||||
