Toyota Premio/allion ZRT265 MIRROR

ZRT265-AEXEP (2010)

Toyota Premio/Allion

Production Apr 2010 - Jun 2016

Engine 2ZRFAE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0705-1202)

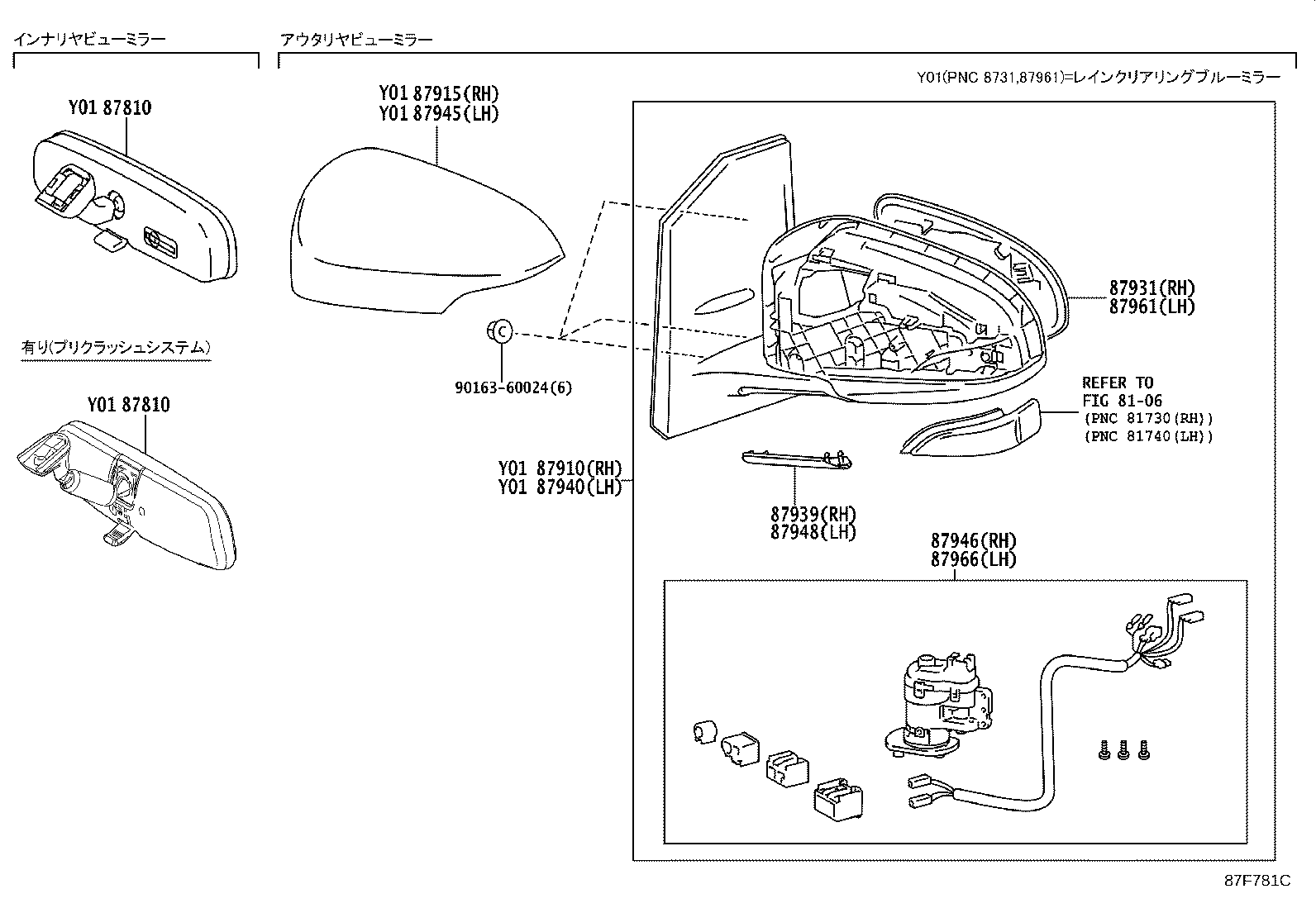

Click highlighted areas on diagram

Part #	Description	Period	Qty
87810 - MIRROR ASSY, INNER REAR VIEW
87810-52041	NZT260,ZRT26#..CBU	04/2010 - 06/2016	1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-20A00	NZT260,ZRT26#..CBU 塗装不要	04/2010 - 12/2012	1
87910-20A40	NZT260,ZRT26#..CBU 塗装不要	12/2012 - 06/2016	1
87910-20A50	NZT260,ZRT26#..CBU 塗装不要,寒冷地仕様	12/2012 - 06/2016	1
87910-2D090	NZT260,ZRT26#..CBU 塗装不要,寒冷地仕様	04/2010 - 12/2012	1
87915 - COVER, OUTER MIRROR, RH
87915-12090C1	NZT260,ZRT26#..CBU BLACK,202	10/2011 - 12/2012	1
87915-12070C0	NZT260,ZRT26#..CBU BLACK MC.,209	04/2010 - 10/2011	1
87915-12070B0	NZT260,ZRT26#..CBU SILVER ME.,1F7	04/2010 - 12/2012	1
87915-12070B2	NZT260,ZRT26#..PRM..CBU GRAY ME.,1G2	04/2010 - 12/2012	1
87915-12070D1	NZT260,ZRT26#..CBU BLACKISH RED MC.,3R0	04/2010 - 12/2012	1
87915-12070A0	NZT260,ZRT26#..CBU SUPER WHITE 2,040	04/2010 - 12/2012	1
87915-12070A1	NZT260,ZRT26#..CBU WHITE PEARL CS.,070	04/2010 - 12/2012	1
87915-52140A0	NZT260,ZRT26#..CBU SUPER WHITE 2,040	12/2012 - 06/2016	1
87915-52140A1	NZT260,ZRT26#..CBU WHITE PEARL CS.,070	12/2012 - 06/2016	1
87915-12070J0	NZT260,ZRT26#..CBU DK.BLUE MC.,8S6	04/2010 - 12/2012	1
87915-52140H1	NZT260,ZRT26#..CBU CLEAR STREAM ME.,787	12/2012 - 06/2016	1
87915-52140B0	NZT260,ZRT26#..CBU SILVER ME.,1F7	12/2012 - 06/2016	1
87915-52140C1	NZT260,ZRT26#..CBU BLACK,202	12/2012 - 06/2016	1
87915-52140D3	NZT260,ZRT26#..CBU BLACKISH RED MC.,3R0	12/2012 - 06/2016	1
87915-52140J3	NZT260,ZRT26#..PRM..CBU ABYSS GRAY ME.,8V1	12/2012 - 06/2016	1
87931 - OUTER MIRROR, RH
87931-20A00	NZT260,ZRT26#..CBU	04/2010 - 12/2012	1
87931-12B90	NZT260,ZRT26#..CBU 寒冷地仕様	04/2010 - 12/2012	1
87931-52B90	NZT260,ZRT26#..CBU	12/2012 - 06/2016	1
87931-20A50	NZT260,ZRT26#..CBU 寒冷地仕様	12/2012 - 06/2016	1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-20A50	NZT260,ZRT26#..CBU 塗装不要	12/2012 - 06/2016	1
87940-20A00	NZT260,ZRT26#..CBU 塗装不要,寒冷地仕様	04/2010 - 12/2012	1
87940-20A60	NZT260,ZRT26#..CBU 塗装不要,寒冷地仕様	12/2012 - 06/2016	1
87940-20A10	NZT260,ZRT26#..CBU 塗装不要	04/2010 - 12/2012	1
87945 - COVER, OUTER MIRROR, LH
87945-12070C0	NZT260,ZRT26#..CBU BLACK MC.,209	04/2010 - 10/2011	1
87945-12070A0	NZT260,ZRT26#..CBU SUPER WHITE 2,040	04/2010 - 12/2012	1
87945-12070B0	NZT260,ZRT26#..CBU SILVER ME.,1F7	04/2010 - 12/2012	1
87945-12070B2	NZT260,ZRT26#..PRM..CBU GRAY ME.,1G2	04/2010 - 12/2012	1
87945-12070J0	NZT260,ZRT26#..CBU DK.BLUE MC.,8S6	04/2010 - 12/2012	1
87945-52140B0	NZT260,ZRT26#..CBU SILVER ME.,1F7	12/2012 - 06/2016	1
87945-12090C1	NZT260,ZRT26#..CBU BLACK,202	10/2011 - 12/2012	1
87945-52140A1	NZT260,ZRT26#..CBU WHITE PEARL CS.,070	12/2012 - 06/2016	1
87945-12070D1	NZT260,ZRT26#..CBU BLACKISH RED MC.,3R0	04/2010 - 12/2012	1
87945-52140A0	NZT260,ZRT26#..CBU SUPER WHITE 2,040	12/2012 - 06/2016	1
87945-52140D3	NZT260,ZRT26#..CBU BLACKISH RED MC.,3R0	12/2012 - 06/2016	1
87945-52140H1	NZT260,ZRT26#..CBU CLEAR STREAM ME.,787	12/2012 - 06/2016	1
87945-52140C1	NZT260,ZRT26#..CBU BLACK,202	12/2012 - 06/2016	1
87945-12070A1	NZT260,ZRT26#..CBU WHITE PEARL CS.,070	04/2010 - 12/2012	1
87945-52140J3	NZT260,ZRT26#..PRM..CBU ABYSS GRAY ME.,8V1	12/2012 - 06/2016	1
87946 - RETRACTOR, OUTER MIRROR, RH
87946-20A00	NZT260,ZRT26#..CBU	04/2010 - 12/2012	1
87946-20A40	NZT260,ZRT26#..CBU	12/2012 - 06/2016	1
87946-20A50	NZT260,ZRT26#..CBU 寒冷地仕様	12/2012 - 06/2016	1
87961 - MIRROR OUTER, LH
87961-12B90	NZT260,ZRT26#..CBU 寒冷地仕様	04/2010 - 12/2012	1
87961-20A10	NZT260,ZRT26#..CBU	04/2010 - 12/2012	1
87961-52B30	NZT260,ZRT26#..CBU	12/2012 - 06/2016	1
87961-20A60	NZT260,ZRT26#..CBU 寒冷地仕様	12/2012 - 06/2016	1
87966 - RETRACTOR, OUTER MIRROR, LH
87966-20A10	NZT260,ZRT26#..CBU	04/2010 - 12/2012	1
87966-20A60	NZT260,ZRT26#..CBU 寒冷地仕様	12/2012 - 06/2016	1
87966-20A50	NZT260,ZRT26#..CBU	12/2012 - 06/2016	1
Common parts
90163-60024
Linked diagrams
8106

(1202- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
87810 - MIRROR ASSY, INNER REAR VIEW
87810-52041	NZT260,ZRT26#..CBU	04/2010 - 06/2016	1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-52041	NZT260,ZRT26#..CBU	04/2010 - 06/2016	1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-20A00	NZT260,ZRT26#..CBU 塗装不要	04/2010 - 12/2012	1
87910-20A40	NZT260,ZRT26#..CBU 塗装不要	12/2012 - 06/2016	1
87910-20A50	NZT260,ZRT26#..CBU 塗装不要,寒冷地仕様	12/2012 - 06/2016	1
87910-2D090	NZT260,ZRT26#..CBU 塗装不要,寒冷地仕様	04/2010 - 12/2012	1
87915 - COVER, OUTER MIRROR, RH
87915-12090C1	NZT260,ZRT26#..CBU BLACK,202	10/2011 - 12/2012	1
87915-12070C0	NZT260,ZRT26#..CBU BLACK MC.,209	04/2010 - 10/2011	1
87915-12070B0	NZT260,ZRT26#..CBU SILVER ME.,1F7	04/2010 - 12/2012	1
87915-12070B2	NZT260,ZRT26#..PRM..CBU GRAY ME.,1G2	04/2010 - 12/2012	1
87915-12070D1	NZT260,ZRT26#..CBU BLACKISH RED MC.,3R0	04/2010 - 12/2012	1
87915-12070A0	NZT260,ZRT26#..CBU SUPER WHITE 2,040	04/2010 - 12/2012	1
87915-12070A1	NZT260,ZRT26#..CBU WHITE PEARL CS.,070	04/2010 - 12/2012	1
87915-52140A0	NZT260,ZRT26#..CBU SUPER WHITE 2,040	12/2012 - 06/2016	1
87915-52140A1	NZT260,ZRT26#..CBU WHITE PEARL CS.,070	12/2012 - 06/2016	1
87915-12070J0	NZT260,ZRT26#..CBU DK.BLUE MC.,8S6	04/2010 - 12/2012	1
87915-52140H1	NZT260,ZRT26#..CBU CLEAR STREAM ME.,787	12/2012 - 06/2016	1
87915-52140B0	NZT260,ZRT26#..CBU SILVER ME.,1F7	12/2012 - 06/2016	1
87915-52140C1	NZT260,ZRT26#..CBU BLACK,202	12/2012 - 06/2016	1
87915-52140D3	NZT260,ZRT26#..CBU BLACKISH RED MC.,3R0	12/2012 - 06/2016	1
87915-52140J3	NZT260,ZRT26#..PRM..CBU ABYSS GRAY ME.,8V1	12/2012 - 06/2016	1
87931 - OUTER MIRROR, RH
87931-20A00	NZT260,ZRT26#..CBU	04/2010 - 12/2012	1
87931-12B90	NZT260,ZRT26#..CBU 寒冷地仕様	04/2010 - 12/2012	1
87931-52B90	NZT260,ZRT26#..CBU	12/2012 - 06/2016	1
87931-20A50	NZT260,ZRT26#..CBU 寒冷地仕様	12/2012 - 06/2016	1
87939 - COVER, OUTER MIRROR HOLE, RH
87939-52B90	NZT260,ZRT26#..CBU	12/2012 - 06/2016	1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-20A50	NZT260,ZRT26#..CBU 塗装不要	12/2012 - 06/2016	1
87940-20A00	NZT260,ZRT26#..CBU 塗装不要,寒冷地仕様	04/2010 - 12/2012	1
87940-20A60	NZT260,ZRT26#..CBU 塗装不要,寒冷地仕様	12/2012 - 06/2016	1
87940-20A10	NZT260,ZRT26#..CBU 塗装不要	04/2010 - 12/2012	1
87945 - COVER, OUTER MIRROR, LH
87945-12070C0	NZT260,ZRT26#..CBU BLACK MC.,209	04/2010 - 10/2011	1
87945-12070A0	NZT260,ZRT26#..CBU SUPER WHITE 2,040	04/2010 - 12/2012	1
87945-12070B0	NZT260,ZRT26#..CBU SILVER ME.,1F7	04/2010 - 12/2012	1
87945-12070B2	NZT260,ZRT26#..PRM..CBU GRAY ME.,1G2	04/2010 - 12/2012	1
87945-12070J0	NZT260,ZRT26#..CBU DK.BLUE MC.,8S6	04/2010 - 12/2012	1
87945-52140B0	NZT260,ZRT26#..CBU SILVER ME.,1F7	12/2012 - 06/2016	1
87945-12090C1	NZT260,ZRT26#..CBU BLACK,202	10/2011 - 12/2012	1
87945-52140A1	NZT260,ZRT26#..CBU WHITE PEARL CS.,070	12/2012 - 06/2016	1
87945-12070D1	NZT260,ZRT26#..CBU BLACKISH RED MC.,3R0	04/2010 - 12/2012	1
87945-52140A0	NZT260,ZRT26#..CBU SUPER WHITE 2,040	12/2012 - 06/2016	1
87945-52140D3	NZT260,ZRT26#..CBU BLACKISH RED MC.,3R0	12/2012 - 06/2016	1
87945-52140H1	NZT260,ZRT26#..CBU CLEAR STREAM ME.,787	12/2012 - 06/2016	1
87945-52140C1	NZT260,ZRT26#..CBU BLACK,202	12/2012 - 06/2016	1
87945-12070A1	NZT260,ZRT26#..CBU WHITE PEARL CS.,070	04/2010 - 12/2012	1
87945-52140J3	NZT260,ZRT26#..PRM..CBU ABYSS GRAY ME.,8V1	12/2012 - 06/2016	1
87946 - RETRACTOR, OUTER MIRROR, RH
87946-20A00	NZT260,ZRT26#..CBU	04/2010 - 12/2012	1
87946-20A40	NZT260,ZRT26#..CBU	12/2012 - 06/2016	1
87946-20A50	NZT260,ZRT26#..CBU 寒冷地仕様	12/2012 - 06/2016	1
87948 - COVER, OUTER MIRROR HOLE, LH
87948-52B30	NZT260,ZRT26#..CBU	12/2012 - 06/2016	1
87961 - MIRROR OUTER, LH
87961-12B90	NZT260,ZRT26#..CBU 寒冷地仕様	04/2010 - 12/2012	1
87961-20A10	NZT260,ZRT26#..CBU	04/2010 - 12/2012	1
87961-52B30	NZT260,ZRT26#..CBU	12/2012 - 06/2016	1
87961-20A60	NZT260,ZRT26#..CBU 寒冷地仕様	12/2012 - 06/2016	1
87966 - RETRACTOR, OUTER MIRROR, LH
87966-20A10	NZT260,ZRT26#..CBU	04/2010 - 12/2012	1
87966-20A60	NZT260,ZRT26#..CBU 寒冷地仕様	12/2012 - 06/2016	1
87966-20A50	NZT260,ZRT26#..CBU	12/2012 - 06/2016	1
Common parts
90163-60024
Linked diagrams
8106

ZRT265-AEXEP (2010)

(0705-1202)

(1202- )
