ZRT265-AEXEP (2010)
Toyota Premio/Allion
ILLUST NO. 1 OF10(0705-1606)
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-20C01 |
ZRT260,265..CBU Lﾊﾟｯｹｰｼﾞ OR Gﾊﾟｯｹｰｼﾞ |
1 | ||
| 82111-20C11 |
ZRT260,265..CBU Lﾊﾟｯｹｰｼﾞ OR Gﾊﾟｯｹｰｼﾞ&寒冷地仕様 |
1 | ||
| 82111-20C21 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ OR G−plusﾊﾟｯｹｰｼﾞ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20C21 |
ZRT260,265..CBU Lﾊﾟｯｹｰｼﾞ OR Gﾊﾟｯｹｰｼﾞ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20C31 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ OR G−plusﾊﾟｯｹｰｼﾞ&寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20C31 |
ZRT260,265..CBU Lﾊﾟｯｹｰｼﾞ OR Gﾊﾟｯｹｰｼﾞ&寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20C91 |
ZRT260,265..CBU |
1 | ||
| 82111-20D30 |
ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20C21 |
ZRT260,265..PRM..CBU 1.8X“Lﾊﾟｯｹｰｼﾞ Prime Green Selection”*(B)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ(ｴｸｽﾃﾝｼｮﾝ ｸﾞﾘｰﾝ) |
1 | ||
| 82111-20D40 |
ZRT260,265..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20D60 |
ZRT260,265..CBU 寒冷地仕様 |
1 | ||
| 82111-20E20 |
ZRT260,265..CBU Lﾊﾟｯｹｰｼﾞ OR Gﾊﾟｯｹｰｼﾞ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20E20 |
ZRT260,265..CBU EXﾊﾟｯｹｰｼﾞ OR G−plusﾊﾟｯｹｰｼﾞ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20E00 |
ZRT260,265..CBU Lﾊﾟｯｹｰｼﾞ OR Gﾊﾟｯｹｰｼﾞ |
1 | ||
| 82111-20E10 |
ZRT26#..CBU 寒冷地仕様 |
1 | ||
| 82111-20E10 |
ZRT260,265..CBU Lﾊﾟｯｹｰｼﾞ OR Gﾊﾟｯｹｰｼﾞ&寒冷地仕様 |
1 | ||
| 82111-20E30 |
ZRT260,265..CBU EXﾊﾟｯｹｰｼﾞ OR G−plusﾊﾟｯｹｰｼﾞ&寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20C31 |
ZRT260,265..PRM..CBU 1.8X“Lﾊﾟｯｹｰｼﾞ Prime Green Selection”*(B)&寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ(ｴｸｽﾃﾝｼｮﾝ ｸﾞﾘｰﾝ) |
1 | ||
| 82111-20E30 |
ZRT260,265..CBU Lﾊﾟｯｹｰｼﾞ OR Gﾊﾟｯｹｰｼﾞ&寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20F00 |
ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20E30 |
ZRT26#..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20E80 |
ZRT260,265..CBU |
1 | ||
| 82111-20F50 |
ZRT260,265..CBU Lﾊﾟｯｹｰｼﾞ OR Gﾊﾟｯｹｰｼﾞ&寒冷地仕様 |
1 | ||
| 82111-20F60 |
ZRT260,265..CBU Lﾊﾟｯｹｰｼﾞ OR Gﾊﾟｯｹｰｼﾞ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20F60 |
ZRT260,265..CBU EXﾊﾟｯｹｰｼﾞ OR G−plusﾊﾟｯｹｰｼﾞ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20F50 |
ZRT26#..CBU 寒冷地仕様 |
1 | ||
| 82111-20F70 |
ZRT26#..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20F70 |
ZRT260,265..CBU Lﾊﾟｯｹｰｼﾞ OR Gﾊﾟｯｹｰｼﾞ&寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20G20 |
ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20F40 |
ZRT260,265..CBU Lﾊﾟｯｹｰｼﾞ OR Gﾊﾟｯｹｰｼﾞ |
1 | ||
| 82111-20F70 |
ZRT260,265..CBU EXﾊﾟｯｹｰｼﾞ OR G−plusﾊﾟｯｹｰｼﾞ&寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20G00 |
ZRT260,265..CBU |
1 | ||
| 82111-20C21 |
ZRT260,265..CBU Lﾊﾟｯｹｰｼﾞ OR Gﾊﾟｯｹｰｼﾞ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20C21 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ OR G−plusﾊﾟｯｹｰｼﾞ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20C11 |
ZRT260,265..CBU Lﾊﾟｯｹｰｼﾞ OR Gﾊﾟｯｹｰｼﾞ&寒冷地仕様 |
1 | ||
| 82111-20C31 |
ZRT260,265..CBU Lﾊﾟｯｹｰｼﾞ OR Gﾊﾟｯｹｰｼﾞ&寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20C01 |
ZRT260,265..CBU Lﾊﾟｯｹｰｼﾞ OR Gﾊﾟｯｹｰｼﾞ |
1 | ||
| 82111-20C31 |
ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ OR G−plusﾊﾟｯｹｰｼﾞ&寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20D30 |
ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20D60 |
ZRT260,265..CBU 寒冷地仕様 |
1 | ||
| 82111-20C91 |
ZRT260,265..CBU |
1 | ||
| 82111-20C21 |
ZRT260,265..PRM..CBU 1.8X“Lﾊﾟｯｹｰｼﾞ Prime Green Selection”*(B)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ(ｴｸｽﾃﾝｼｮﾝ ｸﾞﾘｰﾝ) |
1 | ||
| 82111-20E10 |
ZRT26#..CBU 寒冷地仕様 |
1 | ||
| 82111-20E10 |
ZRT260,265..CBU Lﾊﾟｯｹｰｼﾞ OR Gﾊﾟｯｹｰｼﾞ&寒冷地仕様 |
1 | ||
| 82111-20E00 |
ZRT260,265..CBU Lﾊﾟｯｹｰｼﾞ OR Gﾊﾟｯｹｰｼﾞ |
1 | ||
| 82111-20C31 |
ZRT260,265..PRM..CBU 1.8X“Lﾊﾟｯｹｰｼﾞ Prime Green Selection”*(B)&寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ(ｴｸｽﾃﾝｼｮﾝ ｸﾞﾘｰﾝ) |
1 | ||
| 82111-20E30 |
ZRT260,265..CBU Lﾊﾟｯｹｰｼﾞ OR Gﾊﾟｯｹｰｼﾞ&寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ;EXﾊﾟbｹｰｼﾞ OR G−plusﾊﾟｯｹｰｼﾞ&寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20D40 |
ZRT260,265..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20E30 |
ZRT26#..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20E20 |
ZRT260,265..CBU Lﾊﾟｯｹｰｼﾞ OR Gﾊﾟｯｹｰｼﾞ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ;EXﾊﾟｯｹｰｼﾞ Oq G−plusﾊﾟｯｹｰｼﾞ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20F00 |
ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20E80 |
ZRT260,265..CBU |
1 | ||
| 82111-20F50 |
ZRT26#..CBU 寒冷地仕様 |
1 | ||
| 82111-20F50 |
ZRT260,265..CBU Lﾊﾟｯｹｰｼﾞ OR Gﾊﾟｯｹｰｼﾞ&寒冷地仕様 |
1 | ||
| 82111-20F70 |
ZRT260,265..CBU Lﾊﾟｯｹｰｼﾞ OR Gﾊﾟｯｹｰｼﾞ&寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ;EXﾊﾟbｹｰｼﾞ OR G−plusﾊﾟｯｹｰｼﾞ&寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20F40 |
ZRT260,265..CBU Lﾊﾟｯｹｰｼﾞ OR Gﾊﾟｯｹｰｼﾞ |
1 | ||
| 82111-20G00 |
ZRT260,265..CBU |
1 | ||
| 82111-20F60 |
ZRT260,265..CBU Lﾊﾟｯｹｰｼﾞ OR Gﾊﾟｯｹｰｼﾞ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ;EXﾊﾟｯｹｰｼﾞ Oq G−plusﾊﾟｯｹｰｼﾞ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20F70 |
ZRT26#..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-20G20 |
ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12250 |
NZT260,ZRT26#..CBU |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12330 |
NZT260,ZRT26#..CBU |
1 | ||
| 82815-12330 |
NZT260,ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12D50 |
NZT260,ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82817-12D50 |
NZT260,ZRT26#..CBU |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12E91 |
NZT260,ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82817-12E91 |
NZT260,ZRT26#..CBU |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-35040 |
NZT260,ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82821-35040 |
NZT260,ZRT26#..CBU |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-52140 |
NZT260,ZRT260,265..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82821-52140 |
NZT260,ZRT26#..CBU |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-12570 |
NZT260,ZRT26#..CBU |
2 | ||
| 82821-12570 |
NZT260,ZRT26#..CBU |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||

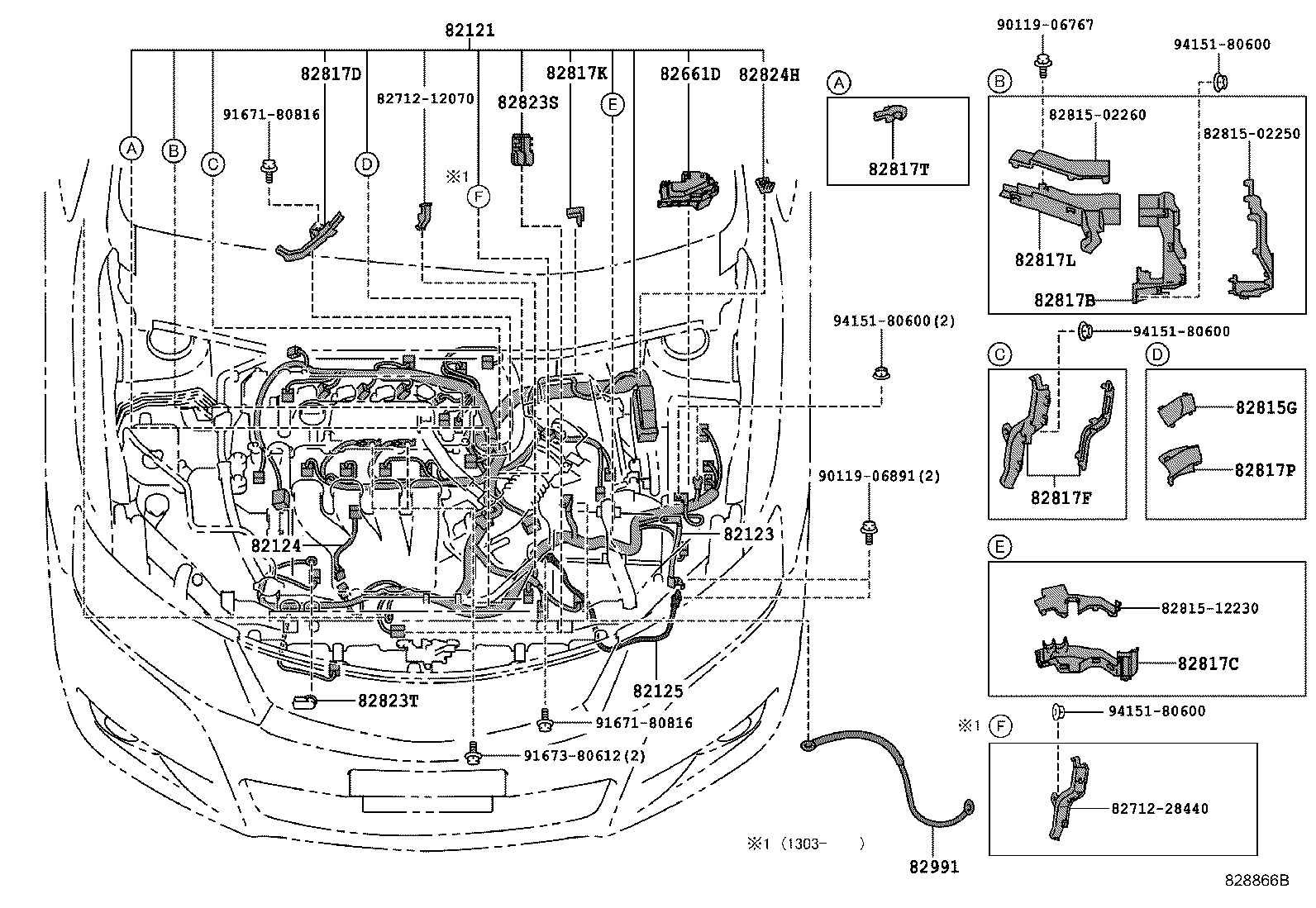

ILLUST NO. 2 OF10(1004- )ZRT260,265
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-20A60 |
ZRT265..CBU |
1 | ||
| 82121-20A80 |
ZRT260,265..CBU |
1 | ||
| 82121-20B20 |
ZRT260,265..CBU |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-12440 |
NZT260,ZRT26#..CBU |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-02090 |
ZRT26#..CBU |
1 | ||
| 82124-12160 |
ZRT26#..CBU |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-20320 |
NZT260,ZRT260,265..CBU |
1 | ||
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-12280 |
NZT260,ZRT26#..CBU |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-12180 |
ZRT260,265..CBU |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-02760 |
ZRT260,265..CBU |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-12D30 |
NZT260,ZRT26#..CBU |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-20A50 |
NZT260,ZRT260,265..CBU |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82712-28440 |
ZRT260,265..CBU |
1 | ||
| 82817-28440 |
ZRT260,265..CBU |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-12860 |
NZT260,ZRT26#..CBU |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-02770 |
ZRT260,265..CBU |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-12B60 |
ZRT260,265..CBU |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-68170 |
ZRT260,265..CBU |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-12120 |
NZT260,ZRT26#..CBU |
1 | ||
| 82823-12090 |
NZT260,ZRT26#..CBU |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NZT260,ZRT26#..CBU |
1 | ||
| 82824H - CONNECTOR, WIRING HARNESS | ||||
| 82824-34100 |
ZRT260,265..CBU |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12110 |
NZT260,ZRT26#..CBU |
1 | ||
| Common parts | ||||
| 82712-12070 | ||||
| 82712-28440 | ||||
| 82815-02250 | ||||
| 82815-02260 | ||||
| 82815-12230 | ||||
| 90119-06767 | ||||
| 90119-06891 | ||||
| 91671-80816 | ||||
| 91673-80612 | ||||
| 94151-80600 | ||||
