ZRT265-AEXEP (2016)

Toyota Premio/Allion

Production Jun 2016 - Sep 9999
Engine 2ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1606- )

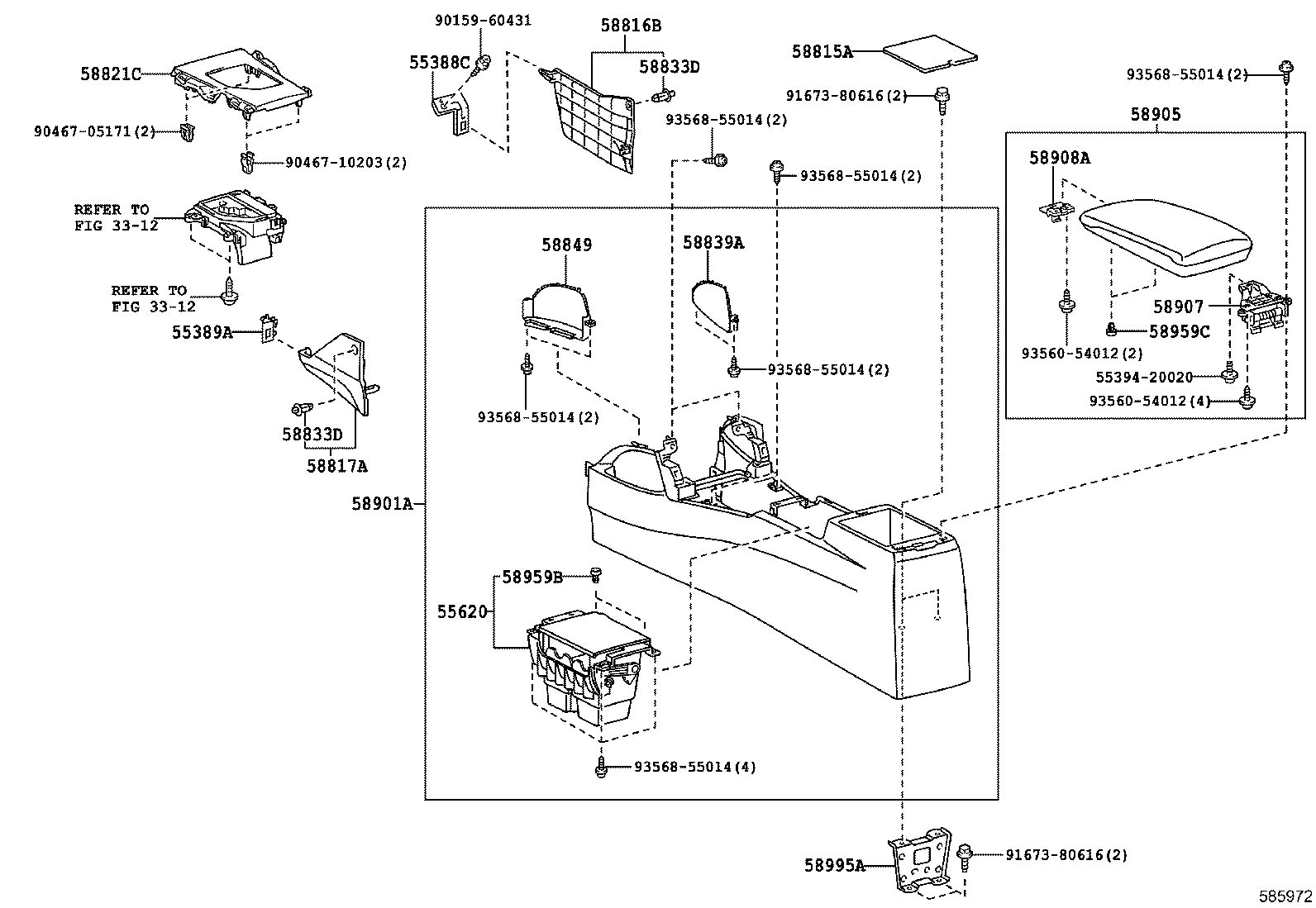

Click highlighted areas on diagram

diagram 3312 3312 55388C 55389A 5539420020 55620 58815A 58816B 58817A 58821C 58833D 58833D 58839A 58849 58901A 58905 58907 58908A 58959B 58959C 58995A 9015960431 9046705171 9046710203 9167380616 9167380616 9356054012 9356054012 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55388C - BRACKET, CONSOLE MOUNTING, RH
55389-42020

NZT260,ZRT260,265..CBU

 1
55389A - BRACKET, CONSOLE MOUNTING, LH
55388-42020

NZT260,ZRT260,265..CBU

 1
55620 - HOLDER ASSY, INSTRUMENT PANEL CUP
55620-20050E8

NZT260,ZRT26#..CBU

BROWN,TRIM00,2#

 1
55620-20050E6

ZRT26#..CBU

*LES & 有り(EXﾊﾟｯｹｰｼﾞ OR G−plusﾊﾟｯｹｰｼﾞ),LIGHT BROWN,TRIM2#

 1
55620-20051E6

ZRT260,265..CBU

*LES & 有り(EXﾊﾟｯｹｰｼﾞ OR G−plusﾊﾟｯｹｰｼﾞ),LIGHT BROWN 22BN166,TRIM2#

 1
55620-20050E7

NZT260,ZRT26#..CBU

REDISH BROWN 22BN165,TRIM00

 1
55620-20051E8

NZT260,ZRT260,265..CBU

BROWN 22BN164,TRIM00,2#

 1
55620-20051E7

NZT260,ZRT260,265..CBU

REDISH BROWN 22BN165,TRIM00

 1
58815A - CARPET, CONSOLE BOX
58815-20081

NZT260,ZRT260,265..CBU

 1
58816B - INSERT, CONSOLE BOX
58816-20060C0

NZT260,ZRT260,265..CBU

BLACK,TRIM0#,2#

 1
58817A - INSERT, CONSOLE BOX, FRONT NO.2
58817-20010C0

NZT260,ZRT260,265..CBU

BLACK,TRIM0#,2#

 1
58821C - PANEL, CONSOLE, UPPER
58821-20370E1

NZT260,ZRT26#..CBU

REDISH BROWN,TRIM00

 1
58821-20371E2

ZRT260,265..CBU

BROWN 22BN164,TRIM00,20

 1
58821-20371E0

ZRT260,265..CBU

LIGHT BROWN 22BN166,TRIM20

 1
58821-20370E2

ZRT26#..CBU

BROWN,TRIM00,20

 1
58821-20370E0

ZRT26#..CBU

LIGHT BROWN,TRIM20

 1
58821-20371E1

NZT260,ZRT260,265..CBU

REDISH BROWN 22BN165,TRIM00

 1
58833D - CLIP(FOR CONSOLE COVER)
90467-0706622

NZT260,ZRT260,265..CBU

BLACK,TRIM0#,2#

 2
58833D - CLIP(FOR CONSOLE COVER)
90467-0706622

NZT260,ZRT260,265..CBU

BLACK,TRIM0#,2#

 2
58839A - COVER, CONSOLE BOX HOLE
58839-20070C0

ZRT260,265..CBU

*LES & 有り(EXﾊﾟｯｹｰｼﾞ OR G−plusﾊﾟｯｹｰｼﾞ),BLACK,TRIM2#

 1
58839-20060C0

ZRT260,265..CBU

BLACK,TRIM0#,2#

 1
58849 - COVER, CONSOLE BOX HOLE, NO.2
58849-20020C0

ZRT260,265..CBU

*LES & 有り(EXﾊﾟｯｹｰｼﾞ OR G−plusﾊﾟｯｹｰｼﾞ),BLACK,TRIM2#

 1
58849-20010C0

NZT260,ZRT260,265..CBU

BLACK,TRIM0#,2#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-20260C2

ZRT26#..CBU

BLACK/BROWN,TRIM00,2#

 1
58901-20270C0

ZRT26#..CBU

*LES & 有り(EXﾊﾟｯｹｰｼﾞ OR G−plusﾊﾟｯｹｰｼﾞ),BLACK,TRIM2#

 1
58901-20261C2

ZRT260,265..CBU

BLACK/BROWN,TRIM00,2#

 1
58901-20261C1

ZRT260,265..CBU

BLACK/REDISH BROWN,TRIM00

 1
58901-20271C0

ZRT260,265..CBU

*LES & 有り(EXﾊﾟｯｹｰｼﾞ OR G−plusﾊﾟｯｹｰｼﾞ),BLACK,TRIM2#

 1
58901-20260C1

ZRT26#..CBU

BLACK/REDISH BROWN,TRIM00

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-20500E3

ZRT26#..CBU

*LES & 有り(EXﾊﾟｯｹｰｼﾞ OR G−plusﾊﾟｯｹｰｼﾞ),RED WOOD,TRIM2#

 1
58905-20490C0

NZT260,ZRT26#..CBU

BLACK,TRIM2#

 1
58905-20490A1

NZT260,ZRT26#..CBU

FLAXEN,TRIM0#

 1
58905-20491A1

NZT260,ZRT260,265..CBU

FLAXEN,TRIM0#

 1
58905-20501E3

ZRT260,265..CBU

*LES & 有り(EXﾊﾟｯｹｰｼﾞ OR G−plusﾊﾟｯｹｰｼﾞ),RED WOOD,TRIM2#

 1
58905-20491C0

NZT260,ZRT260,265..CBU

BLACK,TRIM2#

 1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-20040

NZT260,ZRT260,265..CBU

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-33030

NZT260,ZRT260,265..CBU

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-60060

NZT260,ZRT260,265..CBU

 2
58959C - CUSHION, CONSOLE COMPARTMENT DOOR
58959-60060

NZT260,ZRT260,265..CBU

 2
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-20090

NZT260,ZRT260,265..CBU

 1
Common parts
55394-20020
90159-60431
90467-05171
90467-10203
91673-80616
93560-54012
93568-55014
Linked diagrams
3312
