ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705-1212)

Click highlighted areas on diagram

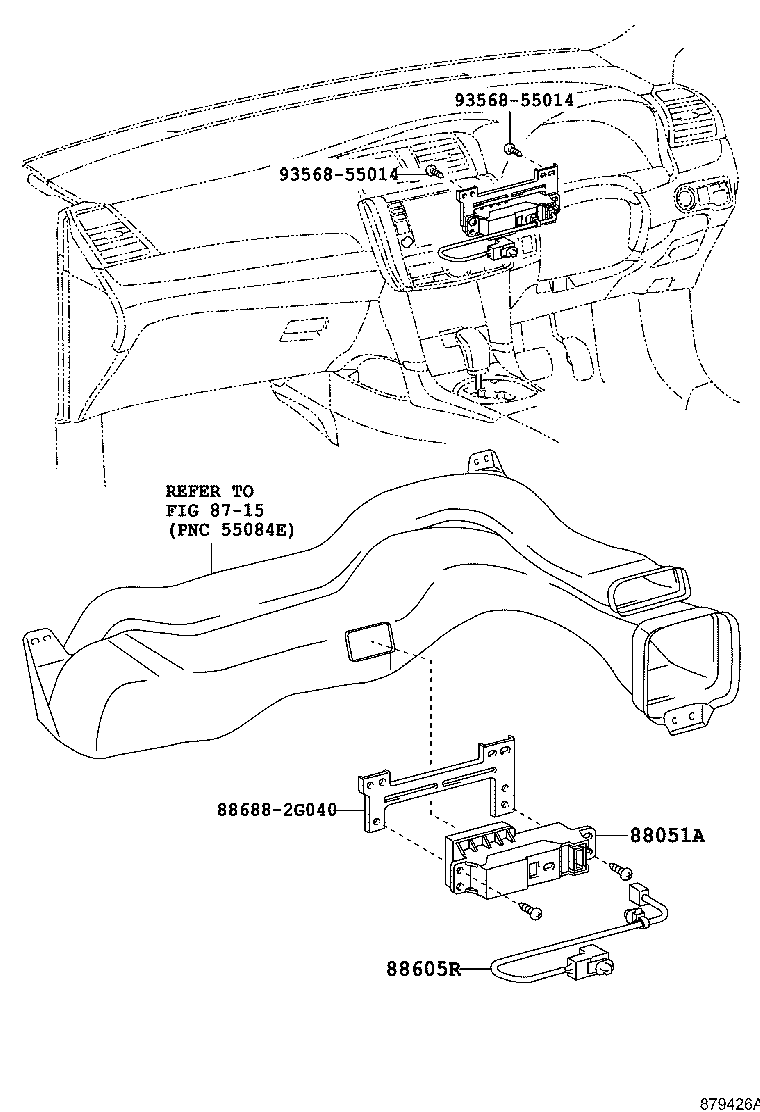

diagram 8715 88051A 88605R 886882G040 9356855014 9356855014
Part # Description Qty Price
88051A - GENERATOR SUB-ASSY,ION
88051-12010

NZT260,ZRT26#..CBU

有り(除菌ｲｵﾝ&ﾏｲﾅｽｲｵﾝ発生装置)

 1
88605R - HARNESS SUB-ASSY, AIR PURIFIER
88648-20010

NZT260,ZRT26#..CBU

有り(除菌ｲｵﾝ&ﾏｲﾅｽｲｵﾝ発生装置)

 1
Common parts
88688-2G040
93568-55014
Linked diagrams
8715
